    GX660 LCD trouble. Need pro help!

    Discussion in 'MSI' started by G.F.Y., Aug 11, 2011.

  1. G.F.Y.

    G.F.Y. Notebook Geek

    Reputations:
    8
    Messages:
    94
    Likes Received:
    0
    Trophy Points:
    15
    (making it's own thread. )

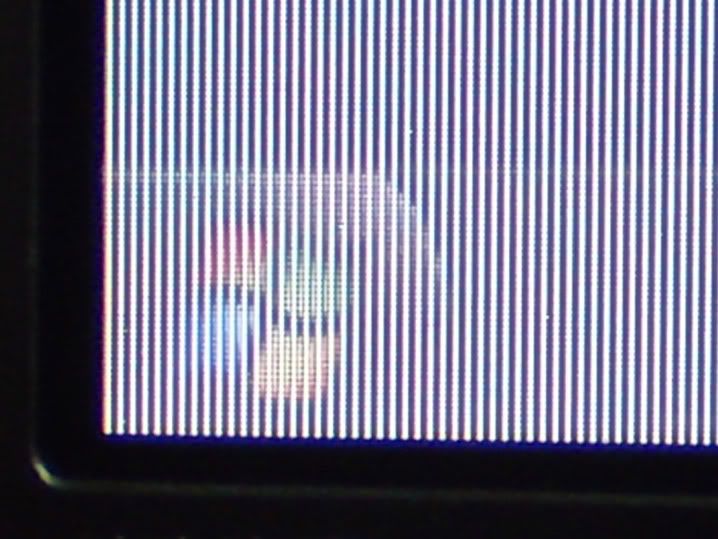

    Ok guys, need some help. I just installed the AUO B156HW01 V5, installed it, turned my msi GX660 (non R) on, and then now the screen looks like it's washed grey. The thing still displays properly, all except that upon closer inspection, the rows of pixels are "lit" alternately. like IxIxIxIxIx where in a normal screen is IIIIIIII

    Get what I mean?

    I can set the resolution to 1080p and the refresh rate to 60hz and everything.


    This behaviour also happens when I tried to swap in my 1080p screen from my hp envy 15. But when I reinstall my 1336 x 768 screen, it works fine.

    Any thoughts? Thanks.

    [​IMG]

    G.F.Y., Aug 11, 2011
    #1
  2. Holic

    Holic Notebook Guru

    Reputations:
    4
    Messages:
    51
    Likes Received:
    0
    Trophy Points:
    15
    Im not a pro....but it seems like a loose connection in the screens flex....something similar happened to my old 22 inch monitor when i took it apart..

    Holic, Aug 11, 2011
    #2
  3. Meaker@Sager

    Meaker@Sager Company Representative

    Reputations:
    9,436
    Messages:
    58,194
    Likes Received:
    17,902
    Trophy Points:
    931
    You need to get the dual channel LVDS cable obviously.

    Meaker@Sager, Aug 11, 2011
    #3
  4. G.F.Y.

    G.F.Y. Notebook Geek

    Reputations:
    8
    Messages:
    94
    Likes Received:
    0
    Trophy Points:
    15
    I was about to ask about that. :)

    +rep to you meaker for clarifying things!

    Now where do I get one of those for my gx660? thanks. :D

    G.F.Y., Aug 11, 2011
    #4
  5. qloony

    qloony Notebook Guru

    Reputations:
    4
    Messages:
    72
    Likes Received:
    1
    Trophy Points:
    16
    @gfy

    do tell me when you find the cable, im worried ill have the same problem as yours when my v4 comes

    thanks

    qloony, Aug 11, 2011
    #5
  6. G.F.Y.

    G.F.Y. Notebook Geek

    Reputations:
    8
    Messages:
    94
    Likes Received:
    0
    Trophy Points:
    15
    @qloony

    Aye, will do. I sent an email to gentechpc (hoping they have parts) and RK computers. Oh boy,i should have foreseen needing a cable.

    G.F.Y., Aug 11, 2011
    #6
