    Current limit throttling

    Discussion in 'MSI' started by Bullzz, Feb 25, 2018.

  1. Bullzz

    Bullzz Notebook Enthusiast

    Reputations:
    5
    Messages:
    44
    Likes Received:
    14
    Trophy Points:
    16
    Hi,

    just overclocke my GT73VR 6RT a little bit.

    Unfortunately, I always get a Current Limit Throttling. On the internet I found a screenshot where you can find a setting called "processor current limit" in Amper
    http://forum.notebookreview.com/threads/alienware-17-4930mx-current-limit-throttling.787679/

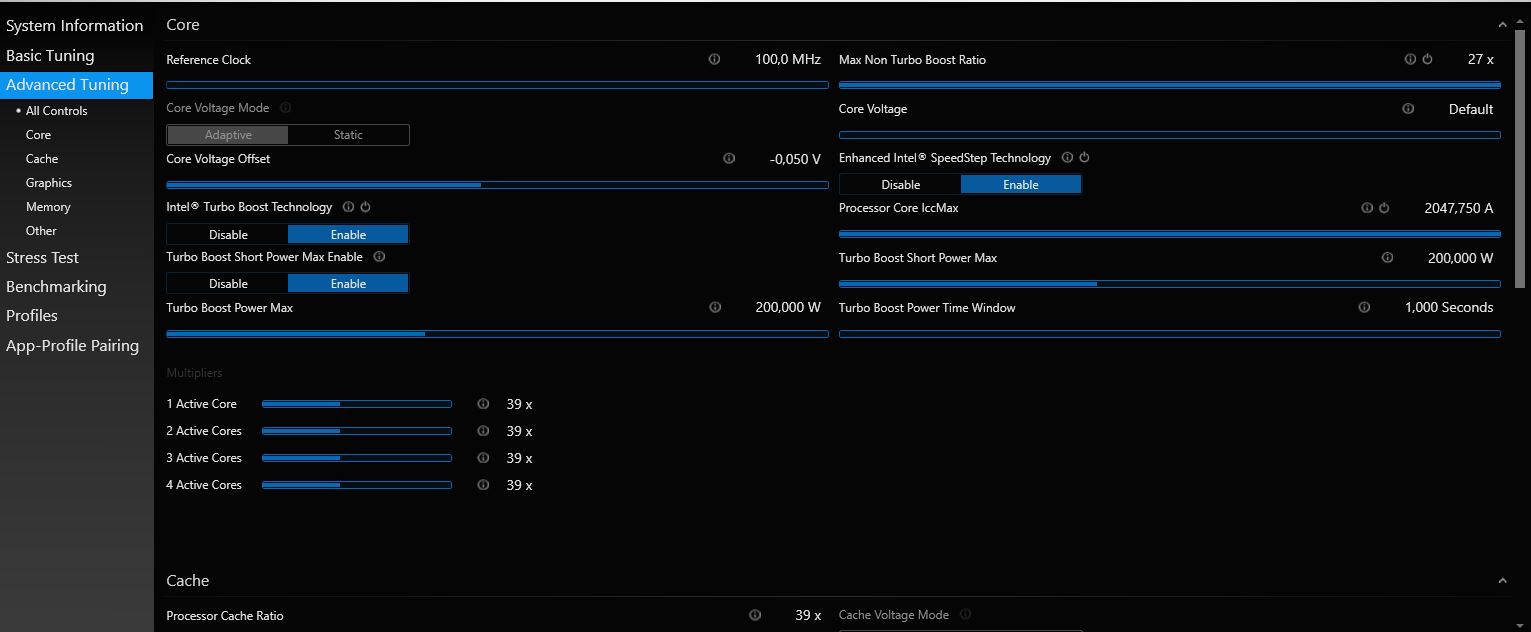

    Have screenshot attached to me. Unfortunately, I don't have that attitude. My processor is a 6820K. Test straight 4x39 Multi with 39x chache and -60mv offset. There is the sweet spot where this doesn't happen anymore.


    Attached Files:

    Bullzz, Feb 25, 2018
    #1
  2. Falkentyne

    Falkentyne Notebook Prophet

    Reputations:
    8,396
    Messages:
    5,992
    Likes Received:
    8,633
    Trophy Points:
    681
    Hi @Bullzz
    your problem is the 2047A setting.
    Your Bios has a maximum cap of 250 amps.
    if you go higher than this, it will "reset" it back to default. I am not sure if it keeps looping like that or not.
    So sets your Amps in intel XTU to 250 and do not go higher.

    In the system Bios, this is equal to a value of "1000" for "CPU VR Current Limit" or ICCMax, since this is divided by 4 (=250 amps) from the Bios raw value.
    Hope you can understand my English.

    tl;dr: never max out the sliders in XTU.
    One time I got BSOD when I tried setting power limit 1 and 2 to unlimited (Bios maximum is 511 (raw value=500).

    Falkentyne, Feb 25, 2018
    #2
    greninga and thattechgirl_viv like this.
  3. andy marchi

    andy marchi Notebook Enthusiast

    Reputations:
    40
    Messages:
    33
    Likes Received:
    24
    Trophy Points:
    16
    setting your " current vr limit to 800" should fix it. what @Phoenix recommended. @Falkentyne why would you set it to 1000, any benefits over 800?

    andy marchi, Feb 28, 2018
    #3
  4. Falkentyne

    Falkentyne Notebook Prophet

    Reputations:
    8,396
    Messages:
    5,992
    Likes Received:
    8,633
    Trophy Points:
    681
    1000 is the highest limit. Going higher resets it to auto.
    The OC menu allows you to go higher than 1000, but the (unlocked bios): CPU VR settings->Core I/A Domain ICCMax has a limit of 1000 here. Seems to be a bios programming bug.

    Falkentyne, Feb 28, 2018
    #4
  5. andy marchi

    andy marchi Notebook Enthusiast

    Reputations:
    40
    Messages:
    33
    Likes Received:
    24
    Trophy Points:
    16
    what do you runs yours at. i just set mine to 1000 from 800,seems stable and ok

    andy marchi, Feb 28, 2018
    #5
  6. Falkentyne

    Falkentyne Notebook Prophet

    Reputations:
    8,396
    Messages:
    5,992
    Likes Received:
    8,633
    Trophy Points:
    681
    800 or 1000. You can't even pull more than 150 amps from these CPUs anyway, so a 200 amp (800 divided by 4=200) limit is more than enough.

    Falkentyne, Feb 28, 2018
    #6
  7. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,614
    Messages:
    23,562
    Likes Received:
    36,872
    Trophy Points:
    931
    please do not mention me if there is nothing for me to do. You can simply say Phoenix without the @ sign. I have over 300 mentions per day dude.
