    BIOS CHIP LOCATION? MSi GX660 MS16F1

    Discussion in 'MSI' started by UltraGSM, Dec 13, 2014.

  1. UltraGSM

    UltraGSM ...so many Alienwares...

    Reputations:
    714
    Messages:
    1,629
    Likes Received:
    431
    Trophy Points:
    101

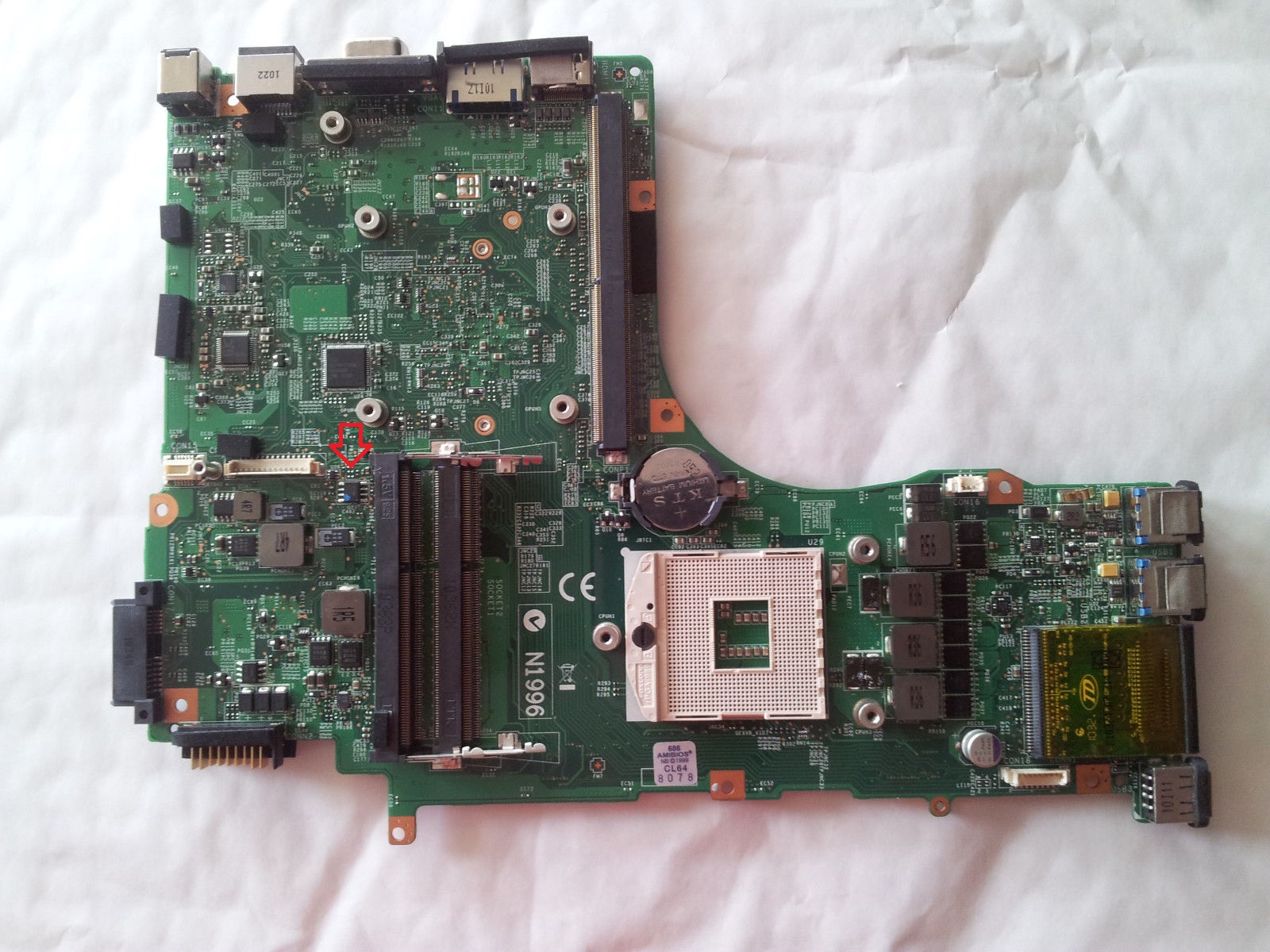

    need to ask for some help folks, highly appreciated. Trying to locate this bios chip on motherboard, can anyone point it out?




    Attached Files:

    • $_57.JPG
      File size:
      404.9 KB
      Views:
      1,589
    UltraGSM, Dec 13, 2014
    #1
  2. Prema

    Prema Your Freedom, Your Choice

    Reputations:
    9,368
    Messages:
    6,297
    Likes Received:
    16,485
    Trophy Points:
    681
    One is BIOS, one ME and one EC. The 4MB one is the BIOS, just check the label. ;)


    Attached Files:

    • $_57.jpg
      File size:
      265.9 KB
      Views:
      775
    • $_57.JPG
      File size:
      481.9 KB
      Views:
      907
    Prema, Dec 13, 2014
    #2
    UltraGSM likes this.
  3. UltraGSM

    UltraGSM ...so many Alienwares...

    Reputations:
    714
    Messages:
    1,629
    Likes Received:
    431
    Trophy Points:
    101
    Damn... wonder if only reflashing bios chip removed from mobo or replacing with fresh one from 3bay would work

    UltraGSM, Dec 13, 2014
    #3
