    LG P1 re-assembly help!

    Discussion in 'LG' started by glenb83, Jan 6, 2010.

  1. glenb83

    glenb83 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Hi all,

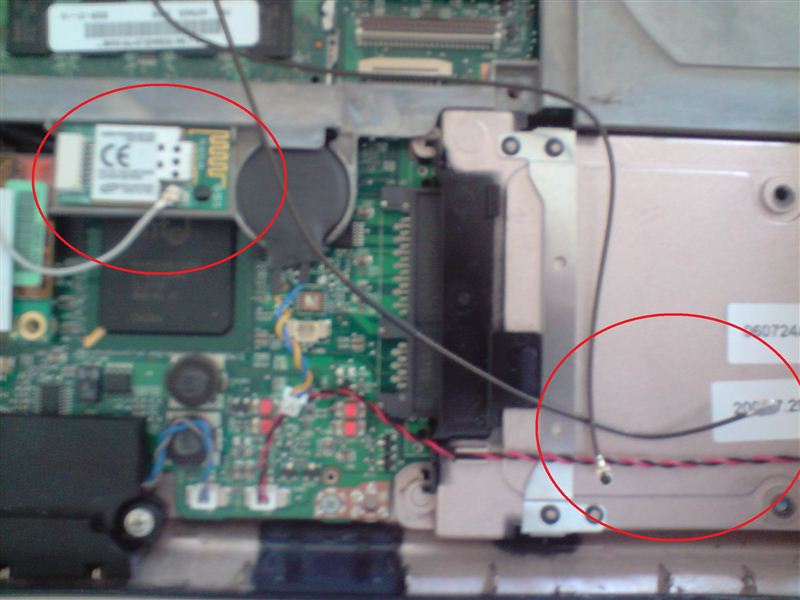

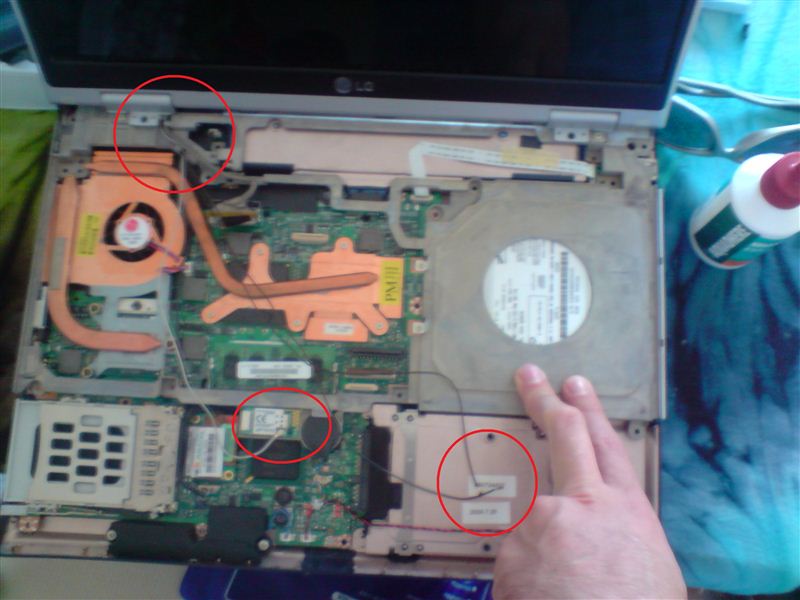

    I have just finished replacing the DC jack on my LG P1 laptop, and whilst re-assembling, I have 3 cables that I have no idea where they go! Normally it is fresh in my mind where everything reconnects but in this case I had to wait 3 weeks for delivery of the part and have no idea where these cables go!! I have attached an image of the cables and hope SOMEONE out there knows where they go. They are 3 fine cables coming from the LCD assembly circled in the image (1x white, 2x brown). I have connected the white cable where I think it goes (as shown in the picture) and have the 2 brown cables circled in the pictures also.

    I really want to get this back together and hope someone can help! Thanks in advance


    Attached Files:

    glenb83, Jan 6, 2010
    #1
