    HELP! Horrible battery life, erratic CPU usage, 30-40 watts used!!

    Discussion in 'Lenovo' started by isnice23, Aug 14, 2011.

  1. isnice23

    isnice23 Notebook Enthusiast

    Reputations:
    0
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15
    Brand new X220

    Fresh install of Windows 7 Pro 64 bit.

    Up to date on Lenovo drivers and Windows drivers. .

    What the hell is causing this???

    Please advise

    isnice23, Aug 14, 2011
    #1
  2. isnice23

    isnice23 Notebook Enthusiast

    Reputations:
    0
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15
    FYI, that's when it was on battery only.

    Now, plugged back in, CPU usage is 2-6% add idle and power used is 10-25 watts. . .

    not sure if this narrows anything down. . .

    isnice23, Aug 14, 2011
    #2
  3. thetoast

    thetoast Notebook Evangelist

    Reputations:
    70
    Messages:
    364
    Likes Received:
    0
    Trophy Points:
    30
    Haven't you looked at what processes are active during that behavior? In task manager...

    thetoast, Aug 14, 2011
    #3
  4. isnice23

    isnice23 Notebook Enthusiast

    Reputations:
    0
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15
    Yes, processes from all user total 83. All looks legit to me. . .

    isnice23, Aug 14, 2011
    #4
  5. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,842
    Likes Received:
    2,172
    Trophy Points:
    581
    It looks as if Speedstep is being disabled when you switch to battery.

    1. Make sure that you are using the latest BIOS, Lenovo Power Manager driver and Lenovo Power Manager software.

    2. Run HWiNFO32 and enable Sensors to get a second opinion on power consumption. It will also show the CPU speed.

    John

    John Ratsey, Aug 14, 2011
    #5
  6. isnice23

    isnice23 Notebook Enthusiast

    Reputations:
    0
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15
    1. Yes for both PM driver and software. Also, on BIOS 1.20

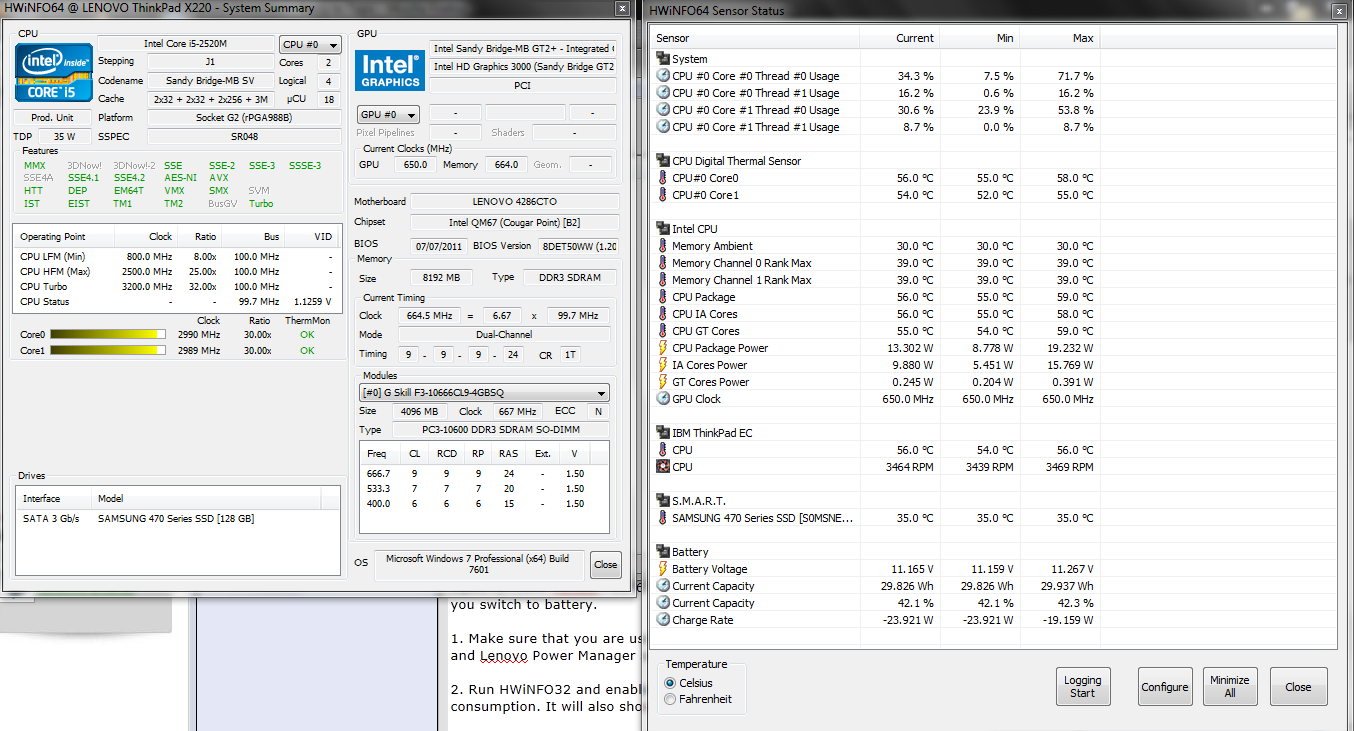

    2. See attached, what looks concerning. . . ?


    isnice23, Aug 14, 2011
    #6
  7. John Ratsey

    John Ratsey Moderately inquisitive Super Moderator

    Reputations:
    7,197
    Messages:
    28,842
    Likes Received:
    2,172
    Trophy Points:
    581
    Firstly, I have edited the tags on your image to specify a display size (image="size", etc), otherwise it's a bit big for people with smaller screens.

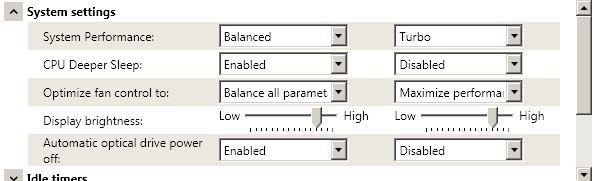

    What settings are you using in Power Manager? Maximum Turbo seems to keep the CPU running at full speed even if there's no work to do. My own settings are:

    [​IMG]

    John

    John Ratsey, Aug 14, 2011
