    From X301 to X200S: HDD compatibility

    Discussion in 'Lenovo' started by fchurtic, Nov 30, 2009.

  1. fchurtic

    fchurtic Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Hi, I have an X301 with a 128GB SSD, which I like but that I find too large for my taste. I am thinking on purchasing an X200S. Question: Could I just swap my HD into the X200S, upgrade some drivers and be ready to go? :confused:
    Thanks
    Francisco

    fchurtic, Nov 30, 2009
    #1
  2. JaneL

    JaneL Super Moderator

    Reputations:
    3,340
    Messages:
    1,088
    Likes Received:
    182
    Trophy Points:
    81
    Well, I tried swapping the SSD from my X300 into my X200 tablet a few weeks ago when I dumped a glass of water into the X300. I got a BSOD. YMMV with the X200s, though. I didn't work very hard to try to solve the incompatability.

    The X300 is fine, BTW. Love the drain holes.

    JaneL, Nov 30, 2009
    #2
  3. erik

    erik modifier

    Reputations:
    3,647
    Messages:
    1,610
    Likes Received:
    2
    Trophy Points:
    55
    jane - that's most likely because you went from a GM965 to a GM45 chipset.   the chipset, controller, and video drivers would be quite different.   the X301's installation has a much better chance of working in an X201 without many complaints.

    the main thing needed would be a 1.8" to 2.5" storage adapter since the X201 takes bigger drives.

    erik, Nov 30, 2009
    #3
  4. jonlumpkin

    jonlumpkin NBR Transmogrifier

    Reputations:
    826
    Messages:
    3,240
    Likes Received:
    0
    Trophy Points:
    105

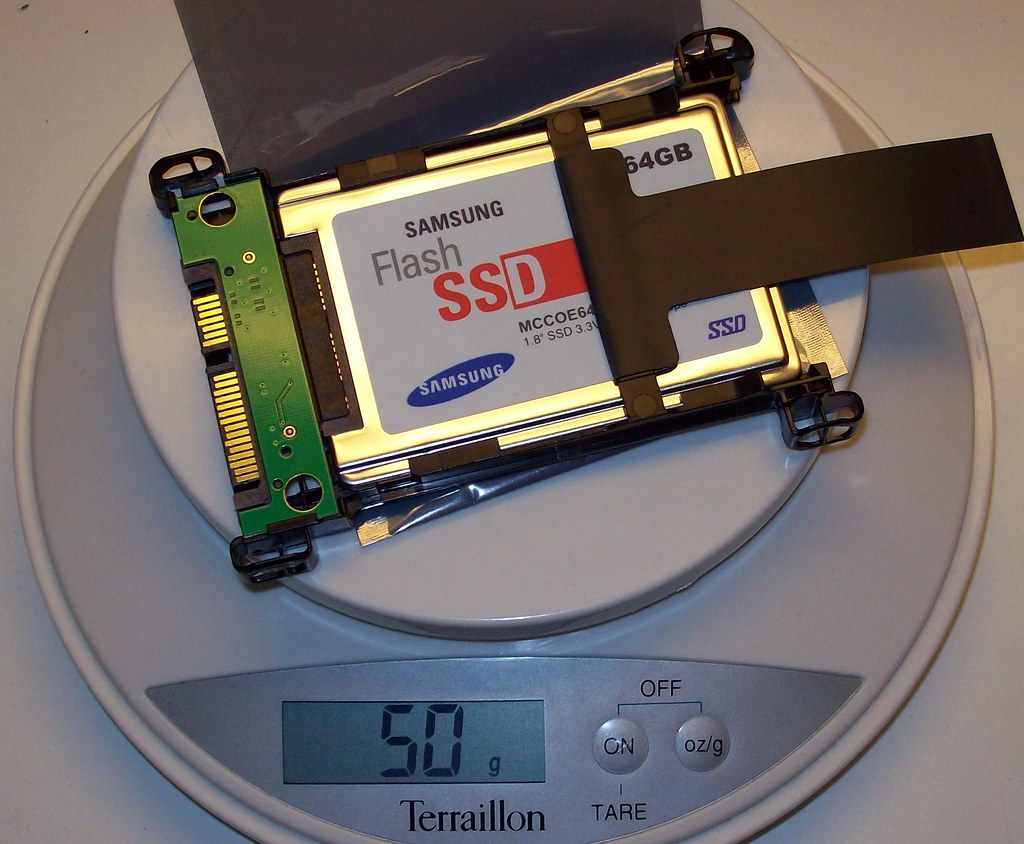

    You'll need FRU 42W8019 (below) to mount the SSD in an x200s. However, it should work without too much trouble (although you'll probably need to reactivate Windows due to the system change).

    [​IMG]

    jonlumpkin, Nov 30, 2009
    #4
