    660m overclocking/boosting

    Discussion in 'Lenovo' started by craterboy1, Jul 7, 2012.

  1. craterboy1

    craterboy1 Notebook Enthusiast

    Reputations:
    0
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    Has anyone here had any luck getting the 660m to boost or overclock? The clocks don't seem to boost to 950mhz even when its not even hot.

    craterboy1, Jul 7, 2012
    #1
  2. Nahrai

    Nahrai Notebook Enthusiast

    Reputations:
    27
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15
    Do you use max setting in Lenovo energy manager ? Because it's going turbo to 950 Mhz for sure, checked it myself.

    Nahrai, Jul 7, 2012
    #2
  3. Draghmar

    Draghmar Notebook Consultant

    Reputations:
    13
    Messages:
    157
    Likes Received:
    0
    Trophy Points:
    30
    Yeah, I can confirm this. I've tested this just yesterday.

    Draghmar, Jul 7, 2012
    #3
  4. craterboy1

    craterboy1 Notebook Enthusiast

    Reputations:
    0
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    thanks guys! I didn't know you had o set it to lenovo dynamic setting to enable boosting!. Btw with MSI afterburner you can get it boosted to 1085mhz on the core

    craterboy1, Jul 7, 2012
    #4
  5. Syed117

    Syed117 Notebook Consultant

    Reputations:
    34
    Messages:
    127
    Likes Received:
    0
    Trophy Points:
    30
    How about if you don't install the Lenovo energy management software? I never bothered to install it after my clean install.

    Syed117, Jul 7, 2012
    #5
  6. craterboy1

    craterboy1 Notebook Enthusiast

    Reputations:
    0
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    You should! It actually works really well. Otherwise I don't know

    craterboy1, Jul 7, 2012
    #6
  7. Syed117

    Syed117 Notebook Consultant

    Reputations:
    34
    Messages:
    127
    Likes Received:
    0
    Trophy Points:
    30
    When I start up afterburner, my clock says 835. As soon as I launch a game, it jumps to 950.

    Not using the lenovo energy software. Don't see a need to. In fact, it seems like it's worse since you have to run it on the max setting to enable the gpu to run at full power. Without it, just using the windows power control, even at the balanced settings, the gpu kicks in at the full 950 when it's supposed to.

    First image is Diablo 3 running windowed and I have clicked outside the game window. The gpu immediately throttles.
    [​IMG]

    Second image is clicked in the game window making it active. The gpu immediately goes to the full 950. These shots are taken on the balanced power setting.
    [​IMG]

    Syed117, Jul 8, 2012
    #7
  8. Draghmar

    Draghmar Notebook Consultant

    Reputations:
    13
    Messages:
    157
    Likes Received:
    0
    Trophy Points:
    30
    I too don't use this software. I just changed Windows settings to max performance.

    Draghmar, Jul 8, 2012
    #8
  9. Nahrai

    Nahrai Notebook Enthusiast

    Reputations:
    27
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15
    Nahrai, Jul 10, 2012
    #9
  10. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Download nvidia inspector and click unlock max. But for more voltage you need a modded vBIOS

    This notebook seems interesting

    Mobius 1, Jul 10, 2012
    #10
  11. Nahrai

    Nahrai Notebook Enthusiast

    Reputations:
    27
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15
    Nope, can't even with nvidia inspector, can't click on unlock max

    Nahrai, Jul 10, 2012
    #11
  12. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Hmm, do you have proper drivers installed? Did you click on "show overclocking"?

    Mobius 1, Jul 11, 2012
    #12
  13. Nahrai

    Nahrai Notebook Enthusiast

    Reputations:
    27
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15
    304.79, yup clicked, it's just not possible to click on unlock max or unlock min, it's greyed out, can show you screen when i return home. I think +135 MHz is set limit, don't 650M have the same problem and the limit was removed by modded vbios?

    Nahrai, Jul 11, 2012
    #13
  14. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Lol, the 650M is a non-MXM part, so it should be very hard to mod the vBIOS to do that. Moreover in an apple laptop :p (mbp retina)

    The 660M though has a dedicated BIOS chip that isn't tied to the system BIOS. Modding would be easier than the 650M.

    Hmm, that's strange, normally the "unlock max" always works, weird.

    Mobius 1, Jul 11, 2012
    #14
  15. Nahrai

    Nahrai Notebook Enthusiast

    Reputations:
    27
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15

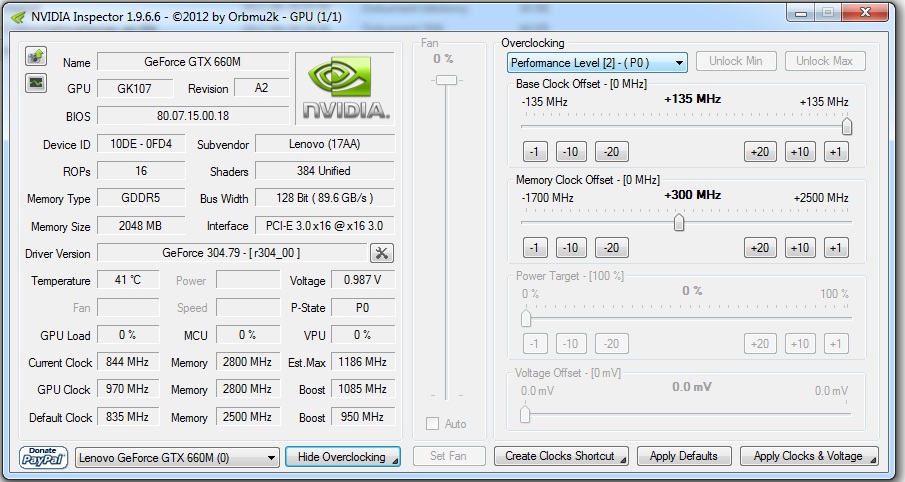

    Here is the screen.


    Attached Files:

    Nahrai, Jul 11, 2012
    #15
  16. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Aw man, that sucks.

    Try using MSi afterburner and EVGA precision.

    If that doesn't work I have to consult Guru3D forums, which will take a while...

    @_@

    EDIT: as a last measure, try the beta drivers too http://www.guru3d.com/news/nvidia-geforce-30479-beta-download-/

    Make sure you use the "complete wipe" method instead of juts running the nvidia installer

    Mobius 1, Jul 11, 2012
    #16
  17. Nahrai

    Nahrai Notebook Enthusiast

    Reputations:
    27
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15
    I am using those Beta Drivers already, installed them just after clean windows install. I tried both EVGA Precision and MSI Afterburner before also.

    Nahrai, Jul 11, 2012
    #17
  18. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Aw man, I guess I'll head over to Guru 3D and see what they can do about the RivaTuner software

    EDIT: Try this: http://www.overclock.net/t/1267918/...-disable-boost-fixed-clock-speed-undervolting

    Instead of typing: nvidiaInspector.exe -forcepstate:0,2

    Type: nvidiaInspector.exe -forcepstate:0,1

    Mobius 1, Jul 11, 2012
    #18
  19. Nahrai

    Nahrai Notebook Enthusiast

    Reputations:
    27
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15
    Not worked same as described there, because I couldn't get memory clocl more than stock, but i increased core much higher :
    NVIDIA GeForce GTX 660M video card benchmark result - Intel Core i5-3210M Processor,LENOVO Product Name score: P2949 3DMarks - 1200 MHz Core i 1250(2500) MHz Memory.
    NVIDIA GeForce GTX 660M video card benchmark result - Intel Core i5-3210M Processor,LENOVO Product Name score: P3019 3DMarks - 1230 MHz Core i 1250(2500) MHz Memory.
    I also needed to type "forcepstate:0,5" otherwise it didn't work, because it's this "P5" am i right ?


    Attached Files:

    Nahrai, Jul 11, 2012
    #19
  20. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Sorry for not understanding, but I'm happy for you that you can OC higher than before

    Once again, sorry, I don't have the 660M/kepler based card lol :p

    Mobius 1, Jul 11, 2012
    #20
  21. Nahrai

    Nahrai Notebook Enthusiast

    Reputations:
    27
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15
    Nahrai, Jul 11, 2012
    #21
  22. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Mobius 1, Jul 12, 2012
    #22
  23. Nahrai

    Nahrai Notebook Enthusiast

    Reputations:
    27
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15
    Didn't check that OC on real stress test, so can't say, i only run 3dmark11 for points and check if there are artifacts. Probably the stable OC will be lower than the one I did, but for now there is not real need for me to check this, since i will stick for now to +135/+300, because that's enough for me and on this OC there is no Throttle, checked it with Prime95+Furmark 1h, temp. are decent(~77 on GPU, ~85 on CPU, but i used cooling pad).

    Nahrai, Jul 12, 2012
    #23
  24. plarmann

    plarmann Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Hello Nahrai,
    How did you end up getting it to work? I tried it on my g75vw, but I can't seem to unlock the max.
    Could you explain it to me?
    Thanks.

    plarmann, Jul 12, 2012
    #24
  25. Nahrai

    Nahrai Notebook Enthusiast

    Reputations:
    27
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15
    Hey,
    I used an idea from this guide, but a bit diffrent [GUIDE] Nvidia Inspector GTX670/680 - disable boost / fixed clock speed / undervolting

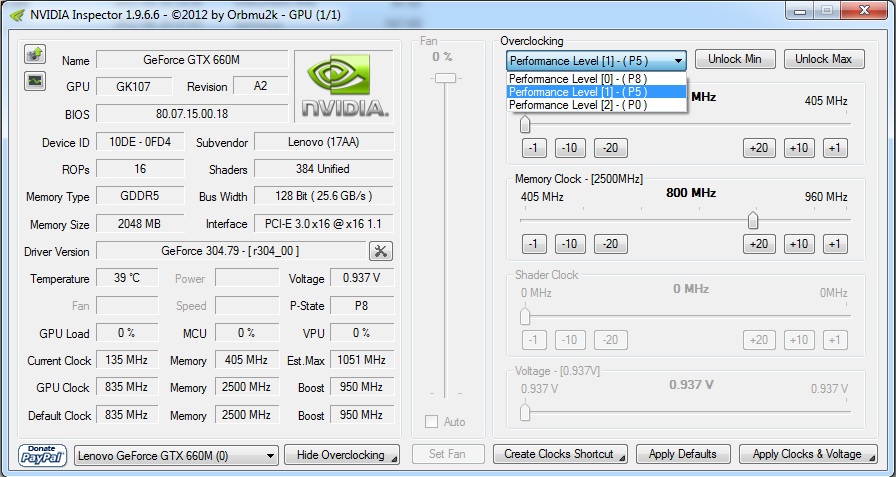

    First of course you need Nvidiainspector, then it's best to check which P states you have for me it was P5 :
    [​IMG]
    So P0 it's high end with turbo mode, P5 is the one we want to change, number may differ in your card.
    So by using cmd you go to nvidiainspector folder and write this line there :
    "nvidiainspector.exe -forcepstate:0,5" - which basically means that you graphic card will always have clocks in P5.
    Now you open nvidiainspector and change clocks for P5, at default they are 405 MHz Core and 800 MHz memory, of course to increase them you need to click "Unlock max" first. You can overclock that way core clock without the problem, but with memory clock, if you go for more than stock clock(2500), then it will revert back. This is because memory clock in P5 is linked with Memory clock in P0, to overclock memory you need first to increase memory clock in P0, for example increase it to 2800 MHz, then you will be able to increase memory clocks in P5 above 2500 up to 2800.
    After turning off comp the settings will be lost i think(Forcing P5 state), so you will probably need to do the bat file like they did in linked guide.
    I hope my chaotic explenation will help, but if there still be problem, then i can try doing some screenshots from each step.

    Nahrai, Jul 12, 2012
    #25
  26. feelseasy

    feelseasy Notebook Guru

    Reputations:
    5
    Messages:
    58
    Likes Received:
    5
    Trophy Points:
    16
    Thx Nahrai, i was using the same method but couldn't oc the memory. Now I can, yay.

    feelseasy, Jul 14, 2012
    #26
  27. Syed117

    Syed117 Notebook Consultant

    Reputations:
    34
    Messages:
    127
    Likes Received:
    0
    Trophy Points:
    30
    So running the 295.93 drivers, I can adjust the core and memory speeds. however when I check with afterburner, despite saying that it's been overclocked, it's not actually running at those higher clocks.

    Is this because the stock Lenovo drivers wont let me overclock?

    Syed117, Jul 14, 2012
    #27
  28. Nahrai

    Nahrai Notebook Enthusiast

    Reputations:
    27
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15
    Had same problem on those drivers, that's why i installed new drivers. I hope they will release stable drivers soon :D

    Nahrai, Jul 15, 2012
    #28
  29. AlwaysSearching

    AlwaysSearching Notebook Evangelist

    Reputations:
    164
    Messages:
    334
    Likes Received:
    15
    Trophy Points:
    31
    Thanks +rep on changing memory clock.

    AlwaysSearching, Jul 16, 2012
    #29
  30. AnimalMother

    AnimalMother Notebook Evangelist

    Reputations:
    35
    Messages:
    387
    Likes Received:
    9
    Trophy Points:
    31
    Hey guys, on my y580 there is a 660m.
    I want to OC it. Safely can be done here right with techpowerup gpu z and using this as a guide NVIDIDA GTX 660m overclock core +135 limit

    Gtx 285
    Ddr2 4gb
    Intel q6600

    AnimalMother, Aug 20, 2012
    #30
  31. AnimalMother

    AnimalMother Notebook Evangelist

    Reputations:
    35
    Messages:
    387
    Likes Received:
    9
    Trophy Points:
    31
    Anyone know?

    AnimalMother, Aug 21, 2012
    #31
  32. danielchow

    danielchow Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hi everyone, what's your stable core/memory ? I was at +115/+200 and Max Payne3 kept crashing throughout the cut scenes. It runs fine on furmark though.

    danielchow, Aug 23, 2012
    #32
  33. AnimalMother

    AnimalMother Notebook Evangelist

    Reputations:
    35
    Messages:
    387
    Likes Received:
    9
    Trophy Points:
    31
    I ran a BF3 on my Y580 with Core 130+ / Mem +300(Some do 400)
    It seemed fine.

    What are you using?

    AnimalMother, Aug 23, 2012
    #33
  34. danielchow

    danielchow Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    MSI Afterburner and the beta driver 304.79. What about you?

    danielchow, Aug 23, 2012
    #34
  35. AnimalMother

    AnimalMother Notebook Evangelist

    Reputations:
    35
    Messages:
    387
    Likes Received:
    9
    Trophy Points:
    31
    The same, I stopped OC'ing it though. No real need to on BF3 it runs the settings pretty good.

    AnimalMother, Aug 25, 2012
    #35
  36. be77solo

    be77solo pc's and planes

    Reputations:
    1,460
    Messages:
    2,631
    Likes Received:
    306
    Trophy Points:
    101
    Thanks for the help and information here! I was a bit confused with the settings for my 660 but you helped tremendously, along with Mobius' other thread. Sorry to bump an old thread but the 660 is new to me :thumbsup:

    be77solo, Dec 30, 2012
    #36
  37. mhp32

    mhp32 Notebook Consultant

    Reputations:
    15
    Messages:
    184
    Likes Received:
    24
    Trophy Points:
    31
    There might be a vbios mod soon >>> HERE

    mhp32, Dec 31, 2012
    #37
  38. Schtoo

    Schtoo Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5
    1150MHz on gpu, 2600MHz on memory seems to be rock solid on mine, and while the temp does climb, it does so slowly and never seems to breach 70°C

    NVIDIA GeForce GTX 660M video card benchmark result - Intel Core i7-3610QM Processor,LENOVO Product Name score: P3025 3DMarks

    Says 2900MHz on the RAM there, but doesn't seem to make much, if any difference so I wound it back to a more sensible level.

    No point pushing it any further for my modest needs.

    Stu.

    Schtoo, Dec 31, 2012
    #38
  39. edwardamin13

    edwardamin13 Notebook Consultant

    Reputations:
    42
    Messages:
    187
    Likes Received:
    16
    Trophy Points:
    31
    Hi guys, sorry for bringing back old thread.
    I manage to did everything Nahrai did on my 660m Y580. I can change the core clock and memory clock as I like. I managed 1200/2700. The .dat batch file, everything work.

    But then I wipe my driver clean and reinstall it again. It is the same version, 334.67 Beta. Everything went well but now my overclock.dat doesnt work. It downclock me to 405/800 instead. My default.bat can go 1000/2500 and I can change the memory clock as I like but not the core clock. Anyone have any idea why the overclock.dat now doesnt work?

    [GUIDE] Nvidia Inspector GTX670/680 - disable boost / fixed clock speed / undervolting
    http://forum.notebookreview.com/gaming-software-graphics-cards/677169-nvidia-mobile-kepler-6xx-master-overclocking-guide-workaround-max-clocks-oc-stability.html

    These are the guide I used. I also have the Lenovo Dynamic Graphic.. Wonder why driver reinstall mess everything..

    edwardamin13, Feb 13, 2014
    #39
