    What are classes on SD cards?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Rambisco, Jan 24, 2012.

  1. Rambisco

    Rambisco Notebook Consultant

    Reputations:
    19
    Messages:
    262
    Likes Received:
    0
    Trophy Points:
    30
    All I know is it has to do with the speed and I/O. Lol, is higher better or lower? WHat's applicable for an android phone storage card?

  2. pukemon

    pukemon are you unplugged?

    Reputations:
    461
    Messages:
    2,551
    Likes Received:
    245
    Trophy Points:
    81
    it should be the speed of the minimum write speed. higher is faster. but higher doesn't mean better. not all cards/brands are created equal. and for instance, sandisks are usually reliable and perform above their quoted class speed. class 10 cards on micro sd's are kind of a gamble. not many perform up to the task and usually aren't very reliable.

  3. aznpos531

    aznpos531 Notebook Evangelist

    Reputations:
    457
    Messages:
    636
    Likes Received:
    1
    Trophy Points:
    31
    If you're using it in a phone you really won't need anything more than a class 4. Class 10 is wasted inside a phone. The only benefit from a class 10 is if you transfer files directly between the card and computer.

  4. __-_-_-__

    __-_-_-__ God

    Reputations:
    337
    Messages:
    1,864
    Likes Received:
    10
    Trophy Points:
    56
    the class thing is just marketing. search for real life benchmarks of read write. and beware of counterfeit cards.
    What a non sense to say class10 is wasted. I transfer at least 4gb of data each day. It would be painful if I hadn't a fast card.
    Random 4k reads are very important because cell phones are full of very very small files. so if you have a a slow card your apps will be slower. But if a card has a benchmark of let's say 20mb/s it doesn't mean it's faster in 4k then another card benchmarked at 10mb/s.
    Formating the card to an higher cluster size will also improve it's performance (and will also reduce a bit it's capacity).

  5. debguy

    debguy rip dmr

    Reputations:
    607
    Messages:
    893
    Likes Received:
    4
    Trophy Points:
    31
    I have Debian running from a 32GB microSD card on my smartphone and I wouldn't want to run that on a class 4 card.

  6. ramgen

    ramgen -- Morgan Stanley --

    Reputations:
    513
    Messages:
    1,322
    Likes Received:
    1
    Trophy Points:
    55

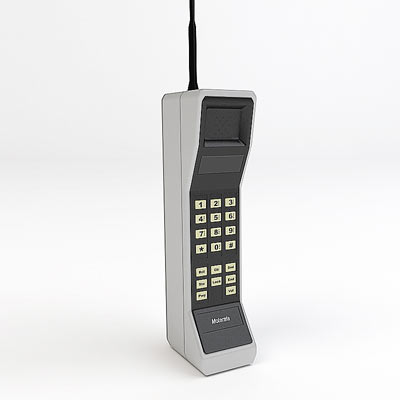

    Which phone are you using? Something like this?

    [​IMG]


    --

  7. Rambisco

    Rambisco Notebook Consultant

    Reputations:
    19
    Messages:
    262
    Likes Received:
    0
    Trophy Points:
    30
    Anyone know of a reliable fast-enough card who has hands on experience with it and a smartphone?

  8. ViciousXUSMC

    ViciousXUSMC Master Viking NBR Reviewer

    Reputations:
    11,461
    Messages:
    16,824
    Likes Received:
    76
    Trophy Points:
    466
    Class 6 or higher is what I go with, but even lower is fine for phone use unless your like planning to record HD movies or something.

    Often lower class cards out preform higher class cards in real life testing just due to how they handled random read/write vs continuous read/write and other factors.

  9. Syberia

    Syberia Notebook Deity

    Reputations:
    596
    Messages:
    1,611
    Likes Received:
    1
    Trophy Points:
    56
    I have a Samsung class 2 in my phone (no HD camera though) and a Sandisk class 4 in my nook (running CM7 entirely off of the card). Both are fast enough for the devices they are in.

  10. __-_-_-__

    __-_-_-__ God

    Reputations:
    337
    Messages:
    1,864
    Likes Received:
    10
    Trophy Points:
    56
    source: http://forums.whirlpool.net.au/archive/1582172

    source: Benchmark Results: Random Reads And Writes : Round-Up: 15 microSDHC Cards, Benchmarked And Reviewed

  11. aznpos531

    aznpos531 Notebook Evangelist

    Reputations:
    457
    Messages:
    636
    Likes Received:
    1
    Trophy Points:
    31
    The class 4 card I have in my phone works just fine for my uses. I had tried a class 10 card and I didn't notice any significant increase in performance. As such I sold it and stuck with the class 4. I simply can't justify the extra cost for my applications.

  12. __-_-_-__

    __-_-_-__ God

    Reputations:
    337
    Messages:
    1,864
    Likes Received:
    10
    Trophy Points:
    56
    like it was said. class thing is PURE MARKETING. just check the benchmarks. I've some class 4 cards that perform way better then class 10 ones.

  13. psychopomp1

    psychopomp1 Notebook Consultant

    Reputations:
    15
    Messages:
    129
    Likes Received:
    16
    Trophy Points:
    31
    Guys, is the 4GB Sandisk mobile ultra microSD card one of the best around for read speeds? (read speeds in spec up to 30mb/sec). I want to put full Great Britain 1:50k OS mapping on my newly acquired garmin extrex 30 gps and can only do this via a microsd card (not enough internal memory of gps) so want a card which has fast read speeds.

  14. Syberia

    Syberia Notebook Deity

    Reputations:
    596
    Messages:
    1,611
    Likes Received:
    1
    Trophy Points:
    56
    I'm running an OS (CM7) off of a Sandisk class 4 (32gb) card currently, and it doesn't run any differently than if I ran it off my tablet's internal storage. So I'd say you shouldn't have a problem. From what I've heard, Sandisk cards of any class are good at random read/write (4k >1mb/s, which is better than most hard drives), which is what you want if you're running an OS off of it.

  15. psychopomp1

    psychopomp1 Notebook Consultant

    Reputations:
    15
    Messages:
    129
    Likes Received:
    16
    Trophy Points:
    31
    Sorry I meant Ordnance Survey Mapping, not Operating System :eek:

  16. pukemon

    pukemon are you unplugged?

    Reputations:
    461
    Messages:
    2,551
    Likes Received:
    245
    Trophy Points:
    81
    i think sandisk doesn't print speeds on their cards anymore but you might be able to find the ones where they did print 2 and 4. it would be preferable if you got one printed with a 4. a bigger card might, keyword might perform better. nonetheless, if you do score one without a class be assured that it will probably run well beyond 4 except for smaller files. smaller files are the doozies. sandisk are usually very reliable cards i might add. i tend to get transcend or lexar cards for preference. transcend is a good all around performer and pretty reliable and has treated me well the last few years. lexar cards are usually faster than what they are rated but they're reliability sometimes suffers. i'd stay away from 10 class cards if speed isn't high priority. lexar would be the safest bet on that though.
