    What RAM is compatible with my notebook?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by Hadacard, Dec 7, 2007.

  1. Hadacard

    Hadacard Notebook Enthusiast

    Reputations:
    0
    Messages:
    13
    Likes Received:
    0
    Trophy Points:
    5
    I bought a laptop the other day which I'm just getting used to now. The only thing I wasn't entirely pleased about (for the price) was the fact that it only had 1GB RAM, although apparently it has the room that makes putting another stick in possible. This is my laptop:

    http://www.pcworld.co.uk/martprd/st...u=804558&page=Product&fm=null&sm=null&tm=null

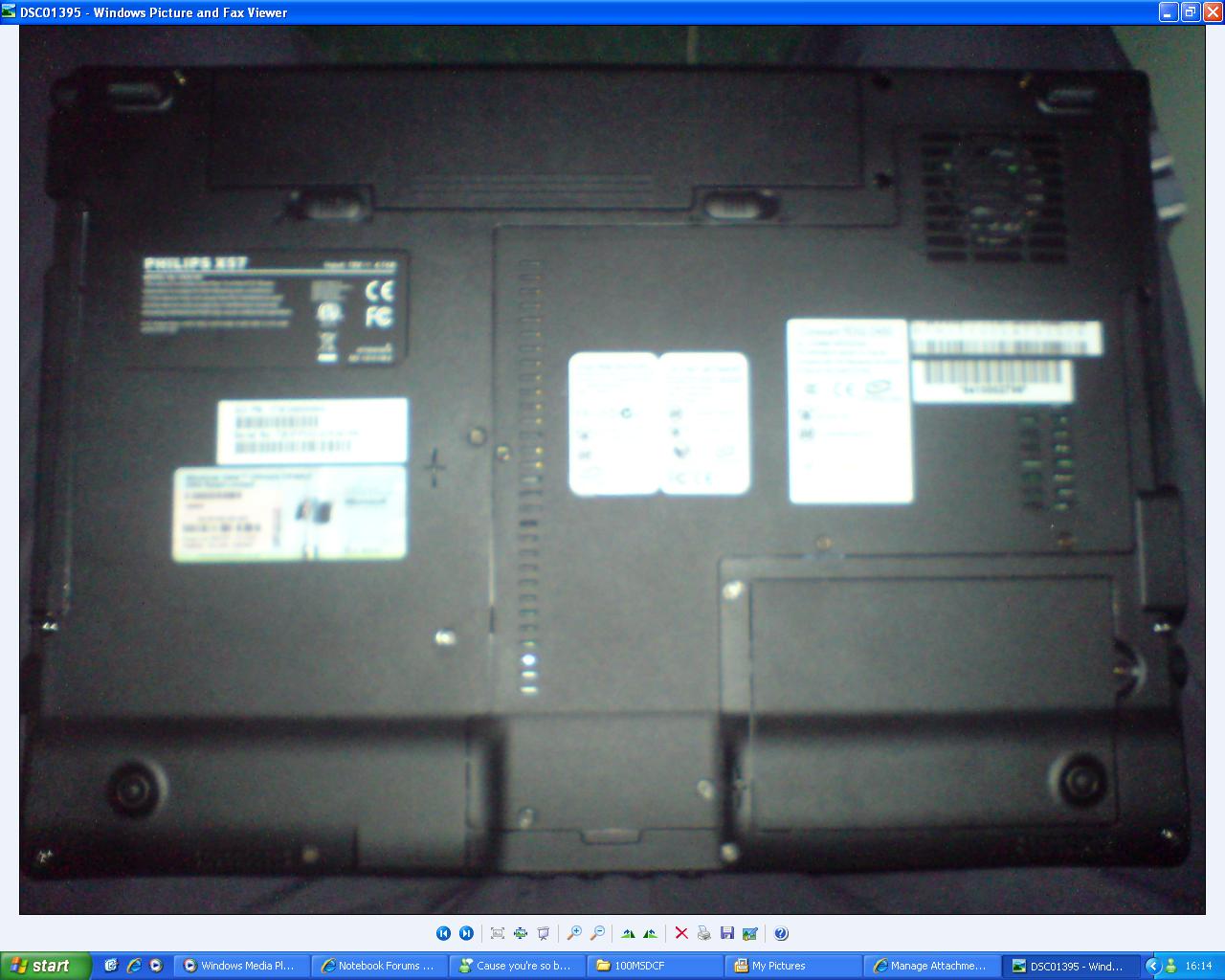

    I fully intend to buy another 1GB of RAM for my notebook but I'm not sure what kind of memory to buy/which sticks are compatible with my system. I'm posting to ask if someone could explain to me which sticks are compatible with my system, and possibly point me to retailers who sell them. I've attached a pic of the bottom view of my laptop so you can see the compartments.

    Thanks for reading.


    Attached Files:

    Hadacard, Dec 7, 2007
    #1
  2. David

    David NBR Random Reviewer NBR Reviewer

    Reputations:
    7,515
    Messages:
    8,733
    Likes Received:
    7
    Trophy Points:
    206
    You can't tell which ram you use (DDR or DDR2) just by looking at the bottom of the laptop. By the way, on the website you provided, it says your laptop uses DDR2, so if you want to upgrade your RAM, I'd suggest getting at least 2gb since the OS is Vista (3gb max for 32bit Vista).

    David, Dec 7, 2007
    #2
  3. K-TRON

    K-TRON Hi, I'm Jimmy Diesel ^_^

    Reputations:
    4,412
    Messages:
    8,077
    Likes Received:
    2
    Trophy Points:
    205
    Your laptop will run DDR2 PC5300 or PC4200 memory it does not matter which type. It will run at the 533mhz bus of the processor.

    K-TRON

    K-TRON, Dec 7, 2007
    #3
  4. Hadacard

    Hadacard Notebook Enthusiast

    Reputations:
    0
    Messages:
    13
    Likes Received:
    0
    Trophy Points:
    5
    Thanks for your replies. You say I should get 2 1GB sticks, but are you sure I have room for two sticks in there?!

    Hadacard, Dec 7, 2007
    #4
  5. guy121

    guy121 Notebook Enthusiast

    Reputations:
    0
    Messages:
    45
    Likes Received:
    0
    Trophy Points:
    15
    The processor is a T5500, which runs on a 667 bus speed. Unless there is something I don't know.

    So get some PC5300 or PC5400 (They are pretty much the same thing). Yes, there will be two slots for ram, as I don't think I've ever seen a computer without two slots. Even back in the 286 days. If both slots are not in the bottom of the computer, then there is one that is under the keyboard.

    guy121, Dec 7, 2007
    #5
  6. Hadacard

    Hadacard Notebook Enthusiast

    Reputations:
    0
    Messages:
    13
    Likes Received:
    0
    Trophy Points:
    5
    I mean ANOTHER two slots :p as I've already got one taken. As in have I got 3 slots for 3 1GB sticks.

    Hadacard, Dec 7, 2007
    #6
  7. David

    David NBR Random Reviewer NBR Reviewer

    Reputations:
    7,515
    Messages:
    8,733
    Likes Received:
    7
    Trophy Points:
    206
    Your laptop as only 2 slot compartments for RAM.
    Currently your ram configuration is either 2 x 512mb or 1 x 1gb

    To upgrade to 2gb you'll need a 2 x 1gb config
    For 3gb you'll need a (1 x 2gb) + (1 x 1gb) config.

    David, Dec 7, 2007
    #7
  8. Hadacard

    Hadacard Notebook Enthusiast

    Reputations:
    0
    Messages:
    13
    Likes Received:
    0
    Trophy Points:
    5
    Hadacard, Dec 7, 2007
    #8
  9. Tinderbox (UK)

    Tinderbox (UK) BAKED BEAN KING

    Reputations:
    4,740
    Messages:
    8,513
    Likes Received:
    3,823
    Trophy Points:
    431
    Hi.

    if you go to the crucial uk website, it will scan you computer and recommend upgrades that are guaranteed to work, also comes with free deliery.

    click here

    regards

    John.

    Tinderbox (UK), Dec 7, 2007
    #9
  10. Hadacard

    Hadacard Notebook Enthusiast

    Reputations:
    0
    Messages:
    13
    Likes Received:
    0
    Trophy Points:
    5
    Thanks very much mate, I've found what I want. Thanks again guys.

    Hadacard, Dec 7, 2007
    #10
