    WILL MY motherboard support 800 RAM frequency?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by aigle, Dec 30, 2008.

  1. aigle

    aigle Notebook Consultant

    Reputations:
    4
    Messages:
    295
    Likes Received:
    0
    Trophy Points:
    30
    Ok, here is my problem. I want to upgrade my laptop,s memory.

    The available stick,s speed is DDR2 800. Can it work with my motherboard. 533 or 667 is not available. This is Toshiba satellite M 70.

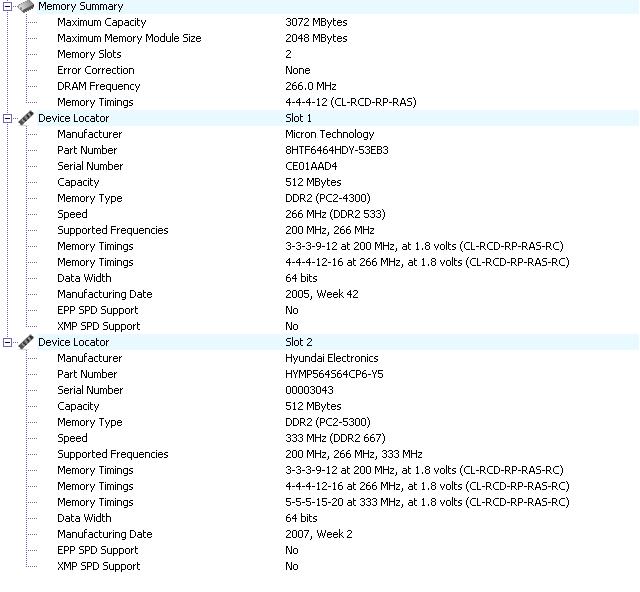

    I have attached CPU, MOtherboard and current memory info from SIW.

    Thanks


    Attached Files:

    aigle, Dec 30, 2008
    #1
  2. K-TRON

    K-TRON Hi, I'm Jimmy Diesel ^_^

    Reputations:
    4,412
    Messages:
    8,077
    Likes Received:
    2
    Trophy Points:
    205
    Your system does use DDR2 memory. You can install PC6400 memory which runs at 800MHz, but the memory will downclock to Pc5300 speeds when installed. The chipset in your laptop maxxes out at 667Mhz, so the fastest the memory can run is Pc5300 speed.

    Just save the few dollars and get Pc5300 memory (667MHz)

    K-TRON

    K-TRON, Dec 30, 2008
    #2
  3. aigle

    aigle Notebook Consultant

    Reputations:
    4
    Messages:
    295
    Likes Received:
    0
    Trophy Points:
    30
    Thanks, but 667 MHz not available here so i will have to go for 800.

    Thanks

    aigle, Dec 30, 2008
    #3
  4. K-TRON

    K-TRON Hi, I'm Jimmy Diesel ^_^

    Reputations:
    4,412
    Messages:
    8,077
    Likes Received:
    2
    Trophy Points:
    205
    Sure The 800Mhz memory will work fine.
    All memory cards have to comply with JEDEC standards, which in short means it has to be compatible with lots of machines. So the memory can automatically clock down to 667Mhz speed of 533Mhz speed.

    K-TRON

    K-TRON, Dec 30, 2008
    #4
  5. aigle

    aigle Notebook Consultant

    Reputations:
    4
    Messages:
    295
    Likes Received:
    0
    Trophy Points:
    30
    Thanks a lot.

    aigle, Dec 31, 2008
