    Replace Keyboard

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by jd70, Sep 2, 2012.

  1. jd70

    jd70 Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    I need to replace keyboard on Asus X51R laptop. Can remove board but unable to remove cable.

    jd70, Sep 2, 2012
    #1
  2. namaiki

    namaiki "basically rocks" Super Moderator

    Reputations:
    3,905
    Messages:
    6,116
    Likes Received:
    89
    Trophy Points:
    216
    How does it look? Can you provide a few photos of the connector?

    namaiki, Sep 2, 2012
    #2
  3. jd70

    jd70 Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5

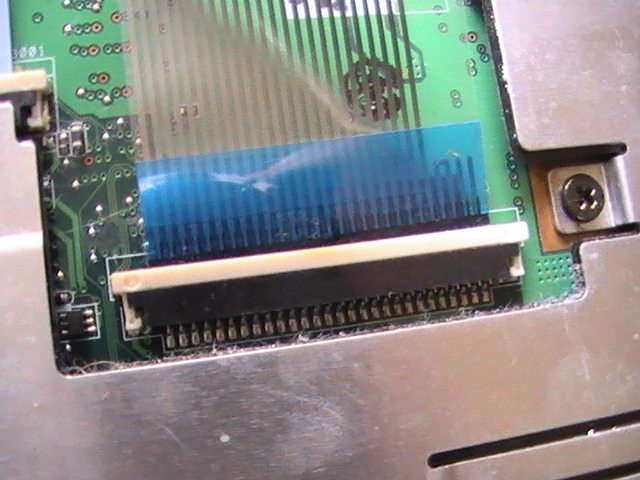

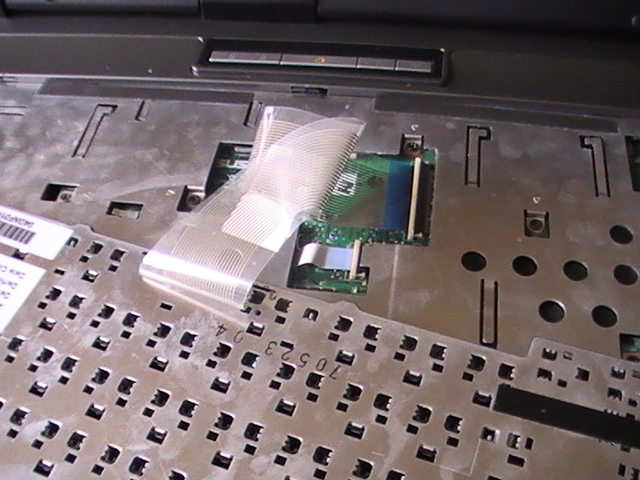

    Thank you here are 2


    Attached Files:

    jd70, Sep 2, 2012
    #3
  4. namaiki

    namaiki "basically rocks" Super Moderator

    Reputations:
    3,905
    Messages:
    6,116
    Likes Received:
    89
    Trophy Points:
    216
    I believe that you slide the white thing flat towards the blue thing.

    namaiki, Sep 2, 2012
    #4
  5. jd70

    jd70 Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    tried that but very stiff. There are 2 little what looks like levers at each side but no movement from them

    jd70, Sep 2, 2012
    #5
  6. namaiki

    namaiki "basically rocks" Super Moderator

    Reputations:
    3,905
    Messages:
    6,116
    Likes Received:
    89
    Trophy Points:
    216
    I think the "leavers" are only to hook onto the black connector after the white plastic bit has been released, or at least that's how it looks from here.

    namaiki, Sep 2, 2012
    #6
  7. jd70

    jd70 Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    Thank you will try again

    jd70, Sep 2, 2012
    #7
  8. ellalan

    ellalan Notebook Deity

    Reputations:
    336
    Messages:
    1,262
    Likes Received:
    82
    Trophy Points:
    66
    ellalan, Sep 2, 2012
    #8
  9. jd70

    jd70 Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    Thank you have been able to release cable. One of the keys has stopped working and guess that means new keyboard. Have cleaned key but no joy

    jd70, Sep 2, 2012
    #9
  10. niffcreature

    niffcreature ex computer dyke

    Reputations:
    1,748
    Messages:
    4,094
    Likes Received:
    28
    Trophy Points:
    116
    For future reference, even if you break the white clip off the black part, you can still snap it back in and use the connector. Just don't pull up on the connector as its possible to rip it off the board completely, this is not easy to repair.

    niffcreature, Sep 2, 2012
    #10
  11. jd70

    jd70 Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    Thanks to all for your help. Have ordered new keyboard so hopefully it will be okay.

    jd70, Sep 3, 2012
    #11
