MSI GT80 Titan SLI Video Card Upgrade

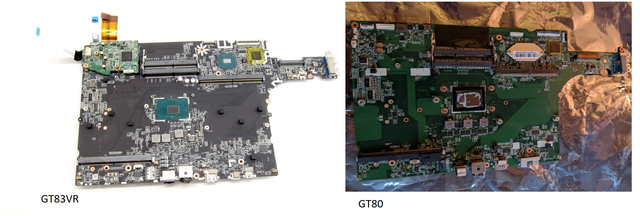

So we all know MSI screwed the pooch on their "upgradeability" claim. What I noticed in comparing the GT80 Titan and GT83VR motherboards is that they're essentially the same form factor, including the mounting points. It seems the only limitation is power draw and power management for the older board.

So I was wondering if anyone has attempted to upgrade to the 1080 mxm cards yet, and if so how'd it work out?



is there enough space for 2 msi gtx1070?

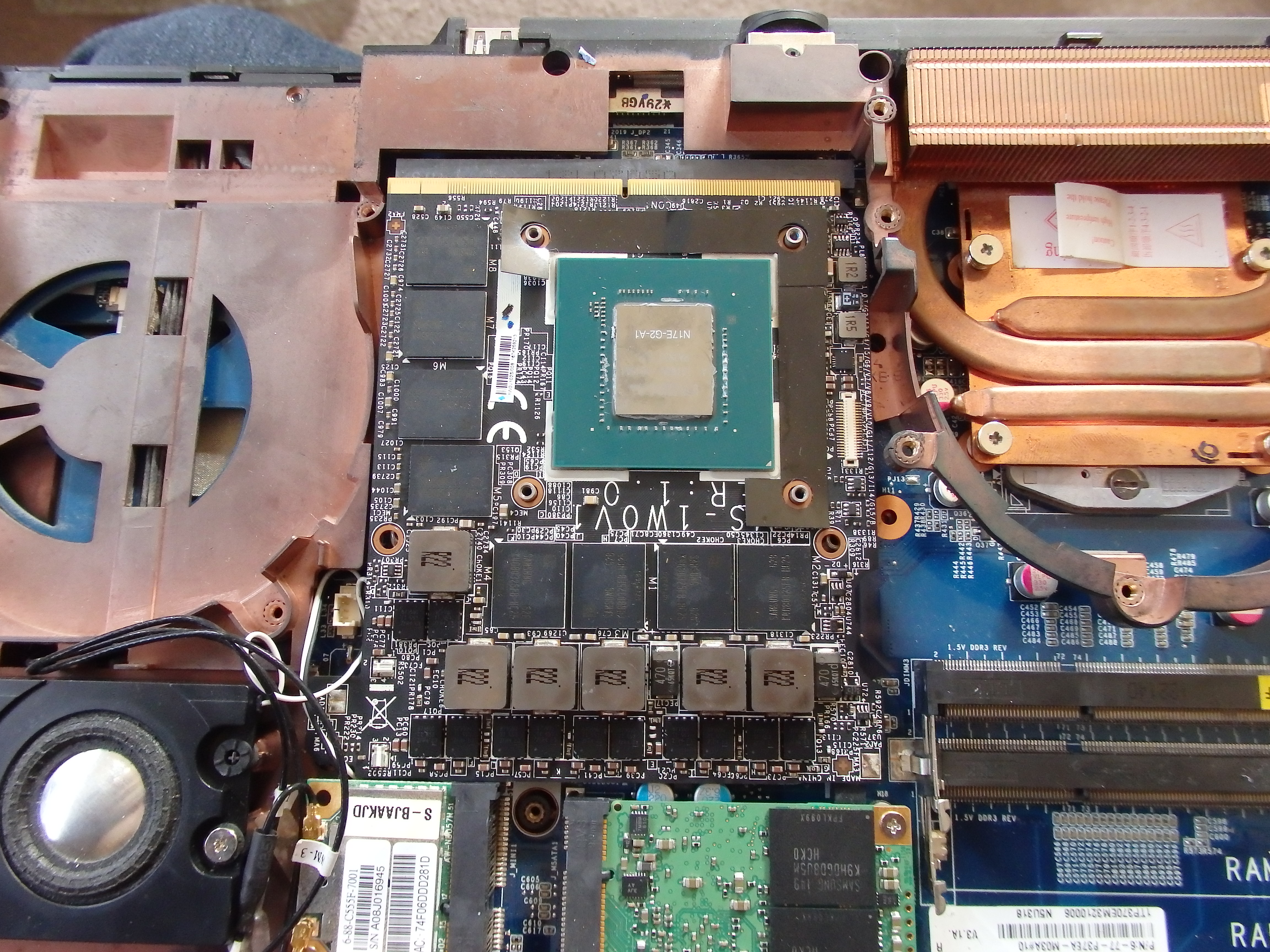

@bennyg upgraded a p370em with a SLI of MSI GTX1070

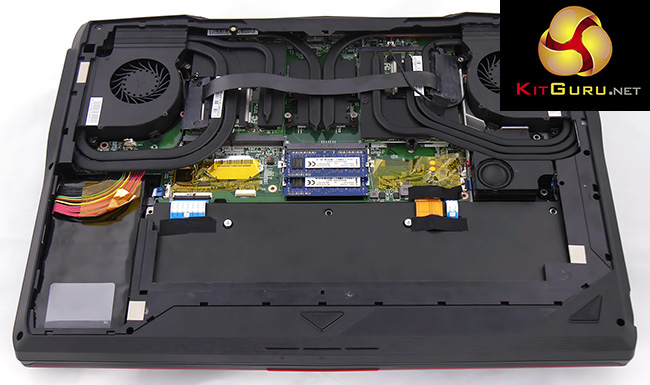

The formfactor for the GT83VR which has two 1080s in it is exactly the same as the GT80's formfactor when it comes to the motherboard spacing. The only difference I see is an increase in circuitry to handle a higher power input. I was curious if anyone had actually tried yet.



is there space for one of these?



I believe so.



The problem isn't the form factor of the card but the power requirements.



I'm looking at buying one of these to attempt an upgrade. https://www.ebay.com/itm/MSI-MS16L1...233515?hash=item1c8576b4ab:g:HZUAAOSwK6RZGfg9



@woodzstack



Of course the Bios will have to be corrected to accept the new video card.



Anybody have any insights here?



I believe it might be possible to upgrade to either 1060 or 1070 but not 1080. The one you've linked has chip itself at different position than standard mxm 3.0 cards. You would need custom heatsink for your titan.



A custom heatsink for that is easy, just a copper plate cut to fit on top of the card, heat sink compound on both sides, and fitting the original heatsink to the plate. The positioning of the 1080 chip is only off by 10 mm. I'm just concerned about power distribution and the bios. I was hoping someone else had tried and succeeded.



I think you underestimate the difficulty, it's not quite that easy due to z height differences on board components. Core cooling will suffer for every extra mm of shim applied; heatpipes need to be as close in terms of depth to the GPU die as possible, thermal goop is not a good option, at least think of soldering it all (and large area plate soldering is trickier than it seems)



While I've not done the work myself, I've watched a few specialists do customizations like this. The slight offset shouldn't affect cooling with a copper shim and thermal compound. Now if it was a few centimeters, sure you'd have a point, but the offset here isn't a big deal.



Any good outcome came out of project?



Sooo??? the Man asked a question. "Any good outcome came out of project?"?????????
