    Looking for Quadro K610m working VBIOS

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by gnomKOLIN, Mar 25, 2019.

  1. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    Hello!

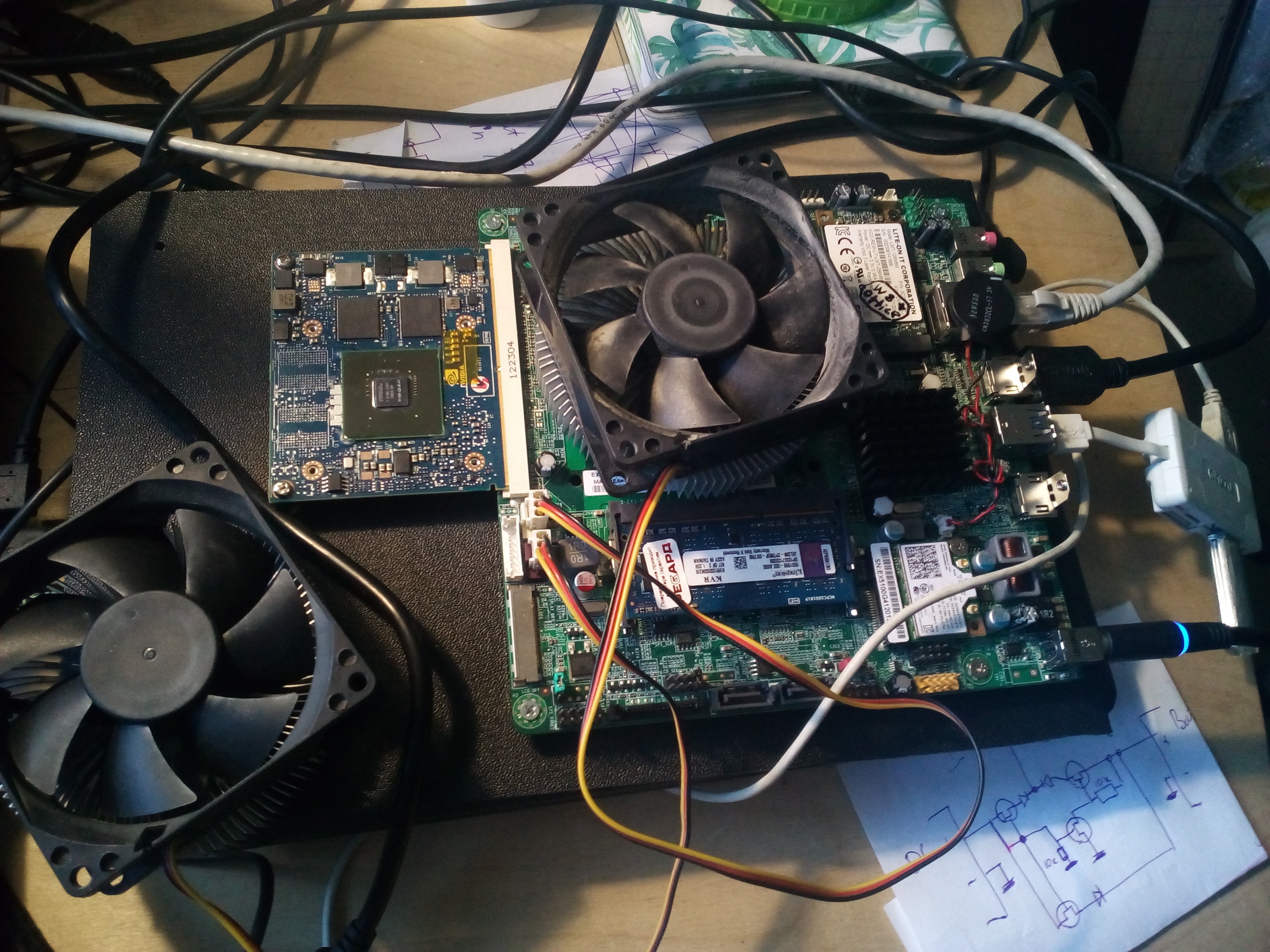

    I got H81H3-TI motherboard with MXM slot and I'm trying to make it work. Few days ago MXM Quadro k610m fell into my hands.

    [​IMG]

    First time I put it into slot , windows detected it! But after driver install stuck at code 43, windows stoped device.
    Gpu-z showed me strange things, it recognized gk208 chip but not any other information. Empty memory, empty vbios and others.

    After few days of tests without results I tried to flash new VBIOS (I found it in HP bios update package) into Videocard and bingo! Code 43 is gone! Some information in Gpu-z appeared! Strange thing is that original information from spi (I made backup) was about 1kb 0_o , new vbios is 172kb 0_o

    But I wasn't happy for a long time cause even windows tryes to use quadro, it does not work properly. The clocks are to low all time, gpu load is 0-1%.

    I thins it is fault of new Vbios I flashed into cards spi, but it is only vbios I found in the internet. In that case I asking someone ,who have this MXM videocard working, to make it's vbios backup and send it to me!

    PS sorry for my not perfect English ^^

    gnomKOLIN, Mar 25, 2019
    #1
  2. Mastermind5200

    Mastermind5200 Notebook Virtuoso

    Reputations:
    372
    Messages:
    2,152
    Likes Received:
    826
    Trophy Points:
    131
    Techpowerup.com
    Just search "K610M Techpowerup" there should be a page of VBIOS's uploaded

    Mastermind5200, Mar 25, 2019
    #2
  3. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    Thanks for reply! Unfortunately I already searched there and did not find any simialar to K610M, N15M-Q2-B-A1. Only information page.

    gnomKOLIN, Mar 25, 2019
    #3
  4. silverchairbg

    silverchairbg Notebook Geek

    Reputations:
    0
    Messages:
    82
    Likes Received:
    14
    Trophy Points:
    16
    silverchairbg, Sep 20, 2019
    #4
  5. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    Hi! Thanks for the link, but it seems it is exact vbios file I found in internet and uploaded =)

    About mxm formfactor: both pictures you send use same graphic card (and same slot), one with HP cooling device, second without.

    gnomKOLIN, Sep 20, 2019
    #5
  6. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    May be you're right, but I don't know how can I check it. I got my card without cooler or radiator, as is, without any description

    gnomKOLIN, Sep 20, 2019
    #6
  7. senso

    senso Notebook Deity

    Reputations:
    560
    Messages:
    1,645
    Likes Received:
    788
    Trophy Points:
    131
    Well, OP card days Nvidia and has the checkmark symbol inside a square, the one that you link as being MXM is just like that, and the HP on with the cooler doesn't have the rectangle on the silkscreen, instead having only a round symbol and some part number, neither are present in OP card, so its safe to assume that OP card is just a generic MXM GPU and not some random HP card..

    senso, Sep 20, 2019
    #7
  8. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26
    [​IMG]

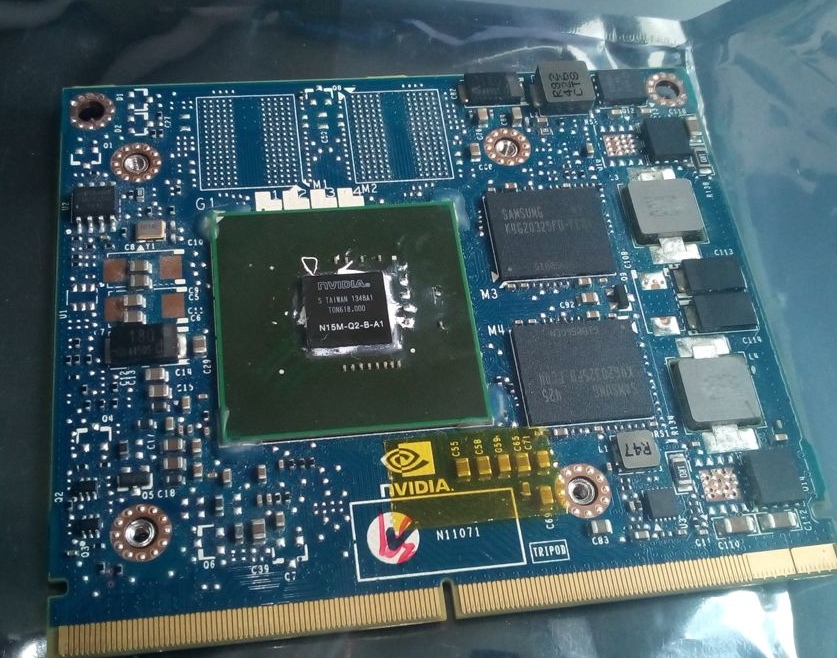

    It seems my card is from Nvidia, not from HP

    gnomKOLIN, Sep 21, 2019
    #8
  9. silverchairbg

    silverchairbg Notebook Geek

    Reputations:
    0
    Messages:
    82
    Likes Received:
    14
    Trophy Points:
    16
    @gnomKOLIN As far as I am aware, there are no "founders edition" MXM cards ever produced, so no, Nvidia cannot be the producer of your MXM card, it is some other company down the chain. Anyway, I've attached a zip containing 2 vbios-es for k610m (don't ask how I got em). Hope they help and would appreciate your feedback once you test/flash.

    P.S. Those are HP vbioses. If this card is not HP and the motherboard is not HP, chances are slim .. but oh well ..


    Attached Files:

    silverchairbg, Sep 22, 2019
    #9
  10. gnomKOLIN

    gnomKOLIN Notebook Enthusiast

    Reputations:
    10
    Messages:
    31
    Likes Received:
    28
    Trophy Points:
    26

    Thanks a lot! But ... unfortunatley I've already sold my card :oops:
    Sorry, I can't check vbioses you send. But please don't remove them, cause they may help other people

    gnomKOLIN, Sep 22, 2019
    #10
