    Does ATI Mobility Radeon? HD 3870 has Vbios?

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by rohome, Aug 25, 2010.

  1. rohome

    rohome Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Plan to install this card to my asus-c90p
    If the HD 3870 has Vbios,I etimate it would be success,haha!

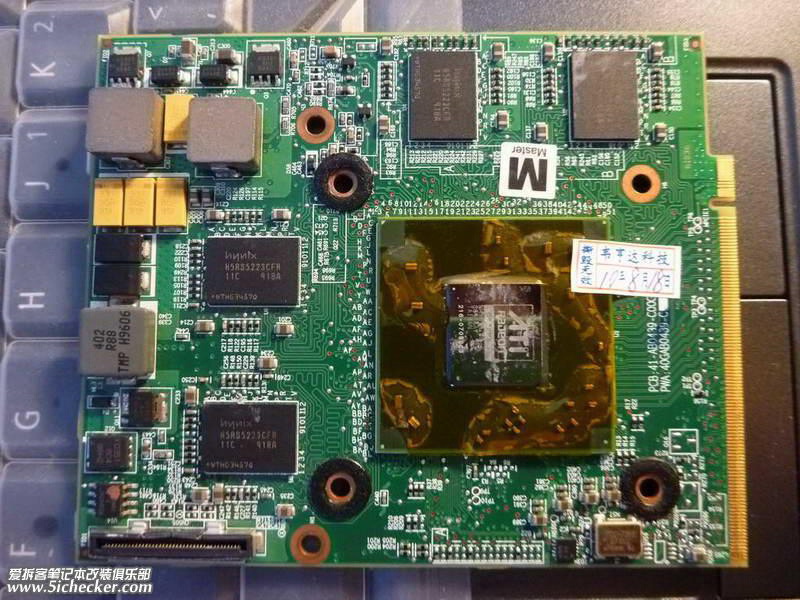

    Attached Files:

    rohome, Aug 25, 2010
    #1
  2. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    Yes that card must have a vBIOS.

    Are you sure there is enough space for that card in an asus c90p?

    I thought the c90p only has enough space for a type II card.

    That 3870 is type III.

    moral hazard, Aug 25, 2010
    #2
  3. rohome

    rohome Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    NO it's surely type II.

    rohome, Aug 26, 2010
    #3
  4. moral hazard

    moral hazard Notebook Nobel Laureate

    Reputations:
    2,779
    Messages:
    7,957
    Likes Received:
    87
    Trophy Points:
    216
    I have that same card, it's type III.

    moral hazard, Aug 26, 2010
    #4
  5. King of Interns

    King of Interns Simply a laptop enthusiast

    Reputations:
    1,329
    Messages:
    5,418
    Likes Received:
    1,096
    Trophy Points:
    331
    It is definitely Type III so there shouldn't be enough space for it. Go for it though as we won't know for sure until you try. Two things are for certain though there is only 1 cm space between edge of a mxm II card and the CPU module so if the 3870 is more than a cm longer it won't fit. Secondly if it does fit then you will have to take the GPU out if you want to change the CPU and you will need to manufacture a new heatsink for the GPU.

    Also be aware off the extra power draw and heat my 4670 already can kick out a fair bit of heat which I negate with my fan mod. The 3870 would really be absolutely pushing the limts of the GPU heatsink.

    King of Interns, Aug 26, 2010
    #5
  6. rohome

    rohome Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Can C90P Distinguish your 4670 directly,Without flsh motherboard's bios?As you say,your C90P is Brilliant!!

    rohome, Aug 26, 2010
    #6
  7. King of Interns

    King of Interns Simply a laptop enthusiast

    Reputations:
    1,329
    Messages:
    5,418
    Likes Received:
    1,096
    Trophy Points:
    331
    Yup it absolutely does. However to install a Q9xxx processor one has to flash the bios to the latest and greatest (0803) that asus didn't even publish officially lol. The Q8xxx quads work without bios update though.

    I hope you give the 3870 a try! If MXM III cards can fit in the C90P then I plan further great things for my own :D

    King of Interns, Aug 26, 2010
    #7
  8. rohome

    rohome Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    This weekend I will have a try!Thx your suggestion！

    rohome, Aug 26, 2010
    #8
