    Dell e1505 video card upgrade

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by black_makeba, Mar 16, 2008.

  1. black_makeba

    black_makeba Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    Hi guys,

    I have a dell e1505 laptop having a ati radeon x1400 graphics card. Do I really need to upgrade it? And what do you guys suggest me to get? I am using the laptop for lots of programs like photoshop, flash, dreamweaver, matlab, mathematica..etc..I barely play games. But i'd like to have a fast laptop without paying a crazy amount of money.

    black_makeba, Mar 16, 2008
    #1
  2. Xirurg

    Xirurg ORLY???

    Reputations:
    3,189
    Messages:
    7,375
    Likes Received:
    3
    Trophy Points:
    206
    gateway FX 6831!its a great laptop for a great price!

    Xirurg, Mar 16, 2008
    #2
  3. black_makeba

    black_makeba Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    thanks for the suggestion, but i just wanna replace the video card. I just realized i wasn't clear enough in my previous e-mail. sorry for that.

    black_makeba, Mar 16, 2008
    #3
  4. K-TRON

    K-TRON Hi, I'm Jimmy Diesel ^_^

    Reputations:
    4,412
    Messages:
    8,077
    Likes Received:
    2
    Trophy Points:
    205
    I have the E1505, and its a decent laptop, the gpu power is a little weak, but the X1400 is still much more powerful than any integrated chipset graphics.

    You do not need to upgrade the gpu, it is plenty powerful for the tasks which you are using it for.
    WIth Powerstrip, it overclocks pretty well.
    Here are some examples:

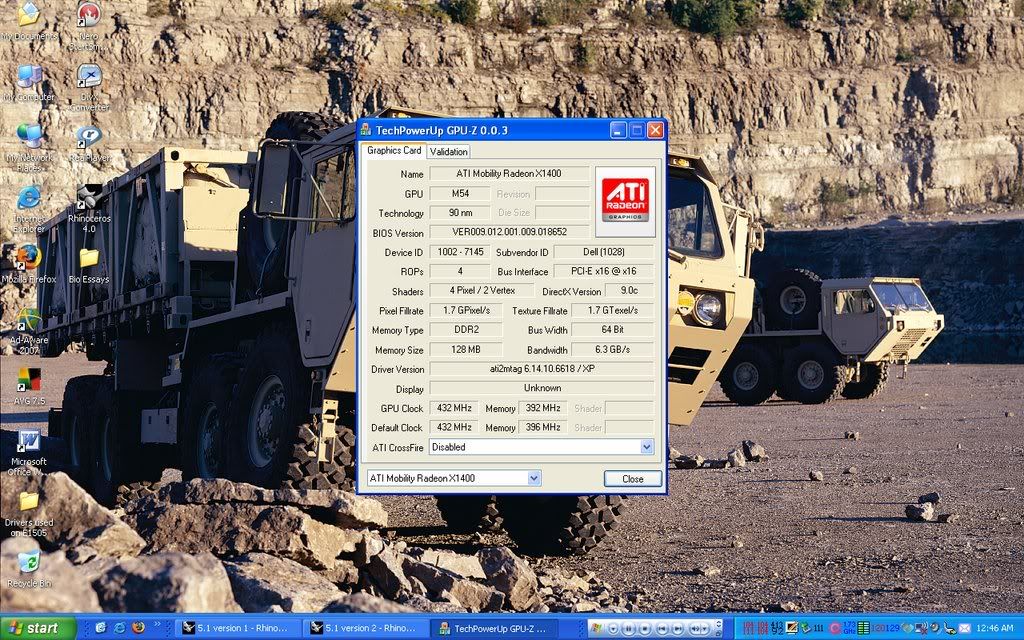

    stock speeds
    [​IMG]

    Maximum overclock:
    [​IMG]


    The X1400 manages to get 1070 3d marks in 2006 at stock speeds
    and
    it gets 1338 3d marks in 06 at 550Mhz core and 520Mhz memory clock

    550Mhz, 520Mhz is the fastest stable clock speed of the card
    I used powerstrip to overclock
    Install I8Kfangui, before overclocking, this way you can keep the temperatures down by forcing the fans to full speed.

    I hope this helps

    K-TRON

    K-TRON, Mar 16, 2008
    #4
  5. ahl395

    ahl395 Ahlball

    Reputations:
    3,867
    Messages:
    8,218
    Likes Received:
    72
    Trophy Points:
    216
    That card should be sufficent. But it is impossible to upgrade an Intergrated GPU anyway. So, its either, buy a new PC, stick w/X1400 or overclock it.

    ahl395, Mar 16, 2008
    #5
  6. coriolis

    coriolis Notebook Nobel Laureate

    Reputations:
    2,319
    Messages:
    14,119
    Likes Received:
    1
    Trophy Points:
    455
    The e1505 can house 3 video cards, if I remember correctly. x1400, x1300 and 7300. You can....uhhh....downgrade ;)

    coriolis, Mar 16, 2008
    #6
  7. K-TRON

    K-TRON Hi, I'm Jimmy Diesel ^_^

    Reputations:
    4,412
    Messages:
    8,077
    Likes Received:
    2
    Trophy Points:
    205
    The X1400 is not an integrated card, it sits on a proprietary dell socket.
    The E1505 supports the nvidia 7300 go and the ati X1300 and X1400, the X1400 was more powerful than the nVidia so I went with the X1400.

    Here is a picture of the graphics card if you do not believe me that it is on a socket.

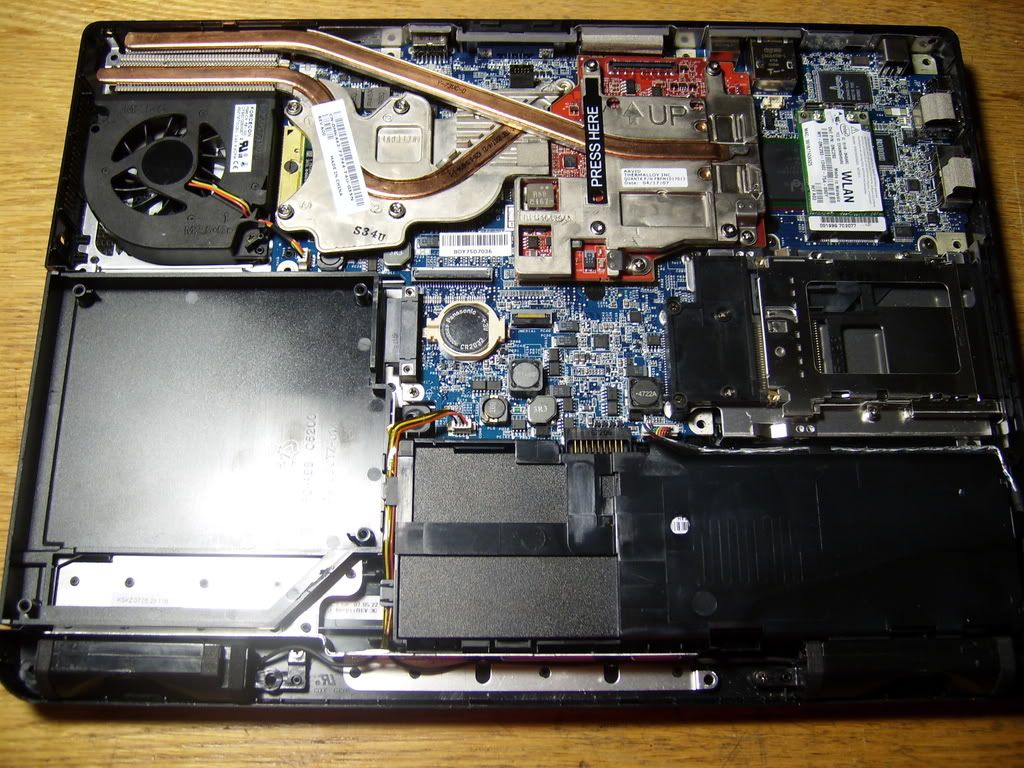

    Inside of the E1505:
    [​IMG]

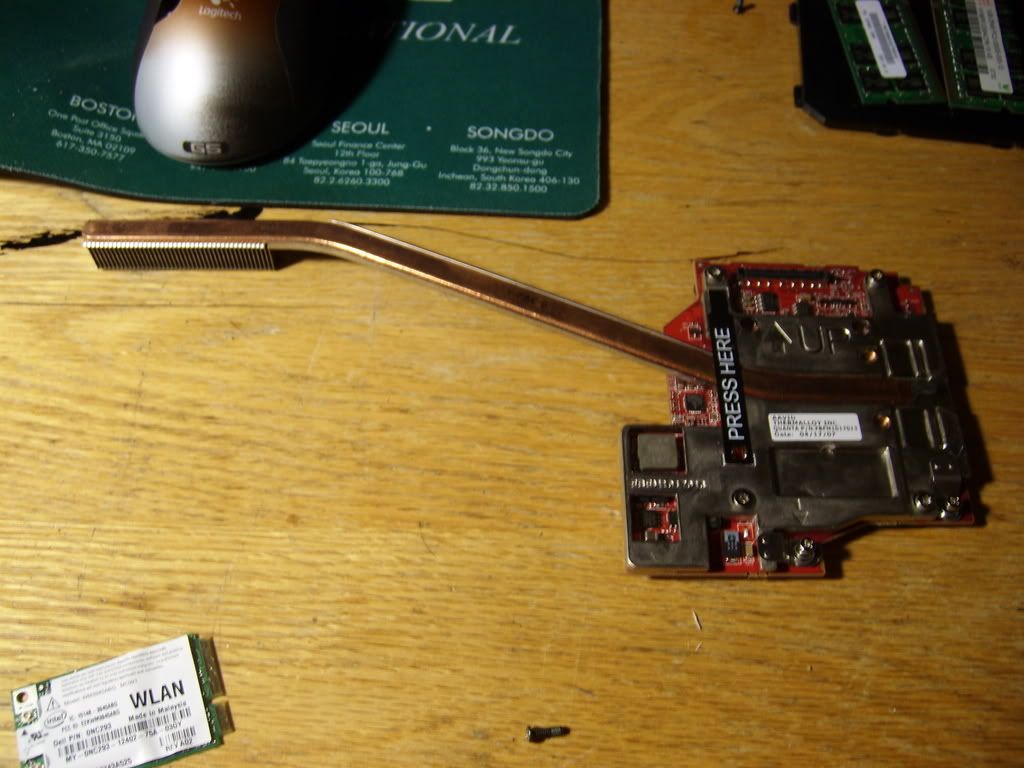

    ATI X1400 graphics module:
    [​IMG]

    K-TRON

    K-TRON, Mar 16, 2008
    #7
