    Alienware 17 R4 Screen Upgrade

    Discussion in 'Hardware Components and Aftermarket Upgrades' started by SonVolt, Dec 26, 2021.

  1. SonVolt

    SonVolt Newbie

    Reputations:
    0
    Messages:
    8
    Likes Received:
    0
    Trophy Points:
    5
    Hi all
    I know this has been posted alot already, but I've read through so many threads and other sources and am just at a dead end.
    I would like to upgrade the AUO FHD panel in my 17 R4. I understand that I will have to swap out the display cable as well.
    Can anybody PLEASE recommend a 17.3 UHD glossy or matte decent panel that would be compatible with the 17 R4?
    Thanks VERY MUCH in advance!!

    Last edited: Dec 27, 2021
    SonVolt, Dec 26, 2021
    #1
  2. anonymous4272

    anonymous4272 Notebook Enthusiast

    Reputations:
    8
    Messages:
    39
    Likes Received:
    16
    Trophy Points:
    16
    https://www.panelook.com/HK173VB-01A_Innolux_17.3_LCM_overview_50809.html
    https://www.panelook.com/B173ZAN05.0_AUO_17.3_LCM_overview_46831.html
    https://www.panelook.com/B173ZAN06.1_AUO_17.3_LCM_overview_51533.html
    these are compatible with my 51m r1 (144hz 1080p gsync), not sure about your 17 r4.
    top 2 are the best displays avaliable, though theyre near impossible to purchase atm. 3rd one looks decent, though no ones uploaded the datasheet
    https://www.panelook.com/modelsearc...h_high=400&active_v_low=200&active_v_high=250
    play around with this tool to find something that suits you

    anonymous4272, Jan 4, 2022
    #2
  3. Tech Junky

    Tech Junky Notebook Deity

    Reputations:
    341
    Messages:
    1,489
    Likes Received:
    599
    Trophy Points:
    131
    @ SonVolt

    If you go grab HWINFO it will give you the exact model you have. From there we can get the sizing of the panel to provide all of the option that will fit.

    Tech Junky, Jan 4, 2022
    #3
  4. SonOfBean

    SonOfBean Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5

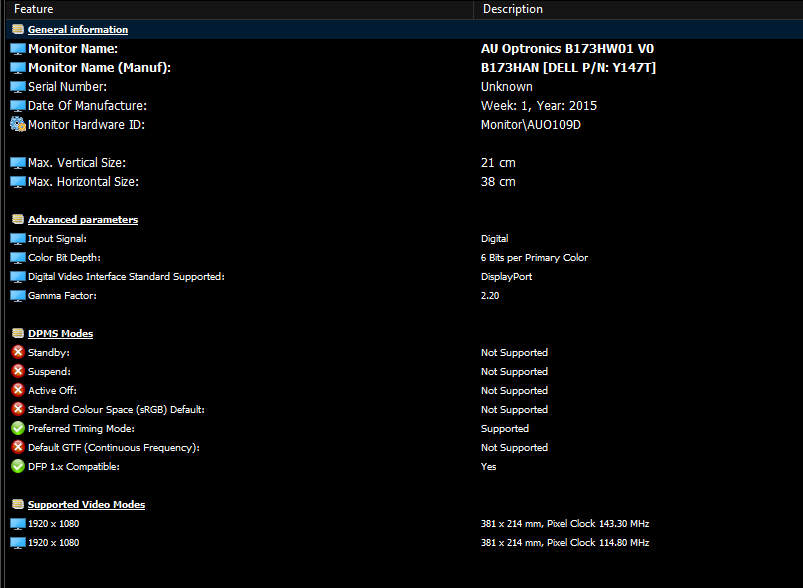

    Here is a screenshot from HWINFO for a similar laptop. I have also been looking at simply purchasing a 1440p display assembly from ebay, will the cables from these assemblies be compatible with my motherboard? These displays are approximately $200 after shipping, I can't find pricing on any of the panels in the link you shared, but I don't expect them to be significantly cheaper.

    [​IMG]

    SonOfBean, Jan 18, 2022
    #4
  5. anonymous4272

    anonymous4272 Notebook Enthusiast

    Reputations:
    8
    Messages:
    39
    Likes Received:
    16
    Trophy Points:
    16
    i think theres 3 main things to check for compatibility:
    - pin size of the cable (30 or 40). someone can confirm if your r4 is 40 pin, but my 51 r1 is 40 pin
    - size - specifically depth. mainly applies to thin laptops
    - cable position - right middle or left

    anonymous4272, Jan 19, 2022
    #5
  6. SonOfBean

    SonOfBean Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    0
    Trophy Points:
    5
    Thanks. What do you think about my pricing comment? How much did your upgraded panel cost for your a51m?

    SonOfBean, Jan 19, 2022
    #6
  7. anonymous4272

    anonymous4272 Notebook Enthusiast

    Reputations:
    8
    Messages:
    39
    Likes Received:
    16
    Trophy Points:
    16
    ive not purchased a panel yet, since i cant find any seller. though i would pay around 150 to 200, depending on the panel.

    anonymous4272, Jan 20, 2022
    #7
