    AORUS X5v6 - Repast with Coollaboratory Liquid Ultra?

    Discussion in 'Gigabyte and Aorus' started by MiSJAH, Mar 25, 2017.

  1. MiSJAH

    MiSJAH Notebook Deity

    Reputations:
    134
    Messages:
    1,337
    Likes Received:
    1,001
    Trophy Points:
    181
    Hi Folks,

    Looking for advice of repasting the CPU and GPU on my AORUS X5v6. From the reviews I've read the Coollaboratory Liquid Ultra Thermal Paste seems to be most effective but is corrosive to certain metals (ALU)?

    Would this be ok for my AORUS?

    Also looking for some thermal pads for my 960 EVO SSD's to help with temps too.

    Open to advice and suggestions.

    Thanks.

  2. Support.2@XOTIC PC

    Support.2@XOTIC PC Company Representative

    Reputations:
    486
    Messages:
    3,148
    Likes Received:
    3,490
    Trophy Points:
    331
    It can but you're right that it can cause more problems if it gets off the die. Be extra careful when applying it. Also, the difference in temp is a lot harder to predict in laptops from what I've seen, so if you're worried about application problems go with something easier to apply.

    MiSJAH likes this.
  3. MiSJAH

    MiSJAH Notebook Deity

    Reputations:
    134
    Messages:
    1,337
    Likes Received:
    1,001
    Trophy Points:
    181
    Thanks @Tanner@XoticPC , I'm open to suggestions?

  4. Jared_T

    Jared_T Notebook Evangelist

    Reputations:
    20
    Messages:
    488
    Likes Received:
    226
    Trophy Points:
    56
    Hello haha we meet again. What i have learnt from liquid metal enthusiasts on the forum is to use electrical tape around the dies on the substrate of the CPU and GPU. Its sort of an insurance policy in case any leak occurs considering liquid metal being conductive and what not. Apply a small drop and spread it out as evenly as possible until you get a sort of mirror like finish/reflection. Worked perfectly on my P150SMA barebones i use. Also for CLU, cut off all but around 1/8th of the bristles on the included brush. It lessens the amount of paste that will be caught up and wasted in it. For regular paste i personally prefer Thermal Grizzly Kryonaut. It has given me the best performace out of all the regular pastes that i have used (IC Diamond, Gelid GC Extreme and AS5) and the applicator that comes as a sort of nozzle on the larger tube skew helps a ton in repasting.

    Sent from my D6653 using Tapatalk

    MiSJAH likes this.
  5. Support.2@XOTIC PC

    Support.2@XOTIC PC Company Representative

    Reputations:
    486
    Messages:
    3,148
    Likes Received:
    3,490
    Trophy Points:
    331
    That's very helpful. And seconded on the kryonaut, I'm leaning towards it for my next couple of builds coming up.

    Jared_T and MiSJAH like this.
  6. Support.2@XOTIC PC

    Support.2@XOTIC PC Company Representative

    Reputations:
    486
    Messages:
    3,148
    Likes Received:
    3,490
    Trophy Points:
    331
    @Jared_T pretty much covered all the normal ones, one of the builders here swears by Tuniq TX4 on his own builds, I haven't heard enough about to say either way.

  7. MiSJAH

    MiSJAH Notebook Deity

    Reputations:
    134
    Messages:
    1,337
    Likes Received:
    1,001
    Trophy Points:
    181
    I've got the liquid ultra ordered so will give it a tentative go with some electrical tape as advised.

    My 6820HK isn't pushing past 4.3Ghz so hopefully this will either help push further or drop temps a little (currently maxing 88°C).

  8. Support.2@XOTIC PC

    Support.2@XOTIC PC Company Representative

    Reputations:
    486
    Messages:
    3,148
    Likes Received:
    3,490
    Trophy Points:
    331
    Good luck! Post temps when you've got it repasted. :)

    MiSJAH likes this.
  9. Jared_T

    Jared_T Notebook Evangelist

    Reputations:
    20
    Messages:
    488
    Likes Received:
    226
    Trophy Points:
    56
    Yes please update us! Your rig is an X5 right? I'll be receiving my X7 within a week or 2 and will be repasting with Kryonaut as i havent had access to liquid metal pastes for a while now

    Sent from my D6653 using Tapatalk

    MiSJAH likes this.
  10. Buffle

    Buffle Notebook Guru

    Reputations:
    61
    Messages:
    72
    Likes Received:
    79
    Trophy Points:
    26
    I will follow your progress with interest MiSJAH! I have followed you both here and on ocuk. For the longest period of time I have been looking at the Aorus X5/X7 vs the GS73/63. I currently have a barebone GS63 ordered(Couldnt be bothered to wait for the V7's.)

    But ill still follow your progress with much interest! Who knows I still might pickup a 17" :D

    MiSJAH likes this.
  11. Jared_T

    Jared_T Notebook Evangelist

    Reputations:
    20
    Messages:
    488
    Likes Received:
    226
    Trophy Points:
    56
    Anyone here kind enough to send me some Liquid Ultra :D :D :D :D I have no access to it in my country sadly. Best i can do is Kryonaut which is an excellent paste but not up to liquid metal standards hahahaha

    On a more serious note, i will also be following @MiSJAH and his work on repasting his X5 closely as i am getting the bigger brother to the X5. Good luck @MiSJAH !!!

    MiSJAH likes this.
  12. MiSJAH

    MiSJAH Notebook Deity

    Reputations:
    134
    Messages:
    1,337
    Likes Received:
    1,001
    Trophy Points:
    181
    While I am waiting for the paste, I've managed to bench this at 4.5Ghz on all 4 cores and on the cache too.

    http://valid.x86.fr/zdtd9l

    Jared_T likes this.
  13. Jared_T

    Jared_T Notebook Evangelist

    Reputations:
    20
    Messages:
    488
    Likes Received:
    226
    Trophy Points:
    56
    Bloody hell that is unreal...Congrats on getting that high of a frequency! What were you temps and fan setting during the overclocking?

    MiSJAH likes this.
  14. MiSJAH

    MiSJAH Notebook Deity

    Reputations:
    134
    Messages:
    1,337
    Likes Received:
    1,001
    Trophy Points:
    181
    Thanks man.

    Fan on auto max. Max temp 98 degrees C.


    Sent from my iPhone using Tapatalk

  15. Support.2@XOTIC PC

    Support.2@XOTIC PC Company Representative

    Reputations:
    486
    Messages:
    3,148
    Likes Received:
    3,490
    Trophy Points:
    331

    98 and no throttling or anything?

  16. MiSJAH

    MiSJAH Notebook Deity

    Reputations:
    134
    Messages:
    1,337
    Likes Received:
    1,001
    Trophy Points:
    181
    Nope, 98 was the highest temp.

  17. Support.2@XOTIC PC

    Support.2@XOTIC PC Company Representative

    Reputations:
    486
    Messages:
    3,148
    Likes Received:
    3,490
    Trophy Points:
    331
    What was the average temp?

  18. MiSJAH

    MiSJAH Notebook Deity

    Reputations:
    134
    Messages:
    1,337
    Likes Received:
    1,001
    Trophy Points:
    181
    I didn't really monitor temps that closely, purely in XTU, I'd guess around 80.

  19. Support.2@XOTIC PC

    Support.2@XOTIC PC Company Representative

    Reputations:
    486
    Messages:
    3,148
    Likes Received:
    3,490
    Trophy Points:
    331
    That's much less worrying.

  20. MiSJAH

    MiSJAH Notebook Deity

    Reputations:
    134
    Messages:
    1,337
    Likes Received:
    1,001
    Trophy Points:
    181
    I doubt it's anywhere near stable, but only had time to do some benches.

  21. Support.2@XOTIC PC

    Support.2@XOTIC PC Company Representative

    Reputations:
    486
    Messages:
    3,148
    Likes Received:
    3,490
    Trophy Points:
    331
    Figured, typically a more stable one has a max closer to average. But if it hangs out near 80 most of the time, that's better than sitting in the 90s

    MiSJAH likes this.
  22. MiSJAH

    MiSJAH Notebook Deity

    Reputations:
    134
    Messages:
    1,337
    Likes Received:
    1,001
    Trophy Points:
    181
    OK, so liquid ultra arrived :D

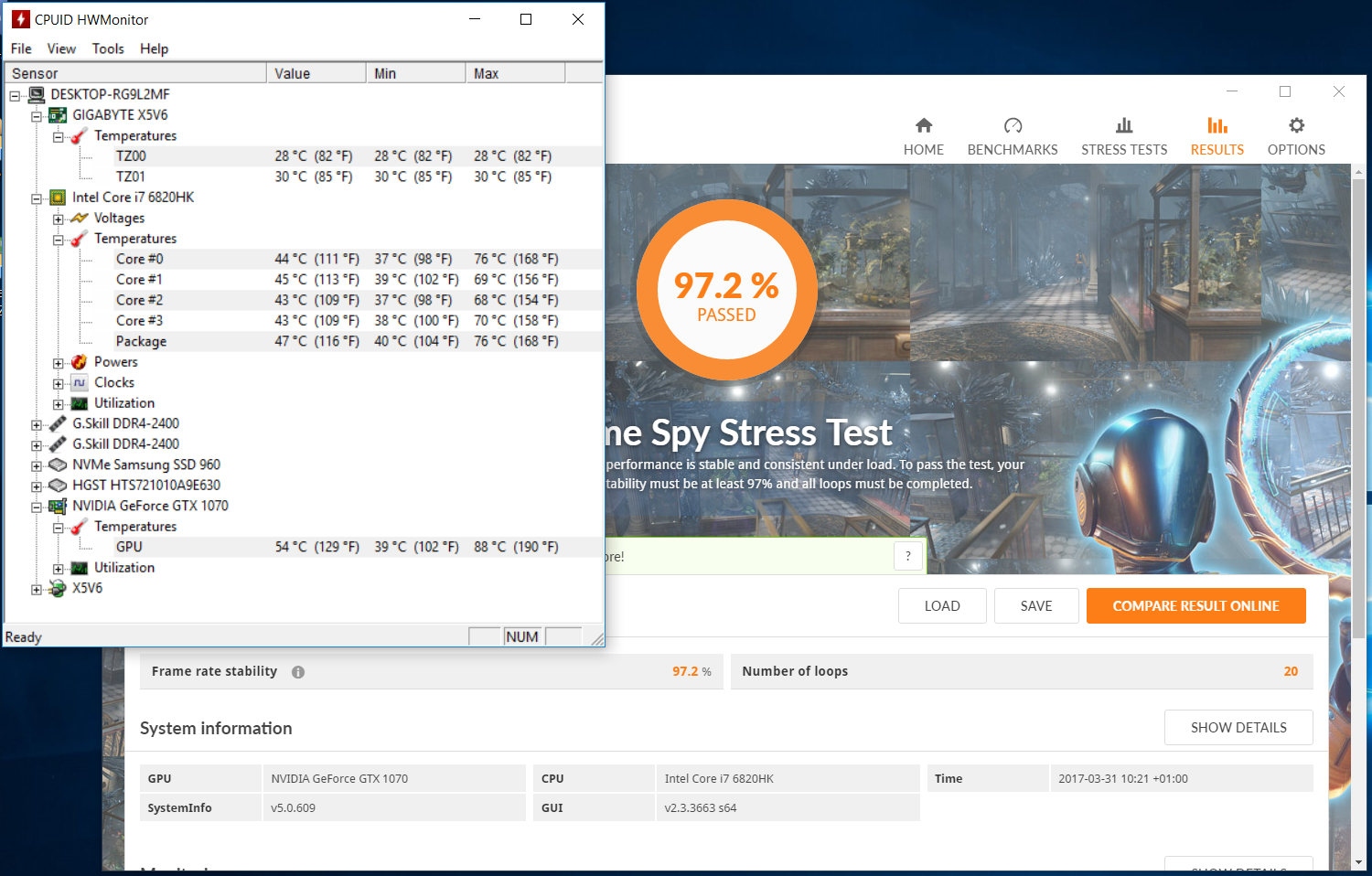

    Before:
    [​IMG]

    (at AORUS app overclock of 4Ghz CPU and +100 core on GPU)

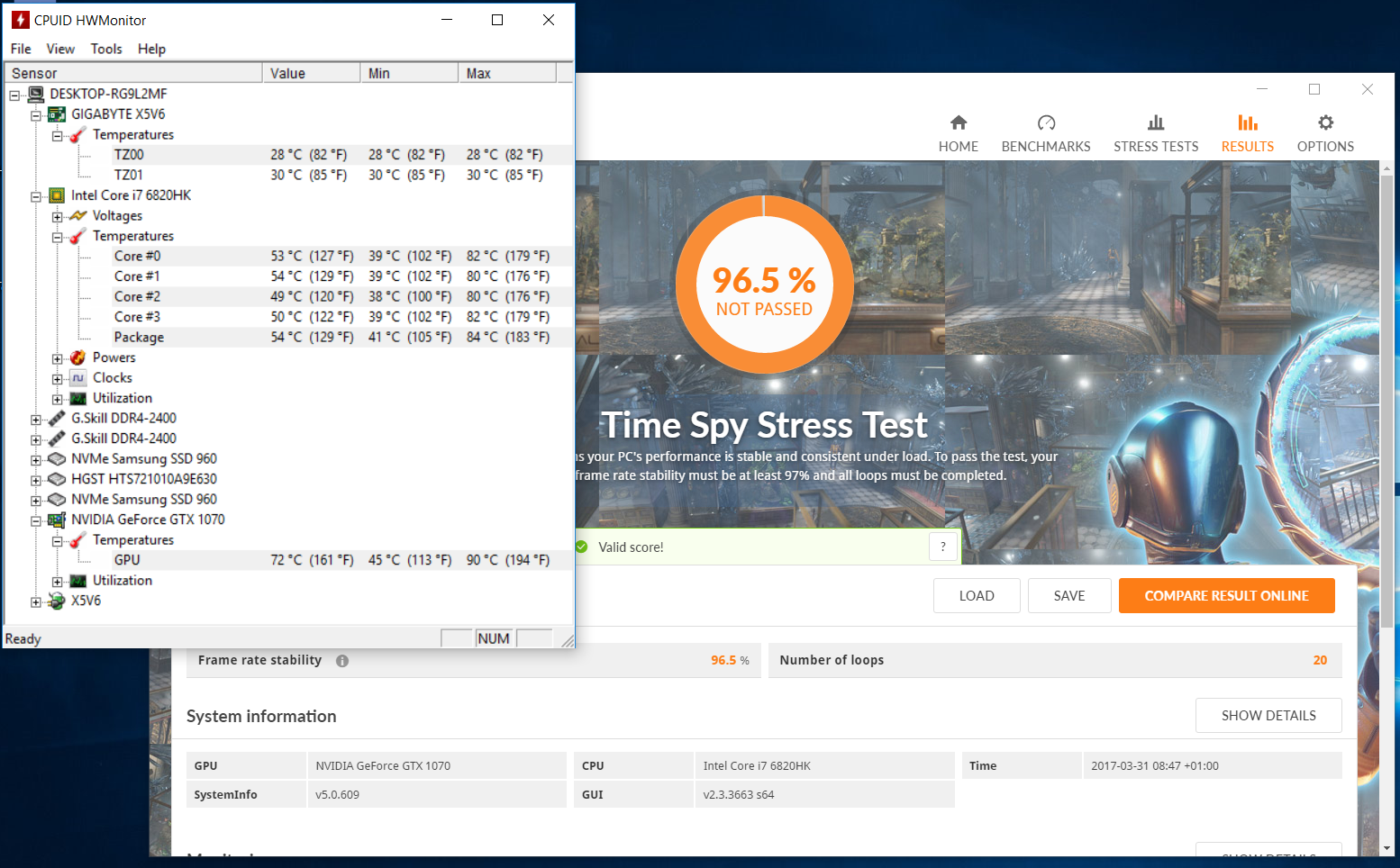

    And after liquid ultra:
    [​IMG]

    I may re-apply the GPU paste....

  23. Charles P. Jefferies

    Charles P. Jefferies Lead Moderator Super Moderator

    Reputations:
    22,339
    Messages:
    36,639
    Likes Received:
    5,082
    Trophy Points:
    931
    That's about a 10% lower CPU temp after applying the paste. Pretty good results, I think. Nice work.

    Charles

    MiSJAH likes this.
  24. Jared_T

    Jared_T Notebook Evangelist

    Reputations:
    20
    Messages:
    488
    Likes Received:
    226
    Trophy Points:
    56
    Thats a pretty damn good drop! Makes me wish that retailers would bring in liquid ultra in my country Oh well, i guess TG Kryonaut will have to do for now.

    Sent from my D6653 using Tapatalk

    MiSJAH likes this.
  25. MiSJAH

    MiSJAH Notebook Deity

    Reputations:
    134
    Messages:
    1,337
    Likes Received:
    1,001
    Trophy Points:
    181

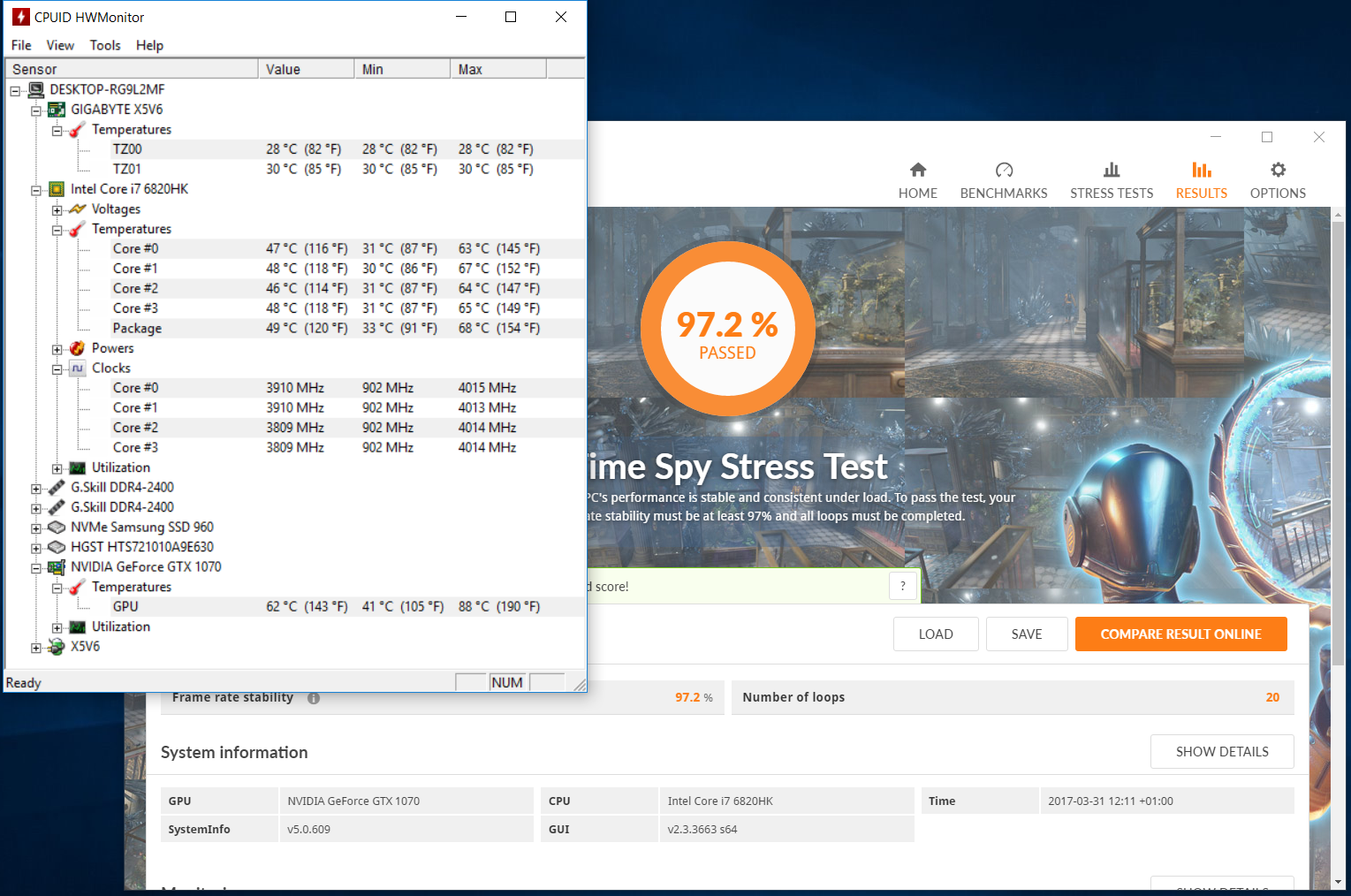

    OK, repasted both GPU and CPU. No real change on GPU, but CPU:

    [​IMG]

    Package temps are around 20pc lower!

    Happy days.

    bwolmarans and Buffle like this.
  26. Buffle

    Buffle Notebook Guru

    Reputations:
    61
    Messages:
    72
    Likes Received:
    79
    Trophy Points:
    26
    Impressive misjah!

    Was this your first time doing liquid metal paste?

    MiSJAH likes this.
  27. MiSJAH

    MiSJAH Notebook Deity

    Reputations:
    134
    Messages:
    1,337
    Likes Received:
    1,001
    Trophy Points:
    181
    Hahaha, first time doing any repasting whatsoever. :D

  28. CedricFP

    CedricFP Notebook Evangelist

    Reputations:
    49
    Messages:
    517
    Likes Received:
    298
    Trophy Points:
    76
    @MiSJAH

    How difficult was the repaste procedure?

  29. MiSJAH

    MiSJAH Notebook Deity

    Reputations:
    134
    Messages:
    1,337
    Likes Received:
    1,001
    Trophy Points:
    181
    Reasonably straightforwards. Take the back cover off, remove the 4 fan screws, unscrew the GPU then the CPU, disconnect the fans (2 connectors), tape around the CPU and GPU with electrical tape, squeeze liquid ultra on , spread with the brush that comes with it, then all of that in reverse.

    CedricFP likes this.
