    Dell Studiuo 1555 upgrade to 1558 mainboard and i7 cpu

    Discussion in 'Dell' started by Satanello, Dec 11, 2020.

  1. Satanello

    Satanello Notebook Guru

    Reputations:
    19
    Messages:
    50
    Likes Received:
    29
    Trophy Points:
    26
    Hi all guys. I should repair my old laptop to a new mainboard, cpu and ram.
    Studio 1558 mainboard should perfectly fit my 1555 laptop, can someone confirm what is the exact mainboard code to install an i7 740QM cpu? CN-04DKNR mainboard is the right one?

    Edit: found and ordered a combo mainboard+cpu+heatsink tested from China for a decent price :D

    Thank you!

    Inviato dal mio LYA-L29 utilizzando Tapatalk

    Last edited: Dec 14, 2020
    Satanello, Dec 11, 2020
    #1
  2. kojack

    kojack Notebook Prophet

    Reputations:
    1,235
    Messages:
    4,187
    Likes Received:
    1,636
    Trophy Points:
    231
    Keep us up to date on your progress. what was the difference in specs of your original and your new one?

    kojack, Dec 14, 2020
    #2
  3. Satanello

    Satanello Notebook Guru

    Reputations:
    19
    Messages:
    50
    Likes Received:
    29
    Trophy Points:
    26

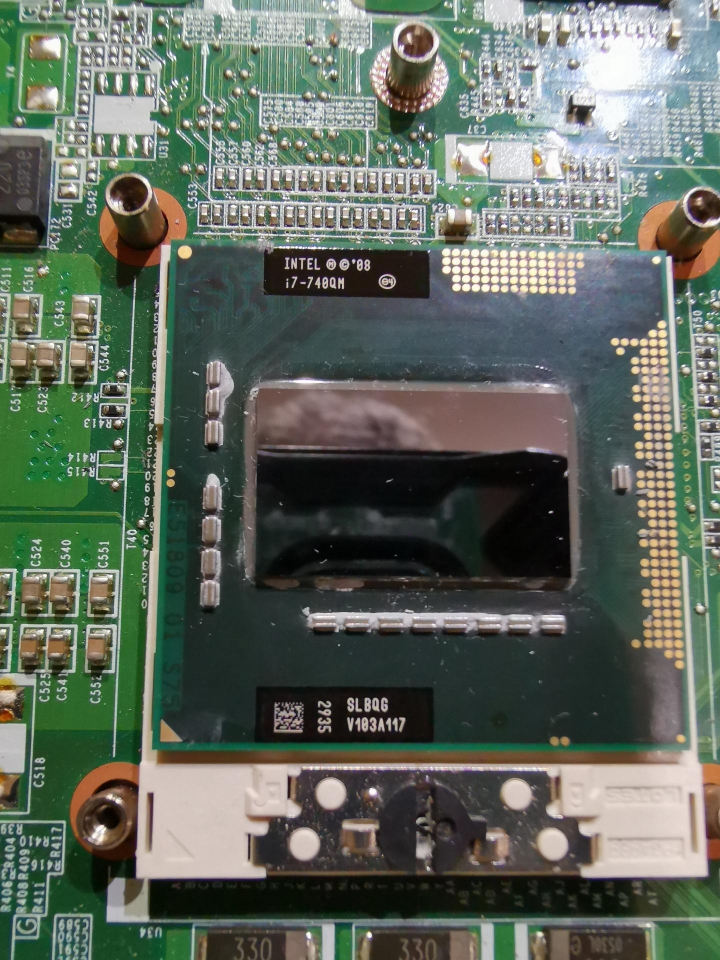

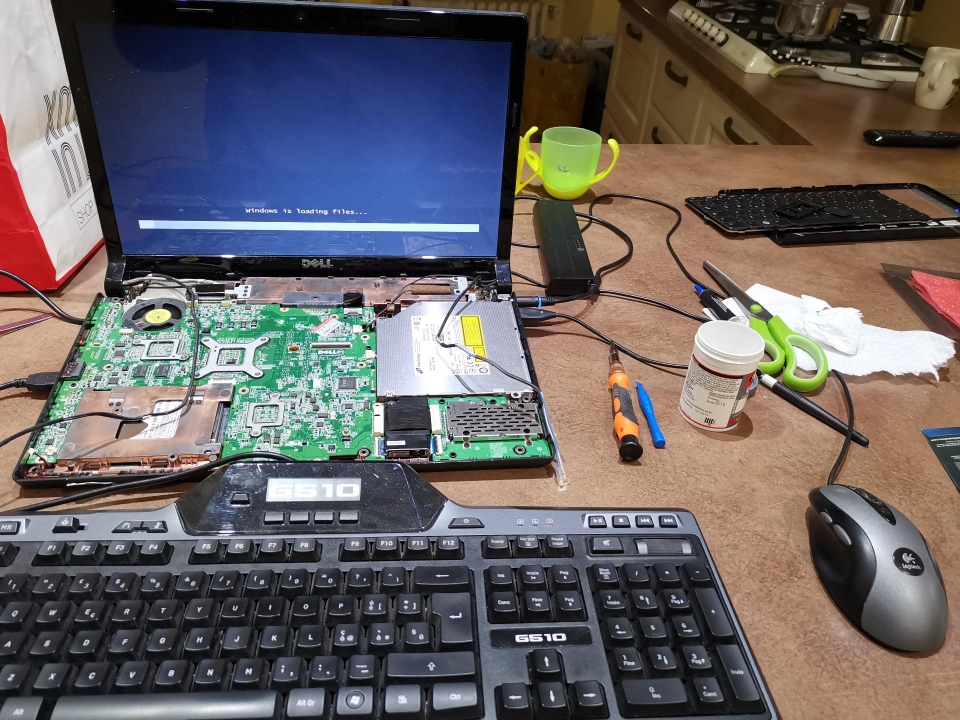

    Hi! I've finally received the mainboard+cpu+heatsink bundle and I've installed everything on my laptop with a clean windows 7 setup.

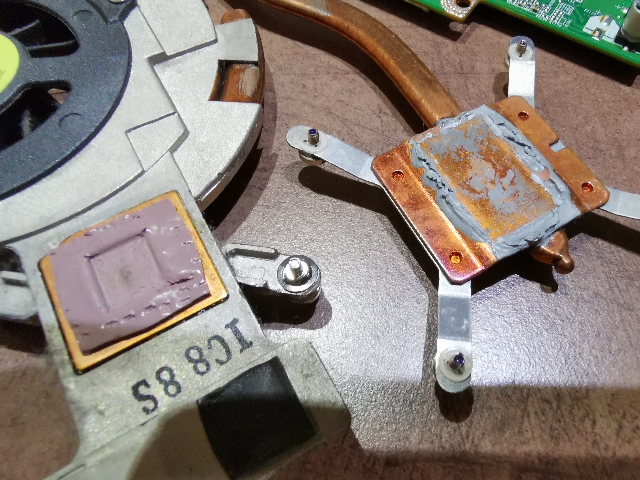

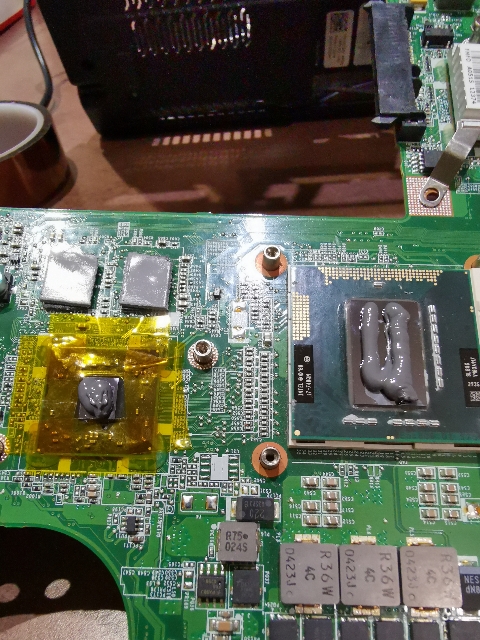

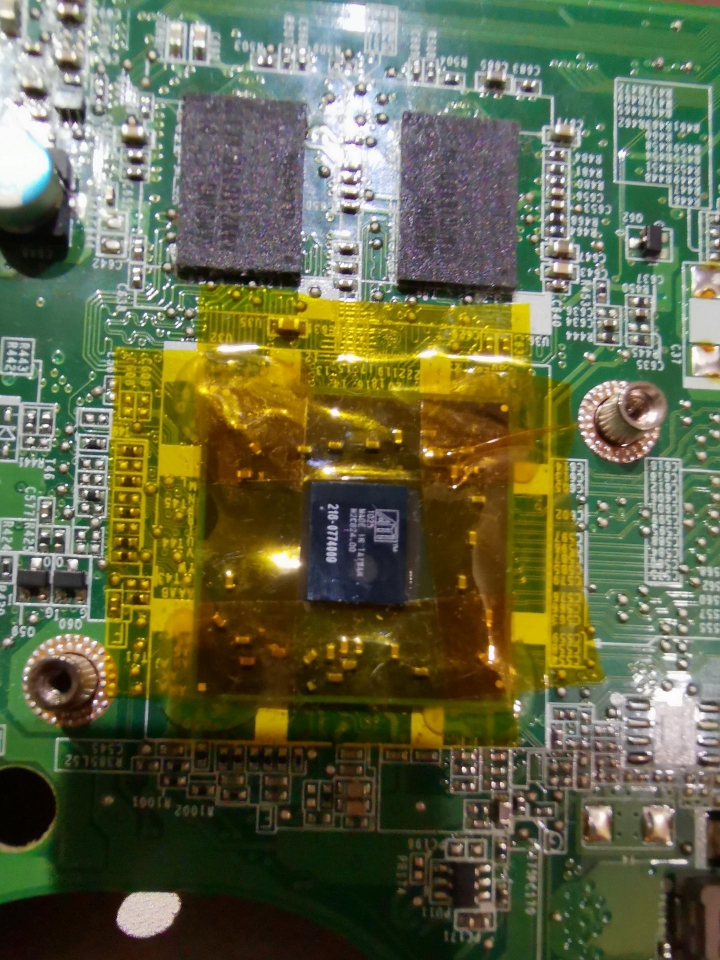

    This bundle arrived with near zero presence of thermal paste.... No problem I cleaned and used IC 24Carat and Gelid GP Extreme pad (for vga memory).

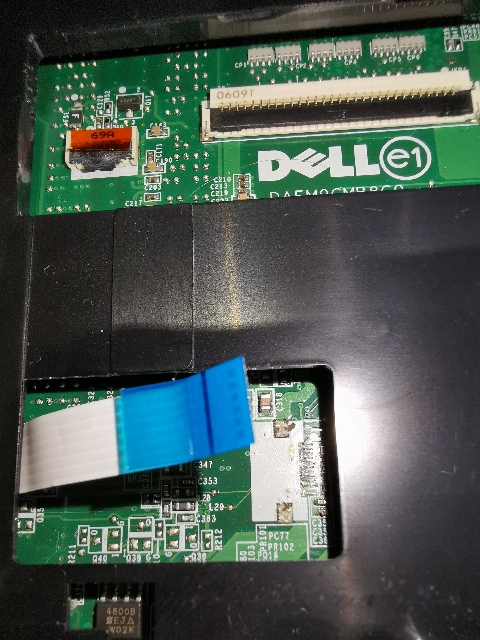

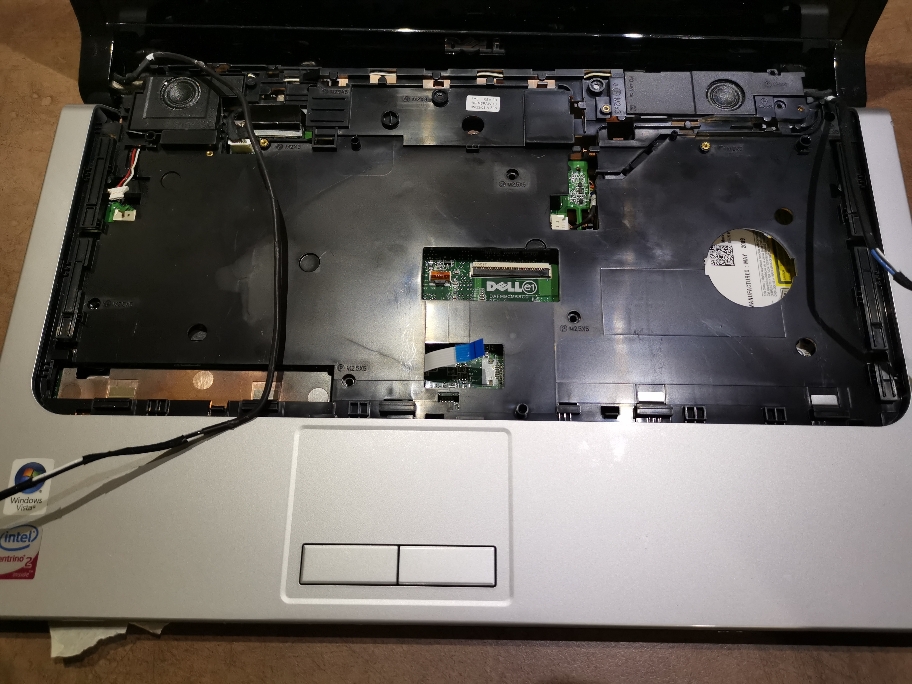

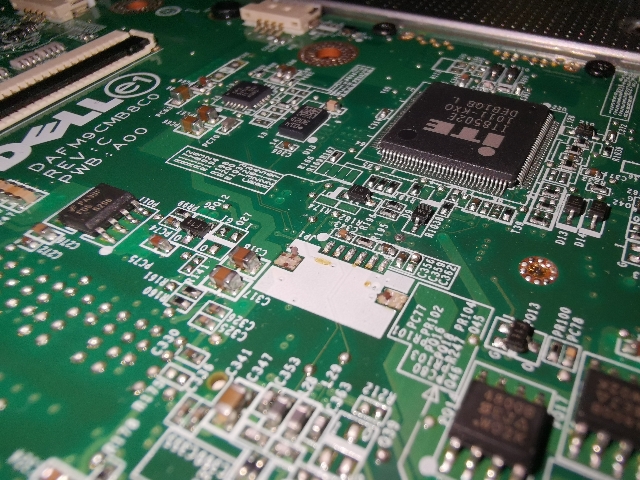

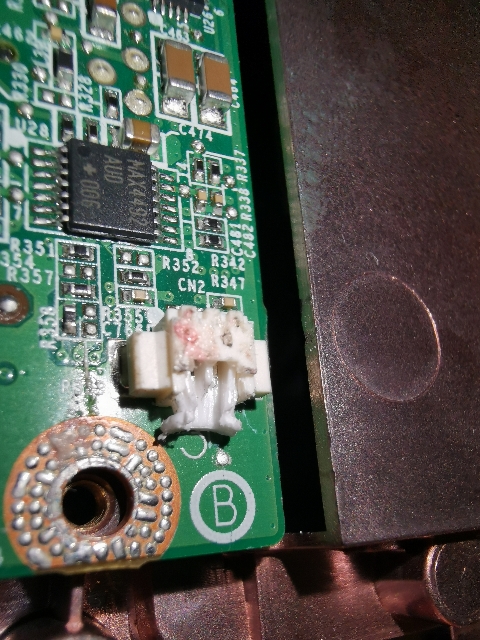

    The mainboard is running well but one connector is damaged and completely lacks the touchpad connector! I should find and solder a new one.....
    I can't remember what was installed on my original Studio 1555 I'll post the exact specs in a couple of days ;)

    [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

    Inviato dal mio LYA-L29 utilizzando Tapatalk

    Satanello, Jan 18, 2021
    #3
  4. kojack

    kojack Notebook Prophet

    Reputations:
    1,235
    Messages:
    4,187
    Likes Received:
    1,636
    Trophy Points:
    231
    Cool, keep putting up updates. One thing, I think you have WAY to much paste on those chips.

    kojack, Jan 24, 2021
