    Dell Inspiron 3542 Touch 1080p IPS successful swap

    Discussion in 'Dell' started by edit1754, Dec 26, 2016.

  1. edit1754

    edit1754 Notebook Prophet

    Reputations:
    1,475
    Messages:
    5,145
    Likes Received:
    71
    Trophy Points:
    216
    I just performed a successful 1080p IPS upgrade on the Inspiron 3542 Touch (i3542-3267BK) model.

    Original display:
    [​IMG]

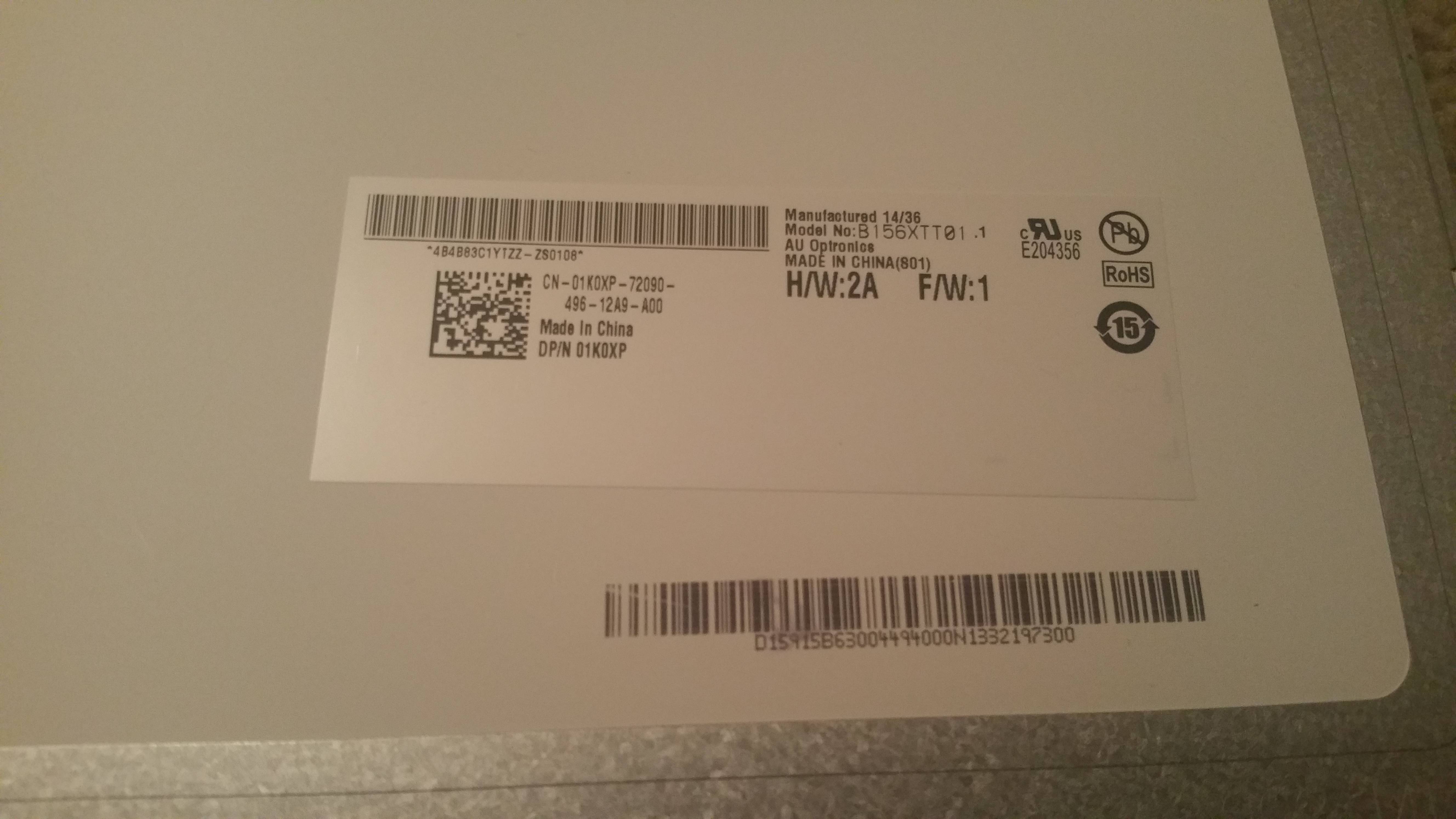

    Original panel: (B156XTT01.1 -- 40pin edp + touch combo connector)
    [​IMG]

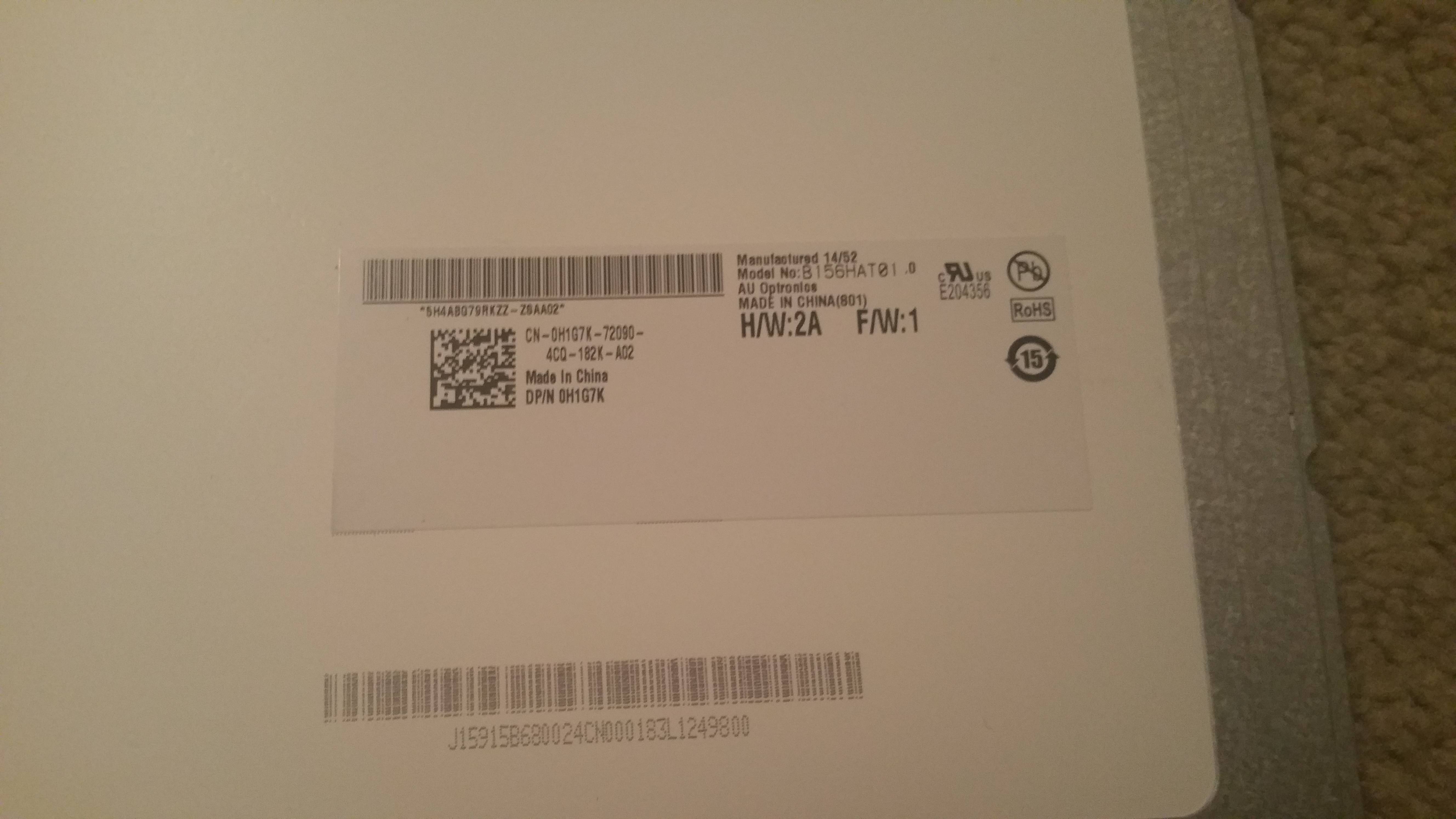

    New 1920x1080 IPS panel: (B156HAT01.0 -- same screen used in Inspiron 5547 Touch, got it used for $43, shipped)
    [​IMG]

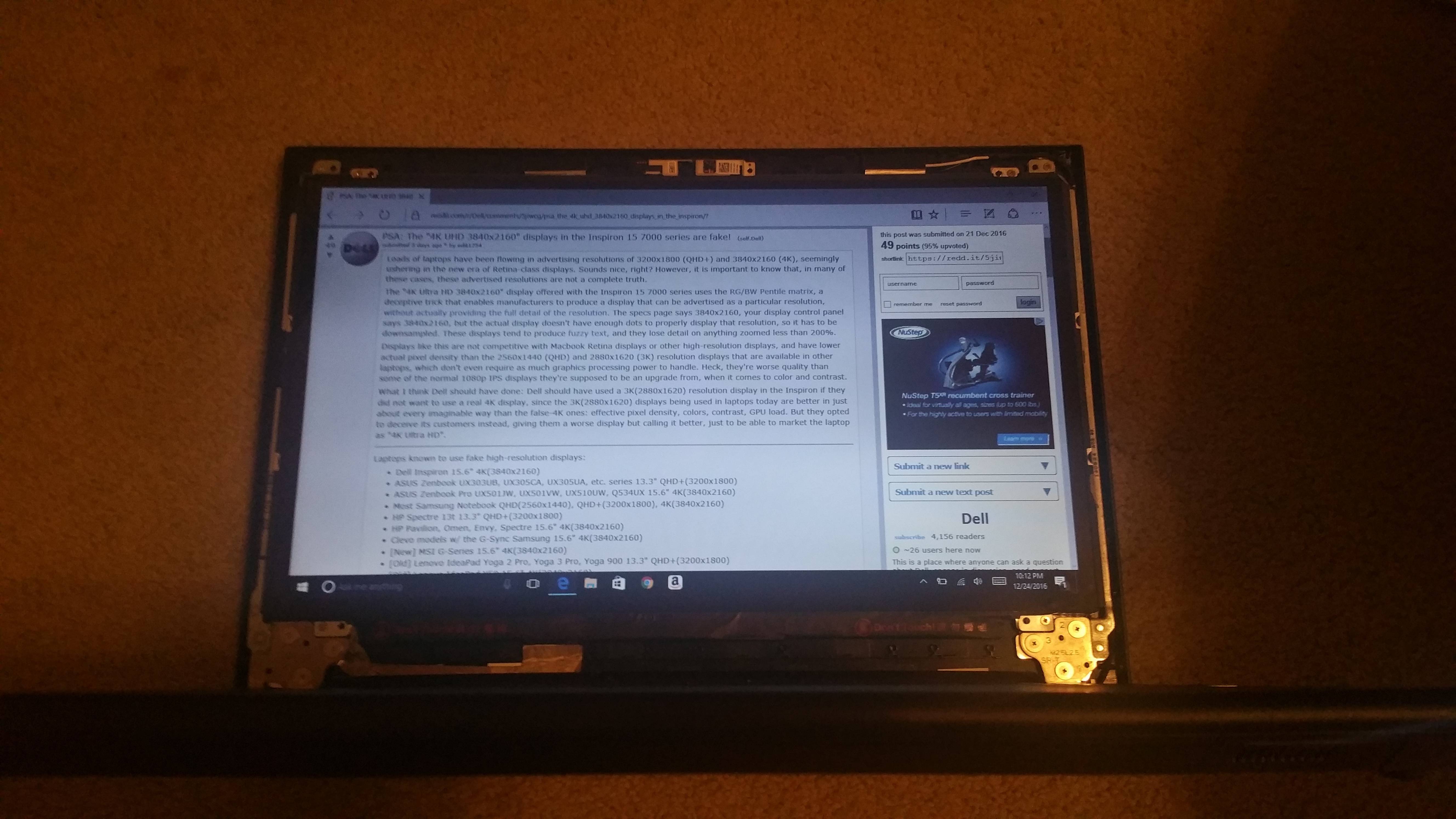

    It works:
    [​IMG]

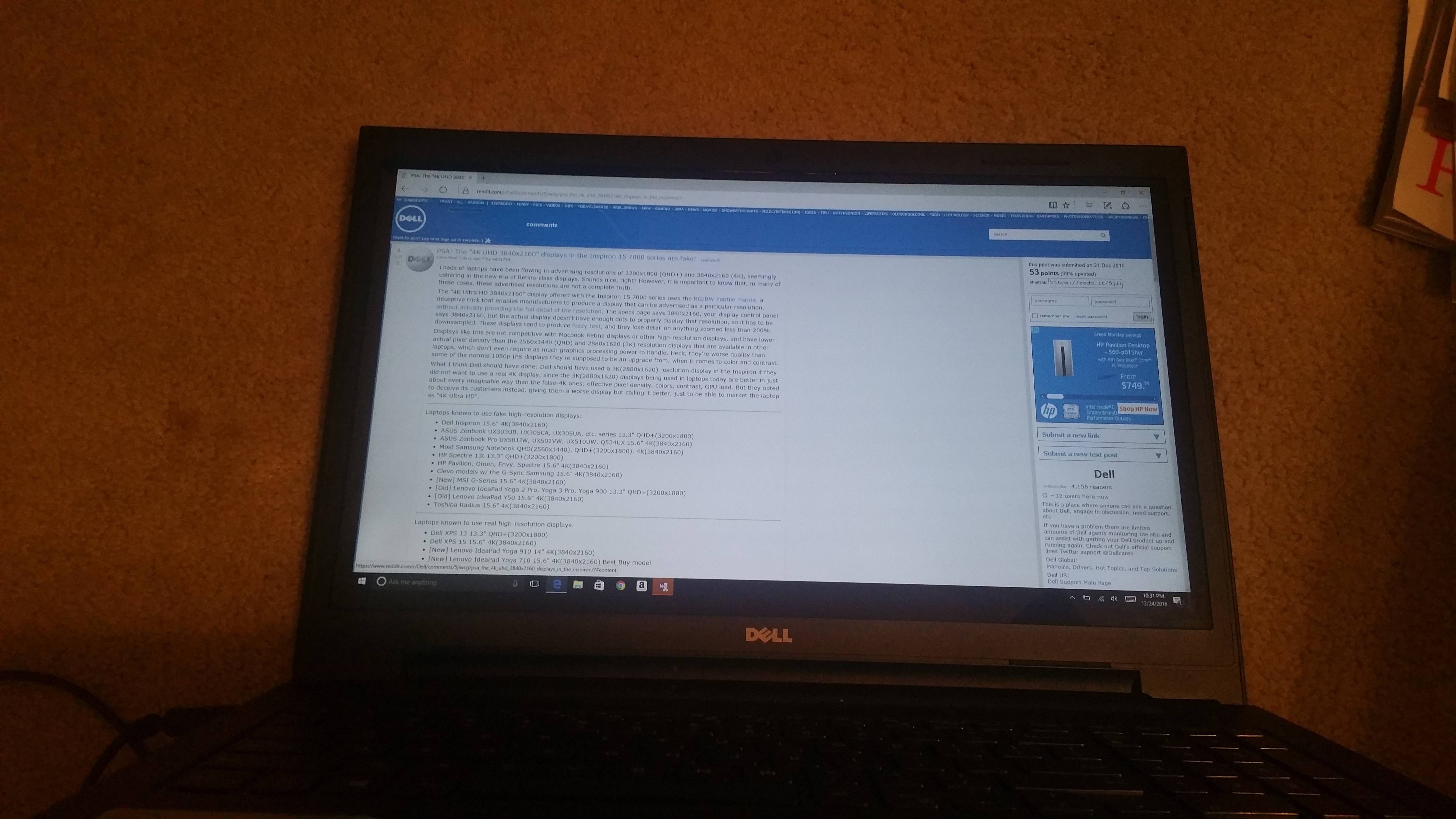

    Now with the bezel back on:
    [​IMG]

    May work in newer models too, provided they use the same connector and are the panel type that uses an integrated touch layer, as long as the newer models didn't start omitting the connection for the second eDP lane.

    edit1754, Dec 26, 2016
    #1
  2. kojack

    kojack Notebook Prophet

    Reputations:
    1,235
    Messages:
    4,187
    Likes Received:
    1,636
    Trophy Points:
    231
    What did you gain by upgrading? more resolution?

    kojack, Jan 18, 2017
    #2
  3. vinodhkumar

    vinodhkumar Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Where did u get it for $43? I am interested in doing this.


    vinodhkumar, Jan 21, 2017
    #3
  4. edit1754

    edit1754 Notebook Prophet

    Reputations:
    1,475
    Messages:
    5,145
    Likes Received:
    71
    Trophy Points:
    216
    More resolution, wide viewing angles, color gamut much closer to sRGB, significantly better contrast.

    Got it on eBay, used. I just searched B156HAT01 and found a listing.

    edit1754, Jan 21, 2017
    #4
  5. kojack

    kojack Notebook Prophet

    Reputations:
    1,235
    Messages:
    4,187
    Likes Received:
    1,636
    Trophy Points:
    231
    Hmmm, I wonder can I do that with my 2 inspirons? I have an 11 3000 with touch and a 13 5000 with touch.

    kojack, Feb 4, 2017
    #5
  6. kojack

    kojack Notebook Prophet

    Reputations:
    1,235
    Messages:
    4,187
    Likes Received:
    1,636
    Trophy Points:
    231
    How did you go about finding a suitable match?

    kojack, Mar 7, 2017
    #6
