    Dell Inspiron 17r 5720 Sata Connector?

    Discussion in 'Dell' started by kickboxer85, Jul 12, 2012.

  1. kickboxer85

    kickboxer85 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Hello

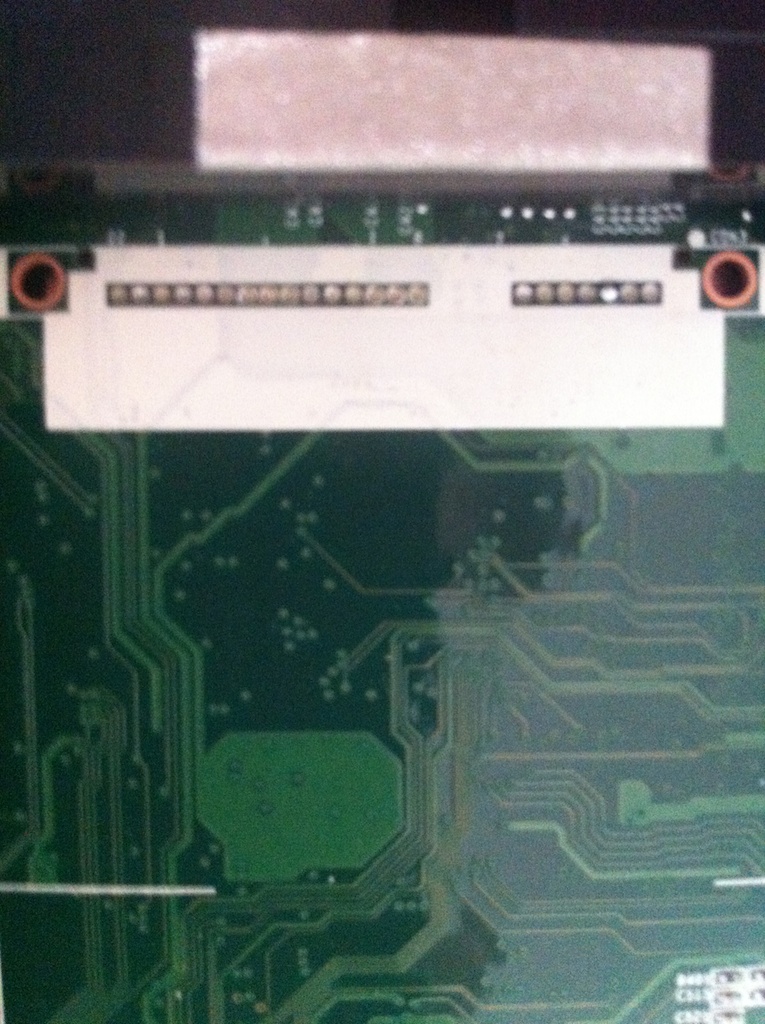

    I just received my Dell laptop. The reason I picked a 17 inch laptop was to add a ssd for systemdrive and a 5400 rpm for storage. When I opened it up there was no connector for a 2nd hard drive? Could i fix this by myself with spare parts? Or could I use a adapter cable from the msata to sata?


    Attached Files:

    kickboxer85, Jul 12, 2012
    #1
  2. c_man

    c_man Notebook Evangelist

    Reputations:
    138
    Messages:
    441
    Likes Received:
    2
    Trophy Points:
    31
    But what is that in the pictures then?

    c_man, Jul 13, 2012
    #2
  3. kickboxer85

    kickboxer85 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5

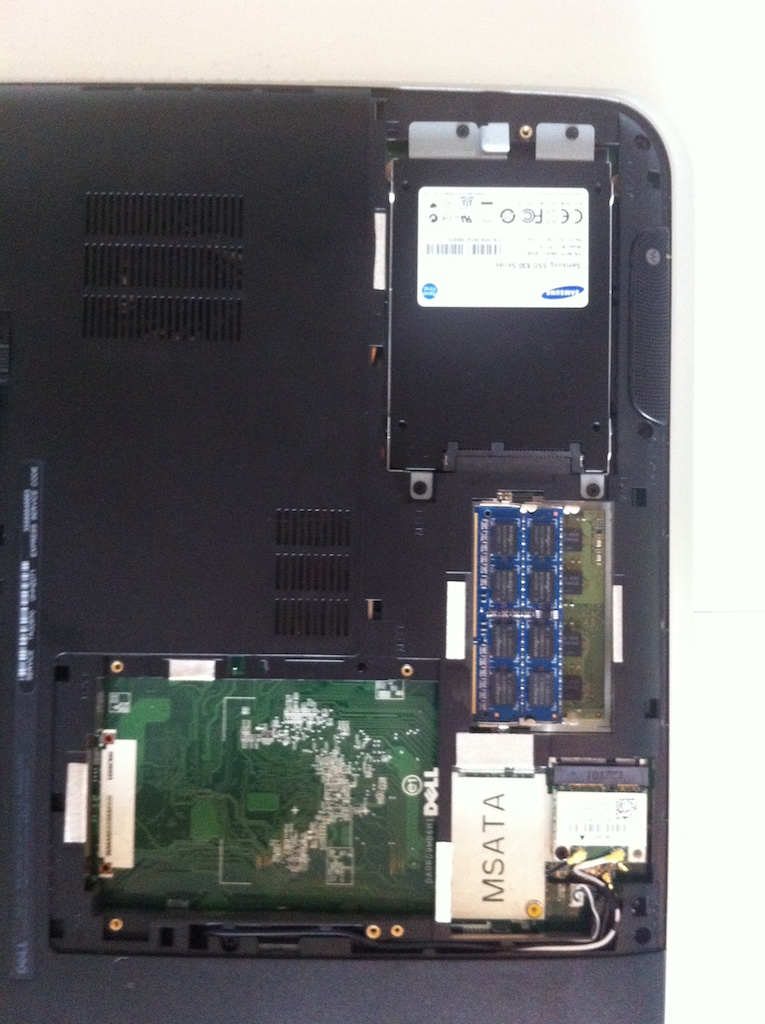

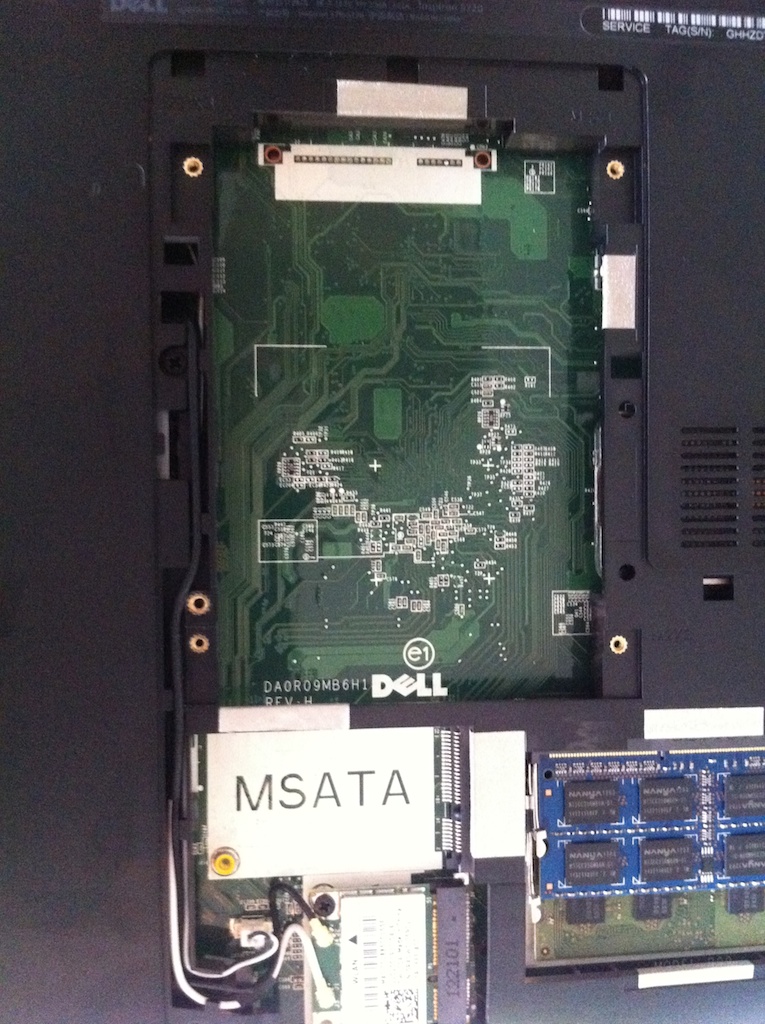

    On the picture i have installed an ssd drive and taken out the 5400 rpm drive. But now I want to install the 5400 drive. If i can't use the 2nd sataport, could i use a opticbay instead?

    kickboxer85, Jul 13, 2012
    #3
  4. c_man

    c_man Notebook Evangelist

    Reputations:
    138
    Messages:
    441
    Likes Received:
    2
    Trophy Points:
    31
    That is not OK my friend, tell this to those who sold it. You should have it replace. From my knowledge, all have a standard 2 usable SATA 3 bays and one mSATA. Your laptop is defective if not stated somewhere that there is no second SATA. Just ask them what's going on.

    c_man, Jul 13, 2012
    #4
  5. kickboxer85

    kickboxer85 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    I Spoked to dell now. They said to me to return the laptop if I was unhappy with it. It seems that if I want two drives I have to choose the 17r SE instead. The laptop is for my girlfriend and she do not need all the specs in 17r SE. Have anybody tried to but a hard drive in the dvd slot? She never use the Dvd drive..

    Thanks for the answers

    kickboxer85, Jul 13, 2012
    #5
  6. c_man

    c_man Notebook Evangelist

    Reputations:
    138
    Messages:
    441
    Likes Received:
    2
    Trophy Points:
    31
    I was not paying attention. You are right. I can't say I have heard of anyone to swap the ODD with a SSD in a 17". But since it works (almost) well in a 15", I see no reason why in 17 would any different.

    Still, I think is not OK to strip down versions like this. I am an old Dell user and I find it bit shady.

    c_man, Jul 13, 2012
    #6
