    D series comparison (weight and size) Pictures

    Discussion in 'Dell' started by jaycee, Jun 3, 2008.

  1. jaycee

    jaycee Notebook Consultant

    Reputations:
    15
    Messages:
    188
    Likes Received:
    0
    Trophy Points:
    30
    With the new E series on the horizon, perhaps this is the D series’ swan song.

    Just a short write up and pictures of the existing Dx20/Dx30 together for those who are interested in picking up one either used or from the outlet shop.


    [​IMG]

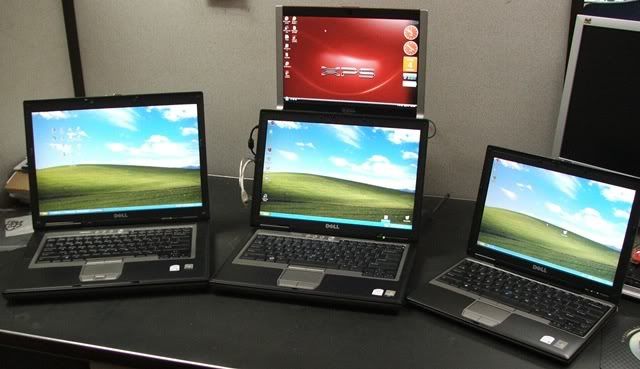

    From left to right, D820, D630, D420. XPS M1330 on background

    [​IMG]

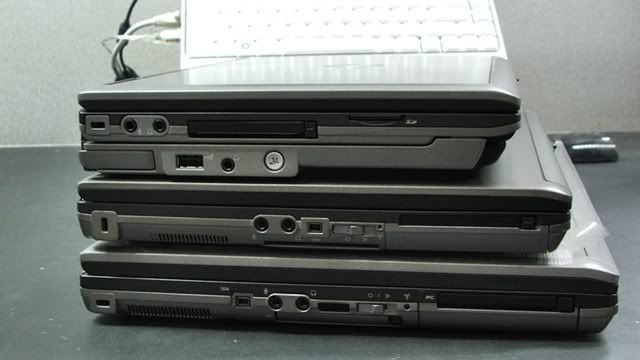

    D420 with the MediaBase attached

    [​IMG]

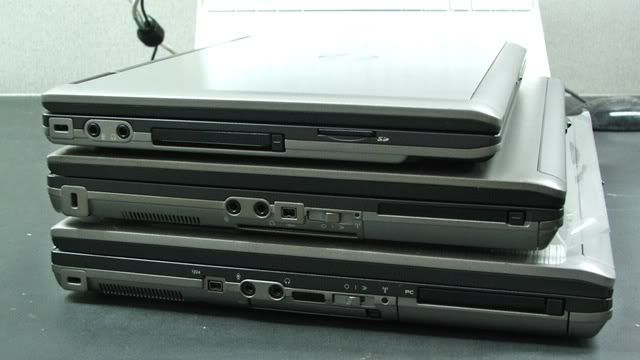

    D420 without the MediaBase

    [​IMG]

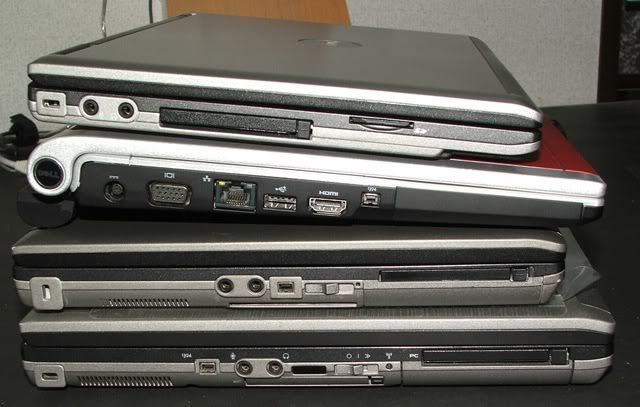

    Latitude Family with XPS



    Specifications

    D420
    U2500, 1.5gb DDR2, 60Gb HDD, MediaBase, 12” 1280x800

    D630
    T7300, 2.0gb DDR2, 80Gb HDD, X3100, 14.1” 1280x800

    D820
    T2140, 2.0gb DDR2, 80Gb HDD, NVS 210, 15.4” 1920x1200 Ultrasharp

    XPS M1330
    T7100, 2.0gb DDR2, 120Gb HDD, 8400GS, 13.3” LED 1280x800


    Display Performance

    In terms of colour reproduction, the D820’s Ultrasharp render colours the most vibrant and accurate, beating out the LED XPS due to its slightly bluish tint on default setting (which can be adjusted). Resolution on the 1920x1200 panel can be tiring on prolonged use. In terms on brightness and viewing angle, the LED equipped XPS leads the way followed by the D820, D630 and the D420.

    Weights

    D420
    1.5Kg (3.30lbs) with 6 Cell Battery
    2.1Kg (4.62lbs) with MediaBase + 6 Cell Battery

    D630
    2.4Kg (5.28lbs) with 6 Cell and DVDRW drive
    2.6Kg (5.72lbs) with 9 Cell and DVDRW drive
    2.8Kg (6.16lbs) with 9 Cell and 6 Cell Modular Battery

    D820
    3.0Kg (6.60lbs) with 9 Cell Battery

    M1330
    2.1Kg (3.30lbs) with 9 Cell Battery
    I don’t have a 6 cell for the M1330. But i figure it just just be around 1.95kg - slightly more than the published weight of 1.89kg with the 3 cell


    [​IMG]

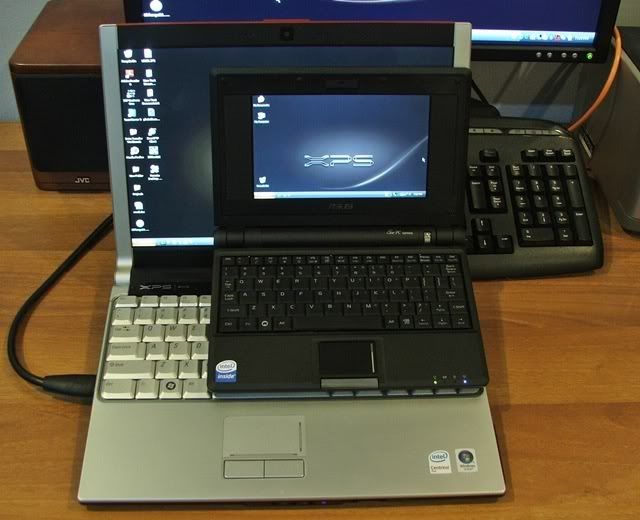

    One last one, with the XPS and an EEE PC 701

    Last edited by a moderator: May 8, 2015
    jaycee, Jun 3, 2008
    #1
  2. nizzy1115

    nizzy1115 Notebook Prophet

    Reputations:
    2,557
    Messages:
    6,682
    Likes Received:
    1
    Trophy Points:
    205
    Nice job. Thanks!

    nizzy1115, Jun 3, 2008
    #2
  3. The_Observer

    The_Observer 9262 is the best:)

    Reputations:
    385
    Messages:
    2,662
    Likes Received:
    0
    Trophy Points:
    55
    You have a lot of them and the laptops looks likes brothers :D

    The_Observer, Jun 3, 2008
    #3
  4. booboo12

    booboo12 Notebook Prophet

    Reputations:
    4,062
    Messages:
    4,272
    Likes Received:
    96
    Trophy Points:
    116
    Nice :)

    I was just gonna say something like that, LOL.

    booboo12, Jun 3, 2008
    #4
  5. jaycee

    jaycee Notebook Consultant

    Reputations:
    15
    Messages:
    188
    Likes Received:
    0
    Trophy Points:
    30
    [​IMG]

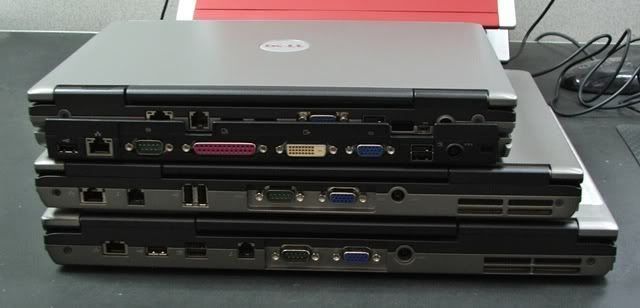

    Rear port complement, D420 with Mediabase

    [​IMG]

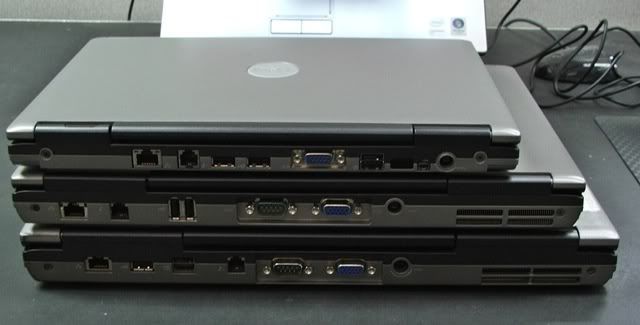

    Rear Port Complement, D420 without Mediabase

    [​IMG]

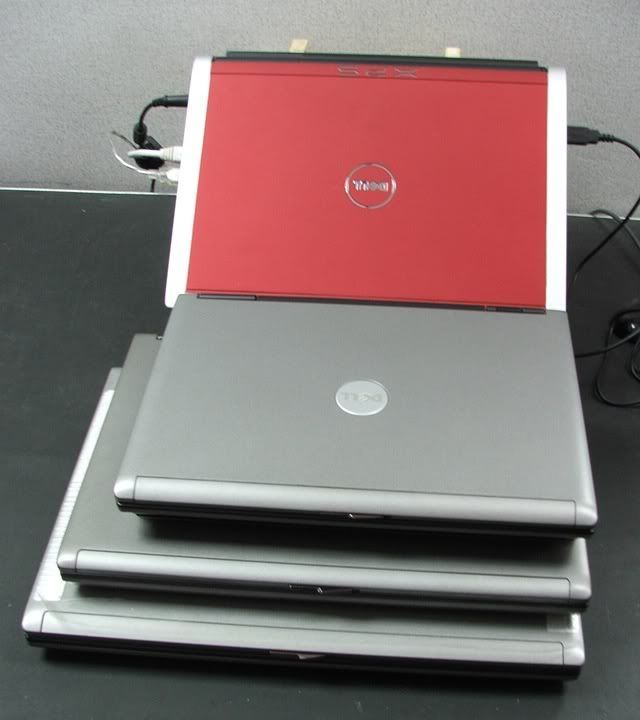

    Top Front view

    [​IMG]

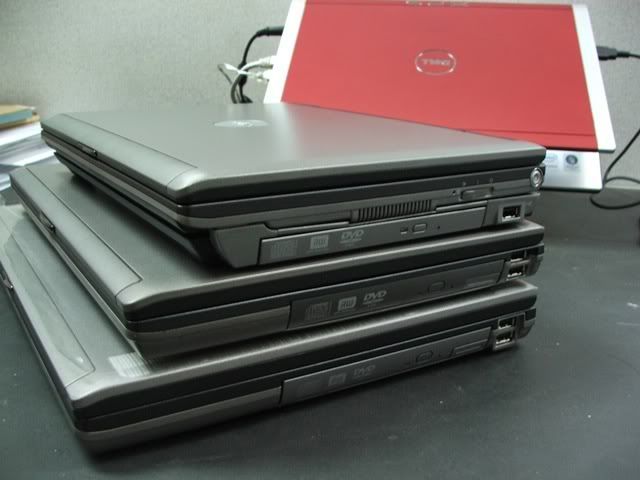

    Right port/drive view. D420 with Mediabase

    Last edited by a moderator: May 8, 2015
    jaycee, Jun 4, 2008
    #5
  6. jaycee

    jaycee Notebook Consultant

    Reputations:
    15
    Messages:
    188
    Likes Received:
    0
    Trophy Points:
    30
    I have a D520 as well, but I doubt anyone would be interested in that old clunker....My desk isn't big enough for the family shot.

    jaycee, Jun 4, 2008
    #6
  7. Weegie

    Weegie Notebook Deity

    Reputations:
    280
    Messages:
    843
    Likes Received:
    5
    Trophy Points:
    31
    Very nice pics and comparison jaycee.

    Weegie, Jun 4, 2008
    #7
  8. jaycee

    jaycee Notebook Consultant

    Reputations:
    15
    Messages:
    188
    Likes Received:
    0
    Trophy Points:
    30
    [​IMG]

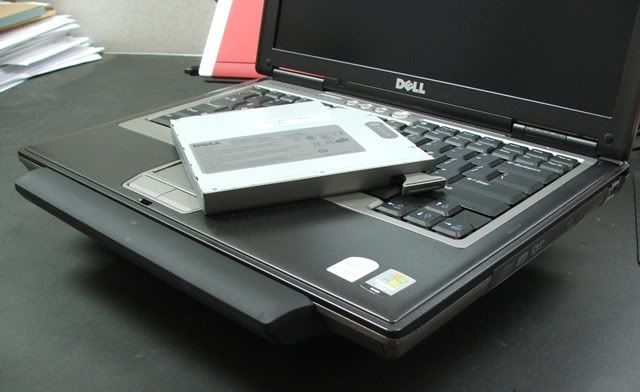

    D630 with optional 9 cell and 6 Cell lithium polymer battery

    This combo is the only setup that can last my flight from Asia to Europe, with a 13hour runtime (wireless off, screen at 1/3 brights doing normal office stuff....some MP3 and a movie)

    [​IMG]

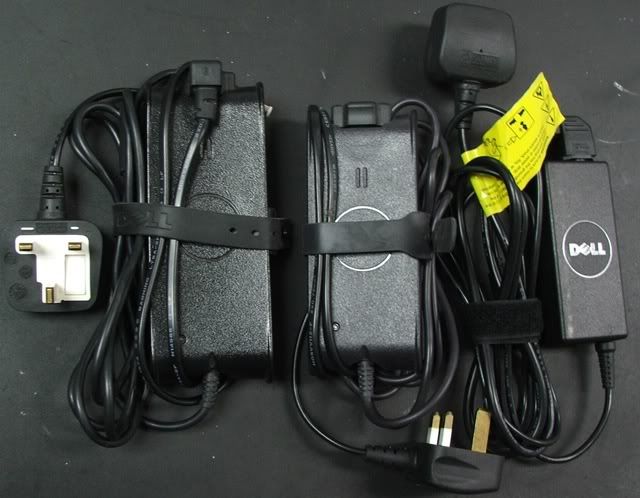

    Standard Dell chargers. L -> R, 90W, 65W, 65W XPS charger

    90W 0.55Kg (1.21lbs) . Also used on the D-DOCK.
    65W 0.4kg (0.88lbs)

    Both the standard 65W and the XPS charger weighs in the same, the XPS is more compact but having longer leads. This is the UK style plug, standard North American or European PSUs will weight in a few grams less.

    I regret not having the compact travel charger with me to make comparisons. Its flatter but wider, and weighs in slightly less, but the leads can sometimes be inconviniently short.

    Last edited by a moderator: May 8, 2015
    jaycee, Jun 4, 2008
    #8
