    Problem with CPU-Z !

    Discussion in 'Dell XPS and Studio XPS' started by PJ@y-Z, Jul 11, 2008.

  1. PJ@y-Z

    PJ@y-Z Notebook Evangelist

    Reputations:
    41
    Messages:
    484
    Likes Received:
    0
    Trophy Points:
    30

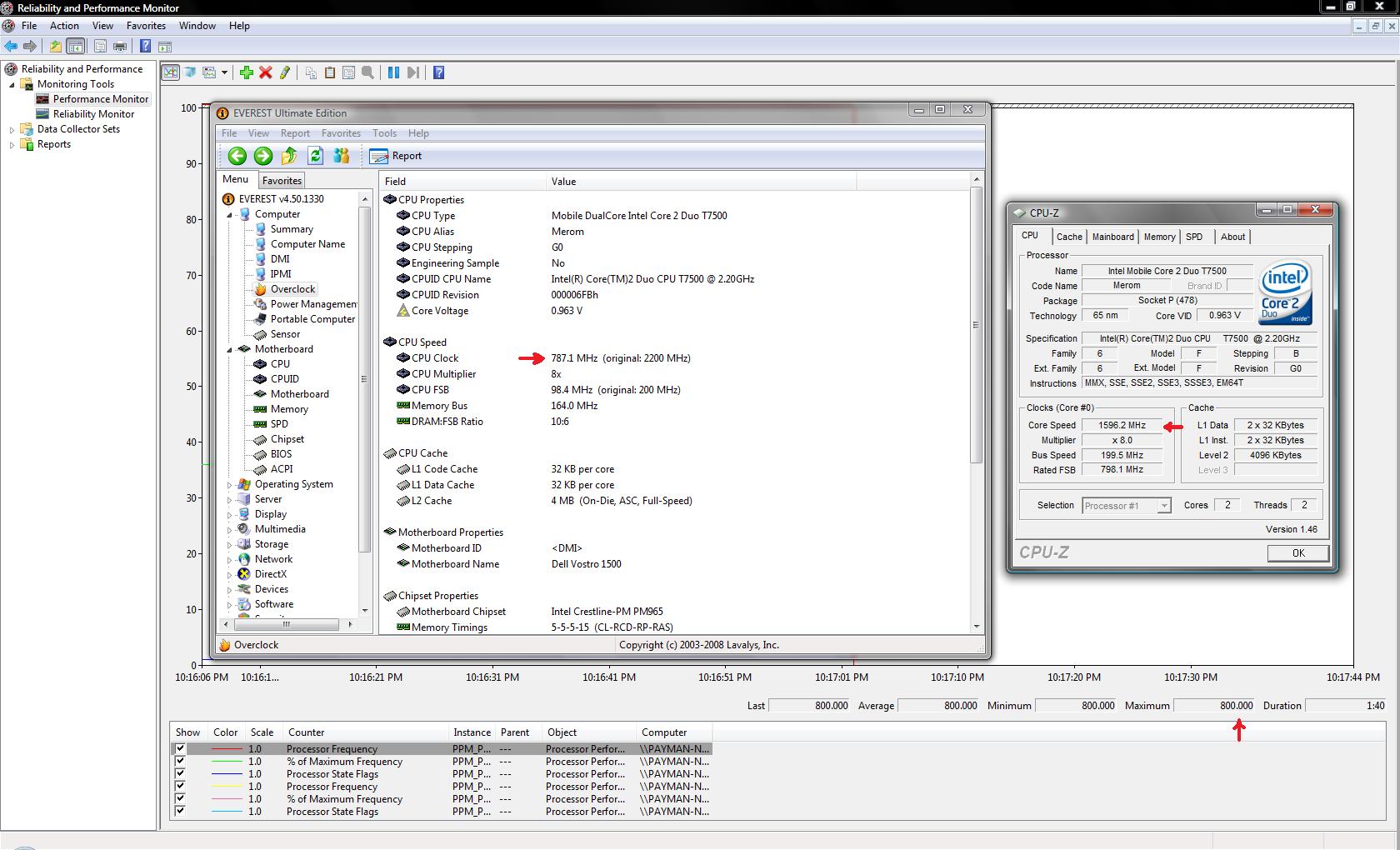

    CPU-Z doesn't show the CPU frequency correctly !
    It has problem with Bus Speed !


    Attached Files:

    • CPUZ.jpg
      File size:
      246.5 KB
      Views:
      146
    PJ@y-Z, Jul 11, 2008
    #1
  2. sefk

    sefk Notebook Consultant

    Reputations:
    99
    Messages:
    278
    Likes Received:
    0
    Trophy Points:
    30
    Normal, your CPU reduce its speed(underclock) at idle to reduce heat and consumption.

    sefk, Jul 11, 2008
    #2
  3. Chucklz_smiley

    Chucklz_smiley Notebook Consultant

    Reputations:
    11
    Messages:
    187
    Likes Received:
    0
    Trophy Points:
    30
    Its called intel speed step technology and it underclocks the cpu when its not under load to conserve battery life, if u run something like a music converter then ull see it go bk up

    Chucklz_smiley, Jul 11, 2008
    #3
  4. PJ@y-Z

    PJ@y-Z Notebook Evangelist

    Reputations:
    41
    Messages:
    484
    Likes Received:
    0
    Trophy Points:
    30
    No, CPU-Z says 1.6GHz (8x200) but Everest and Vista say it's 800MHz (8x100)
    Which one is correct ?

    PJ@y-Z, Jul 12, 2008
    #4
  5. flipfire

    flipfire Moderately Boss

    Reputations:
    6,156
    Messages:
    11,214
    Likes Received:
    68
    Trophy Points:
    466
    SpeedStep allows the clock speed of a processor to be dynamically changed by software. Running the processor at higher clock speeds allows for better performance. However, when the processor is run at a lower speed, its core voltage can be reduced, allowing for reduced power consumption and heat dissipation

    flipfire, Jul 12, 2008
    #5
  6. jwtarbaj

    jwtarbaj Notebook Enthusiast

    Reputations:
    0
    Messages:
    11
    Likes Received:
    0
    Trophy Points:
    5
    SpeedStep reduces the multiplier to reduce your CPU clock speed. It cannot change the FSB speed which is a fixed speed. Currently the lowest your cpu should go is 1.2GHz as the lowest multiplier is 6.0x 200MHz = 1.2GHz

    I'm pretty sure the min speed your CPU will run is in the BIOS.

    jwtarbaj, Jul 12, 2008
    #6
  7. miner

    miner Notebook Nobel Laureate

    Reputations:
    1,326
    Messages:
    7,137
    Likes Received:
    0
    Trophy Points:
    205
    Its just dynamic FSB switching which reduces your FSB in half. CPU-Z doesnt show SLFM mode properly.

    miner, Jul 12, 2008
    #7
  8. PJ@y-Z

    PJ@y-Z Notebook Evangelist

    Reputations:
    41
    Messages:
    484
    Likes Received:
    0
    Trophy Points:
    30
    Can you explain more about SLFM mode ? :confused:

    PJ@y-Z, Jul 13, 2008
    #8
  9. flipfire

    flipfire Moderately Boss

    Reputations:
    6,156
    Messages:
    11,214
    Likes Received:
    68
    Trophy Points:
    466
    Super Low Frequency Mode.

    It lets your CPU's idle frequency and voltage go even lower (600 or 800mhz) instead of 1.2ghz idle.

    More power savings.

    flipfire, Jul 13, 2008
    #9
  10. 7oby

    7oby Notebook Evangelist

    Reputations:
    151
    Messages:
    457
    Likes Received:
    0
    Trophy Points:
    30
    To be more precisely:

    . SuperLFM reduces the FSB800 (200MHz) -> FSB400 (100MHz)
    . This allows for frequencies such as 800MHz with 8x Multiplier
    . CPU-Z is not aware of SuperLFM, Everest is

    7oby, Jul 14, 2008
    #10
  11. PJ@y-Z

    PJ@y-Z Notebook Evangelist

    Reputations:
    41
    Messages:
    484
    Likes Received:
    0
    Trophy Points:
    30
    Why not 600MHz (6x100) ?

    PJ@y-Z, Jul 15, 2008
    #11
  12. flipfire

    flipfire Moderately Boss

    Reputations:
    6,156
    Messages:
    11,214
    Likes Received:
    68
    Trophy Points:
    466
    You will need to use RMclock to switch the SLFM multiplier to 6x

    flipfire, Jul 15, 2008
    #12
  13. PJ@y-Z

    PJ@y-Z Notebook Evangelist

    Reputations:
    41
    Messages:
    484
    Likes Received:
    0
    Trophy Points:
    30
    Thanks very much !

    PJ@y-Z, Jul 15, 2008
    #13
