    M1530/M1330 Hide Audio Wire for Speakers

    Discussion in 'Dell XPS and Studio XPS' started by DJY, Jul 2, 2008.

  1. DJY

    DJY Notebook Guru

    Reputations:
    0
    Messages:
    70
    Likes Received:
    0
    Trophy Points:
    15

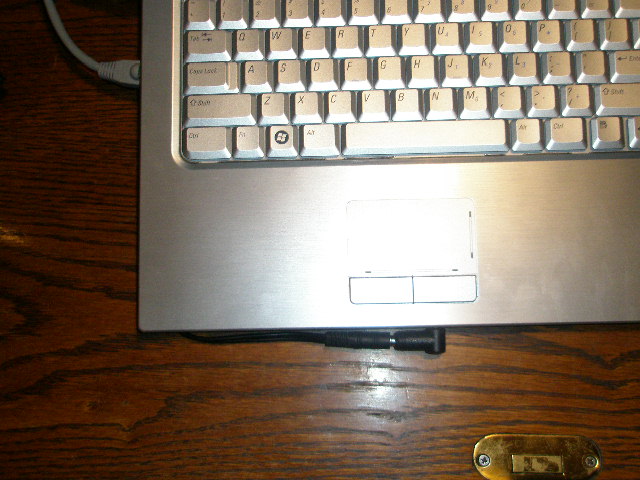

    Attached , please find a photo of a solution for minimizing wire protrusion when setting up your M1330/M1530 with wired speakers. I am using the Bose Companion2 Series II and they are GREAT!!!. I got the 90 degree bend connector at Radio Shack.


    Attached Files:

    DJY, Jul 2, 2008
    #1
  2. Lord Egregious

    Lord Egregious Notebook Evangelist

    Reputations:
    15
    Messages:
    352
    Likes Received:
    0
    Trophy Points:
    30

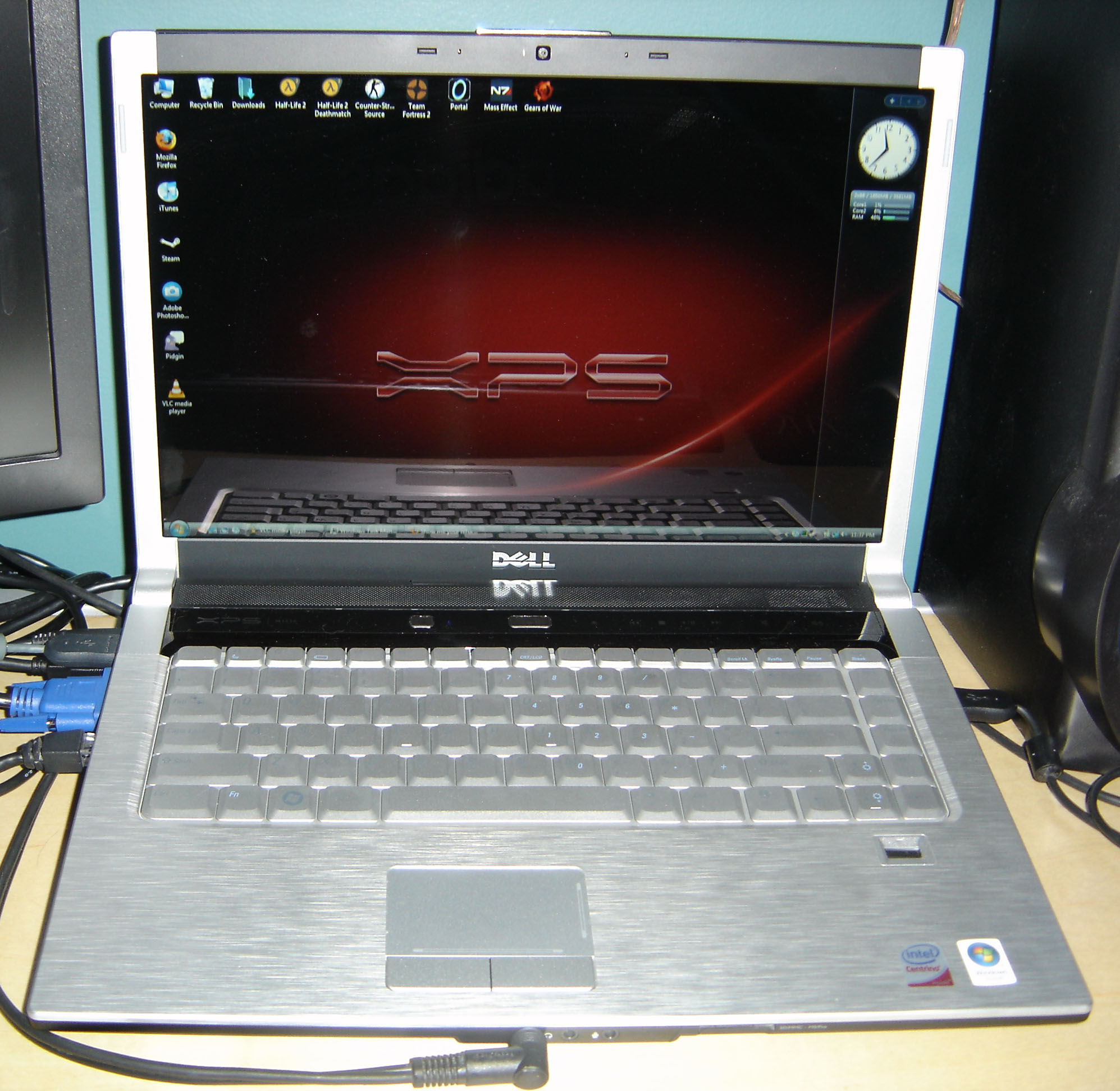

    Looks ten times better than my setup. What exactly did you do though?


    Attached Files:

    • xps.jpg
      File size:
      431 KB
      Views:
      155
    Lord Egregious, Jul 2, 2008
    #2
  3. DJY

    DJY Notebook Guru

    Reputations:
    0
    Messages:
    70
    Likes Received:
    0
    Trophy Points:
    15
    It looks like your speaker connection has a massive 90 degree connector built in. Buy the $3 radio shack connector and a straight pc of sterio audio cable $2 and you will have a minimal protrusion.

    DJY, Jul 2, 2008
    #3
  4. Desai82

    Desai82 Notebook Guru

    Reputations:
    0
    Messages:
    71
    Likes Received:
    0
    Trophy Points:
    15
    i think this is one of the major design flaws imo. There are two audio outputs..why have both in the front?

    Desai82, Jul 2, 2008
    #4
  5. Bauer418

    Bauer418 Notebook Evangelist

    Reputations:
    70
    Messages:
    488
    Likes Received:
    0
    Trophy Points:
    30
    3rd 3.5mm/optical audio out should be added to the side!

    Bauer418, Jul 2, 2008
    #5
  6. fir3ball

    fir3ball Notebook Enthusiast

    Reputations:
    0
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    5
    i got the x-fi card with my m1530 and it gets the plug out of the front, but it puts it right by my mouse, so i'm still moving the speaker cord out of the way.

    fir3ball, Jul 2, 2008
