    M1330's VGA out producing vertical lines!

    Discussion in 'Dell XPS and Studio XPS' started by tilhasbb, Jul 6, 2009.

  1. tilhasbb

    tilhasbb Notebook Consultant

    Reputations:
    1
    Messages:
    131
    Likes Received:
    0
    Trophy Points:
    30
    I have a year old babied XPS M1330 with Nvdia 8400GS videocard.

    Its been sitting on a desk connected to 2 Dell 23'' (S2309W) screens for months. One connected via HDMI and other using VGA.

    The VGA is producing vertical lines flashing. As if there is noise!, i've swapped the VGA and HDMI cable and problem is produced on other screen.
    I've also tried another VGA cable. Also tried changing the refresh rate from 60 to 59. Still nothing.

    I have windows 7. 7200 installed.

    Any ideas?

    tilhasbb, Jul 6, 2009
    #1
  2. paper_wastage

    paper_wastage Beat this 7x7x7 Cube

    Reputations:
    486
    Messages:
    2,596
    Likes Received:
    24
    Trophy Points:
    56
    paper_wastage, Jul 6, 2009
    #2
  3. tilhasbb

    tilhasbb Notebook Consultant

    Reputations:
    1
    Messages:
    131
    Likes Received:
    0
    Trophy Points:
    30
    My laptop screen is perfect. The HDMI output is perfect its the VGA output.

    If i use paint and put a black picture its clean with no noise. But if its a video, or a website or anything else... you see it. its very annoying.

    here's a video.
    https://www.yousendit.com/download/cmczYUlwMGttNEpMWEE9PQ

    tilhasbb, Jul 6, 2009
    #3
  4. paper_wastage

    paper_wastage Beat this 7x7x7 Cube

    Reputations:
    486
    Messages:
    2,596
    Likes Received:
    24
    Trophy Points:
    56
    try another cable or monitor?

    maybe a bent pin or something

    paper_wastage, Jul 6, 2009
    #4
  5. tilhasbb

    tilhasbb Notebook Consultant

    Reputations:
    1
    Messages:
    131
    Likes Received:
    0
    Trophy Points:
    30
    I tried another cable, and another monitor.

    I have TWO 23'' LCDs. I switched cables between both and same result.
    I got another VGA cable and tried it. same thing.

    tilhasbb, Jul 6, 2009
    #5
  6. tilhasbb

    tilhasbb Notebook Consultant

    Reputations:
    1
    Messages:
    131
    Likes Received:
    0
    Trophy Points:
    30
    Anyone Help?

    tilhasbb, Jul 7, 2009
    #6
  7. HCW

    HCW Notebook Deity

    Reputations:
    246
    Messages:
    1,575
    Likes Received:
    5
    Trophy Points:
    56
    you will need to have your motherboard replaced

    HCW, Jul 7, 2009
    #7
  8. tilhasbb

    tilhasbb Notebook Consultant

    Reputations:
    1
    Messages:
    131
    Likes Received:
    0
    Trophy Points:
    30
    How do I deal with technical support?
    I have windows 7....lol

    tilhasbb, Jul 7, 2009
    #8
  9. own3d

    own3d Notebook Evangelist

    Reputations:
    73
    Messages:
    445
    Likes Received:
    0
    Trophy Points:
    30
    Lie and tell them what they want to hear?

    own3d, Jul 7, 2009
    #9
  10. paper_wastage

    paper_wastage Beat this 7x7x7 Cube

    Reputations:
    486
    Messages:
    2,596
    Likes Received:
    24
    Trophy Points:
    56
    if you are under warranty, just go to dell online chat and explain the problem

    "vertical lines out using VGA out... problem persists after using a different LCD, and different VGA wire"

    either way, the motherboard will be replaced since the VGA port is soldered onto the mobo... if it's a GPU problem, the mobo replacement also replaces the GPU, so ya..

    paper_wastage, Jul 7, 2009
    #10
  11. tilhasbb

    tilhasbb Notebook Consultant

    Reputations:
    1
    Messages:
    131
    Likes Received:
    0
    Trophy Points:
    30
    Done :)
    Thank god I upgraded complete care till 2011.

    tilhasbb, Jul 7, 2009
    #11
  12. tilhasbb

    tilhasbb Notebook Consultant

    Reputations:
    1
    Messages:
    131
    Likes Received:
    0
    Trophy Points:
    30
    Do they keep the same CPU?

    I like my T7250! it supports Intel Virtualization Technology (VT).

    tilhasbb, Jul 7, 2009
    #12
  13. own3d

    own3d Notebook Evangelist

    Reputations:
    73
    Messages:
    445
    Likes Received:
    0
    Trophy Points:
    30
    CPU is not changed in a mobo replacement

    own3d, Jul 12, 2009
    #13
  14. tilhasbb

    tilhasbb Notebook Consultant

    Reputations:
    1
    Messages:
    131
    Likes Received:
    0
    Trophy Points:
    30
    Mobo replaced. Laptop works like a charm :)

    tilhasbb, Jul 15, 2009
    #14
  15. paper_wastage

    paper_wastage Beat this 7x7x7 Cube

    Reputations:
    486
    Messages:
    2,596
    Likes Received:
    24
    Trophy Points:
    56
    good to hear... any problems with warranty service? you always hear about how a repair sucks, but rarely about how the warranty/repair worked fine...

    paper_wastage, Jul 15, 2009
    #15
  16. tilhasbb

    tilhasbb Notebook Consultant

    Reputations:
    1
    Messages:
    131
    Likes Received:
    0
    Trophy Points:
    30
    Spoke to soon !!! The VGA still flickers!
    The warranty is amazing, i paid for full complete care and rapid response.
    They changed the motherboard and cleaned my system.

    When I run both monitors the VGA one flickers. its freaking annoying as !
    Any ideas?

    i posted picture of the temperatures.
    I'll try to post a video


    Attached Files:

    tilhasbb, Jul 15, 2009
    #16
  17. paper_wastage

    paper_wastage Beat this 7x7x7 Cube

    Reputations:
    486
    Messages:
    2,596
    Likes Received:
    24
    Trophy Points:
    56
    looks like you didn't set it up right, if this's the case... or both monitors and cables are bad... any other device to test VGA output to those monitors?

    get a ubuntu live cd(or usb flash drive) and boot and try mirroring

    paper_wastage, Jul 15, 2009
    #17
  18. tilhasbb

    tilhasbb Notebook Consultant

    Reputations:
    1
    Messages:
    131
    Likes Received:
    0
    Trophy Points:
    30
    The monitors are Dell S2309W both have DVI and VGA input.
    I have an HDMI to DVI adapter.

    Left Screen HDMI and right VGA.
    I switched inputs and its always the same on the VGA side. Problem was not there before, and there arent any settings on the screen.
    I've also tried a different VGA cable. Same thing...

    VGA output is messed up.

    Just tried monitor VGA input from another source (Dell Inspiron6000) its perfect.

    tilhasbb, Jul 15, 2009
    #18
  19. tilhasbb

    tilhasbb Notebook Consultant

    Reputations:
    1
    Messages:
    131
    Likes Received:
    0
    Trophy Points:
    30
    ahhh this is going to give me a seizure... I am usto having two screens to look at my stocks, and cnbc on one screen. The other have my regular stuff... i cant now...

    tilhasbb, Jul 15, 2009
    #19
  20. tilhasbb

    tilhasbb Notebook Consultant

    Reputations:
    1
    Messages:
    131
    Likes Received:
    0
    Trophy Points:
    30
    I just moved the screens and laptop to a different room.... i was told it might be some source of interferance in the room... i am desperatly trying anything...
    didnt help.

    tilhasbb, Jul 15, 2009
    #20
  21. tilhasbb

    tilhasbb Notebook Consultant

    Reputations:
    1
    Messages:
    131
    Likes Received:
    0
    Trophy Points:
    30
    tilhasbb, Jul 16, 2009
    #21
  22. tilhasbb

    tilhasbb Notebook Consultant

    Reputations:
    1
    Messages:
    131
    Likes Received:
    0
    Trophy Points:
    30
    I FIXED IT!!!! Well not fixed but flickering is ALMOST gone.
    If you want it perfect, unplug the A/C power ! :p

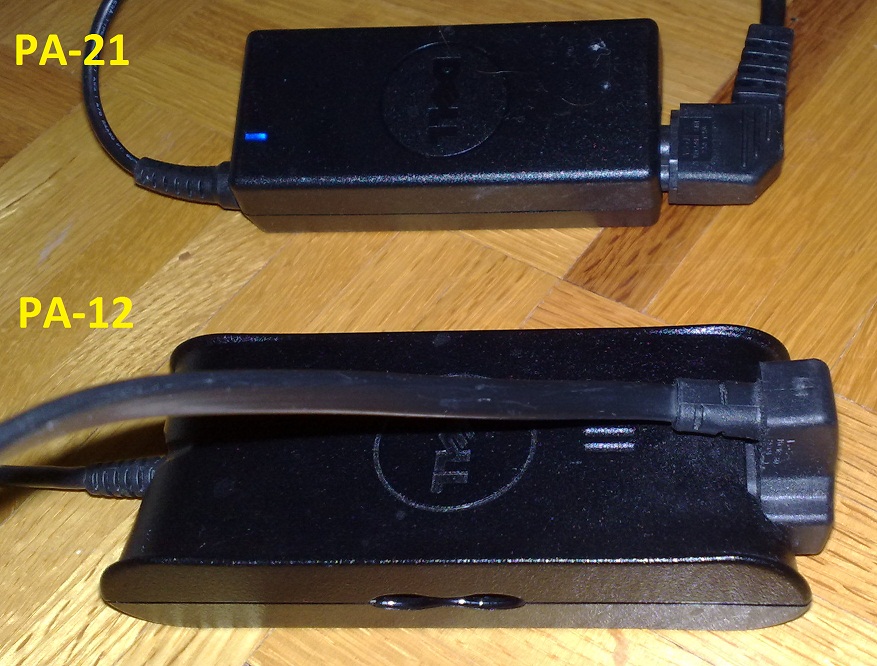

    Changed the A/C adapter from the XPS Little 65W PA-21 To the Monster 65W PA-12 Adapter.


    Funny thing is, i have another PA-21 Adapter at work. So i never even considered it as a possiblity.


    Attached Files:

    tilhasbb, Jul 16, 2009
    #22
  23. paper_wastage

    paper_wastage Beat this 7x7x7 Cube

    Reputations:
    486
    Messages:
    2,596
    Likes Received:
    24
    Trophy Points:
    56
    interesting... the power and VGA cables should be well shielded and have ferrorite cores to filter out noise...

    paper_wastage, Jul 16, 2009
    #23
  24. tilhasbb

    tilhasbb Notebook Consultant

    Reputations:
    1
    Messages:
    131
    Likes Received:
    0
    Trophy Points:
    30
    tilhasbb, Jul 16, 2009
    #24
