    L502x keyboard on L501x

    Discussion in 'Dell XPS and Studio XPS' started by brewmastr, Aug 27, 2011.

  1. brewmastr

    brewmastr Notebook Consultant

    Reputations:
    7
    Messages:
    123
    Likes Received:
    0
    Trophy Points:
    30
    Has anyone tried to put the chiclet style keyboard from the L502x on the L501x, i have the backlit keyboard on my L501x currently and the keys are starting to wear the glossy coating off them making them white and ugly, i like the chiclet style better, was wondering if its possible.

    brewmastr, Aug 27, 2011
    #1
  2. madmattd

    madmattd Notebook Deity

    Reputations:
    367
    Messages:
    1,138
    Likes Received:
    0
    Trophy Points:
    55
    Should be the exact same keyboard. The chassis is the same, the only differences were in the CPU/GPU components put inside (and obviously the mobo is different to support the new chipset and CPU/GPU). Physically no difference outside.

    Isn't the backlit a chicklet too? The one on my l702x is...

    madmattd, Aug 28, 2011
    #2
  3. jdsteele

    jdsteele Notebook Enthusiast

    Reputations:
    0
    Messages:
    23
    Likes Received:
    0
    Trophy Points:
    5
    I'd like to know, too. I read on another forum that the L502X keyboard is not compatible with the L501x because of different screw location.

    Can anyone confirm?

    jdsteele, Nov 17, 2011
    #3
  4. cri-cri

    cri-cri Notebook Consultant

    Reputations:
    43
    Messages:
    111
    Likes Received:
    0
    Trophy Points:
    30

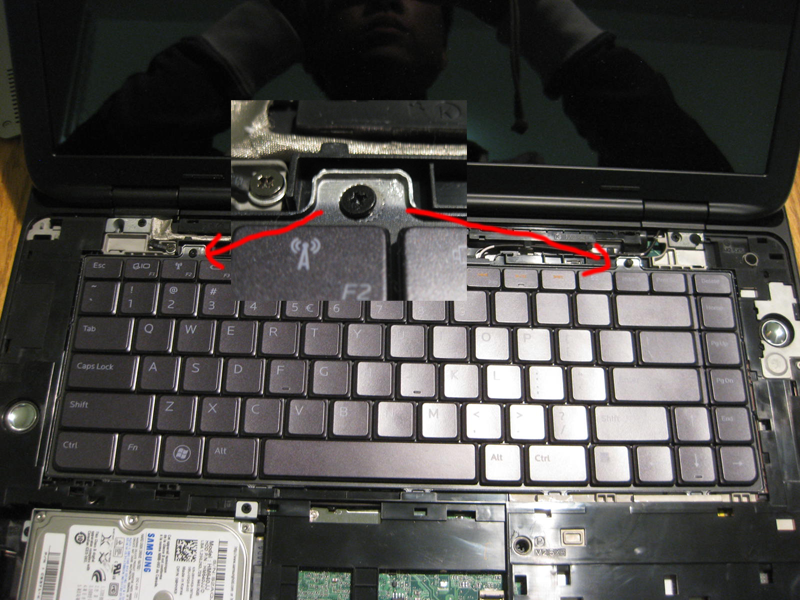

    There is no screw on L502x keyboard as opposed to L501x counterpart (pic from chanman's thread):

    [​IMG]

    And yes, the location of the tabs on L502x keyboard is different, they're closer to each other.

    cri-cri, Nov 18, 2011
    #4
