    L502x Green Screen Issue

    Discussion in 'Dell XPS and Studio XPS' started by Nolander, Apr 7, 2016.

  1. Nolander

    Nolander Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hey everybody,

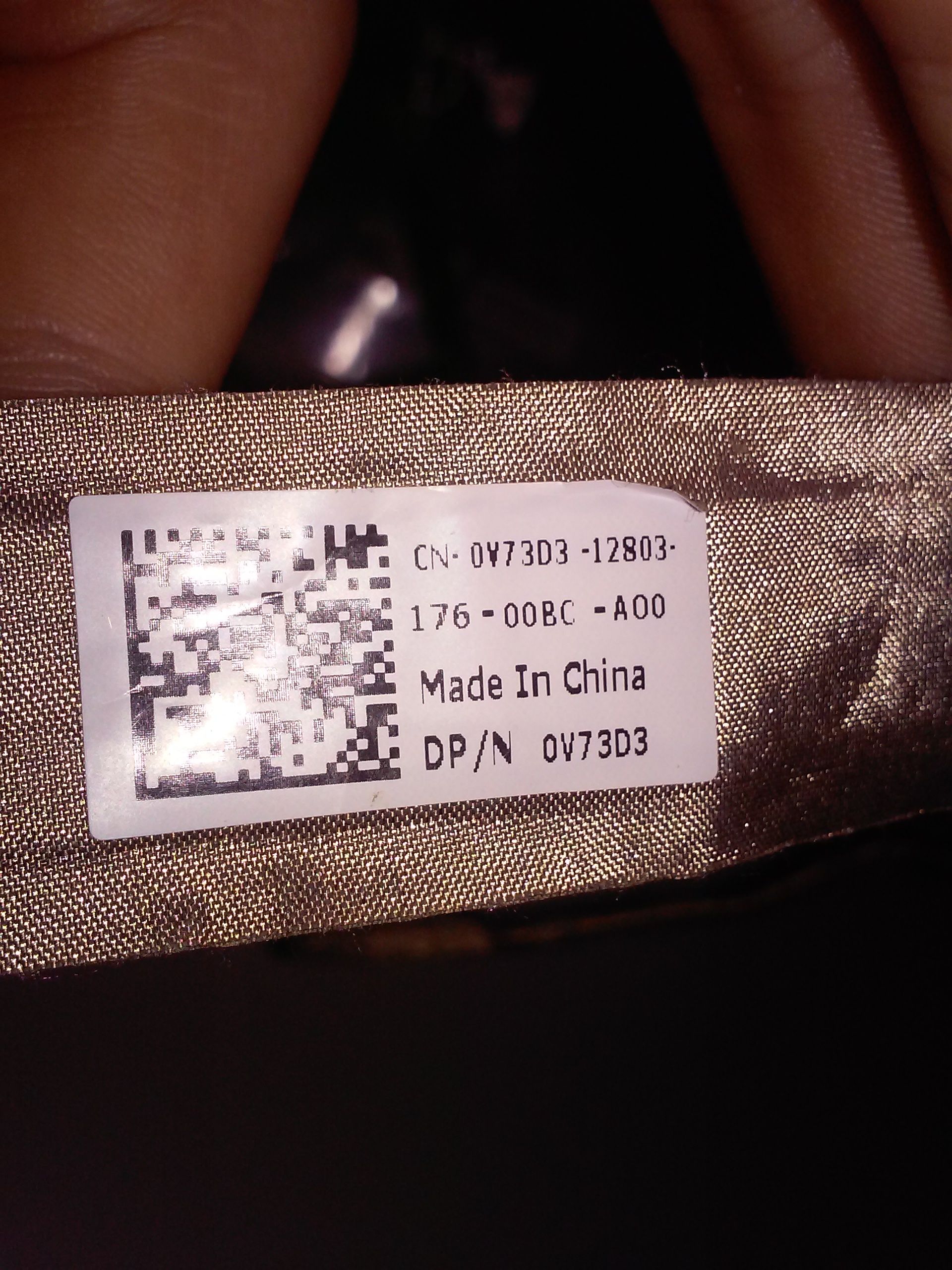

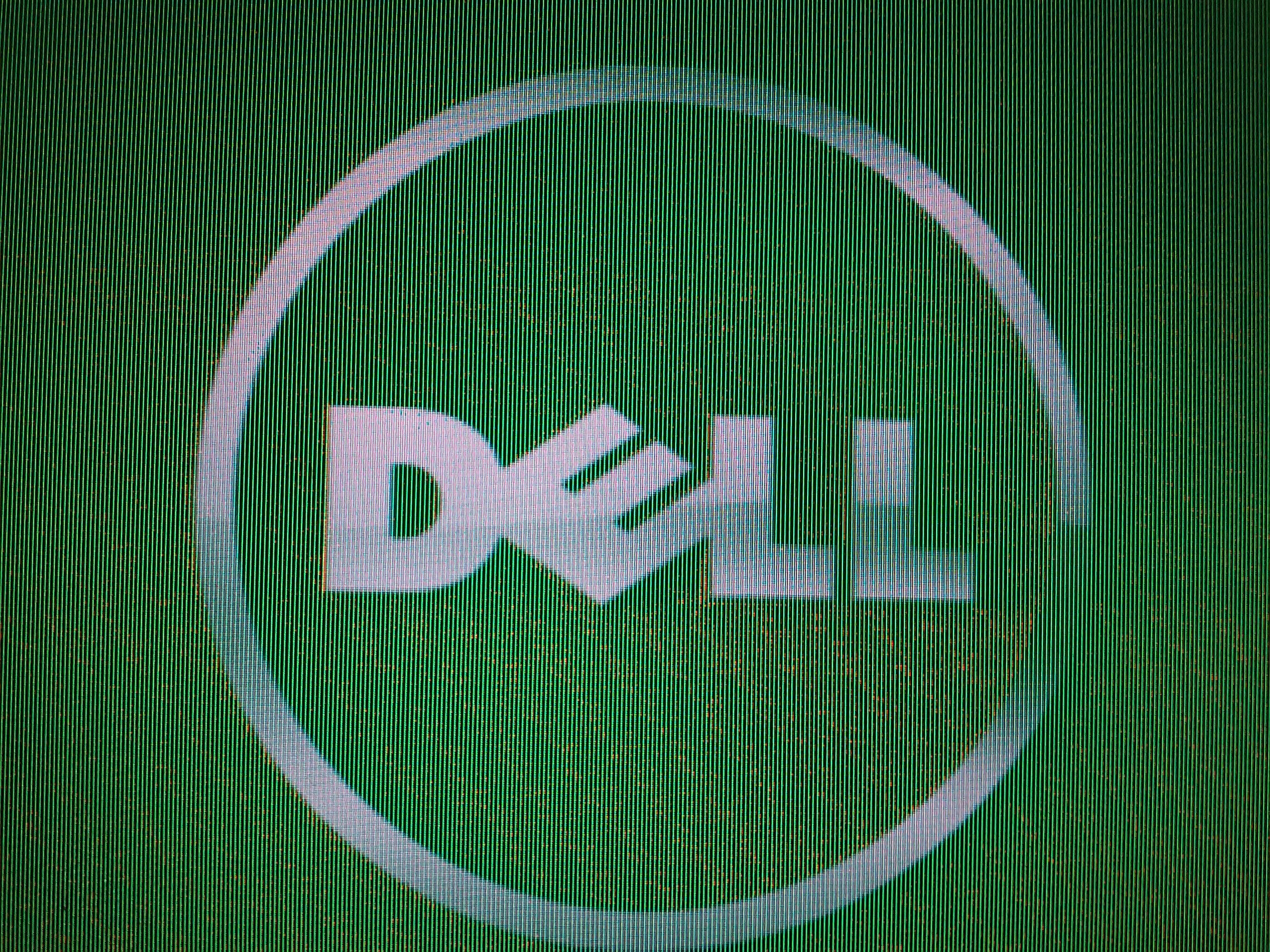

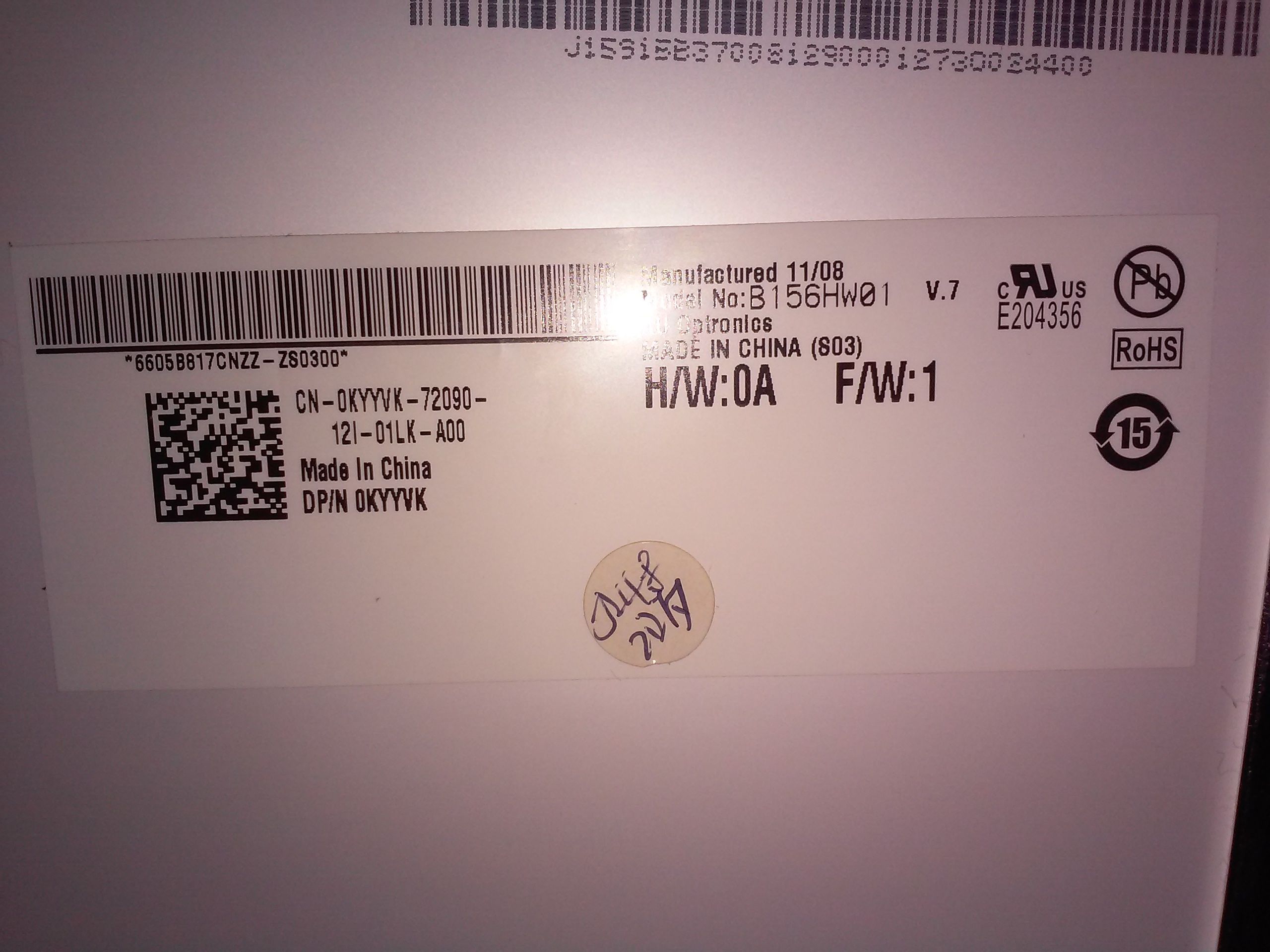

    To sum up my issue, I threw away my original display cord for my screen and I didn't get its part number, that was obviously very stupid of me. Since then ive been researching cables to find the right one, and Ive bought 3 different display cables and all of them result in a green or white screen. At this point I don't know if its the display, the cord, or the GPU. If you guys could take a look at it and or recommended me a cable I would really really appreciate it.


    [​IMG]

    [​IMG] [​IMG]

    Last edited: Apr 8, 2016
    Nolander, Apr 7, 2016
    #1
  2. kent1146

    kent1146 Notebook Prophet

    Reputations:
    2,354
    Messages:
    4,449
    Likes Received:
    476
    Trophy Points:
    151
    Looks like damaged pins on either the motherboard, or display end. If you've swapped 3 cables already, you know it's not a cable issue.

    Sent from my XT1575 using Tapatalk

    kent1146, Apr 7, 2016
    #2
  3. Nolander

    Nolander Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5

    There isn't any visible damage on the motherboard, but I can't see the screen's pins so its very possible. Although I forgot to mention that I didnt get the part number on the original before I chucked it, so the three cords I used, I'm unsure if any were the right one

    Nolander, Apr 8, 2016
    #3
  4. kent1146

    kent1146 Notebook Prophet

    Reputations:
    2,354
    Messages:
    4,449
    Likes Received:
    476
    Trophy Points:
    151
    Just because you can't see the damage, doesn't mean that there isn't damage.

    I can almost guarantee that the problem is bent pins at this point. If it was anything else (wrong cable, defective panel or motherboard, etc), then an image would refuse to show at all. Having a properly-displaying image with some kind of tint or regular line pattern is a dead giveaway of bent pins.

    Sent from my XT1575 using Tapatalk

    kent1146, Apr 8, 2016
    #4
  5. Nolander

    Nolander Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5

    You're probably right, but I must disagree with you, for the sake of other people finding this thread. I have 2 different display cords for 2 different models, both display an image, although they're both wrong of course. Anyways, I'm trying one more cord haha, after that I'll try a new screen. Thanks for the help BTW.

    Nolander, Apr 9, 2016
    #5
  6. Nolander

    Nolander Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Well I'm back, after replacing the cord again and the motherboard, it seems to be a problem with the screen. Unfortunately I don't have another $90 to shell out so I guess I'm stuck with it for a while. Thanks for the help BTW Kent, seems you were right. :cool:

    Nolander, Apr 19, 2016
    #6
