    (Your) XPS L501X DDR3 Frequency

    Discussion in 'Dell XPS and Studio XPS' started by kunekaden, Dec 31, 2010.

  1. kunekaden

    kunekaden Notebook Deity

    Reputations:
    590
    Messages:
    912
    Likes Received:
    0
    Trophy Points:
    30
    Dell tech finally showed up, 2 days later. Anyway, he replaced my ram, but it's still not running as advertised. I think I'll just delve into pictures instead of boring you.

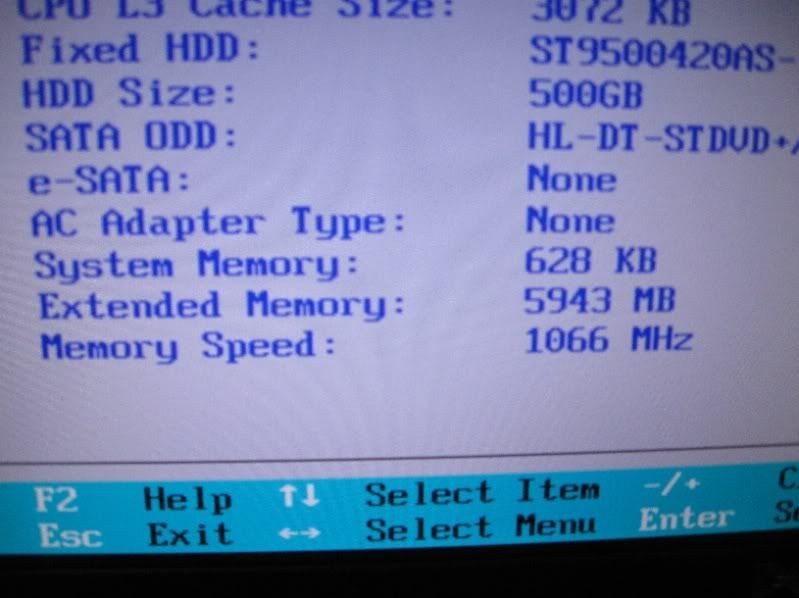

    My bios (A04)
    [​IMG]

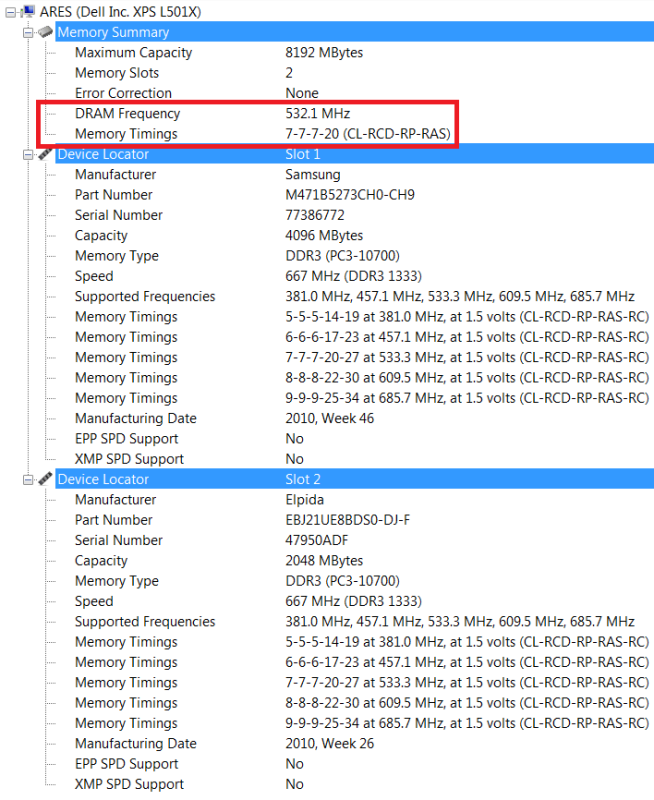

    What's REALLY installed (note the timings of 7-7-7-20-whatever)
    [​IMG]

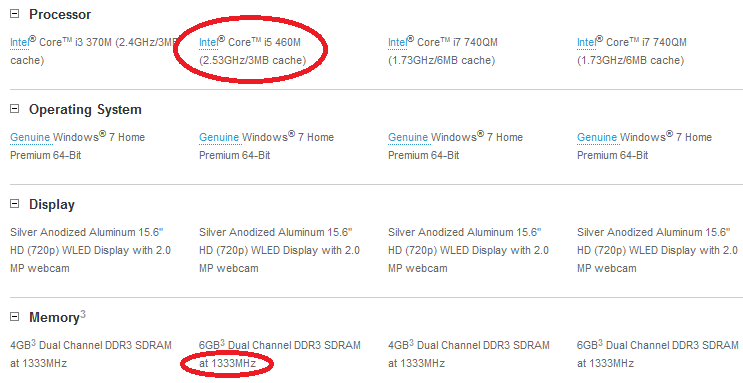

    Dell Canada XPS L501X base config selection website
    [​IMG]

    ...which is probably not a good idea to advertise, considering these CPU don't support 1333mhz
    [​IMG]

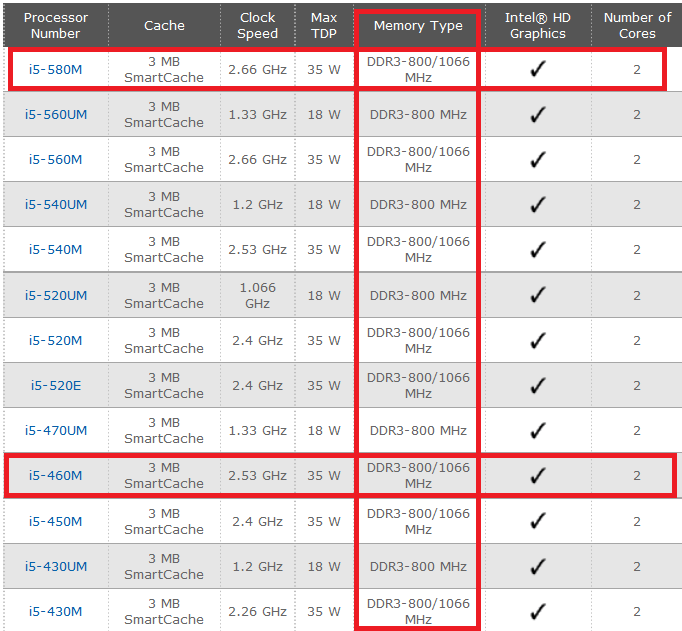

    source: Intel core i5 specs


    What's your RAM frequency?

    kunekaden, Dec 31, 2010
    #1
  2. kizwan

    kizwan Lord Pringles

    Reputations:
    1,502
    Messages:
    3,229
    Likes Received:
    10
    Trophy Points:
    106
    Anyone else should experience the same - running only at 1066MHz if the CPU doesn't support 1333MHz (bus speed 667MHz). Specification on Dell site does wrong. Look like they just copy & paste the value.

    kizwan, Dec 31, 2010
    #2
  3. kunekaden

    kunekaden Notebook Deity

    Reputations:
    590
    Messages:
    912
    Likes Received:
    0
    Trophy Points:
    30
    Yeah that's essentially what I was saying; Dell are copypasting info that is theoretically relevant for the i7 selection - and somewhat falsely advertising for i5s.

    I'd like to know if the i7's are running at 1333

    kunekaden, Dec 31, 2010
    #3
  4. kizwan

    kizwan Lord Pringles

    Reputations:
    1,502
    Messages:
    3,229
    Likes Received:
    10
    Trophy Points:
    106
    Sorry, I didn't realize you were asking for i7's. If dell doesn't done anything wrong to the machine, i7 should running with memory at 1333MHz. Take my answer/reply as my opinion only since I do not own similar machine but I do have i7 processor powered notebook. :)

    EDIT: JKleiss's reply is more accurate. My reply is based on the picture (specification at Dell website) at the first post. :)

    kizwan, Dec 31, 2010
    #4
  5. TimeWriter

    TimeWriter Notebook Evangelist

    Reputations:
    244
    Messages:
    419
    Likes Received:
    0
    Trophy Points:
    30
    Only i7 CPUs have DDR3-1333 controller. Is normal that your DDR3-1066 memory to work at a speed of 533MHz, also DDR3-1333 memories work at 667MHz.
    Take good care and a Happy New Year!

    TimeWriter, Dec 31, 2010
    #5
  6. harvardbmw

    harvardbmw Notebook Enthusiast

    Reputations:
    0
    Messages:
    30
    Likes Received:
    0
    Trophy Points:
    15
    Which program did you use to get these information about the memory?

    harvardbmw, Dec 31, 2010
    #6
  7. JKleiss

    JKleiss Notebook Evangelist

    Reputations:
    261
    Messages:
    660
    Likes Received:
    0
    Trophy Points:
    30
    Arrandale cpus (dual core i3, i5, i7) only run at 1066MHz, this will show as 533MHz as Double Data Rate is 1066MHz

    Clarksfield i7 quads will run at 1333MHz
    this will show as 667MHz as DDR is 1333MHz

    JKleiss, Dec 31, 2010
    #7
  8. sprtnbsblplya

    sprtnbsblplya Notebook Deity

    Reputations:
    420
    Messages:
    1,339
    Likes Received:
    0
    Trophy Points:
    55
    This is what my i7 quad reports:

    [​IMG]

    (from AIDA64)

    sprtnbsblplya, Jan 1, 2011
    #8
