    nv9500m core in Asus notebooks??

    Discussion in 'Asus' started by maximumcoder, Jul 14, 2008.

  1. maximumcoder

    maximumcoder Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    What is the processor core used in the nv9500m in asus notebooks.
    eg. 8800M cards are G92, 8600M are G86 etc...

    Let me know.. thanks.. :)

    maximumcoder, Jul 14, 2008
    #1
  2. fabarati

    fabarati Frorum Obfuscator

    Reputations:
    1,904
    Messages:
    3,374
    Likes Received:
    0
    Trophy Points:
    105
    It's most likely a G84, like the 8600m GT.

    fabarati, Jul 14, 2008
    #2
  3. David

    David NBR Random Reviewer NBR Reviewer

    Reputations:
    7,515
    Messages:
    8,733
    Likes Received:
    7
    Trophy Points:
    206

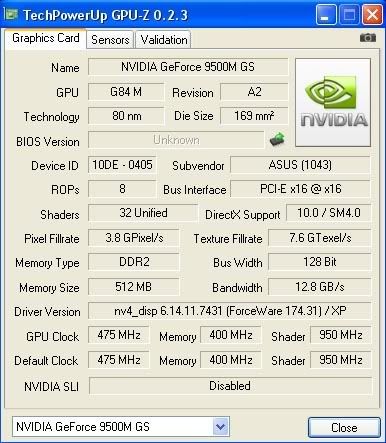

    It's a G84. In fact, the 9500m GS is the exact same card as the 8600m GT w/ DDR2 but with better power utilization.


    [​IMG]

    Last edited by a moderator: Feb 6, 2015
    David, Jul 14, 2008
    #3
  4. fabarati

    fabarati Frorum Obfuscator

    Reputations:
    1,904
    Messages:
    3,374
    Likes Received:
    0
    Trophy Points:
    105
    That's what I thought. Didn't have any screenshots or links, so I left it at that.

    fabarati, Jul 14, 2008
    #4
  5. maximumcoder

    maximumcoder Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    so i suppose it also is affected by the heat problems that afflict the nv8600m machines... there was a news recently that all the G84 chips hav heat manufacturing defects in them.

    maximumcoder, Jul 15, 2008
    #5
  6. maximumcoder

    maximumcoder Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    thanks for the info...

    maximumcoder, Jul 15, 2008
    #6
  7. David

    David NBR Random Reviewer NBR Reviewer

    Reputations:
    7,515
    Messages:
    8,733
    Likes Received:
    7
    Trophy Points:
    206
    Not at all. It only affects the previous generation (8 series) GPUs. My 9500m GS runs quite cool - idles at ~60C and max around 81 during gaming.

    No problem :)

    David, Jul 15, 2008
    #7
  8. maximumcoder

    maximumcoder Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    hi emporiumboutique.. one more thing.. i see that u hav a M50Sv-A1.. is it the same with the G1Sn-A1 i have ordered...????? delivery on 20th

    maximumcoder, Jul 15, 2008
    #8
  9. David

    David NBR Random Reviewer NBR Reviewer

    Reputations:
    7,515
    Messages:
    8,733
    Likes Received:
    7
    Trophy Points:
    206
    I believe so, since they use the exact same GPU. I haven't heard of anyone with the G1Sn complain about heat issues... the overheating horror stories seems to be isolated with only the 8 series GPUs.

    David, Jul 15, 2008
    #9
  10. maximumcoder

    maximumcoder Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    thts gud to hear.. thanks..

    maximumcoder, Jul 16, 2008
    #10
  11. maximumcoder

    maximumcoder Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    Hi...

    i just got my machine... its a G1Sn (9500GS)
    here are my temps on the 173.31

    GPU 69(idle) 89(load)
    CPU 49-53(idle) 75(load)

    also on the 177.70

    GPU 67(idle) 89(load)
    CPU 50(idle) 67-69(load)


    Can anyone make any sense of these tempratures... either my machine is not cooling enough... or its just that its a G1Sn. Should i be concerned about these tempratures... ????

    maximumcoder, Jul 28, 2008
    #11
  12. smokinokie

    smokinokie Notebook Consultant

    Reputations:
    261
    Messages:
    259
    Likes Received:
    0
    Trophy Points:
    30
    Those are much higher than my temps. GPU idles in the low 50's and maxes out at 81-82 with the OC in my sig. CPU idles in the upper 40's and never reaches 60 under load. I haven't played anything more demanding than C&C 3 though.

    smokinokie, Jul 28, 2008
    #12
  13. Dire NTropy

    Dire NTropy Notebook Deity

    Reputations:
    297
    Messages:
    720
    Likes Received:
    0
    Trophy Points:
    30
    First thing I'd suggest is to undervolt. A great guide written by flipfire can be found here. This really helped my temperatures.

    Dire NTropy, Jul 28, 2008
    #13
  14. maximumcoder

    maximumcoder Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    what is ur driver version???

    is it possible that the different drivers cause different tempratures..???

    Also.. is it possible that my temprature reading are wrong?? coz when i feel the entire body of the machine with my hands.. it hardly feels warm.. let alone hot.. just the harddrive feels hot.. though everest shows it to be 47deg

    maximumcoder, Jul 28, 2008
    #14
  15. smokinokie

    smokinokie Notebook Consultant

    Reputations:
    261
    Messages:
    259
    Likes Received:
    0
    Trophy Points:
    30
    I'm using the 175.80 drivers. My CPU is undervolted which helps and my Zalman makes a difference too. I think the Zalman basically offsets the higher heat output of my OC.

    Drivers can most definitely make a difference in temps.

    smokinokie, Jul 28, 2008
    #15
  16. maximumcoder

    maximumcoder Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    ok.. ill try the above suggestions... thanks.. ill get back to u guys and report the results

    maximumcoder, Jul 28, 2008
    #16
  17. dmidi

    dmidi Newbie

    Reputations:
    0
    Messages:
    6
    Likes Received:
    0
    Trophy Points:
    5
    SmokinOkie...

    Have you verified quadro support in software such as maya or solidworks realview?

    dmidi, Oct 19, 2008
    #17
  18. E.B.E.

    E.B.E. NBR Procrastinator

    Reputations:
    1,572
    Messages:
    8,632
    Likes Received:
    4
    Trophy Points:
    206
    (old thread, it is possible that user is no longer around)

    There is some discussion in recent threads about the Quadro softmod. Check the last few pages of the ASUS forum if you're interested.

    E.B.E., Oct 20, 2008
