    RAM slots ?

    Discussion in 'Asus' started by s1m0n, Dec 2, 2006.

  1. s1m0n

    s1m0n Notebook Enthusiast

    Reputations:
    2
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    Where is DIMM1 and DIMM2 ?

    Whitch one is under the keyboard ?

    (My laptop A7D/Z83)

    s1m0n, Dec 2, 2006
    #1
  2. Geared2play.com

    Geared2play.com Company Representative

    Reputations:
    691
    Messages:
    4,770
    Likes Received:
    0
    Trophy Points:
    105
    The second module is under the keyboard. To remove the kb look in the crack between the fn keys and the panel north of it. There are little latches there. press them from left to right with a flat head and prop the keyboard up as you go. It has magnets on the keyboard bottom so you may have to pull a bit. There may also be screws denoted with the letter "k" on the bottom. If you find any on the bottom of the laptop you have to remove them

    Geared2play.com, Dec 2, 2006
    #2
  3. AuroraS

    AuroraS Notebook Virtuoso

    Reputations:
    651
    Messages:
    3,497
    Likes Received:
    0
    Trophy Points:
    105
    I'm not 100% sure, but I think DIMM1 may be the one under the keyboard, and DIMM2 is the one on the bottom of the laptop.

    AuroraS, Dec 2, 2006
    #3
  4. s1m0n

    s1m0n Notebook Enthusiast

    Reputations:
    2
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    EVEREST Home says DIMM2 is full (1GB) and i going to add 1GB to DIMM1. Now I don't know where is DIMM1 ?
    I think DIMM2 is under the keyboard !

    s1m0n, Dec 2, 2006
    #4
  5. AuroraS

    AuroraS Notebook Virtuoso

    Reputations:
    651
    Messages:
    3,497
    Likes Received:
    0
    Trophy Points:
    105
    Well, if there's already a 1GB stick on the bottom of the notebook (and that's DIMM1), then DIMM2 is the one under the keyboard. :)

    To me, at least, it'd make more sense if DIMM1 was under the keyboard and DIMM2 was on the bottom... since having the slot on the bottom would make it much more easily upgradable by the user.

    AuroraS, Dec 2, 2006
    #5
  6. s1m0n

    s1m0n Notebook Enthusiast

    Reputations:
    2
    Messages:
    34
    Likes Received:
    0
    Trophy Points:
    15
    Ok. I don't have the TV card in it is there any option to add it?

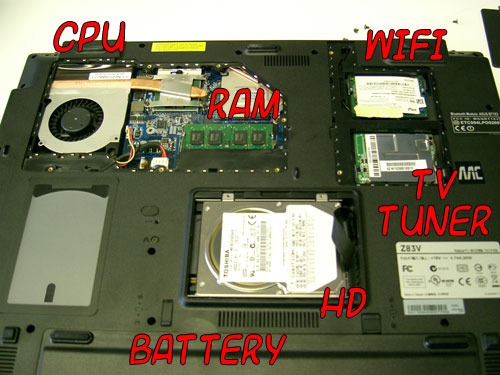

    [​IMG]

    The TV slot is empty!

    s1m0n, Dec 2, 2006
    #6
