    CPU system

    Discussion in 'Asus' started by csky12, Oct 22, 2007.

  1. csky12

    csky12 Notebook Geek

    Reputations:
    0
    Messages:
    99
    Likes Received:
    0
    Trophy Points:
    15

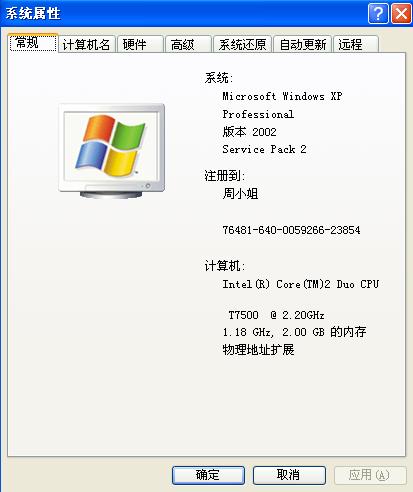

    I just had a look with my system...I'm using XP and my laptop's specs are in the picture attached...I don't understand why it say 1.18 GHz under the T7500 2.2 Ghz line...what does the 1.18 Ghz mean?


    Attached Files:

    csky12, Oct 22, 2007
    #1
  2. fabarati

    fabarati Frorum Obfuscator

    Reputations:
    1,904
    Messages:
    3,374
    Likes Received:
    0
    Trophy Points:
    105
    It clocks down automatically when not used to save power. If you need it, the processor will clock up again.

    fabarati, Oct 22, 2007
    #2
  3. eugenes

    eugenes Notebook Evangelist

    Reputations:
    201
    Messages:
    405
    Likes Received:
    12
    Trophy Points:
    31
    Speed step has kicked in and automatically lowered the clock speed of your CPU to conserve power. You've probably selected a dynamic power plan in windows. Switch your power plan to performance and the clock speed will go back up to 2.2Ghz.

    eugenes, Oct 22, 2007
    #3
  4. E.B.E.

    E.B.E. NBR Procrastinator

    Reputations:
    1,572
    Messages:
    8,632
    Likes Received:
    4
    Trophy Points:
    206
    But don't force your CPU to run at full blast all the time just for the sake of seeing 2.2GHz in that textfield... Speedstep is there for a reason: to keep the CPU cool, and to save power (even from a power plug).

    E.B.E., Oct 22, 2007
    #4
  5. Lite

    Lite Notebook Deity

    Reputations:
    342
    Messages:
    1,398
    Likes Received:
    0
    Trophy Points:
    55
    thats the fsb isnt it??? not current cpu speed

    Lite, Oct 22, 2007
    #5
  6. fabarati

    fabarati Frorum Obfuscator

    Reputations:
    1,904
    Messages:
    3,374
    Likes Received:
    0
    Trophy Points:
    105
    That is not the fsb. It's the CPU clock frequency..

    fabarati, Oct 22, 2007
    #6
  7. csky12

    csky12 Notebook Geek

    Reputations:
    0
    Messages:
    99
    Likes Received:
    0
    Trophy Points:
    15
    how do I select the performance plan? which setting is it under? because I have Nvidia and when I check powermizer before, under AC adapter it's always in saving power mode, even if I change it to performance mode it still won't change...anyone know why?

    csky12, Oct 22, 2007
    #7
  8. E.B.E.

    E.B.E. NBR Procrastinator

    Reputations:
    1,572
    Messages:
    8,632
    Likes Received:
    4
    Trophy Points:
    206
    You're confusing CPU with GPU. CPU power plans are selected with one of the following applications:

    Power4Gear
    RMClock (recommended by me, but only for medium-to-advanced users)
    NHC

    If you have none of this software installed the CPU will still SpeedStep using the Windows drivers.

    GPU power plans are selected under the GPU properties from the driver: powermizer. You should be able to set it to whatever you like, performance, balanced or polwer saving. If not, I would suggest trying different video drivers (maybe stock).

    E.B.E., Oct 22, 2007
    #8
  9. csky12

    csky12 Notebook Geek

    Reputations:
    0
    Messages:
    99
    Likes Received:
    0
    Trophy Points:
    15
    ohhh I see....but how come I can't change between the mode in powermizer? is it because of a faulty driver?

    csky12, Oct 22, 2007
    #9
  10. E.B.E.

    E.B.E. NBR Procrastinator

    Reputations:
    1,572
    Messages:
    8,632
    Likes Received:
    4
    Trophy Points:
    206
    Well I can't see any other reason. It's maybe just incompatible not faulty. Or the option has somehow been turned off for some reason but i don't see why.

    Are you using the stock drivers?

    E.B.E., Oct 22, 2007
    #10
  11. csky12

    csky12 Notebook Geek

    Reputations:
    0
    Messages:
    99
    Likes Received:
    0
    Trophy Points:
    15
    no I'm using the 163.76 for my 8600M GS, can you recommend one?

    csky12, Oct 22, 2007
    #11
  12. csky12

    csky12 Notebook Geek

    Reputations:
    0
    Messages:
    99
    Likes Received:
    0
    Trophy Points:
    15
    so is it bad to set the CPU at highest at all time? because the temperature gets up to 70C

    csky12, Oct 22, 2007
    #12
  13. E.B.E.

    E.B.E. NBR Procrastinator

    Reputations:
    1,572
    Messages:
    8,632
    Likes Received:
    4
    Trophy Points:
    206
    yes it is bad to set the CPU at full blast all the time.

    I can recommend the stock drivers. If the problem goes away keep them.

    E.B.E., Oct 23, 2007
    #13
  14. CalebSchmerge

    CalebSchmerge Woof NBR Reviewer

    Reputations:
    1,126
    Messages:
    2,395
    Likes Received:
    2
    Trophy Points:
    55
    It is also completely and totally unnecessary. Set the CPU to throttle down when not needed. Then, if it needs to run at full blast, it will, but it can conserve power and heat when it isn't needed. Why on God's green earth would you want to lock the CPU to full power?

    CalebSchmerge, Oct 23, 2007
    #14
  15. E.B.E.

    E.B.E. NBR Procrastinator

    Reputations:
    1,572
    Messages:
    8,632
    Likes Received:
    4
    Trophy Points:
    206
    I already said that in my first post on this thread, but it is apparent that confirmation from independent sources is needed. :)

    E.B.E., Oct 23, 2007
    #15
  16. CalebSchmerge

    CalebSchmerge Woof NBR Reviewer

    Reputations:
    1,126
    Messages:
    2,395
    Likes Received:
    2
    Trophy Points:
    55
    I know you said it, and we have teamed up against this evil before, but they just didn't answer, so I thought I would try to get an answer.

    CalebSchmerge, Oct 24, 2007
    #16
  17. csky12

    csky12 Notebook Geek

    Reputations:
    0
    Messages:
    99
    Likes Received:
    0
    Trophy Points:
    15
    okay thanks guys..yeah I think I'll not use full blast because when it is, my CPU temperature gets up to 70C pretty scary

    csky12, Oct 24, 2007
    #17
  18. Theros123

    Theros123 Web Designer & Developer

    Reputations:
    116
    Messages:
    1,589
    Likes Received:
    0
    Trophy Points:
    55
    Well, 75 and over is scary... 70 is pushing it but not really that bad especially on full load. try undervolting the CPU as well to push the temps even lower.

    Theros123, Oct 24, 2007
    #18
  19. herotuxer

    herotuxer Notebook Enthusiast

    Reputations:
    0
    Messages:
    15
    Likes Received:
    0
    Trophy Points:
    5
    I recommend RMCLock as well. It might be all confusing at first. But if you put everything to default and try changing a few stuffs slowly and notice what happen, you will soon get hold of it.

    Yours is normal. I used to wonder why the clock speed was below the specs but you've got the answer now. No need to worry about that!

    herotuxer, Oct 24, 2007
