V1S-A1 benchmark and games

V1S-A1
1GB Turbo Memory
2GB DDR2 667 (1Gx2)
160GB 5400rpm SATA
Geforce 8600M GT 512MB DDR2
Windows Vista Business 32bit
Stock drivers no overclock:

WEI:


3DMark06:


I'll do game test and overclock GPU tonight.

Some photos of G1S and V1S:






















FEAR Demo:


















PCMark05
Updated with Microsoft performance hotfix KB938194 and KB938979

I run the full test with Hard Drive test suite instead of standard test.

Factory setup
T7500
2GB RAM (1GBX2)
160GB 5400rpm
1GB Turbo Memory

4954
Ready Boost: Enable
Ready Drive: Enable
ORB: http://service.futuremark.com/orb/resultanalyzer.jsp?projectType=13&XLID=0&UID=10587340


5013
Ready Boost: Disable
Ready Drive: Disable
ORB: http://service.futuremark.com/orb/resultanalyzer.jsp?projectType=13&XLID=0&UID=10587827



V1S-A1
VX2S-A1Y
VX2S-A1B






























BIOShock Demo

VX2S-A1Y Setup:
GeForce 8600M GT 512MB
Driver:GeForce Go Driver V163.44
T7500
3GB RAM
200GB 7200rpm
Turbo Memory Disable









































Metal of Honor Airborne demo

System setup
VX2S-A1Y Setup:
GeForce 8600M GT 512MB
Driver:GeForce Go Driver V163.44
T7500
3GB RAM
200GB 7200rpm
Turbo Memory Disable



You got the A1? Yeah.

Do you have integrated TurboMemory module? What is your BIOS Version?
And is there an option for TurboMemory (Robson) in your BIOS (under IDE config or something like this)?

I got the V1S here and put a module in myself but it isn't recognized.

Your scores are pretty much the same as mine, I got 2939 3DMarks and 4.5VEI because of the desktop graphics but I got 5.1 for my Ram.



Thanks for the info Ken!

Though images of the notebook would be great as well, as it's harder to portray a notebook's physical form through images then their hardware through benchmarks, etc.



Ken,

Can you do a similar test with a G1S?

I'd love to see a side by side comparison done this way (V1S versus G1S).



Yes it has 1GB Turbo Memory, I am running the 3DMark overclock right now, I'll check the BIOS later.



sure I'll post some pictures later.



Sure I'll do it.



Hm, I wonder why my TurboMemory module isn't recognized. I don't want to open my laptop again, so I'm very interested if your BIOS is different from mine.



Ken -

Do you have any V2s in stock? I'd really really like to see how the 6 cell battery does in V2s without the bugs in V2Je that I keep reading about. Sorry for going off topic a bit.

Thanks.



Is your V1S-A1 North America version?



The BIOS version is 206, no TurboMemory option in the BIOS.



No it is the European version. I put the module in but it is just not recognized and there is no bios option.

EDIT: OK this means that you have the same bios. And you also have only the choice of 'Enhanced' and 'compatibility' SATA mode?

Damn... It seems that my TM module doesn't work...



The turbo memory suppose to be activate by drivers once the Windows Vista is loaded not BIOS.



But it needs to recognize it at first and it doesn't...



Install the driver, reboot and go to device manager>Storage controller>Intel Flash Cache Logic Chip.



Did it ask you for the driver? Or dit you have to start the installation manually?

There is no Intel Flash Cache Logic Chip unfortunately.



No it didn't ask for driver installed, it's factory installed Turbo Memory.

But I've install the Turbo Memory on other machines and I don't remember it ask for driver.

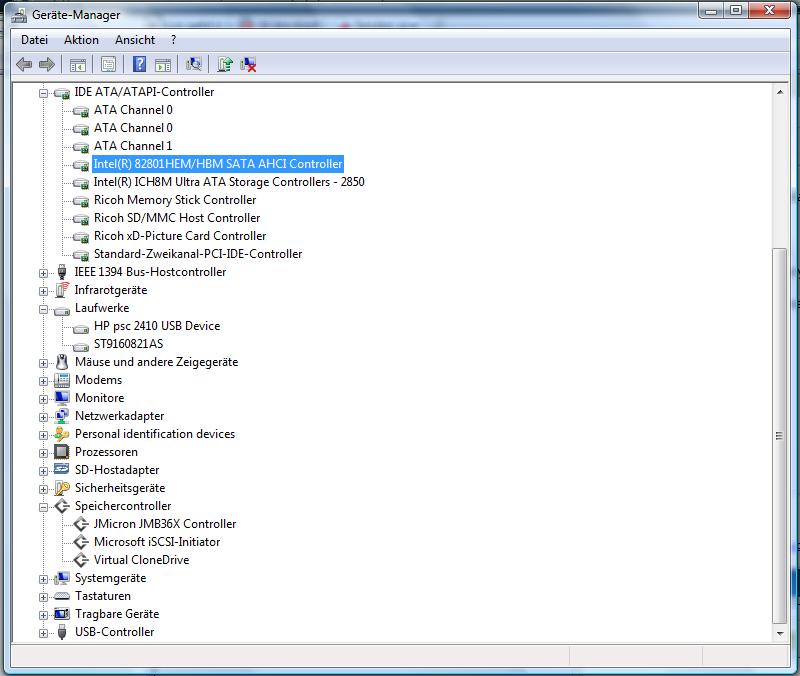

That is what it looks like on my computer after installing the TM drivers and rebooting:



Looks like the V1S's have finally reached resellers. The V2S's shouldn't be far behind



this is what it looks like in mine:



Ken, can we get some pictures and screenshots?



yeah I'll do it later.



Ken,

If you've got the time would you compare and contrast the V1s vs. the C90s?
It would be good to hear your impressions of each.



thanks for all the work Ken! appreciate it!



Ken is going to be a busy man!



I love you Ken!!!!!




Um, in other news...I'd appreciate your impressions of each too Ken.

Thanks



Well I don't think the V1S will be quite as graphically powerful as the G1S owing to the V1S's GDDR2 memory. However, I think it will make up for that with its lighter, thinner, and sleeker body as well as better battery life and better build quality.



That's true, but the question in my mind is how much of a real, practical difference will you will notice... or is the difference mainly abstract only, the difference between getting, say, 65 frames a second versus 61 fps... that kind of thing.



Some pictures uploaded on page one.



Cheers, thanks Ken!



Wow, Ken, thanks for the pics, especially the one comparing the G1S and V1S side by side. I've seen the G1S in person and it's not quite what I wanted, but it's nice to see that the V1S is significantly less bulky looking when placed next to it.

It looks so nice!
I still can't decide between the V1S and V2S though.



this is a interesting discussion. when I got my VX2s which has 1gb turbo memory same as V1s, I did not know if turbo memory was enable or not, so I actually went to intel's download site and downloaded and installed the intel driver for turbo memory, then I had to restart my computer several times before I was pretty sure it was enabled, (now if I plug in a SD/USB stick in, vista would not let me use it for Readyboost and it tell me turbo memory is already in use).
to be honest I was installing/uninstalling so many programmes I did not notice any difference before and after I enabled turbo memory. it would be nice if someone could do some benchmarks (PC mark) on their new stock V1s to see if there is a difference.

JC



It still lets me use SD SD cards for ReadyBoost. :-(



wow FEAR looks nice!



Is it possible for you to check the firewire chipset? I'm planning to buy a new laptop soon and I need one with the Texas Instruments firewire to use with my pro audio interface.

Thanks



How's the bundle with this thing? Does it include a HDMI -> DVI adaptor?
I've already ordered the V1S myself, and want to be able to use it via DVI from day one



There was no such Adapter in my bundle.

Firewire is from TI.



Cool. Definitly looks good.



PCMark05:

4564
Turbo Memory:
Ready boost: Enable
Ready drive: Enable
ORB: http://service.futuremark.com/orb/resultanalyzer.jsp?projectType=13&XLID=0&UID=10572175



5003
Turbo Memory:
Ready boost: Disable
Ready drive: Disable
ORB: http://service.futuremark.com/orb/resultanalyzer.jsp?projectType=13&XLID=0&UID=10572321



wow! That means buying TM doesn't help?

I would like to know any opinion....
Turbo memory helps or not?



Anandtech published 2 articles on Turbo Memory, and as another NBR member so aptly put it, "One showed Robson to be completely useless, while the other said it was mostly useless."

With 2GB of RAM I can't imagine it being of any use.



Thank you Bona Fide, I just order my G1S (delivery day set for next Monday) with it...waste of money...



There is still the chance it could be improved with software and driver updates, so it may be useful someday. A 500 point decrease in preformace is a pretty big blow against it. I can't believe Intel is just going to let it be a huge flop. It may still be of use to conserve battery life on notebooks if nothing else.



good point of view ...
we got hopes then



Here is the detail test result comparison table:



Looks like it slows every aspect of the system down.



except for 3D-pixel shader....haha



The Physics and 3D, Transparent Windows, Graphics Memory, and Multi-Thread tests (except for Image Decompression, Memory Latency, and File Encription) seem to be a big enough difference to be of significance, but the other stats could just as easily go the other way.

Ken, are those numbers consistent if the tests are run multiple times, or does it fluxuate? (If you've run those more than once for each). Did you try running it multiple times in a row with Ready Boost enabled to see if it starts to cache the data in the memory like it was apparently designed to do? Also is there a way to enable one while disabling the other to see if one is more to related for the preformance drop than the other?



Yes I've done the test several times and got the same result, I can run it again right now but let me reboot the system 3 times before I run the test again.

I even tested with just Ready Boost Enable and Ready Drive disable with same result.

I wouldn't say it's completed useless, maybe it really help on some sub-notebooks with slower HD like 1.8" 4200rpm, but with V1S this powerful the Trubo Memory seem slow down the performance since it kind of take over the components that is faster than Turbo Memory.



Here is the new test result with some changes:
Update Microsoft performance hotfix KB938194 and KB938979

I run the full test with Hard Drive test suite instead of standard test.

4954
Ready Boost: Enable
Ready Drive: Enable
ORB: http://service.futuremark.com/orb/resultanalyzer.jsp?projectType=13&XLID=0&UID=10587340


5013
Ready Boost: Disable
Ready Drive: Disable
ORB: http://service.futuremark.com/orb/resultanalyzer.jsp?projectType=13&XLID=0&UID=10587827
