    Kudos to Apple & Please help me identify this part.

    Discussion in 'Apple and Mac OS X' started by tenderidol, Jul 23, 2010.

  1. tenderidol

    tenderidol Notebook Evangelist

    Reputations:
    44
    Messages:
    390
    Likes Received:
    0
    Trophy Points:
    30
    This was repaired under warranty.

    [​IMG]

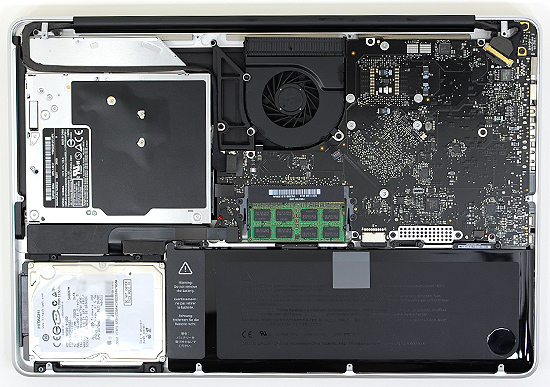

    When I opened it to put back my SSD, I realized that the part indicated by the red arrow in the picture was loose; the screws are tight, but if I touch it, there is a significant amount of play both left & right and up & down. Can anyone please tell me what that port is and whether it's supposed to be loose or not. Thanks!

    [​IMG]

    tenderidol, Jul 23, 2010
    #1
  2. Kaelang

    Kaelang Requires more Witcher.

    Reputations:
    717
    Messages:
    1,210
    Likes Received:
    0
    Trophy Points:
    55
    If you don't mind me asking, how the heck did you manage to mangle that machine?

    As far as your question, what side is that on? I can't tell from the picture.

    Kaelang, Jul 23, 2010
    #2
  3. tenderidol

    tenderidol Notebook Evangelist

    Reputations:
    44
    Messages:
    390
    Likes Received:
    0
    Trophy Points:
    30
    I dropped my computer bag and that corner took the hit :(

    It's in this orientation.

    [​IMG]

    tenderidol, Jul 23, 2010
    #3
  4. Kaelang

    Kaelang Requires more Witcher.

    Reputations:
    717
    Messages:
    1,210
    Likes Received:
    0
    Trophy Points:
    55
    Interesting. I'm totally unsure of what what is.
    You dropped it and that happened? Ouch.
    Wait, how did you get Apple to cover that? o_O

    Kaelang, Jul 23, 2010
    #4
  5. Seshan

    Seshan Rawrrr!

    Reputations:
    540
    Messages:
    1,989
    Likes Received:
    0
    Trophy Points:
    55
    You dropped that awhile ago right? Just warrantied it now?

    It looks like it's just part of the latch system.

    Seshan, Jul 23, 2010
    #5
  6. Kaelang

    Kaelang Requires more Witcher.

    Reputations:
    717
    Messages:
    1,210
    Likes Received:
    0
    Trophy Points:
    55
    Not sure if that's part of the latch. Doesn't look like it's connected to anything in particular, even though it kinda looks like the end of a ribbon cable or something. Just my imagination going wild again. Is it magnetic?

    Kaelang, Jul 23, 2010
    #6
  7. tenderidol

    tenderidol Notebook Evangelist

    Reputations:
    44
    Messages:
    390
    Likes Received:
    0
    Trophy Points:
    30
    Yes, it was on October 17th.

    It doesn't look like it is part of the latch system. I'll just open the 13" to see if it is the same.

    EDIT: OK, I opened the 13" MBP and apparently it doesn't have this particular part. Hmmm...

    tenderidol, Jul 24, 2010
    #7
  8. altecX

    altecX Notebook Deity

    Reputations:
    44
    Messages:
    894
    Likes Received:
    39
    Trophy Points:
    41
    Part of the motion sensor?

    altecX, Jul 24, 2010
    #8
  9. Kaelang

    Kaelang Requires more Witcher.

    Reputations:
    717
    Messages:
    1,210
    Likes Received:
    0
    Trophy Points:
    55
    I still think it's part of a ribbon cable or something. Could be a motion sensor of some sort.

    Kaelang, Jul 24, 2010
    #9
  10. Nobackup

    Nobackup Notebook Evangelist

    Reputations:
    59
    Messages:
    306
    Likes Received:
    0
    Trophy Points:
    30
    Nobackup, Jul 24, 2010
    #10
  11. Kaelang

    Kaelang Requires more Witcher.

    Reputations:
    717
    Messages:
    1,210
    Likes Received:
    0
    Trophy Points:
    55
    AhHA! I was semi-right!

    Kaelang, Jul 24, 2010
    #11
  12. Nobackup

    Nobackup Notebook Evangelist

    Reputations:
    59
    Messages:
    306
    Likes Received:
    0
    Trophy Points:
    30
    Best I can figure is that its some part of the mechanical securing system for the trackpad... :confused:

    Nobackup, Jul 24, 2010
    #12
  13. Kaelang

    Kaelang Requires more Witcher.

    Reputations:
    717
    Messages:
    1,210
    Likes Received:
    0
    Trophy Points:
    55
    I don't think you have to worry about it being loose. If you're concerned, you should be able to take it to a Genius Bar and see what they say.

    Kaelang, Jul 24, 2010
    #13
  14. tenderidol

    tenderidol Notebook Evangelist

    Reputations:
    44
    Messages:
    390
    Likes Received:
    0
    Trophy Points:
    30
    Thanks for the replies guys! Appreciate your time.

    tenderidol, Jul 24, 2010
