    GPU clock on rMBP low

    Discussion in 'Apple and Mac OS X' started by aphexpusher, Sep 29, 2012.

  1. aphexpusher

    aphexpusher Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5

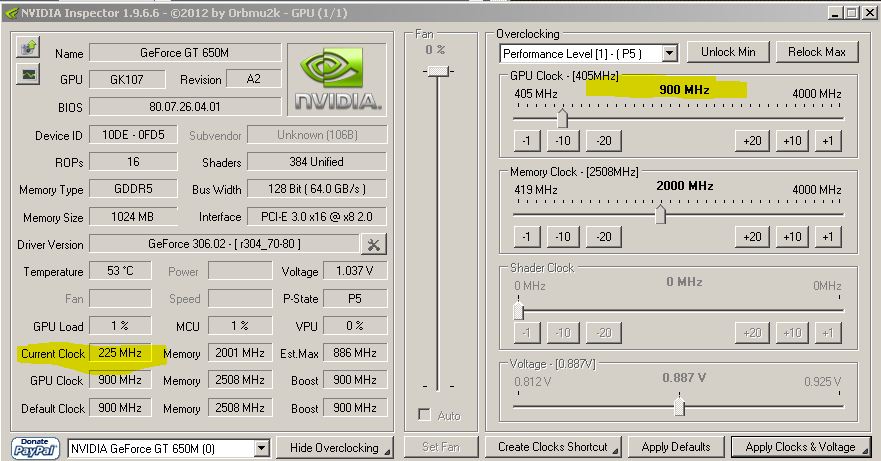

    Last night I was overclocking with Nvidia Inspector on windows 7. Everything was going great. Got excellent FPS and everything overclocking to 1000mhz forcing p5 state with a bat file. This morning I started it up and Nvidia inspector is showing the current clock at about a fourth of what I set it to. I force p5 as usual and when I slide the overclock over to 1000 I get 250 instead in the "current clock" box.
    Did I break it?


    Attached Files:

  2. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    Try restarting and rereading my guide again :)

  3. aphexpusher

    aphexpusher Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    I did everything in the guide and its now somehow lower -_-

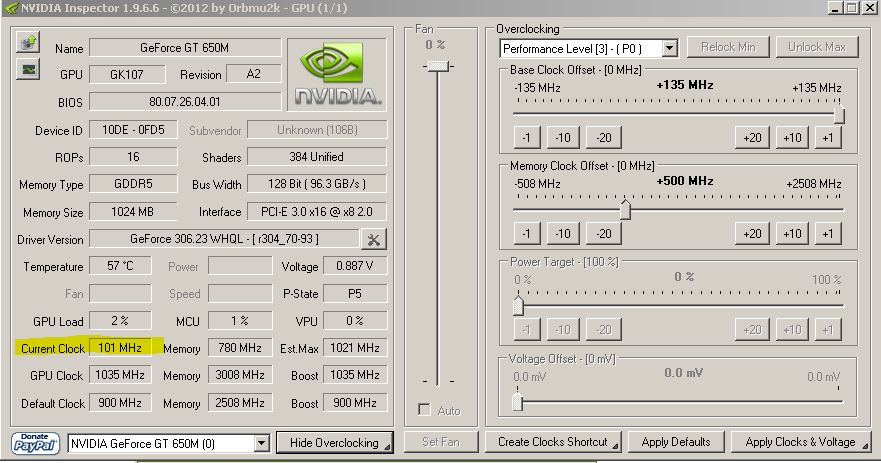

    picture is below:


    Attached Files:

  4. aphexpusher

    aphexpusher Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    any ideas? would reinstalling windows be of any help?

  5. aphexpusher

    aphexpusher Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    UPDATE: Resetting SMC fixed it

    however there are still issues with throttling. which really blows. my gpu clock is really all over the place fluctuating between 725 and 900. mostly around the 700s.

    no idea how to keep it from throttling. I am using throttle stop and everything... ah well.

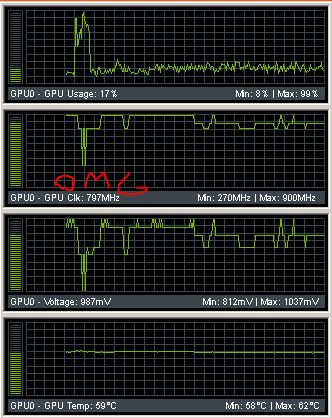

    here is the graph from nvidia inspector:


    Attached Files:

  6. Speedy Gonzalez

    Speedy Gonzalez Xtreme Notebook Speeder!

    Reputations:
    5,447
    Messages:
    3,143
    Likes Received:
    27
    Trophy Points:
    116
    disable turbo on the CPU that will keep your GPU 5-7c cooler and also set up lubbos fan control to ramp up the fans faster before the components get real hot

  7. aphexpusher

    aphexpusher Newbie

    Reputations:
    0
    Messages:
    7
    Likes Received:
    0
    Trophy Points:
    5
    thanks for the info on the fan controller. was looking for one for a while. so far I am back to solid gpu clock with little to no fluctuation. all problems solved :) out of curiosity how much have you been able to overclock? I am able to get about 1035/1800 if I ramp it up little by little as it gets hotter. beyond that and it starts to throttle hard.

  8. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    People with DDR5 650M's can clock about 1070+

    Some really good cores can break 1100MHz and beyond

  9. ninja2000

    ninja2000 Mash IT

    Reputations:
    434
    Messages:
    1,674
    Likes Received:
    268
    Trophy Points:
    101
    I am running mine 1100/2500 with no cpu turbo boost. Giving me great fps in bf3 @ 1080p. Haven't tried any higher as I have no need.

    The SMC bug is really annoying though. Mine was fine for the first week after the EFI update then I got hit with it earlier. Hope apple release a fix soon

  10. kyang2453

    kyang2453 Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    How do u fix this step by step plz reply this is really annoying

  11. ipnd

    ipnd Newbie

    Reputations:
    0
    Messages:
    1
    Likes Received:
    0
    Trophy Points:
    5
    Do you guys think that Apple will actually fix the problem that came since the EFI Update? I have a bad feeling that this will persist :(

    Resetting SMC does not do the trick for me.

    My CPU clock is all over the place, from 3GHz to 1.2GHz (Seems like it is jumping from turbo to big time throttled)
    My GPU also jumps all over the place and looks pretty much like what you described.

    How did you disable the turbo thing?

  12. Karamazovmm

    Karamazovmm Overthinking? Always!

    Reputations:
    2,365
    Messages:
    9,422
    Likes Received:
    200
    Trophy Points:
    231
    download throttlestop to disable turbo.

    The clocks should be relatively stable when doing an intensive task, otherwise its going to fluctuate a lot and thats normal, the same for your gpu.
