    Which one is my cpu?

    Discussion in 'Alienware M11x' started by scorpionfalcon, Sep 28, 2011.

  1. scorpionfalcon

    scorpionfalcon Notebook Enthusiast

    Reputations:
    0
    Messages:
    21
    Likes Received:
    0
    Trophy Points:
    5

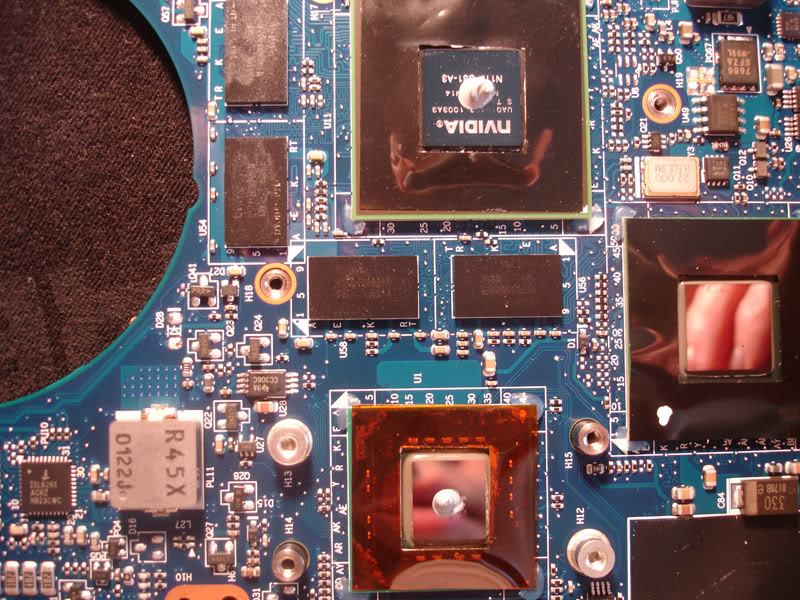

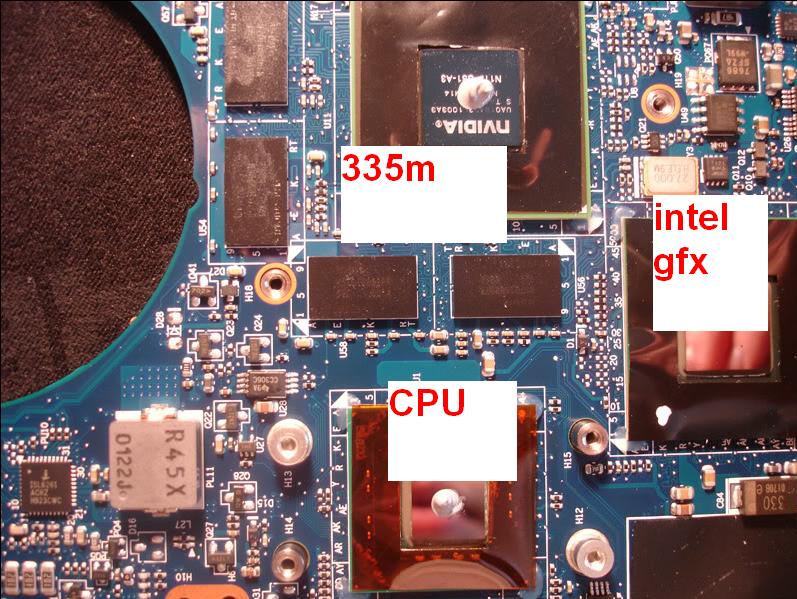

    Hi guys, I hope someone can tell me which chip is my cpu: is it the one under the heatsink that has screws labelled 1-4, or is it the directly below that one (which has a heatsink that isn't screwed in)? I know the 335m is under the heatsink labeled 5-7. In the second pic, is the bottom chip (w/ the thermal paste) the cpu? Thanks.


    Attached Files:

    scorpionfalcon, Sep 28, 2011
    #1
  2. namaiki

    namaiki "basically rocks" Super Moderator

    Reputations:
    3,905
    Messages:
    6,116
    Likes Received:
    89
    Trophy Points:
    216
    Which M11x do you have?

    namaiki, Sep 28, 2011
    #2
  3. scorpionfalcon

    scorpionfalcon Notebook Enthusiast

    Reputations:
    0
    Messages:
    21
    Likes Received:
    0
    Trophy Points:
    5
    I have the R1

    scorpionfalcon, Sep 28, 2011
    #3
  4. namaiki

    namaiki "basically rocks" Super Moderator

    Reputations:
    3,905
    Messages:
    6,116
    Likes Received:
    89
    Trophy Points:
    216
    I suspect it's the one that is in-between the four screws, but I haven't been able to find solid information. :p

    namaiki, Sep 28, 2011
    #4
  5. i has m11x

    i has m11x Notebook Evangelist

    Reputations:
    173
    Messages:
    489
    Likes Received:
    5
    Trophy Points:
    31
    It's the one with the 4 screws, the one on the bottom.

    i has m11x, Sep 28, 2011
    #5
  6. scorpionfalcon

    scorpionfalcon Notebook Enthusiast

    Reputations:
    0
    Messages:
    21
    Likes Received:
    0
    Trophy Points:
    5
    Cool, so is the one on the right (2nd pic) the integrated graphics card?

    scorpionfalcon, Sep 28, 2011
    #6
  7. un4tural

    un4tural Notebook Evangelist

    Reputations:
    53
    Messages:
    666
    Likes Received:
    14
    Trophy Points:
    31
    since i don't think intel was putting the graphics chip with the CPU on same chip at the time, the closer one to the heatsink (down most one) should be CPU and the on to the right the intel graphics.

    If the intel graphics and CPU are on same chip, it could be north bridge, the right most one.

    un4tural, Sep 28, 2011
    #7
  8. ejohnson

    ejohnson Is that lemon zest?

    Reputations:
    827
    Messages:
    2,278
    Likes Received:
    104
    Trophy Points:
    81

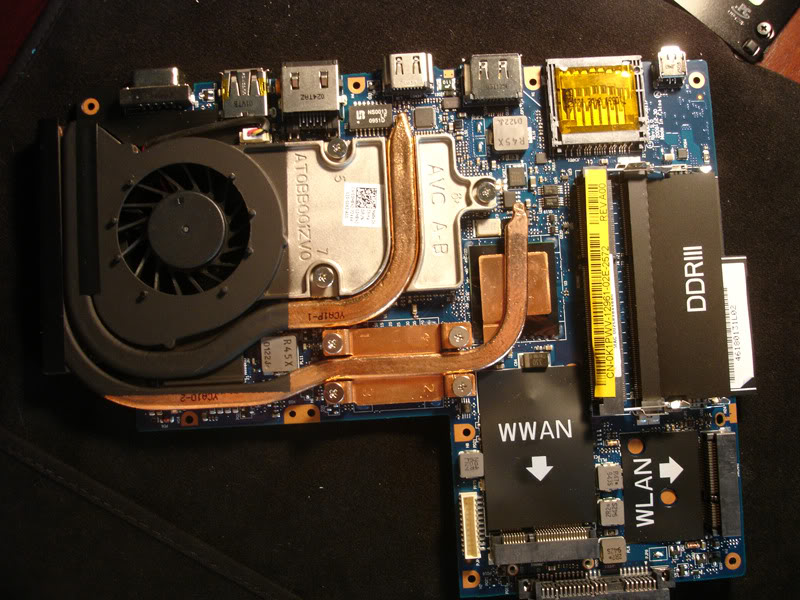

    See this picture


    Attached Files:

    ejohnson, Sep 28, 2011
    #8
  9. i has m11x

    i has m11x Notebook Evangelist

    Reputations:
    173
    Messages:
    489
    Likes Received:
    5
    Trophy Points:
    31
    Isn't the third chip the northbridge? I thought the Intel graphics were integrated with the cpu.

    i has m11x, Sep 28, 2011
    #9
  10. ejohnson

    ejohnson Is that lemon zest?

    Reputations:
    827
    Messages:
    2,278
    Likes Received:
    104
    Trophy Points:
    81
    Might be, im not too sure

    ejohnson, Sep 28, 2011
    #10
  11. namaiki

    namaiki "basically rocks" Super Moderator

    Reputations:
    3,905
    Messages:
    6,116
    Likes Received:
    89
    Trophy Points:
    216
    In the R1, the Intel GPU (4500MHD) is in the northbridge.

    In the first gen Intel Core CPUs which have integrated graphics - probably R2, the GPU and memory controller has moved right next to the CPU and you can see the two dies for CPU and GPU - image.

    In Sandy Bridge CPUs - R3?, the CPU and GPU are in a single (huge, rectangular) die.

    namaiki, Sep 28, 2011
