    Trouble Beep Codes

    Discussion in 'Alienware M11x' started by flyguy, Mar 8, 2012.

  1. flyguy

    flyguy Notebook Enthusiast

    Reputations:
    0
    Messages:
    18
    Likes Received:
    0
    Trophy Points:
    5
    I have a M11x R3 that is giving me 5 short beeps when it tries to post. Any idea what this means or where I can find a list of trouble code definitions? Thanks.

    flyguy, Mar 8, 2012
    #1
  2. Rishwin

    Rishwin Notebook Deity

    Reputations:
    215
    Messages:
    886
    Likes Received:
    0
    Trophy Points:
    30
    5 beeps on an R3 is CMOS battery failure IIRC. Try replacing it?

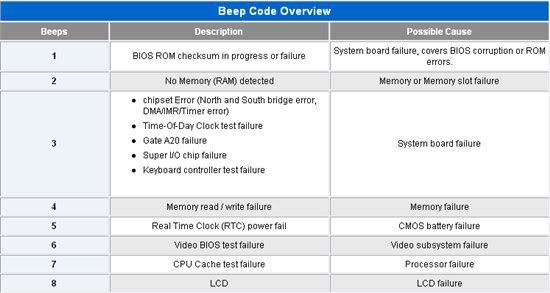

    //Edit: Here, i saved this img a few weeks back, as far as i know these are fairly accurate?

    [​IMG]

    Rishwin, Mar 8, 2012
    #2
  3. flyguy

    flyguy Notebook Enthusiast

    Reputations:
    0
    Messages:
    18
    Likes Received:
    0
    Trophy Points:
    5
    That is possibly good news. Any idea where the battery is located? Ive got keyboard off so far and no sign of it yet. Is it a standard replaceable battery?

    flyguy, Mar 8, 2012
    #3
  4. Rishwin

    Rishwin Notebook Deity

    Reputations:
    215
    Messages:
    886
    Likes Received:
    0
    Trophy Points:
    30
    Off the top of my head i wouldn't know mate. Looked at a pic i had taken with my bottom panel off, couldn't see it there.

    Rishwin, Mar 8, 2012
    #4
  5. ajslay

    ajslay Overclocker, PC Builder

    Reputations:
    307
    Messages:
    1,295
    Likes Received:
    2
    Trophy Points:
    55
    the battery is located on the underside of the laptop..

    ajslay, Mar 9, 2012
    #5
  6. Rishwin

    Rishwin Notebook Deity

    Reputations:
    215
    Messages:
    886
    Likes Received:
    0
    Trophy Points:
    30
    I know the main one is, but the CMOS battery too?

    Rishwin, Mar 9, 2012
    #6
  7. Rypac

    Rypac Notebook Evangelist

    Reputations:
    242
    Messages:
    563
    Likes Received:
    0
    Trophy Points:
    30
    The CMOS is on the top side of the motherboard and you'll need to take off the keyboard and palmrest to get to it.
    That picture is of an R1 mobo but it is in the same position on my R2 and I assume for the R3 as well.

    [​IMG]

    Rypac, Mar 9, 2012
    #7
