    SATA connector on M11xR3 - vertical, Samsung 850 Pro SSD - horizontal????

    Discussion in 'Alienware M11x' started by gbg2000, Feb 7, 2016.

  1. gbg2000

    gbg2000 Notebook Guru

    Reputations:
    9
    Messages:
    73
    Likes Received:
    1
    Trophy Points:
    16
    This might be a stupid question, but I did not find anything on the web.

    The SATA HDD connector inside the M11XR3 is vertical (the HDD is inserted 'from above'), while I just bought the 850 Pro 512GB SSD (to prolong the useful life of my little monster that I grew to love) - and it's SATA connector is Horizontal!!!

    What gives? I read so many experiences online with people installing 850 Pro in their M11x? How? Do they use some adapter? Is there space for an adapter?

    This is driving me crazy

    gbg2000, Feb 7, 2016
    #1
  2. gbg2000

    gbg2000 Notebook Guru

    Reputations:
    9
    Messages:
    73
    Likes Received:
    1
    Trophy Points:
    16

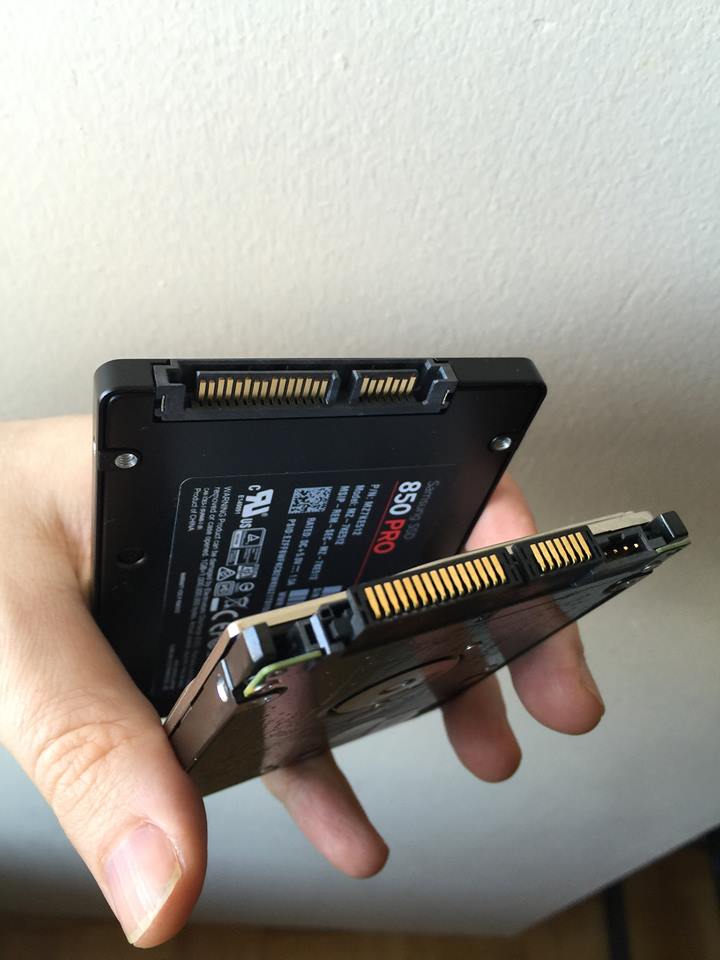

    pic of sata connectors


    Attached Files:

    gbg2000, Feb 7, 2016
    #2
  3. DR650SE

    DR650SE The Whiskey Barracuda

    Reputations:
    7,383
    Messages:
    8,222
    Likes Received:
    182
    Trophy Points:
    231
    Just a different adapter. You can remove that from the HDD and see that underneath it it's the same as the SSD.

    Sent from my SAMSUNG-SGH-I337 using Tapatalk

    DR650SE, Feb 7, 2016
    #3
  4. gbg2000

    gbg2000 Notebook Guru

    Reputations:
    9
    Messages:
    73
    Likes Received:
    1
    Trophy Points:
    16
    I already removed the original HDD from the cradle. Are you saying I should further try to disassemble the HDD in order to see if the front adapter is removable? (looks pretty solid to me)

    gbg2000, Feb 7, 2016
    #4
  5. kosti

    kosti Notebook Virtuoso

    Reputations:
    596
    Messages:
    2,162
    Likes Received:
    466
    Trophy Points:
    101
    It can be removed by pulling it out and inserting into your new SATA drive. This is what the adapter looks like when removed. It may be a tight fit but it can be removed.

    [​IMG]

    kosti, Feb 7, 2016
    #5
  6. gbg2000

    gbg2000 Notebook Guru

    Reputations:
    9
    Messages:
    73
    Likes Received:
    1
    Trophy Points:
    16
    It looks very solid, but I will try pulling it out tonight when I come back from work..

    gbg2000, Feb 8, 2016
    #6
  7. gbg2000

    gbg2000 Notebook Guru

    Reputations:
    9
    Messages:
    73
    Likes Received:
    1
    Trophy Points:
    16
    Confirmed. It was an adapter. Came off easily. Thanks for the help!

    gbg2000, Feb 8, 2016
    #7
  8. thegh0sts

    thegh0sts Notebook Nobel Laureate

    Reputations:
    949
    Messages:
    7,700
    Likes Received:
    2,819
    Trophy Points:
    331
    It's called an interposer.

    Sent from my HTC One using Tapatalk

    thegh0sts, Feb 9, 2016
    #8
