    m18r4 water-cooling transform

    Discussion in 'Alienware 18 and M18x' started by yb494119459, Aug 14, 2018.

  1. yb494119459

    yb494119459 Notebook Geek

    Reputations:
    9
    Messages:
    81
    Likes Received:
    33
    Trophy Points:
    26
    cpu:4940mx (now 70℃) (before 92℃)
    gpu:980m(8g)*2 (now 60℃)(before 80℃)

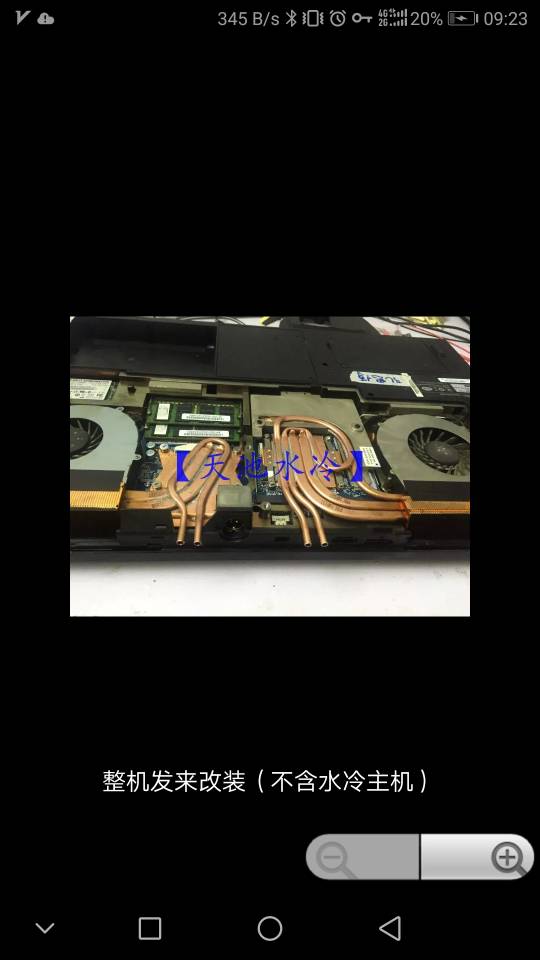

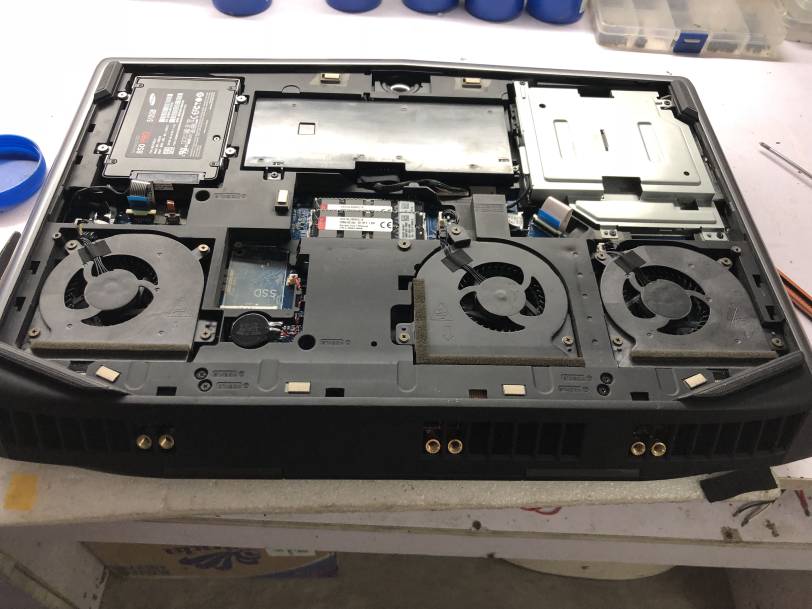

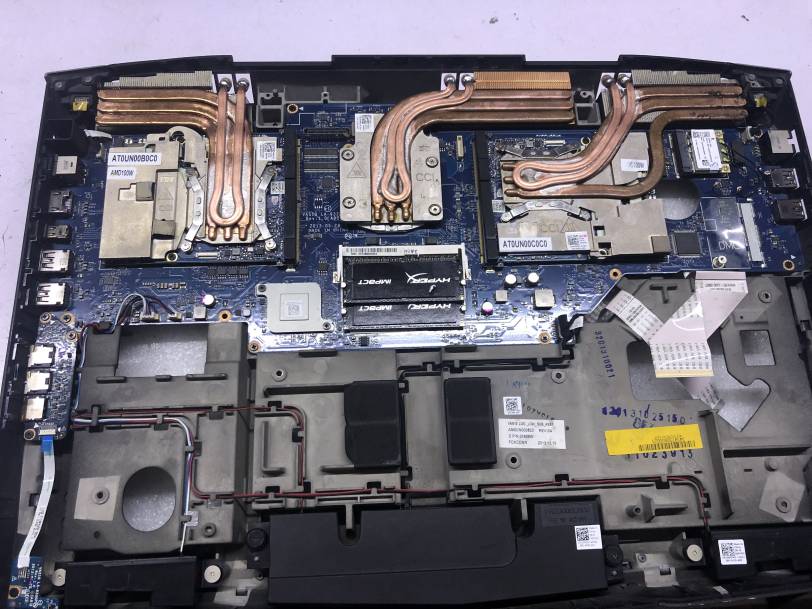

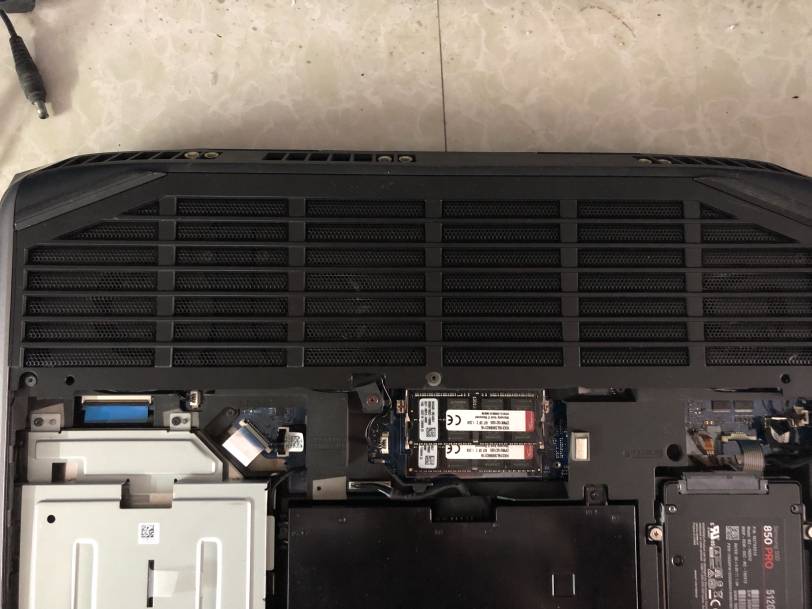

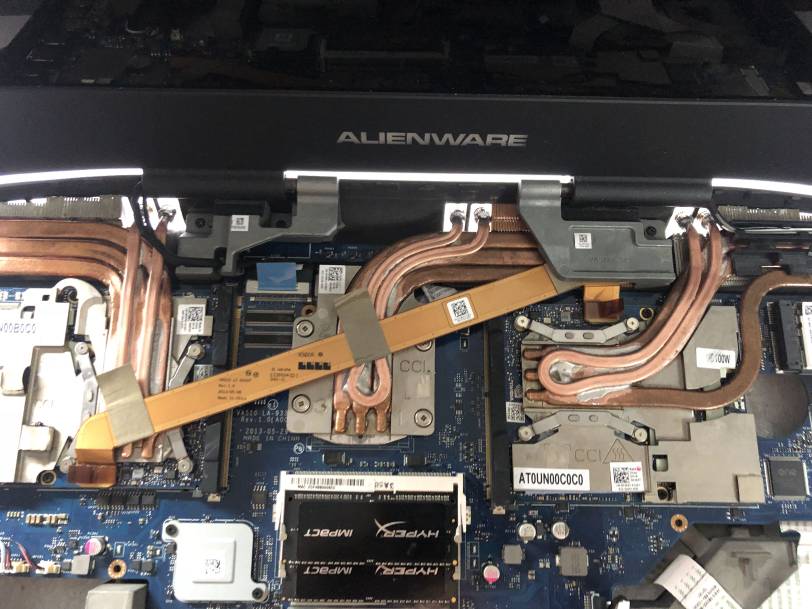

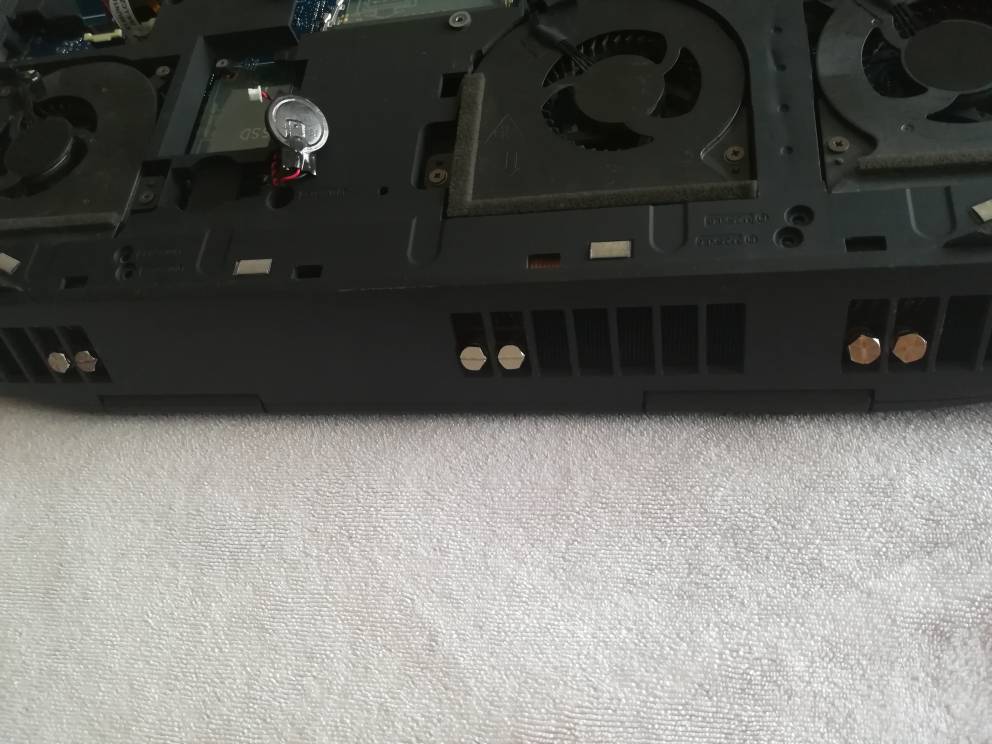

    please look following pic

    you can ask me for help (if i can) [​IMG] [​IMG] [​IMG] [​IMG] [​IMG] [​IMG]

    通过我的 PRA-AL00X 上的 Tapatalk发言

    yb494119459, Aug 14, 2018
    #1
    ssj92, Ashtrix, aaronne and 6 others like this.
  2. Raidriar

    Raidriar ლ(ಠ益ಠლ)

    Reputations:
    1,708
    Messages:
    5,820
    Likes Received:
    4,311
    Trophy Points:
    431
    nice mod!

    Raidriar, Aug 14, 2018
    #2
  3. yb494119459

    yb494119459 Notebook Geek

    Reputations:
    9
    Messages:
    81
    Likes Received:
    33
    Trophy Points:
    26
    Thanks, i flashed the unlock a12 bios not long ago. but i cant oc my cpu, i hope its safe, so are there a guide for oc cpu?Actually, i alreay make a mistake one time.
    thank you very much.

    通过我的 PRA-AL00X 上的 Tapatalk发言

    yb494119459, Aug 14, 2018
    #3
  4. KrisValentine

    KrisValentine Notebook Enthusiast

    Reputations:
    0
    Messages:
    40
    Likes Received:
    5
    Trophy Points:
    16
    Wow, good work

    KrisValentine, Aug 14, 2018
    #4
    yb494119459 likes this.
  5. Raidriar

    Raidriar ლ(ಠ益ಠლ)

    Reputations:
    1,708
    Messages:
    5,820
    Likes Received:
    4,311
    Trophy Points:
    431
    intel XTU software or throttlestop software

    Raidriar, Aug 14, 2018
    #5
  6. Rengsey R. H. Jr.

    Rengsey R. H. Jr. I Never Slept

    Reputations:
    1,084
    Messages:
    2,771
    Likes Received:
    1,020
    Trophy Points:
    181
    Too bad the laptop is limited to 330 PSU

    I have the same copper tube sitting in my garage lol

    Maybe you can help me with some ideas for a M18X R2. I have everything needed to watercooled the laptop.

    Rengsey R. H. Jr., Aug 14, 2018
    #6
  7. yb494119459

    yb494119459 Notebook Geek

    Reputations:
    9
    Messages:
    81
    Likes Received:
    33
    Trophy Points:
    26
    after i flush the unlocked a12 bios, i oc my cpu , then my m18 cant reboot . i try by the mean of hotswap ram , but i got four beep when i stick the ram . what can i do ?
    can you help me

    通过我的 PRA-AL00X 上的 Tapatalk发言

    yb494119459, Aug 14, 2018
    #7
  8. yb494119459

    yb494119459 Notebook Geek

    Reputations:
    9
    Messages:
    81
    Likes Received:
    33
    Trophy Points:
    26
    what it means,the four beep


    通过我的 PRA-AL00X 上的 Tapatalk发言

    yb494119459, Aug 14, 2018
    #8
  9. KrisValentine

    KrisValentine Notebook Enthusiast

    Reputations:
    0
    Messages:
    40
    Likes Received:
    5
    Trophy Points:
    16
    4 beeps means RAM problem on POST

    KrisValentine, Aug 14, 2018
    #9
  10. yb494119459

    yb494119459 Notebook Geek

    Reputations:
    9
    Messages:
    81
    Likes Received:
    33
    Trophy Points:
    26

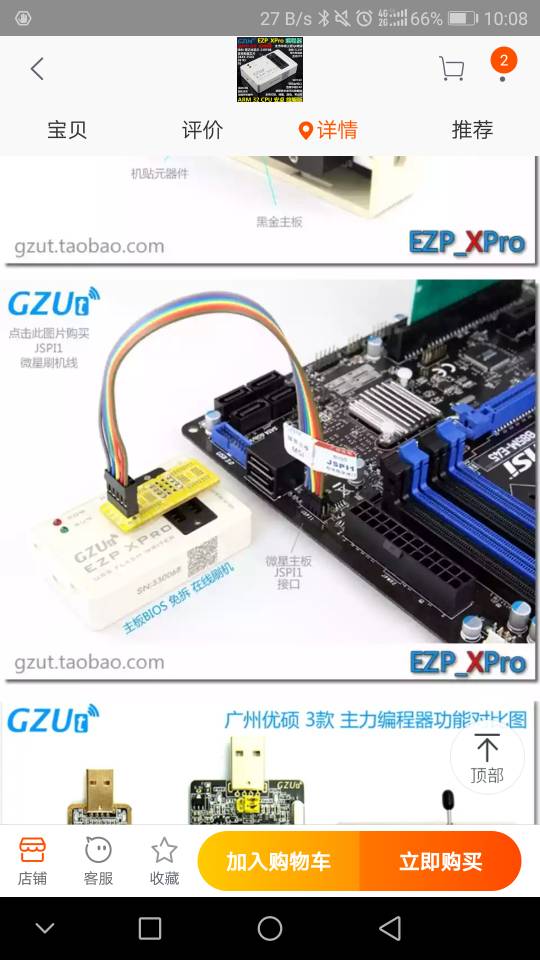

    can i flash my m18r4 by the programmer,like this. because it become black screen. Screenshot_20180815-100852.jpeg

    通过我的 PRA-AL00X 上的 Tapatalk发言
    [​IMG]

    Last edited: Aug 14, 2018
    yb494119459, Aug 14, 2018
    #10
  11. yb494119459

    yb494119459 Notebook Geek

    Reputations:
    9
    Messages:
    81
    Likes Received:
    33
    Trophy Points:
    26
    I ask others to reflow soldering to weld radiator and copper pipe, you can ask others to help you, or you can weld yourself.

    通过我的 PRA-AL00X 上的 Tapatalk发言

    yb494119459, Aug 14, 2018
    #11
  12. electrosoft

    electrosoft Perpetualist Matrixist

    Reputations:
    2,766
    Messages:
    4,116
    Likes Received:
    3,967
    Trophy Points:
    331
    Excellent mod and what I like about it (besides the wicked drop in temps) is that it remains portable (relatively speaking. The AW18 is pretty massive) with normal hotwell temps pre-mod, but once stationary hook up 6 connectors and blamo, enhanced cooling.

    If/when you get it back up and running, I'd love to see some benchmarks and load temps. Like already mentioned, use XTU or throttlestop and see what you can push the CPU to stable.

    I'd be interested in just a CPU modded cooler water ready personally. I run mid to low GPUs in my AW18's so extreme cooling isn't required.

    Again, excellent.

    electrosoft, Aug 15, 2018
    #12
  13. yb494119459

    yb494119459 Notebook Geek

    Reputations:
    9
    Messages:
    81
    Likes Received:
    33
    Trophy Points:
    26

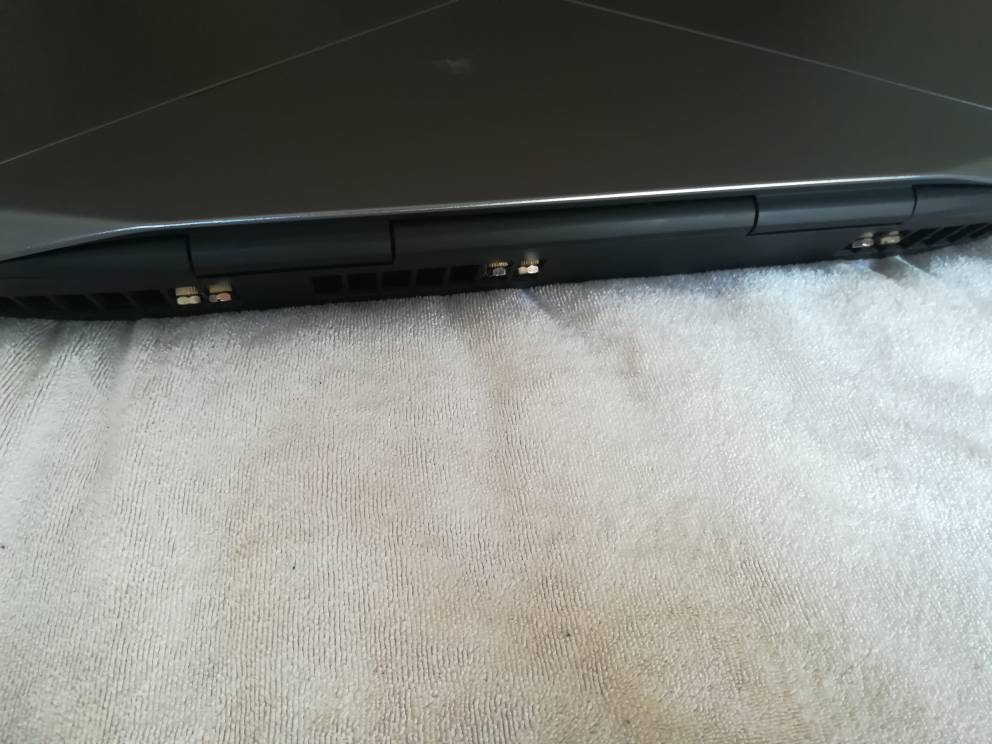

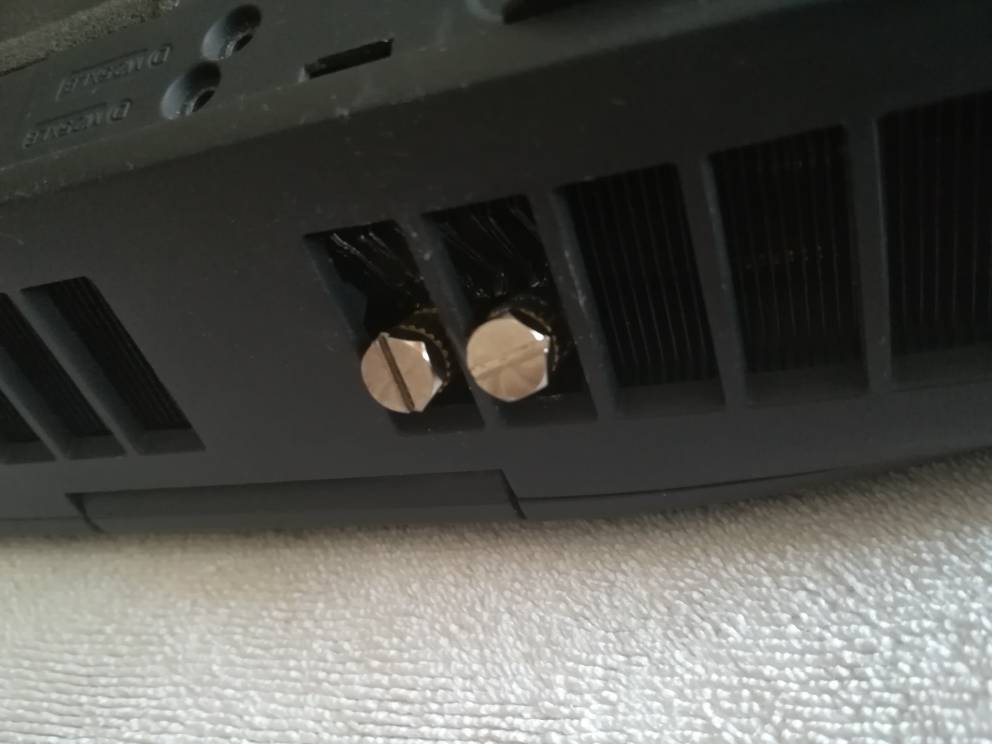

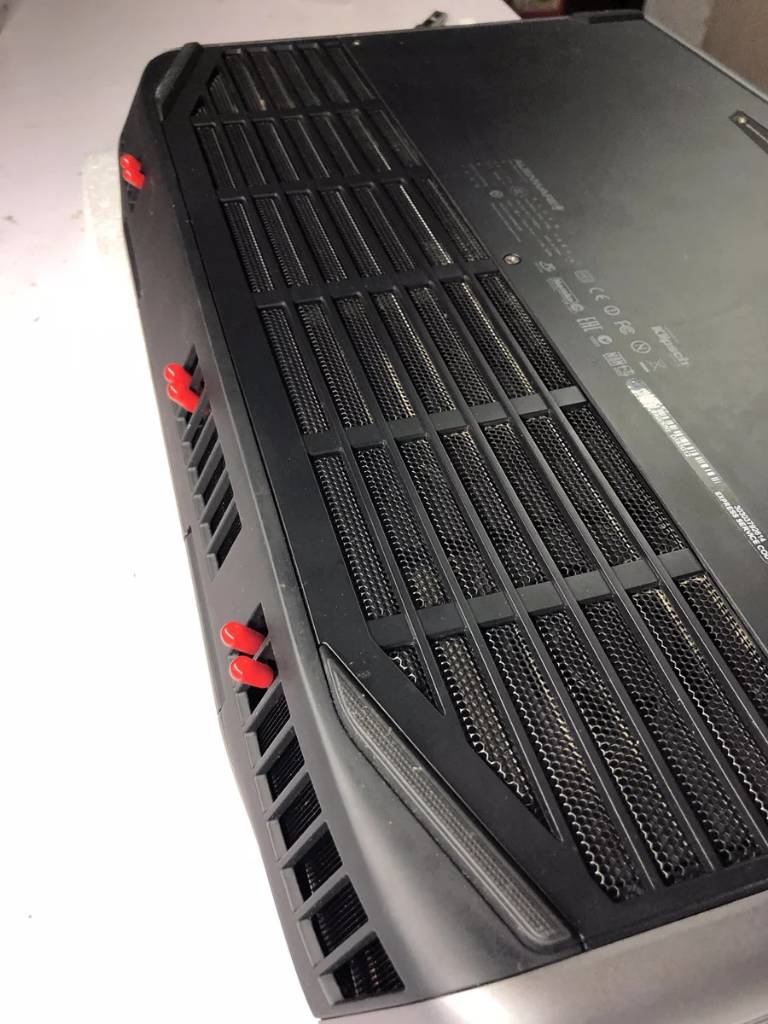

    You're right. If I need to take my laptop out, I can pull out the pipe and screw on the plug. It's the same as a normal laptop.

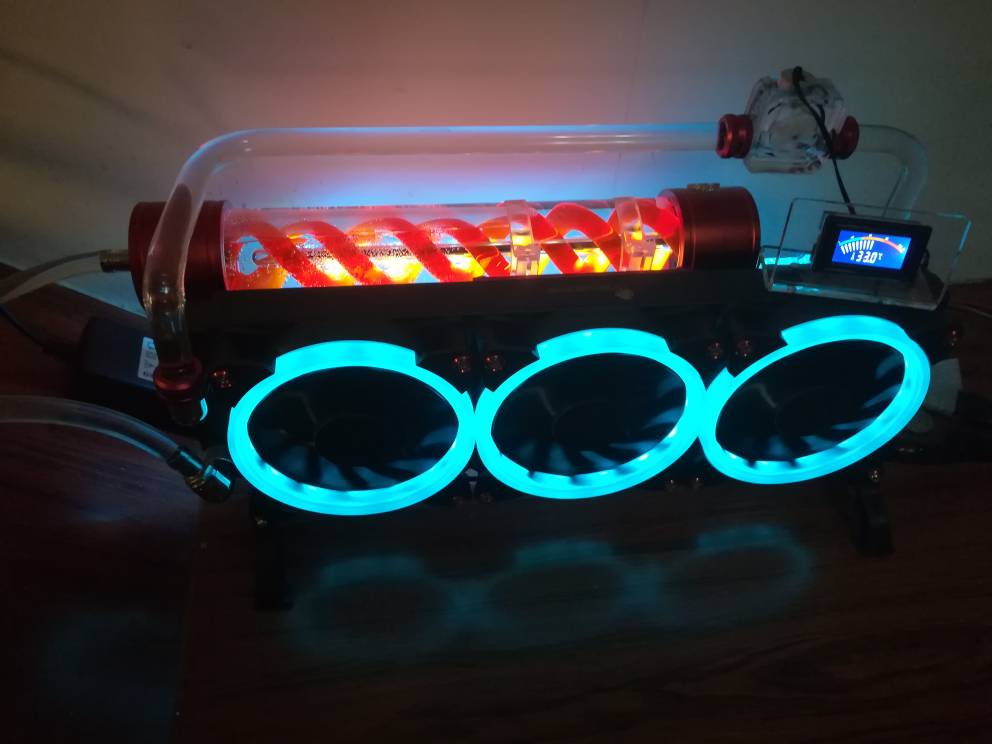

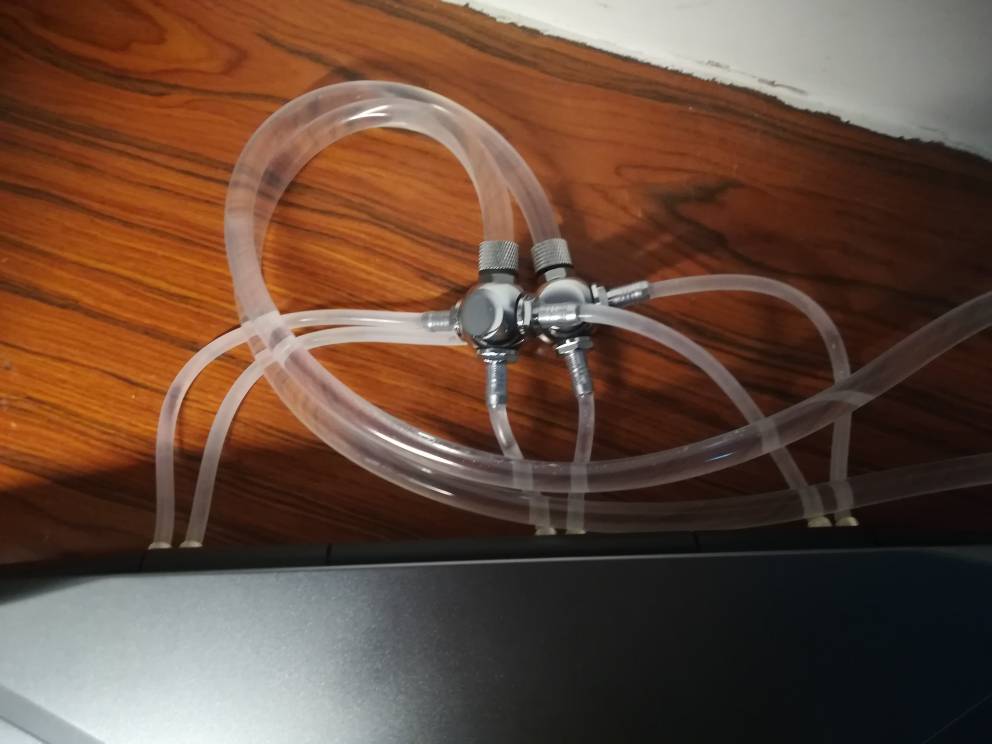

    I'm trying to fix my laptop, and if it reboot successfully, I'd be happy to share his benchmarks and load temps with you. [​IMG] [​IMG] [​IMG]

    通过我的 PRA-AL00X 上的 Tapatalk发言

    yb494119459, Aug 15, 2018
    #13
    triturbo and Andrescastro like this.
  14. Rengsey R. H. Jr.

    Rengsey R. H. Jr. I Never Slept

    Reputations:
    1,084
    Messages:
    2,771
    Likes Received:
    1,020
    Trophy Points:
    181
    Where can I find those fittings/plugs ?

    Rengsey R. H. Jr., Aug 15, 2018
    #14
  15. yb494119459

    yb494119459 Notebook Geek

    Reputations:
    9
    Messages:
    81
    Likes Received:
    33
    Trophy Points:
    26

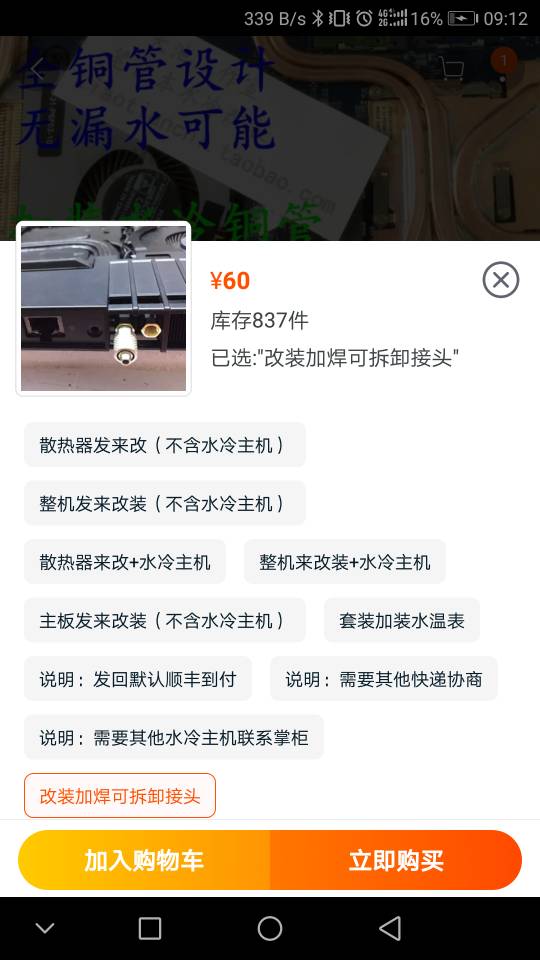

    Brother, I'm Chinese and I live in China. I can use Taobao to buy anything like your ebay. Sorry, so I may not be able to offer practical advice.

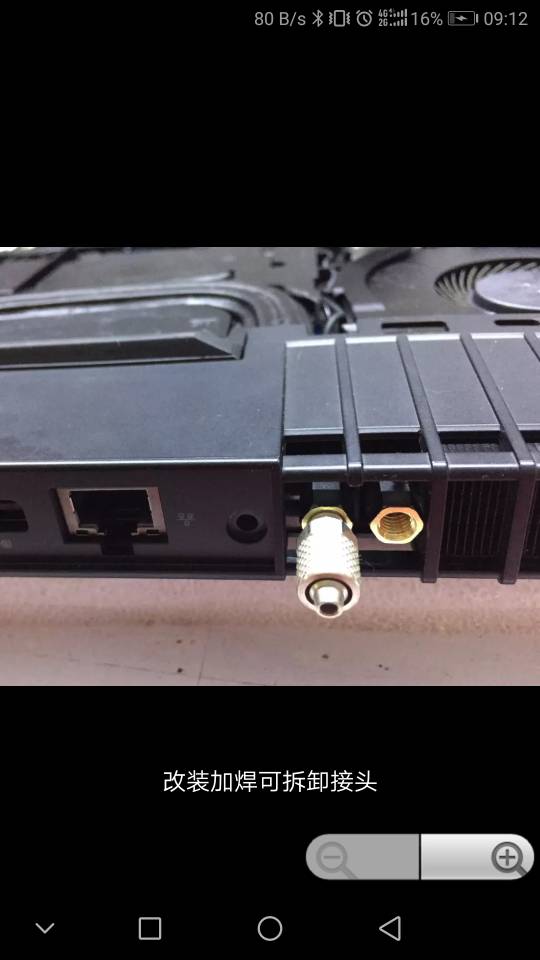

    You need to weld the nut to the copper pipe before using the plug. This may be a complete set of services. It's more complicated. You can also choose rubber plug cap instead of welding the nut.
    [​IMG] [​IMG]

    通过我的 PRA-AL00X 上的 Tapatalk发言
    [​IMG] [​IMG]

    Last edited: Aug 15, 2018
    yb494119459, Aug 15, 2018
    #15
  16. yb494119459

    yb494119459 Notebook Geek

    Reputations:
    9
    Messages:
    81
    Likes Received:
    33
    Trophy Points:
    26
    haha，brother. my laptop reboot again successfully. i'm very very happy.

    I would be happy to share this information with you.

    yb494119459, Aug 16, 2018
    #16
    triturbo, Maleko48 and electrosoft like this.
  17. Mastermind5200

    Mastermind5200 Notebook Virtuoso

    Reputations:
    372
    Messages:
    2,152
    Likes Received:
    826
    Trophy Points:
    131
    You should try to get a 4930MX, they usually clock higher unless you get 4940MX QS
    Also, isn's this the R3 and not R4?

    Mastermind5200, Aug 26, 2018
    #17
  18. Danishblunt

    Danishblunt Guest

    Reputations:
    0
    Got an ES, that thing OC's extremely well. 1.040 volts for 4ghz flat as well.

    Danishblunt, Sep 10, 2018
