    Burnt Chip

    Discussion in 'Alienware 18 and M18x' started by Shiandy, May 8, 2017.

  1. Shiandy

    Shiandy Notebook Consultant

    Reputations:
    25
    Messages:
    102
    Likes Received:
    0
    Trophy Points:
    30
    I've been experiencing issues with the battery not charging, and the system switching to battery when AC is plugged in, plus battery overheating, so I've unplugged the battery, and just run it on AC now.

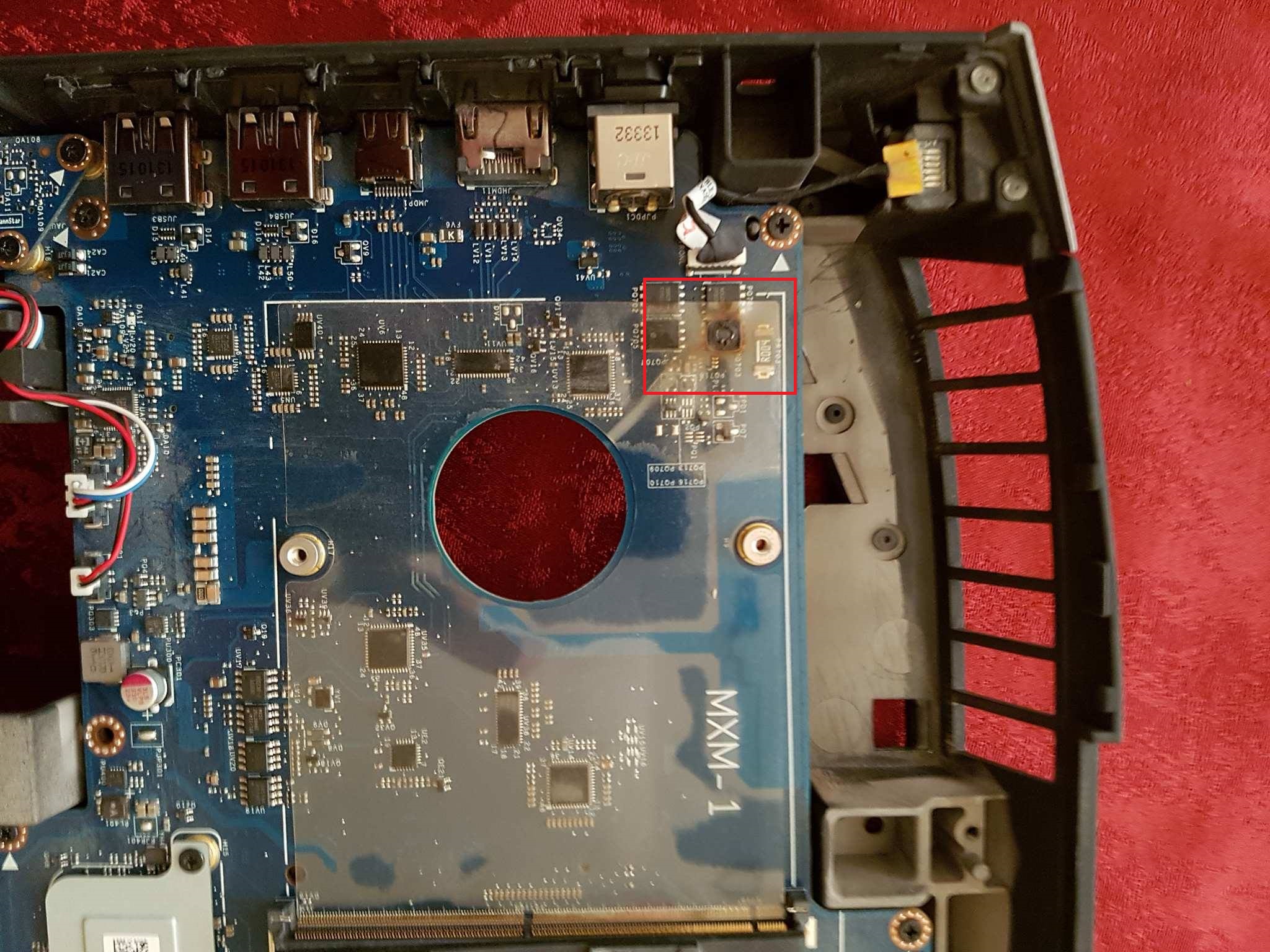

    During a system tear down / clean & re-paste I spotted a burnt chip on the main board under the GPU, picture attached - does anyone have any thought's views on what this chip is... and could it be related to my battery issues ?

    Other than the battery.. the system is running fine.


    Attached Files:

    • Chip.jpg
      File size:
      678.3 KB
      Views:
      148
    Shiandy, May 8, 2017
    #1
  2. don_svetlio

    don_svetlio In the Pipe, Five by Five.

    Reputations:
    351
    Messages:
    3,616
    Likes Received:
    1,825
    Trophy Points:
    231
    I think that's part of the DCIN power delivery.

    don_svetlio, May 8, 2017
    #2
  3. maxslo

    maxslo undefined

    Reputations:
    237
    Messages:
    918
    Likes Received:
    245
    Trophy Points:
    56
    that is a power mosfer, what model do you have?

    Sent from my LG-H850 using Tapatalk

    maxslo, May 8, 2017
    #3
  4. SMOKE_SKULL

    SMOKE_SKULL Notebook Deity

    Reputations:
    183
    Messages:
    1,030
    Likes Received:
    133
    Trophy Points:
    81
    My A18 wont run on battery alone. It charges the battery fine but as soon as the A/C is unplugged it shuts down in seconds. Make a high pitch squeal as it shutting off too. I have never taken mine apart so I dont know it theres any burnt chips. A good wiring diagram would be awesome if someone has one.

    SMOKE_SKULL, May 10, 2017
    #4
  5. Shiandy

    Shiandy Notebook Consultant

    Reputations:
    25
    Messages:
    102
    Likes Received:
    0
    Trophy Points:
    30
    All sorted now thanks - Engineer came out and replaced the board, battery is charging without issues now.

    Did have some issues around the warranty though, mainly due to the fact that I send the image to Dell - who's immediate response was "You've invalidated your warranty, by opening up the system, and stripping it down to that level" - but after a few emails and telephone calls they came good!

    Shiandy, May 11, 2017
    #5
  6. skindoe

    skindoe Notebook Geek

    Reputations:
    10
    Messages:
    81
    Likes Received:
    13
    Trophy Points:
    16
    I'm not aware of any policy Dell has that restricts you from stripping down the PC. In fact, they have a manual that shows users exactly how to strip it down?

    skindoe, May 11, 2017
    #6
    MogRules likes this.
  7. MogRules

    MogRules Notebook Deity

    Reputations:
    1,228
    Messages:
    1,649
    Likes Received:
    973
    Trophy Points:
    131
    They don't .... the biggest problem is the techs are all on different pages when it comes to that. The only time it "invalidate" your warranty is if you break something while doing so..which brings up other issues like how do they even know you broke it unless you tell them :rolleyes: :p.

    One of the nicest things about Alienware is you are absolutely aloud to add your own parts and repaste stuff without affecting your warranty. plenty of other brands do void your warranty if you crack the case.

    MogRules, May 12, 2017
    #7
  8. DerSchlachter95

    DerSchlachter95 Notebook Enthusiast

    Reputations:
    0
    Messages:
    10
    Likes Received:
    0
    Trophy Points:
    5
    Be carful with that
    By mine all four mosfets went on fire think i had the same issue
    What you think, could it be because of to much power drain?

    DerSchlachter95, May 25, 2017
    #8
