    M14 What is this port?

    Discussion in 'Alienware 14 and M14x' started by PlotinusRedux, Dec 12, 2016.

  1. PlotinusRedux

    PlotinusRedux Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    1
    Trophy Points:
    5

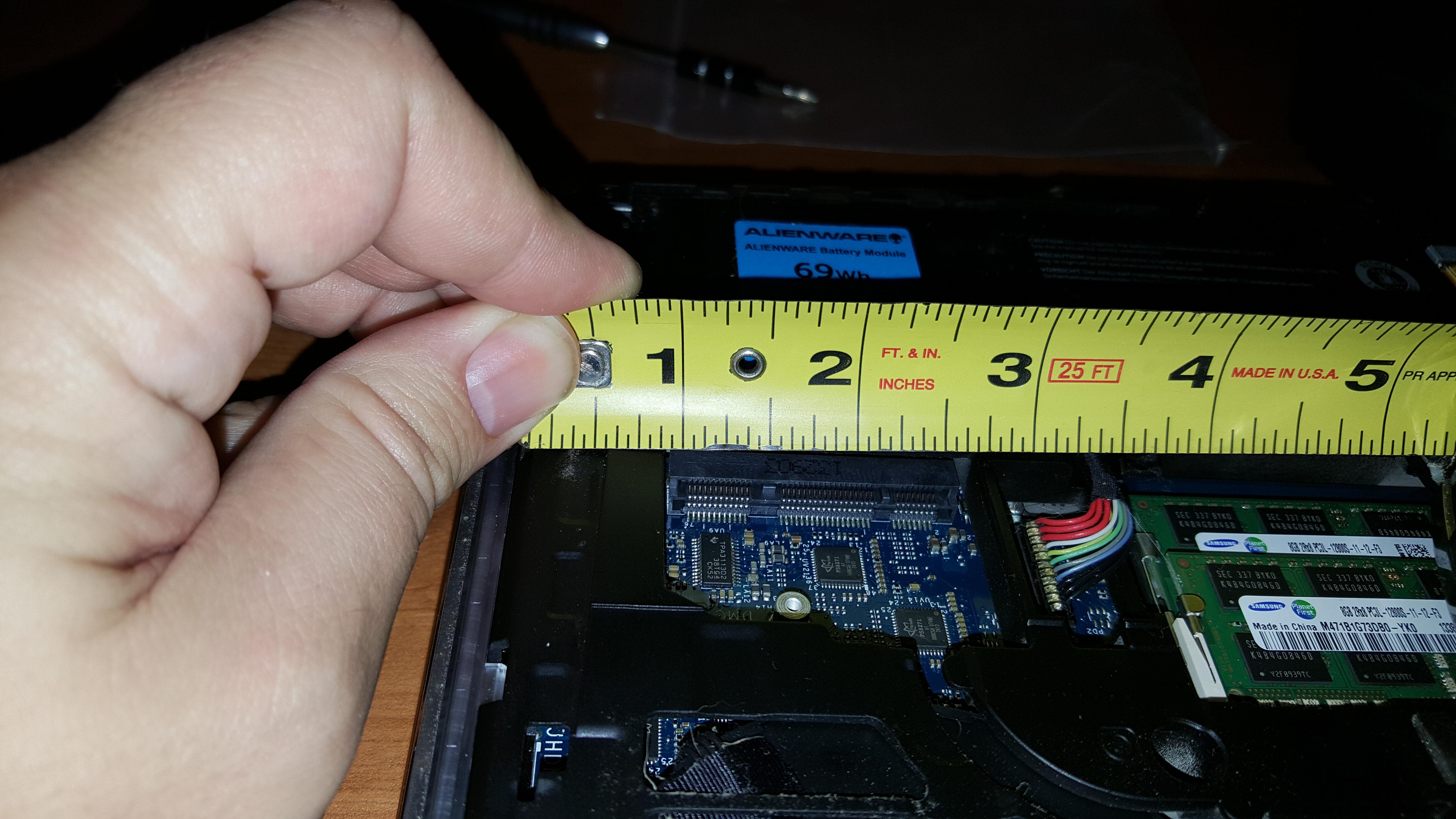

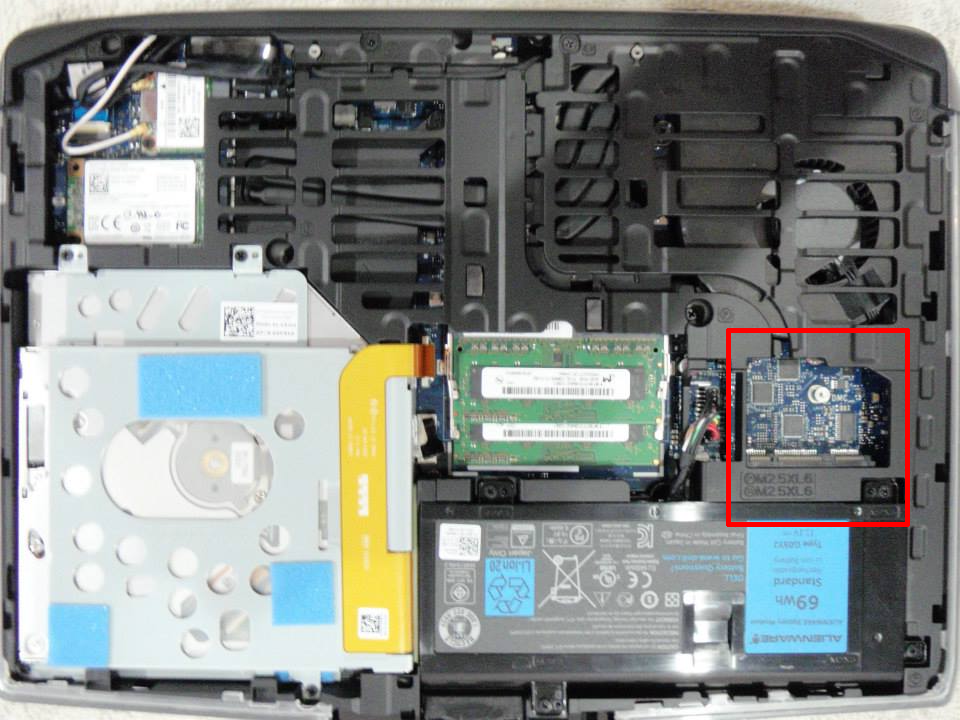

    I've spent hours googling with no luck. I found where one other person asked this on a forum but no one responded. Does anyone know what this port is? By my best count, it's 38 pins on each side (76 total) arranged as 12-18-8.

    [​IMG]

    [​IMG]

    PlotinusRedux, Dec 12, 2016
    #1
    Fletch510k likes this.
  2. Porter

    Porter Notebook Virtuoso

    Reputations:
    786
    Messages:
    2,219
    Likes Received:
    1,045
    Trophy Points:
    181
    Porter, Dec 12, 2016
    #2
    kosti and PlotinusRedux like this.
  3. PlotinusRedux

    PlotinusRedux Newbie

    Reputations:
    0
    Messages:
    2
    Likes Received:
    1
    Trophy Points:
    5
    @Porter, thanks, I would have never found that, it was driving my OCD crazy. I didn't know such a thing existed--and now that I do, I can promptly forget it.

    PlotinusRedux, Dec 13, 2016
    #3
  4. pathfindercod

    pathfindercod Notebook Virtuoso

    Reputations:
    1,940
    Messages:
    2,344
    Likes Received:
    2,349
    Trophy Points:
    181
    That is also the msata port as well I think.

    pathfindercod, Dec 13, 2016
    #4
  5. Fletch510k

    Fletch510k Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    1
    Trophy Points:
    5


    I have an MX14 R2 and this slot also has been driving me crazy, I have come to find after much research that it is a mSata slot, but if your one is an R1 which it looks like then it must be used differently, as i do not think the R1 has mSata. Even when I size up a mSata card to the slot there appears to be another thin slot next to it which is driving me up the wall

    Fletch510k, Oct 22, 2017
    #5
