    Lock FN Key?

    Discussion in 'Alienware 14 and M14x' started by sulliboys, Aug 4, 2011.

  1. sulliboys

    sulliboys Guest

    Reputations:
    0
    Hey
    I've been searching for a while, and want to see if anybody has come up with an answer to this question:

    How do you lock the FN key, so that I don't need to hold it down to quickly turn the volume / screen brightness up, or turn off my wifi. Right now, I have to hold it down then press the required button (f1-12). Is there any way to get around this?
    Thanks for your help

  2. Knguyen204

    Knguyen204 Notebook Enthusiast

    Reputations:
    1
    Messages:
    47
    Likes Received:
    0
    Trophy Points:
    15
    Duct tape the key down.

  3. tupac333

    tupac333 Newbie

    Reputations:
    0
    Messages:
    9
    Likes Received:
    0
    Trophy Points:
    5

    i LOL'D hard when i read this...

    but seriously tho im wondering the same exact thing

  4. /Drakk_

    /Drakk_ Notebook Consultant

    Reputations:
    2
    Messages:
    281
    Likes Received:
    0
    Trophy Points:
    30
    Fn is a special key because it doesn't actually send a scan code into the OS, hence why it can't be mapped to game controls.

    If this is at all possible, you would have to look in BIOS.

  5. Knguyen204

    Knguyen204 Notebook Enthusiast

    Reputations:
    1
    Messages:
    47
    Likes Received:
    0
    Trophy Points:
    15
    I think my response is the most helpful.

  6. ComputerMD82

    ComputerMD82 NX-74205

    Reputations:
    623
    Messages:
    725
    Likes Received:
    7
    Trophy Points:
    31
    It may be possible in a future BIOS update. Some systems (my XPS 15 does this) have the option in BIOS to set the default behavior for the F keys. You can choose between the standard Fn keys or multimedia controls. I'm hoping this is implemented in a future update.

  7. Mozin321

    Mozin321 Notebook Enthusiast

    Reputations:
    0
    Messages:
    42
    Likes Received:
    0
    Trophy Points:
    15
    I hope so too. By default, on my Inspiron 14, you had to press Fn for F1, F2, F3, etc.

  8. pudgzilla

    pudgzilla Notebook Enthusiast

    Reputations:
    0
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    5
    drats...i was hoping this could be done too. i guess it's not a huge deal, but it is kind of annoying

  9. sulliboys

    sulliboys Guest

    Reputations:
    0
    So theres no other way other than a bios update?
    no software I could use?

  10. /Drakk_

    /Drakk_ Notebook Consultant

    Reputations:
    2
    Messages:
    281
    Likes Received:
    0
    Trophy Points:
    30
  11. ComputerMD82

    ComputerMD82 NX-74205

    Reputations:
    623
    Messages:
    725
    Likes Received:
    7
    Trophy Points:
    31
    Hmm.. will try this out when I get home. Will let you know.

  12. ComputerMD82

    ComputerMD82 NX-74205

    Reputations:
    623
    Messages:
    725
    Likes Received:
    7
    Trophy Points:
    31
    I've tested out this program, it somewhat works. If only allows a key to be remapped to a single keystroke. Can't map to a compound keystroke such as Alt+Tab.

    If you try to manually type the keystroke to re-map to, same results, no compound keystrokes. It doesn't even register pressing the Fn key.

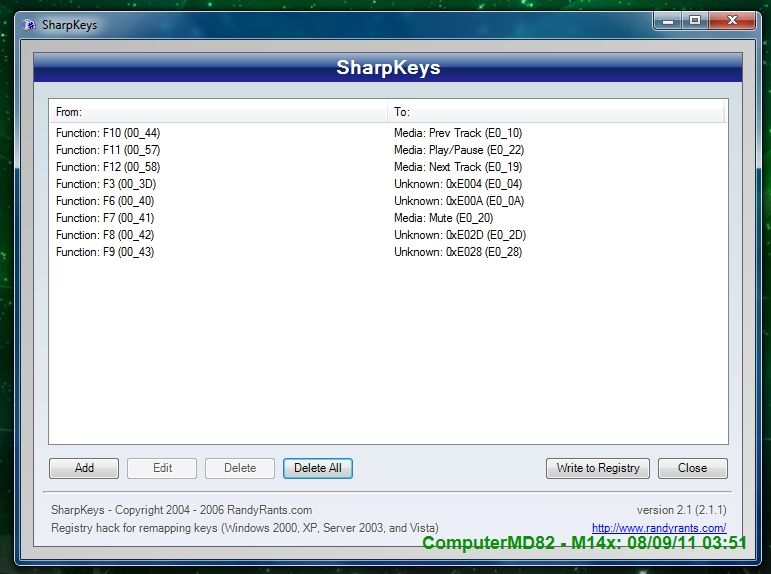

    The good news is that some of the keys can be remapped. I've looked through all available keys, including testing out every Unknown key on the list. The picture below shows all remaps that actually work.

    Working remaps:
    F3 (WiFi Control) - Remap to Unknown: 0xE004 (E0_04)
    F6 (Eject) - Remap to Unknown 0xE00A (E0_0A)
    F7 (Mute) - Remap to Media: Mute (E0_20)
    F8 (Volume Down) - Remap to Unknown: 0xE02D (E0_2D)
    F9 (Volume Up) - Remap to Unknown: 0xE028 (E0_28)
    F10 (Previous Track) - Remap to Media: Prev Track (E0_10)
    F11 (Play/Pause) - Remap to Media: Play/Pause (E0_22)
    F12 (Next Track) - Remap to Media: Next Track (E0_19)

    Non-Working:
    Trackpad Button - Unknown: 0xE001 (E0 -01)
    If remapped it will only show the Trackpad status when pressed. Will not toggle on/off

    F4 (Screen Brighter) - Unknown: 0xE006 (E0_06)
    F5 (Screen Dimmer) - Unknown: 0xE005 (E0_05)
    If remapped these keys will show the level, but will not change it.

    For now, I'm using this to remap only the media keys, those are the ones I use most anyway.

    [​IMG]

  13. eats7

    eats7 Notebook Evangelist

    Reputations:
    168
    Messages:
    305
    Likes Received:
    37
    Trophy Points:
    41
    Thank you for this! +rep

  14. sulliboys

    sulliboys Guest

    Reputations:
    0
    There's no other programs that do all the keys?

  15. mbob

    mbob Notebook Geek

    Reputations:
    36
    Messages:
    95
    Likes Received:
    0
    Trophy Points:
    15
    I was looking for this also. I have a Dell Studio 14z that has it in the bios. Maybe we can all spam Dell for a feature request to add it in the next bios revision? Doubtful but the feature would be useful. More so if they made a software toggle for it as I have found there are times I would like to switch it back on my Studio without rebooting.

  16. ycon

    ycon Notebook Consultant

    Reputations:
    7
    Messages:
    215
    Likes Received:
    13
    Trophy Points:
    31
    I'm very keen for this feature. Such simplicity, for me (atleast) I very very rarely use the "F_" keys.

    Maybe PremaMod could put it in his bios!?
