    upgrading 8920 TV-mpci slot with micro SD mini-Card adapter?

    Discussion in 'Acer' started by note24, Nov 27, 2016.

  1. note24

    note24 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    note24, Nov 27, 2016
    #1
  2. t456

    t456 1977-09-05, 12:56:00 UTC

    Reputations:
    1,959
    Messages:
    2,588
    Likes Received:
    2,048
    Trophy Points:
    181
    Yes, but it depends on the specific type of mini PCIe slot. Some use usb 2.0 protocol and others pcie. You have to check the particular TV card that was compatible with this system; that MR15 adapter will only work for mPCIe-usb slots. Actually have the same card and it's working fine, see this old post for details.

    t456, Nov 27, 2016
    #2
  3. note24

    note24 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5

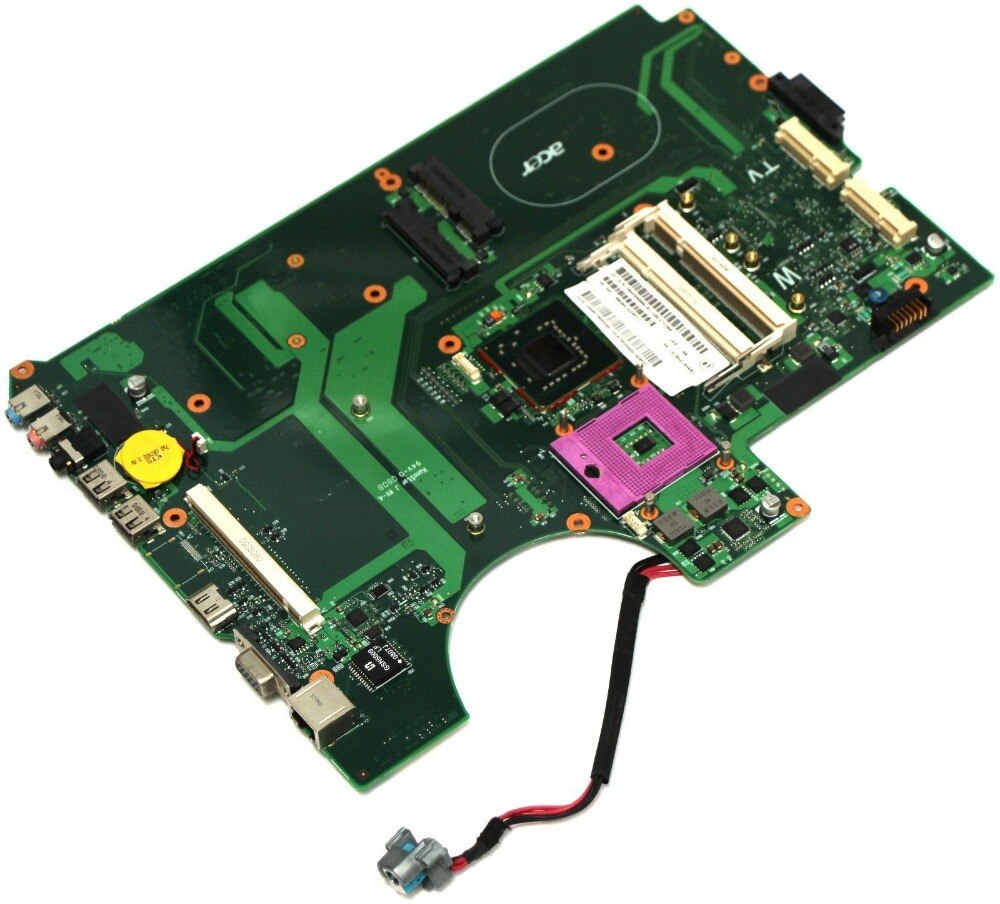

    maybe that works also nice.. mSata SSD
    [​IMG]

    note24, Nov 27, 2016
    #3
  4. t456

    t456 1977-09-05, 12:56:00 UTC

    Reputations:
    1,959
    Messages:
    2,588
    Likes Received:
    2,048
    Trophy Points:
    181
    No, that definitely will not work. A mini PCIe slot does not support (m)SATA protocol. There are a few rare mini PCIe ssds, but they're small, command a high price and will not outdo an SDHC UHS-I card speed-wise since the bandwidth of the slot is limited to 100MB/s anyway.

    Again; find out whether the TV tuner cards for this system use USB or PCIe interface.

    t456, Nov 27, 2016
    #4
    downloads likes this.
  5. note24

    note24 Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5

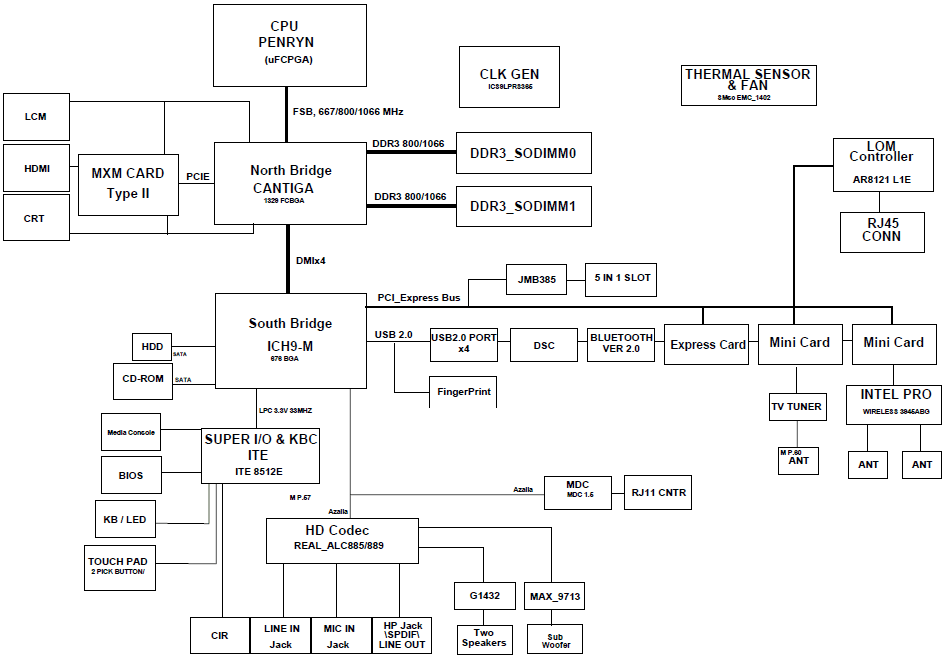

    looks like usb


    [​IMG]

    note24, Nov 27, 2016
    #5
  6. t456

    t456 1977-09-05, 12:56:00 UTC

    Reputations:
    1,959
    Messages:
    2,588
    Likes Received:
    2,048
    Trophy Points:
    181
    t456, Nov 27, 2016
    #6
    note24 likes this.
