    strange 9600m gt for acer

    Discussion in 'Acer' started by JIeB4uk, Feb 20, 2016.

  1. JIeB4uk

    JIeB4uk Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    hi peoples, recently i bougt 9600m gt for my 5920g, but this card differs from card special for acer's books (how seller says) but it not whorking (mod bios by NetRolller 3D, thanks man). i think on this card lost BIOS chip (top left corner).
    upd:
    this card from sony vaio, I tried to start it by changing bios laptop (built into the sBIOS for the notebook vBIOS 9600m gt different versions, including the vaio), but still not working

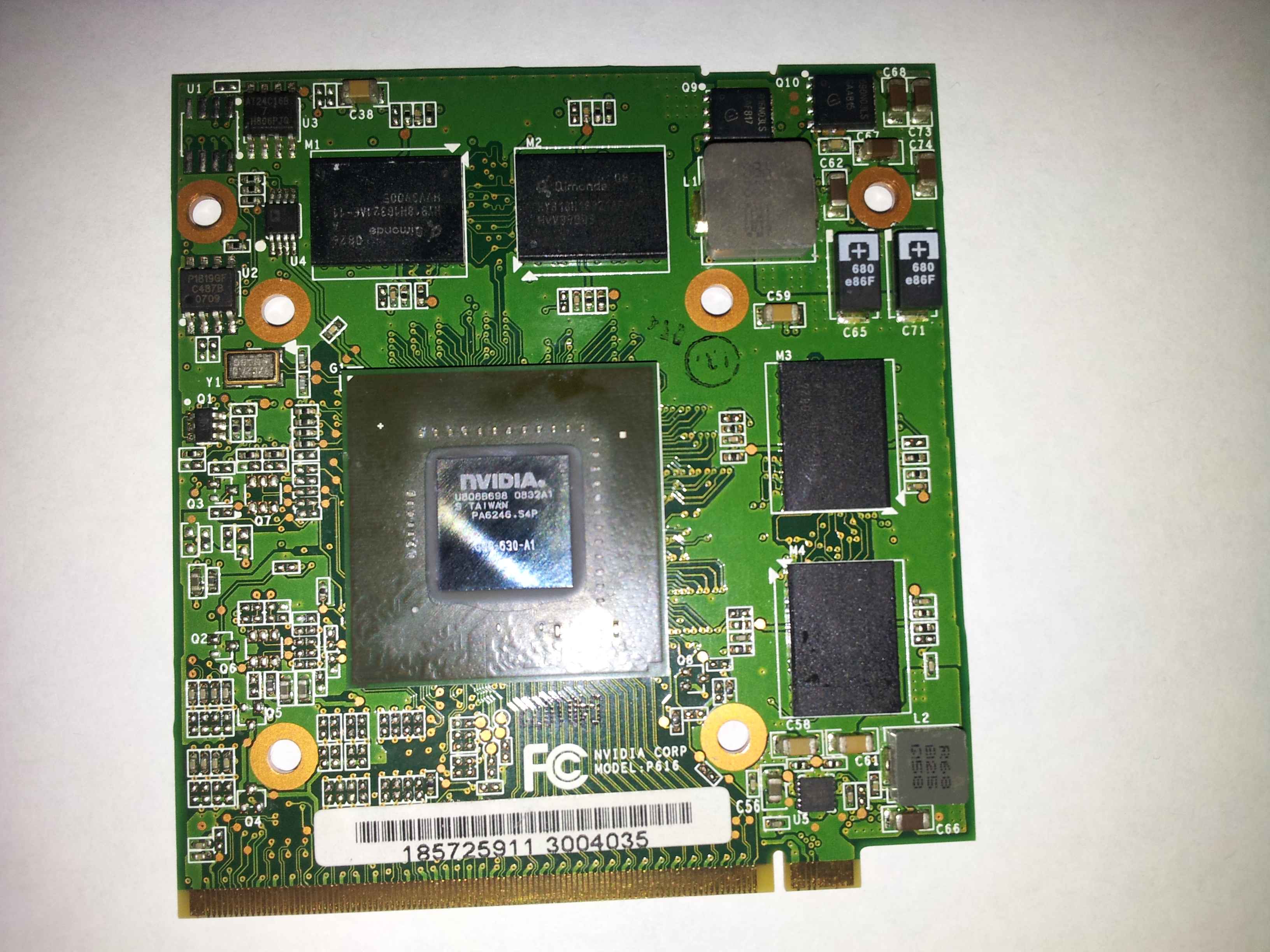

    1. strange card (upd this card by SONY)
    [​IMG]

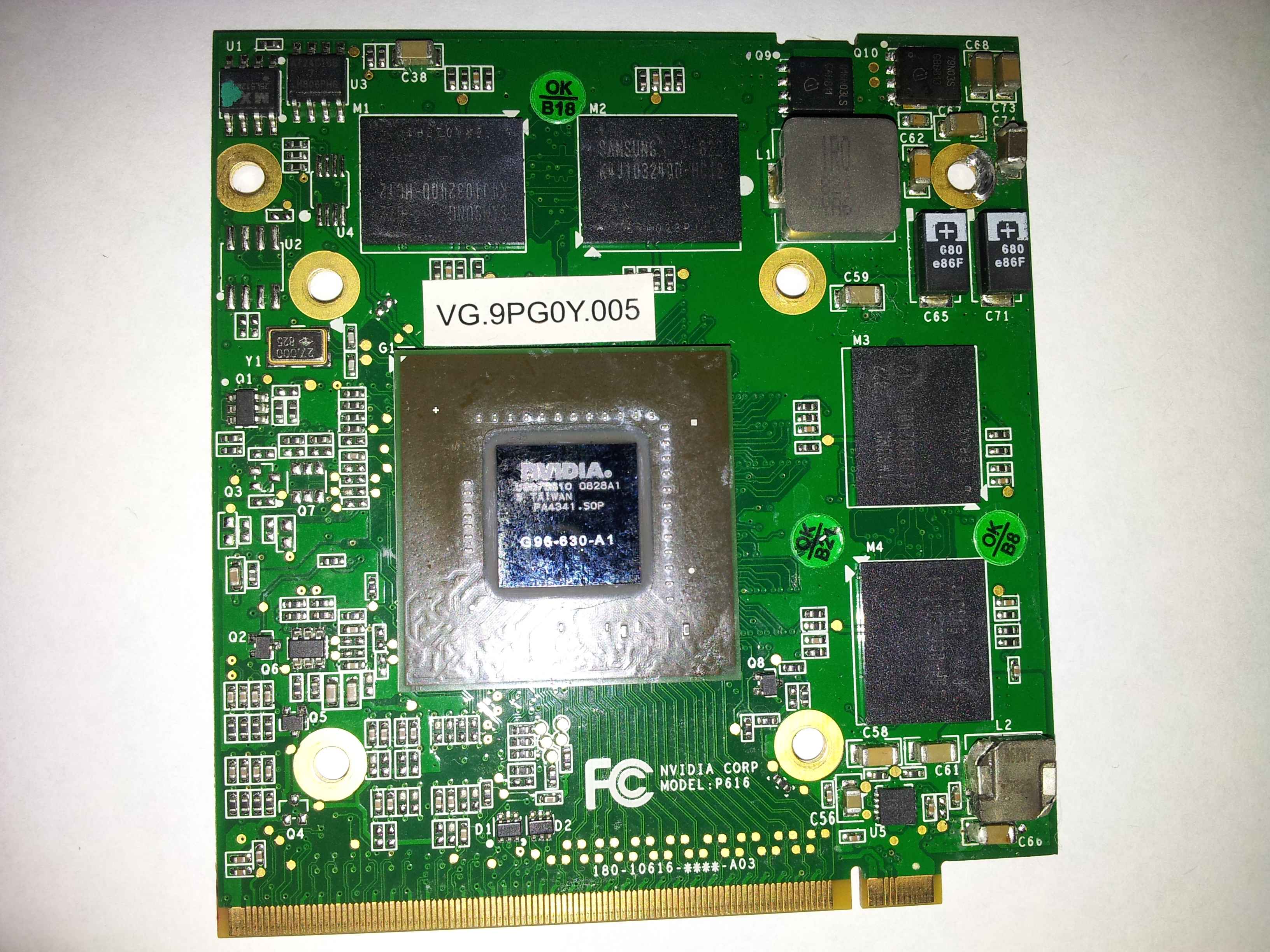

    2. for acer
    [​IMG]
    can you help me whith this card?
    regards

    p/s sorry fo my bad english

    Last edited: Mar 2, 2016
    JIeB4uk, Feb 20, 2016
    #1
  2. ajbutch123

    ajbutch123 Notebook Consultant

    Reputations:
    3
    Messages:
    298
    Likes Received:
    7
    Trophy Points:
    31
    Yep, looks like you bought a card that doesn't need a bios in the notebook it was sold in because (I think) its built into the system bios. Ergoon has a great thread on how to solder on your own, but it may or may not be missing a few resistors as well. Honestly if I were to go to all that trouble I would just go for a hd4650 like he did. Good luck!

    ajbutch123, Feb 24, 2016
    #2
  3. JIeB4uk

    JIeB4uk Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    some say that videobios can be embedded in the BIOS of laptop, but I have no idea how to do it. for a start, we need to understand, from a laptop this card. maybe she did non-working, I do not know

    JIeB4uk, Feb 25, 2016
    #3
  4. ajbutch123

    ajbutch123 Notebook Consultant

    Reputations:
    3
    Messages:
    298
    Likes Received:
    7
    Trophy Points:
    31
    I doubt your system bios would have enough memory to store both, unless it was designed to do so. Here is the thread I mentioned in the last post

    ajbutch123, Feb 25, 2016
    #4
  5. JIeB4uk

    JIeB4uk Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    great thanks for link, i saw that modding sBIOS really works for ATI cards, but i didn't saw examples for Nvidia cards.
    i think, i need :
    1. sBIOS and BIOS editor
    2. vBIOS - i found bios for same 9600m GT with 512Mb DDR3
    3. rename vBIOS to OPROM02.ROM and put it into sBIOS (option ROM directory)
    4. save this sBIOS and flash...
    it looks easy..
    about memory fo sBIOS -
    this guy just integrate vBIOS, i understand correctly?

    JIeB4uk, Feb 26, 2016
    #5
  6. JIeB4uk

    JIeB4uk Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    i trying modding bios by this metod, but card still not working(((( i forgot say - this card by SONY. i try bios from vaio with this card, acer card bioses, another..

    JIeB4uk, Feb 29, 2016
    #6
  7. JIeB4uk

    JIeB4uk Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    sent the card back to the seller, I do not see the possibility to make it work on my laptop. Thank you all for your attention

    JIeB4uk, Mar 4, 2016
    #7
