    Green spots on screen!

    Discussion in 'Acer' started by buzzer, Nov 8, 2011.

  1. buzzer

    buzzer Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Hi all!!!
    I have been using this Acer since 2005. It was my first computer. The last 2 years it started gradually behaving really slow and many times not even moving. However I kept it, while using other laptop for my job.
    At the moment I have decided to try to save that laptop in any possible way.
    I want to ask you if you have any idea what these green spots might be.
    They cover huge part of the screen and I had to change light settings to very bright in order to be able to see somehow what is going on on screen.

    Thanks in advance.

  2. downloads

    downloads No, Dee Dee, no! Super Moderator

    Reputations:
    7,729
    Messages:
    8,722
    Likes Received:
    2,231
    Trophy Points:
    331
    Hi buzzer and welcome to NBR.

    How do they look like- how big they are?
    Are those stuck sub-pixels or something bigger than that?

    Also what model exactly do you have?

  3. .NetRolller 3D

    .NetRolller 3D Notebook Deity

    Reputations:
    505
    Messages:
    1,127
    Likes Received:
    14
    Trophy Points:
    56
    Most likely the backlight spreader is damaged. A panel replacement may be in order.

  4. downloads

    downloads No, Dee Dee, no! Super Moderator

    Reputations:
    7,729
    Messages:
    8,722
    Likes Received:
    2,231
    Trophy Points:
    331
    Backlight spreader? I'm gonna pretend I know what it is so as not to look stupid ;)

  5. .NetRolller 3D

    .NetRolller 3D Notebook Deity

    Reputations:
    505
    Messages:
    1,127
    Likes Received:
    14
    Trophy Points:
    56
    The (normally) white plastic backing of the display panel, which distributes light from the CCFL tube at the bottom of the panel to all of the screen; it is likely discolored, resulting in spots.

  6. FahrenheitGTI

    FahrenheitGTI Notebook Consultant

    Reputations:
    117
    Messages:
    275
    Likes Received:
    0
    Trophy Points:
    30
    Could be a damaged GPU, they might be artifacts. A picture of the spots would help us give you a definitive answer.

  7. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66
    artifacts are usually random. if it was artifacting that bad they'd be pretty aggressive with BSODs.

  8. buzzer

    buzzer Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5

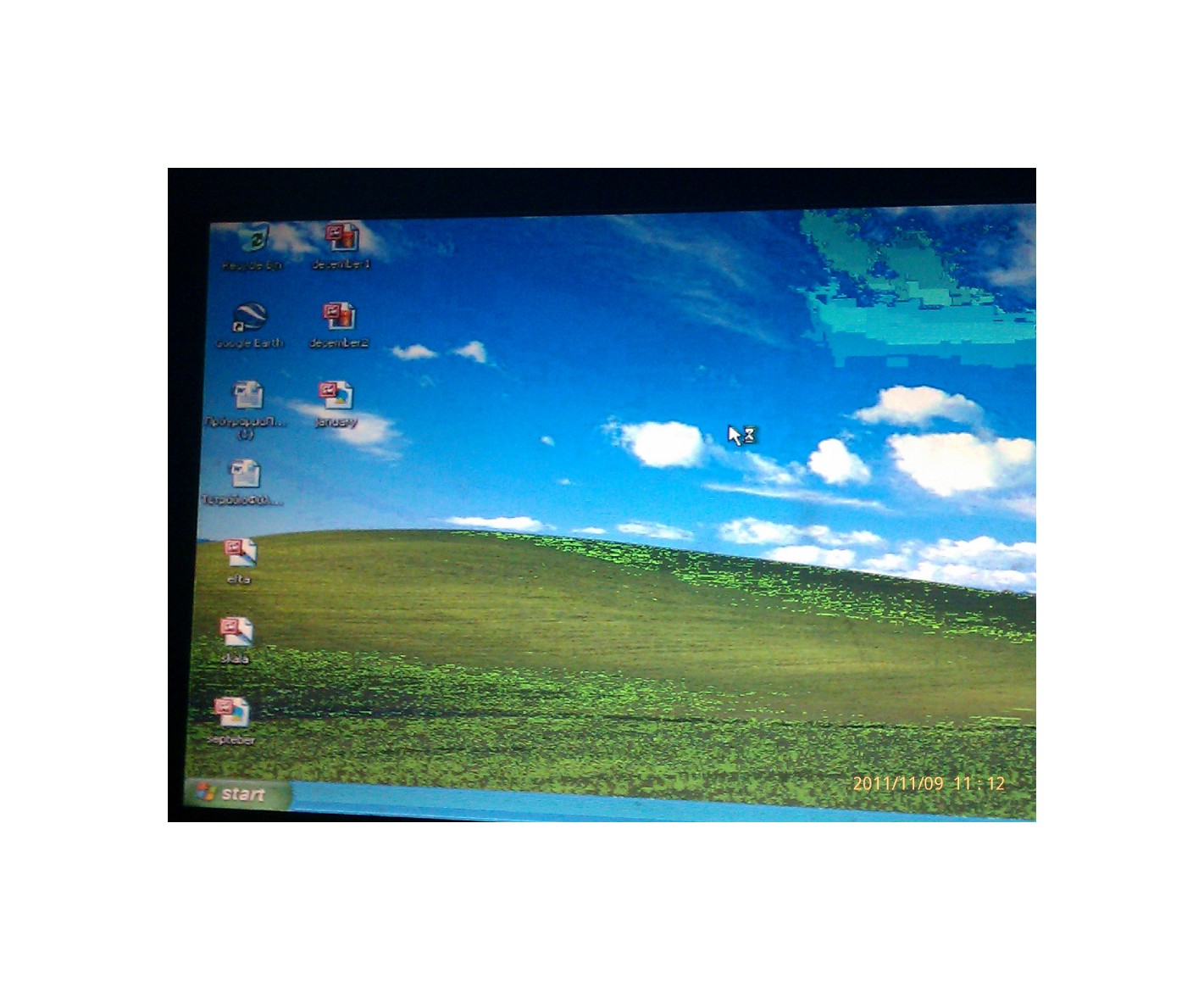

    Here is a picture of the screen. Imagine that I have set brightness to verz light so that the spots are not so aggressive


    Attached Files:

    • neno.jpg
      File size:
      227.6 KB
      Views:
      451
  9. cdoublejj

    cdoublejj Notebook Deity

    Reputations:
    195
    Messages:
    1,123
    Likes Received:
    92
    Trophy Points:
    66
    thats looks like the color is 16 bit or something.

  10. .NetRolller 3D

    .NetRolller 3D Notebook Deity

    Reputations:
    505
    Messages:
    1,127
    Likes Received:
    14
    Trophy Points:
    56
    So the spots are not stationary, then.

    This looks like the LVDS cable, or maybe VRAM.

  11. buzzer

    buzzer Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    So, is that something I can easily fix or it needs a lot of money and time?

  12. .NetRolller 3D

    .NetRolller 3D Notebook Deity

    Reputations:
    505
    Messages:
    1,127
    Likes Received:
    14
    Trophy Points:
    56
    If it's the LVDS cable, then it is relatively cheap.

    If it is the GPU or VRAM, and this is an MXM Acer, then an MXM replacement may help. However, if the GPU is soldered on the motherboard, or if this is an Intel GMA system, then it is basically unfixable (requires a new motherboard).

  13. buzzer

    buzzer Newbie

    Reputations:
    0
    Messages:
    4
    Likes Received:
    0
    Trophy Points:
    5
    Thanks for all the responses everybody. (I don't understand most of it but I got a picture)
    Possibly last question: I guess for a real diagnosis I shall visit a specialist right? Or is it something that you (or somebody else) could guide me through it and I can manually open laptop and see what is going on?

    Thanks in advance for all your help and interest

  14. .NetRolller 3D

    .NetRolller 3D Notebook Deity

    Reputations:
    505
    Messages:
    1,127
    Likes Received:
    14
    Trophy Points:
    56
    I would say if you are not experienced with disassembling laptops, then seek a specialist.
