    Acer Travelmate display problem!

    Discussion in 'Acer' started by freaxxx, Jun 4, 2008.

  1. freaxxx

    freaxxx Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Hi Guys,

    Couple of months ago I have been in a big car accident and my

    notebook (Acer Travelmate 2493) was in the back of my car. After

    this accident my display leaked off. Now I try to find a new 15.4"

    wide screen for my laptop but the price is very high and i have to

    wait 2 months for the delivery. I bought this laptop for 500 EUR

    last year and the replacement with the new display is 300 EUR (it is

    not relevant!).So my question is can I use a screen from different

    ACER model which will fit in? I wonder is it possible to put a

    screen from Aspire or Extensa... Is there a standard or something?

    Can somebody give me a list or something with the models which uses

    one screen type? Because I can buy a whole second hand broken

    notebook for less than 100 EUR but the problem is that I can`t find

    Travelmate, Aspire and Extensa are available.

    If somebody can help me I will be very thankful!

    freaxxx, Jun 4, 2008
    #1
  2. bigozone

    bigozone JellyRoll touring now

    Reputations:
    1,112
    Messages:
    2,730
    Likes Received:
    0
    Trophy Points:
    55
    i'll see if i can come up w/ part #'s that are exact swap outs for your model

    it will be later this evening
    say 6 hours or so


    bigO

    bigozone, Jun 4, 2008
    #2
  3. freaxxx

    freaxxx Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    Hi bigozone do you have a news for me? :)

    freaxxx, Jun 5, 2008
    #3
  4. bigozone

    bigozone JellyRoll touring now

    Reputations:
    1,112
    Messages:
    2,730
    Likes Received:
    0
    Trophy Points:
    55
    TravelMate 4280/4260/4230/4200/4200Z/2490 & Aspire 5680/5650/5630/5610/5610Z/3690

    i can't find a TM2493..... but all the above models use the same service guide

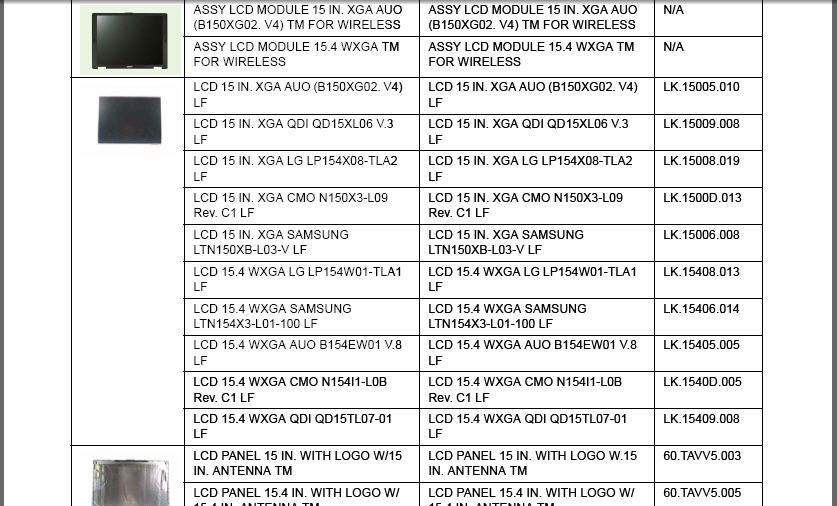

    the attached thumbnail is a screen capture of part #'s from the ACER service guide for the 2490..

    check your SCREEN for it's part #.... if it matches one of these then you should be able to swap yours with any of the numbers in that list... just stick with the same type.... either XGA or WXGA


    bigO

    BTW,, sorry it took so long... i knew i forgot something....


    Attached Files:

    bigozone, Jun 5, 2008
    #4
  5. freaxxx

    freaxxx Newbie

    Reputations:
    0
    Messages:
    3
    Likes Received:
    0
    Trophy Points:
    5
    You`ve just made my day!
    Thanks a lot!

    freaxxx, Jun 6, 2008
    #5
  6. bigozone

    bigozone JellyRoll touring now

    Reputations:
    1,112
    Messages:
    2,730
    Likes Received:
    0
    Trophy Points:
    55
    sorry it got delayed,,,
    just glad to help


    bigO

    bigozone, Jun 6, 2008
    #6
