    Acer Aspire 5630 wifi replacement

    Discussion in 'Acer' started by cryogent, Oct 2, 2015.

  1. cryogent

    cryogent Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Hello,
    i have an Acer Aspire 5630 and i try to replace my old wifi ( A/B/G) module with a new one from Intel (A/B/G/N) wifi 5100 agn but I have some problem with its operation, i installed, install their drivers, but does not connect, look 'disconected' even if I tried to turn it on physical button or from Network Connection.
    What I tried:
    - I reinstalled the driver from the Intel website - Nothing Happens
    - I Installed Intel PROSet / Wireless - Nothing Happens
    - I reinstalled Windows 7 - Nothing Happens
    WiFi module running just fine on another laptop,one on which I removed.
    Is there a problem with the motherboard BIOS does not support WiFi module B / G / N?

    cryogent, Oct 2, 2015
    #1
  2. downloads

    downloads No, Dee Dee, no! Super Moderator

    Reputations:
    7,729
    Messages:
    8,722
    Likes Received:
    2,231
    Trophy Points:
    331
    What is the brand of the laptop your removed the module from? Modules from notebooks that use whitelisting won't work even though Acer doesn't use whitelisting.

    downloads, Oct 2, 2015
    #2
  3. cryogent

    cryogent Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    I dont now exactly which model but was a HP brand.It was of a coworker who dropped it on the floor.

    cryogent, Oct 3, 2015
    #3
  4. cryogent

    cryogent Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    More info
    Win 7 pro 32 bit
    Bios ver.2.90

    cryogent, Oct 3, 2015
    #4
  5. downloads

    downloads No, Dee Dee, no! Super Moderator

    Reputations:
    7,729
    Messages:
    8,722
    Likes Received:
    2,231
    Trophy Points:
    331
    That's why it won't work - white listing works two ways so to speak. BIOS checks the card and card firmware refuses to run if not in a HP laptop. The card won't work in Windows.

    downloads, Oct 3, 2015
    #5
  6. cryogent

    cryogent Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Okay, there is nothing to do?
    I knew modified BIOS versions that accept certain hardware update, where I could find some modified BIOS for this model of laptop?
    if there is..... :(

    cryogent, Oct 5, 2015
    #6
  7. downloads

    downloads No, Dee Dee, no! Super Moderator

    Reputations:
    7,729
    Messages:
    8,722
    Likes Received:
    2,231
    Trophy Points:
    331
    Laptop does not have white-listing enabled but the card will refuse to work in non-HP laptop. You can buy pretty much any card that is not meant for HP or Lenovo and it will work fine. This one won't work.
    Laptop does not have white-listing enabled but the card will refuse to work in non-HP laptop. You can buy pretty much any card that is not meant for HP or Lenovo and it will work fine. This one won't work.

    downloads, Oct 5, 2015
    #7
  8. cryogent

    cryogent Newbie

    Reputations:
    0
    Messages:
    5
    Likes Received:
    0
    Trophy Points:
    5
    Ok, I researched myself and saw that Acer not have wifi white-listing blocked or something else but the wireless card is not branded for HP,
    is like any other card from market.
    I think the laptop himself have a problem with wireless N cards.

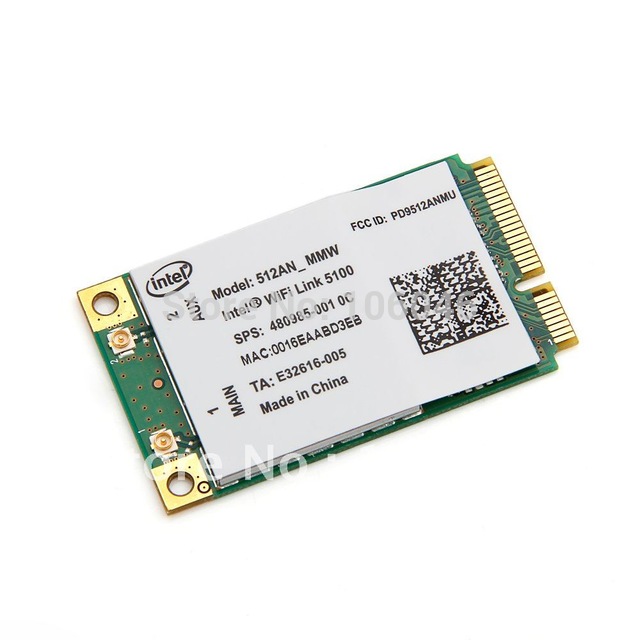

    The card looks like this
    [​IMG]

    Last edited: Oct 8, 2015
    cryogent, Oct 8, 2015
    #8
