    Stripped GPU heatsink screw

    Discussion in '2015+ Alienware 13 / 15 / 17' started by Chimaster7, Jan 11, 2017.

  1. Chimaster7

    Chimaster7 Notebook Enthusiast

    Reputations:
    2
    Messages:
    22
    Likes Received:
    7
    Trophy Points:
    6
    Hi guys i was trying to do a repaste on my alienware 17R4 however the last two screws i need to remove where so stuck they got stripped i was using a PH01 screwdriver. you guys have any tips on how to remove them and replace them? tried pentelope and flathead.

    Chimaster7, Jan 11, 2017
    #1
  2. zergslayer69

    zergslayer69 Liquid Hz

    Reputations:
    62
    Messages:
    1,551
    Likes Received:
    91
    Trophy Points:
    66
    Oh yikes, I always use either PH00 or PH0 at biggest. So just keep that in mind for future reference. I've seen people use tiny drillbits and such to extract a screw, but never personally done such a procedure. Maybe someone else can chime in.

    zergslayer69, Jan 11, 2017
    #2
  3. ThatOldGuy

    ThatOldGuy Notebook Virtuoso

    Reputations:
    1,310
    Messages:
    2,454
    Likes Received:
    2,588
    Trophy Points:
    181
    I have a micro grab-it that I have used on very small screws. About 3mm heads and it worked for me.

    https://www.amazon.com/Alden-4507P-Grabit-Broken-Extractor/dp/B000Q60UOO

    ThatOldGuy, Jan 11, 2017
    #3
  4. SUADE8880

    SUADE8880 Notebook Evangelist

    Reputations:
    171
    Messages:
    648
    Likes Received:
    188
    Trophy Points:
    56

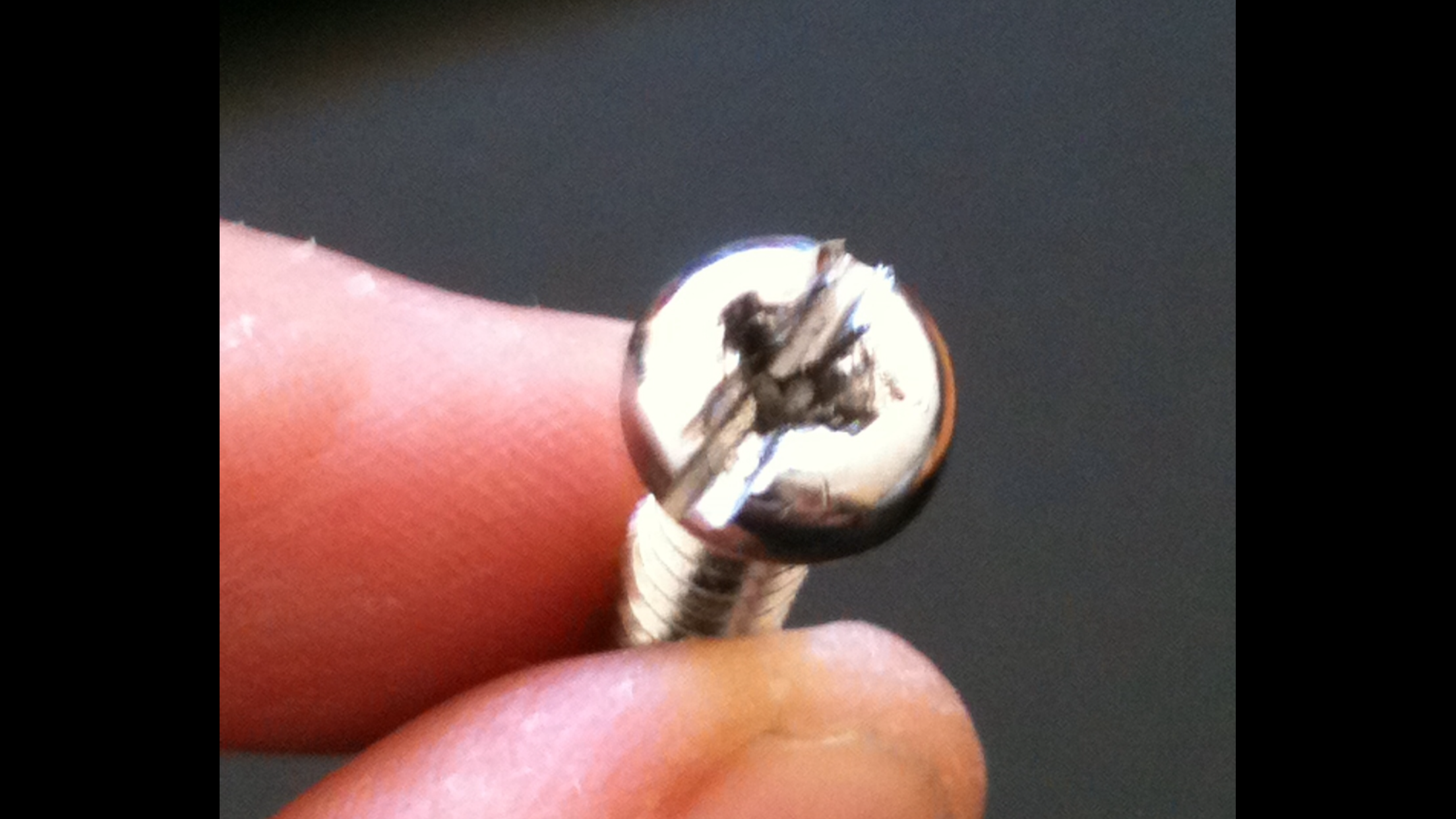

    Try making a slot across by using a dremel. That way you can use a flat head screw driver to take it out. Always works for me. Good luck!
    [​IMG]

    SUADE8880, Jan 11, 2017
    #4
    judal57 and DeeX like this.
  5. zeroibis

    zeroibis Notebook Consultant

    Reputations:
    6
    Messages:
    235
    Likes Received:
    41
    Trophy Points:
    41
    See:

    zeroibis, Jan 12, 2017
    #5
  6. rinneh

    rinneh Notebook Prophet

    Reputations:
    854
    Messages:
    4,897
    Likes Received:
    2,191
    Trophy Points:
    231
    Put a thin rubberband between the screw and screwdriver is often possible too, to make some grip.

    Last edited: Jan 13, 2017
    rinneh, Jan 13, 2017
    #6
  7. abdullah_mag

    abdullah_mag Notebook Evangelist

    Reputations:
    15
    Messages:
    472
    Likes Received:
    71
    Trophy Points:
    41
    nice tip

    abdullah_mag, Jan 13, 2017
