    Is the new 950 pro from Samsung compatible with the AW15 r1?

    Discussion in '2015+ Alienware 13 / 15 / 17' started by Chris_Wayne, Sep 22, 2015.

  1. Chris_Wayne

    Chris_Wayne Notebook Consultant

    Reputations:
    12
    Messages:
    187
    Likes Received:
    26
    Trophy Points:
    41
  2. judal57

    judal57 Notebook Deity

    Reputations:
    274
    Messages:
    1,164
    Likes Received:
    650
    Trophy Points:
    131
    if it works, you are not going to see a improvement, because all the ports are sata 3 and the max speed is 600 mb/s for writing and reading

  3. J.Dre

    J.Dre Notebook Nobel Laureate

    Reputations:
    3,700
    Messages:
    8,323
    Likes Received:
    3,820
    Trophy Points:
    431
    Doubtful. Those speeds usually work only with PCIe.

    It should work with the R2. ;)

  4. judal57

    judal57 Notebook Deity

    Reputations:
    274
    Messages:
    1,164
    Likes Received:
    650
    Trophy Points:
    131
    i read more and i found that you need a pcie 4x bus and NVMe protocol and.... the 15R2 and 17 R3 dont have this ports too

  5. judal57

    judal57 Notebook Deity

    Reputations:
    274
    Messages:
    1,164
    Likes Received:
    650
    Trophy Points:
    131

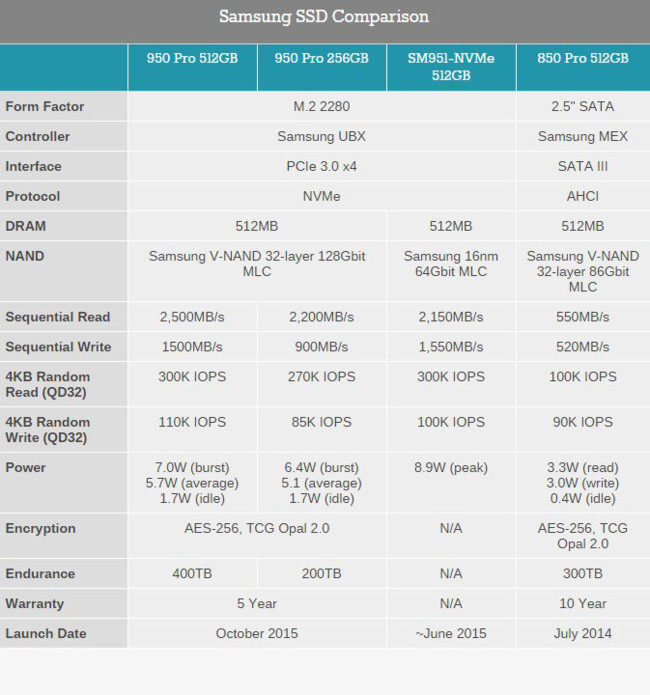

    As you can see the protocol is difficult to find on boards
    [​IMG]

  6. Chris_Wayne

    Chris_Wayne Notebook Consultant

    Reputations:
    12
    Messages:
    187
    Likes Received:
    26
    Trophy Points:
    41
    Damn, is that speed something really noticeable when compared to lets say the 850 evo on real world scenarios? (opening programs like 3ds max, illustrator, after effects...etc)

  7. judal57

    judal57 Notebook Deity

    Reputations:
    274
    Messages:
    1,164
    Likes Received:
    650
    Trophy Points:
    131
    i have 2 samsung 850 EVO m.2 and i am really happy. the performance is amazing i cant imagine something more fast. i want to tell you that the pcie ssd reach temperatures like 100°C in seconds, that is why i don't recommend this type of ssd on notebooks.
    this temperatures are on a desktop, now just imagine the same scenario on a notebook that all the components are really close and the pcie SSD are without heatsink, it will damage something like battery, case, hdd, cables, etc.

    [​IMG]

  8. vkt62

    vkt62 Notebook Consultant

    Reputations:
    2
    Messages:
    241
    Likes Received:
    49
    Trophy Points:
    41
    For those that have a m.2 in their AW15, how much temperature are you seeing from your m.2? Didn't realize that the temperature would hit 80C on a m.2 ssds.

  9. judal57

    judal57 Notebook Deity

    Reputations:
    274
    Messages:
    1,164
    Likes Received:
    650
    Trophy Points:
    131
    [​IMG]

    after 8 hours of usage :) and here is really hot on my room XD like 30°C

  10. judal57

    judal57 Notebook Deity

    Reputations:
    274
    Messages:
    1,164
    Likes Received:
    650
    Trophy Points:
    131
    m.2 sata3 is different than a pcie m.2 (more speed bus = more heat)

  11. judal57

    judal57 Notebook Deity

    Reputations:
    274
    Messages:
    1,164
    Likes Received:
    650
    Trophy Points:
    131
    to
    To answer your question i made a test with SolidWorks 2015 premium that i have. the program started in 4,42 seconds
