    Intel ME completely offline

    Discussion in '2015+ Alienware 13 / 15 / 17' started by Mofoist, Oct 25, 2018.

  1. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    My chip is obviously set too low, the clip just about clips on but then drops off. I am going try a few other avenues before stripping the laptop again.
    I had given up on this laptop and have an 17” Hp Omen I7 7700k with GTX 1060 6gb now so no real rush, just annoyed that Dell have no responsibility here.

    Basherwalls, Dec 31, 2018
    #51
    Vasudev likes this.
  2. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,035
    Messages:
    11,277
    Likes Received:
    8,814
    Trophy Points:
    931
    There's a new MEFW update at win-raid which fixes some issues like ME going offline after FW upgrade and fixes lot of security issues.

    Vasudev, Dec 31, 2018
    #52
  3. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    Do you have a link for the one I need to use?
    Cheers, I will give it a go.

    Basherwalls, Dec 31, 2018
    #53
  4. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,035
    Messages:
    11,277
    Likes Received:
    8,814
    Trophy Points:
    931
    Vasudev, Dec 31, 2018
    #54
  5. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    If you have a unknown intel ME from the buggered bios, how can you install this Fw?
    I get the platform error message.

    Basherwalls, Dec 31, 2018
    #55
  6. Vasudev

    Vasudev Notebook Nobel Laureate

    Reputations:
    12,035
    Messages:
    11,277
    Likes Received:
    8,814
    Trophy Points:
    931
    No you can't.

    Vasudev, Jan 1, 2019
    #56
  7. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    I didn’t think I could.
    Looks like the hunt continues...

    I did find it surprising yesterday that I bumped a topic on the official Dell forum as an Alienware moderator was on - Alienware-Eimy - asking if Dell have issued a memo to all Dell staff to no longer interact with anyone about the 1.4.4 bios issues.

    My comment stating this was flagged as Spam within a minute, deleted and no answer from Alienware-Eimy.

    I may have struck on something here.
    If your Laptop is broken by Dell’s 1.4.4 bios you are bang out of luck as no one at Dell will help you.
    Just my thoughts from recent events.

    Basherwalls, Jan 1, 2019
    #57
    Vasudev likes this.
  8. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    @Basherwalls Tag me with the @ sign so I know to look here! There are no other options for your problem due to the firmware being corrupt and locked, no software based update will reach it.

    First, are you confident you connected the cable to the programmer correctly? That mini pcb that the programmer comes with is not needed.

    Also, what lights lit up on the programmer exactly when you clipped on? It's going to be a pretty fragile connection but if you're able to read/have both lights, which will be safe to attempt, don't move anything and carry on.

    Could you send a picture of the bios chip?

    Last edited: Jan 1, 2019
    Mofoist, Jan 1, 2019
    #58
    Basherwalls and Vasudev like this.
  9. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    Mofoist, Jan 1, 2019
    #59
  10. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    @Mofoist I know I have the right bios chip, it’s the Winbond 25Q128FVSO 1535
    It’s right next to the ram slots, near the cpu, not under the heat sink but you do have to strip the laptop to get to it.
    The other Winbond chip bear is next to the gpu and it’s a different code so that’s not it - my Winbond code is very similar to yours that you posted as a photo on another forum.

    I have connected the clip pcb and pins to the 25 setup on the usb and I get a red light on the usb, no yellow run light.
    If I connect to the 24 setup I do get a run light but I know that this chip is a 25 as it’s written on the bios chip.

    If I really wiggle the clip about I get an occasional flicker on the run light but never when clamped on in the usb 25 mode.

    I have thought about using a Stanley blade and slightly scraping the pins so maybe to attract a connection but I would have to strip the laptop again.
    I may try it again, I am currently on bios 1.3.12 and it’s running great with fast boot but only the shutdown issue.

    I will try one more time but selling this in a semi working state may be the best option.
    It’s annoying as Dell have really pee’d me off to the point I will never buy Alienware again.
    I like to feel I can fix this, so I will try once more.

    Basherwalls, Jan 1, 2019
    #60
    Vasudev and Mofoist like this.
  11. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    @Basherwalls It could very well be the clip being poor quality. I've still got my cable attached to my programmer so I'll double check it's on 25 too.

    Mofoist, Jan 1, 2019
    #61
  12. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    Okay, I have 3 or 5 old laptops which I can test the clip on, I should have thought of that the other day.
    If I clip on and get lights, I know the clip is good. If not then I need to source another clip.
    I did get both lights on when the usb is set to a 24 set up but the flasher only has about 6 lines of code, I change that to the 128 on the settings and do a read (with both lights on) and I get the code reading 00 in every line.
    So it’s obvious it’s the 25 set up.

    Basherwalls, Jan 1, 2019
    #62
    Mofoist and Vasudev like this.
  13. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    Yeah I can confirm its the 25 but just wanted to be 100%. If you got the same programmer as I did, here is the setup. It could be a crappy cable design that has too much plastic at the end though so definitely try to finesse a connection. I read somewhere someone had that problem


    Attached Files:

    Mofoist, Jan 1, 2019
    #63
    Vasudev likes this.
  14. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    Bought a new clip, chip now detected.
    Not sure which 25 spi flash I should be on.
    Is it the 8mbyte/64Mbit or the 16mbyte?
    In the ch341a programmer software?
    Cheers in advance @Mofoist

    Basherwalls, Jan 3, 2019
    #64
    Vasudev and Mofoist like this.
  15. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    16/128 as 128 is listed on your chip. I'm watching the thread actively so fire away if you have questions

    Mofoist, Jan 3, 2019
    #65
  16. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    So yeah, read it, verify you have a good read, then make a backup copy of that file for a fail safe. Then proceed step by step as we talked about earlier

    Mofoist, Jan 3, 2019
    #66
  17. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    Cheers I just read and verified a 8 and 16(128) as I wasn’t sure.
    Now I have that file, I am tempted to wipe and install the 1.6.1 bios straight away (without cleaning the bin file I have - it’s saved so it’s safe after all) I know the 1.6.1 bios has the Intel ME on it for sure as it’s the update.
    If it doesn’t work, I could always put back on the cleaned or original bios as I have it saved.

    Basherwalls, Jan 3, 2019
    #67
  18. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    You're so close just go with the guide from here. Regardless of what BIOS you have/install, you are stuck with the corrupted ME region you currently have until you follow section D2 and fix it. Just go step by step and if you have any questions ask. I'm at work and have nothing to do so I'm watching this thread

    Mofoist, Jan 3, 2019
    #68
  19. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    I fixed it while still on 1.31 or whatever it was so I could at least boot fast

    Mofoist, Jan 3, 2019
    #69
  20. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    Okay, I will do the guide.

    Basherwalls, Jan 3, 2019
    #70
    Mofoist likes this.
  21. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    I do not get the run light on the usb when i plug in but I can detect the chip, I then get the run light when reading the chip and info is there after a read.
    Going to start the guide but reading and saving chip twice with different names just to be safe.

    Basherwalls, Jan 3, 2019
    #71
  22. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    Yeah, you're communicating with the chip and getting verified data so thats all that matters

    Mofoist, Jan 3, 2019
    #72
  23. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    @Mofoist which Intel me version did you use on bios 1.3.1?

    Basherwalls, Jan 3, 2019
    #73
  24. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    Mofoist, Jan 3, 2019
    #74
    Vasudev likes this.
  25. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    Windows Defender is going crazy with false detects on ME Analyzer for me. Just disable real time protection on Defender so that you can open ME Analyzer then drag the .bin to it

    Mofoist, Jan 3, 2019
    #75
    Vasudev likes this.
  26. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    Yes, I just allowed the threat

    Basherwalls, Jan 3, 2019
    #76
  27. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    So my version shows as 11.8.50.3456
    So do I download that one then?

    Basherwalls, Jan 3, 2019
    #77
  28. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    Grab the 11.8 repository pack and proceed with the guide. Almost there

    Mofoist, Jan 3, 2019
    #78
  29. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26

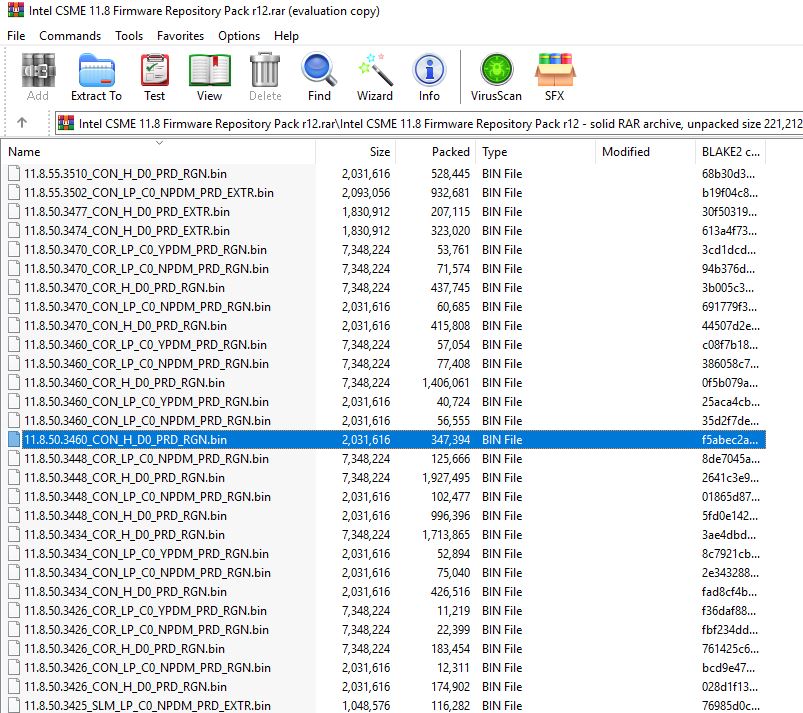

    Post a screenshot of your ME Analyzer info if you want to verify you picked the right ME file.

    This is the one I'd go with


    Attached Files:

    • ME.JPG
      File size:
      166.8 KB
      Views:
      50
    Last edited: Jan 3, 2019
    Mofoist, Jan 3, 2019
    #79
  30. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    @Basherwalls On step 6, remember you're actually working on a full SPI/BIOS image so disregard the note. (Sorry just preempting questions I had going through the guide)

    Mofoist, Jan 3, 2019
    #80
  31. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    mine was showing as CON LP in the analyser not Con H so I need the LP version.

    I am stuck at the D2 part 6 - the bit after the spoiler - do I need to change the additional settings?
    lol just read your post

    Basherwalls, Jan 3, 2019
    #81
  32. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    at the building image stage - I got a message about bootguard profile 5 - do I continue?
    its a yes or no

    Basherwalls, Jan 3, 2019
    #82
  33. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    I don't recall getting that...What does it say?

    Mofoist, Jan 3, 2019
    #83
  34. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    it was about bootguard settings I just clicked proceed and it built the image - in section 7 it was talking about platform intergrity but I did not have that heading, so I skipped as it said

    Basherwalls, Jan 3, 2019
    #84
  35. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    I skipped 7 as well. And I guess I just forgot about it but searching the guide forums thats a normal prompt and is safe to ignore

    Mofoist, Jan 3, 2019
    #85
  36. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    So you can skip 13 too

    Once you verify it's "configured" you should be done. Next is the scary part. Zero your chip and write your outimage back to it. Then reassemble, (dont miss any fan cables like I did in a hurry) and it should fire right up

    Mofoist, Jan 3, 2019
    #86
  37. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    okay, step 14 all good, showing configured.
    do I need to do step 15 or do I wipe and flash first?
    it looks like I flash, put system together and then run the command ftp -greset

    Basherwalls, Jan 3, 2019
    #87
  38. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    15 is for after you put it together again and it's running ok.

    Mofoist, Jan 3, 2019
    #88
  39. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    okay then - time to unleash 'Barry Allen' and Flash this mother (board)

    Basherwalls, Jan 3, 2019
    #89
  40. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    Godspeed lol

    Mofoist, Jan 3, 2019
    #90
  41. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    So I have read, do I now erase, then write?
    Did you use blank?

    Basherwalls, Jan 3, 2019
    #91
  42. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    Ah blank check before write.

    Basherwalls, Jan 3, 2019
    #92
  43. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    blank just checks that its blank. So, erase, write, and verify if you'd like...I didn't even verify though cause at that point it's either good or not

    Mofoist, Jan 3, 2019
    #93
  44. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    Black check complete, running the write now, then verify and then rebuild and fingers crossed. Lol
    Did you do the last step after the rebuild?
    Is it important for what we are doing?

    Basherwalls, Jan 3, 2019
    #94
  45. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    Yeah, it just forces a reboot so no big deal. After that, you'll be clear to update to 1.61. Ensure you don't have throttlestop or any underclocking/overclocking software active during BIOS updates as a general FYI

    Mofoist, Jan 3, 2019
    #95
  46. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    Nah, I use my HP Omen I7 7700k with GTX 1060 6gb for heavy gaming. The Alienware has been stuck in a drawer as I got pissed off with it. It may become the ultimate retro emulator..
    If it lives the next 30 minutes. Lol
    It’s nearly 3am here in Newcastle

    Basherwalls, Jan 3, 2019
    #96
  47. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    Ah nice. I have the 17R3 which as a 980M. I have a lot of downtime at work so I just go with high end laptops for gaming. Other than this problem, it's been a great machine.

    Mofoist, Jan 3, 2019
    #97
    Vasudev likes this.
  48. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    The suspense is killing me!

    Mofoist, Jan 3, 2019
    #98
  49. Basherwalls

    Basherwalls Notebook Guru

    Reputations:
    7
    Messages:
    55
    Likes Received:
    50
    Trophy Points:
    26
    The 13 R2 is at the bios screen. No beeps or errors.
    Everything looks good.
    Now to risk the windows loading and complete step 15 and then see if this thing shuts down.

    Basherwalls, Jan 3, 2019
    #99
    Vasudev likes this.
  50. Mofoist

    Mofoist Notebook Geek

    Reputations:
    45
    Messages:
    93
    Likes Received:
    63
    Trophy Points:
    26
    I did a shutdown to see if it worked before I did 15

    Mofoist, Jan 3, 2019
    #100
← Previous pageNext page →
