    Hwinfo fan control

    Discussion in '2015+ Alienware 13 / 15 / 17' started by ghost5225225, May 24, 2016.

  1. ghost5225225

    ghost5225225 Notebook Guru

    Reputations:
    0
    Messages:
    50
    Likes Received:
    3
    Trophy Points:
    16
    I want to control my Alienware 15 R1 fans using Hwinfo64. What values should I use and what should the temperature source be? Also are these temperatures normal for a laptop with Intel core i5 4210h and a nvidia GeForce 965m

    Idle
    Cpu: under 50'c
    Gpu: under 50'c

    Gaming
    Cpu: never goes above 80'c
    Gpu: never goes above 70'c

    ghost5225225, May 24, 2016
    #1
  2. JerseyBoy

    JerseyBoy Notebook Consultant

    Reputations:
    6
    Messages:
    241
    Likes Received:
    99
    Trophy Points:
    41
    JerseyBoy, May 24, 2016
    #2
  3. zergslayer69

    zergslayer69 Liquid Hz

    Reputations:
    62
    Messages:
    1,551
    Likes Received:
    91
    Trophy Points:
    66
    Also there's a line you add into ini so that the fan profile loads up upon program start but I don't have it on the top of my head.

    zergslayer69, May 24, 2016
    #3
    JerseyBoy likes this.
  4. ha1o2surfer

    ha1o2surfer Notebook Evangelist

    Reputations:
    75
    Messages:
    556
    Likes Received:
    121
    Trophy Points:
    56

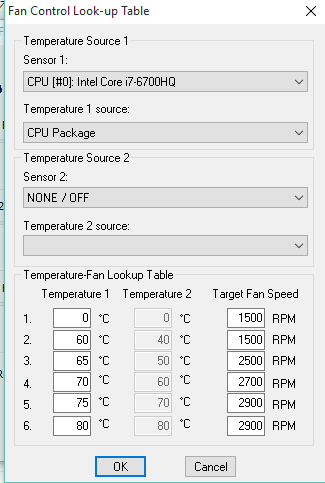

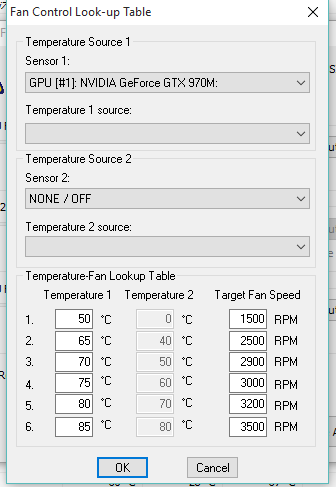

    This is what I use:

    [​IMG]

    [​IMG]

    ha1o2surfer, May 26, 2016
    #4
    JerseyBoy likes this.
  5. zergslayer69

    zergslayer69 Liquid Hz

    Reputations:
    62
    Messages:
    1,551
    Likes Received:
    91
    Trophy Points:
    66
    Some low rpm but your system won't die from it. I have mine incremental at 500 each notch up up to max 4500. Figured if it can hit 80 degrees it deserves faster fans.

    zergslayer69, May 26, 2016
    #5
    JerseyBoy likes this.
  6. ha1o2surfer

    ha1o2surfer Notebook Evangelist

    Reputations:
    75
    Messages:
    556
    Likes Received:
    121
    Trophy Points:
    56
    Well my system rarely gets up to 80c. I use the gallium thermal metal and I idle around 28-32c and load up to 75c with this fan profile. The laptop doesn't get loud until around 4k + RPM so with this fan table, it's really silent. I need this for when I'm in the office.

    ha1o2surfer, Jun 1, 2016
    #6
    JerseyBoy likes this.
