    Heat problems on Alienware 15 R3 7700HQ?

    Discussion in '2015+ Alienware 13 / 15 / 17' started by rasmusj78, Feb 9, 2017.

  1. rasmusj78

    rasmusj78 Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    1
    Trophy Points:
    6
    I've been reading that a lot of users have reported heat issues with their A15 R3. I don't know if I've got this issue as well. Under heavy load and monitoring with Hardware Monitor I can see the cores almost reaches 80 degrees Celsius under heavy load and the GPU (1070) reaching almost 58 degrees.

    Are these measurements worrying or normal for this computer? Should I be concerned and contact Dell about this issue?

    Thanks

    rasmusj78, Feb 9, 2017
    #1
  2. Galm

    Galm "Stand By, We're Analyzing The Situation!"

    Reputations:
    1,228
    Messages:
    5,696
    Likes Received:
    2,949
    Trophy Points:
    331
    Normal and fine. 80C isn't too worrying. It was like 95C that was the problem.

    Dell will no longer help unless temps are like 110C lol.

    Galm, Feb 9, 2017
    #2
    Vasudev and Spartan@HIDevolution like this.
  3. judal57

    judal57 Notebook Deity

    Reputations:
    274
    Messages:
    1,164
    Likes Received:
    650
    Trophy Points:
    131
    80°C is super fine with stock Dell paste, if you repaste it with something like thermal grizzly kryonaut, you will have 70°C or less at max

    judal57, Feb 9, 2017
    #3
    Vasudev likes this.
  4. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681
    I'd still recommend a repaste anyways.

    Mobius 1, Feb 10, 2017
    #4
    Vasudev and Spartan@HIDevolution like this.
  5. Spartan@HIDevolution

    Spartan@HIDevolution Company Representative

    Reputations:
    39,619
    Messages:
    23,562
    Likes Received:
    36,879
    Trophy Points:
    931
    +1

    Repaste with IC Diamond using the X Cross method:

    The X Cross method is the best in my experience as once the heatsink is fitted, it provides the maximum coverage with the least air bubbles

    [​IMG]


    Spartan@HIDevolution, Feb 10, 2017
    #5
    Vasudev and Matthew Gary like this.
  6. rasmusj78

    rasmusj78 Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    1
    Trophy Points:
    6
    Can't do that myself unfortunately

    rasmusj78, Feb 10, 2017
    #6
    Vasudev likes this.
  7. Mobius 1

    Mobius 1 Notebook Nobel Laureate

    Reputations:
    3,447
    Messages:
    9,069
    Likes Received:
    6,376
    Trophy Points:
    681

    Send it to one of team LHz's members and we can do it for you.

    Mobius 1, Feb 10, 2017
    #7
    Vasudev likes this.
  8. rasmusj78

    rasmusj78 Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    1
    Trophy Points:
    6
    I'm geographically located in Denmark, would be a little hard.

    rasmusj78, Feb 10, 2017
    #8
  9. rasmusj78

    rasmusj78 Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    1
    Trophy Points:
    6

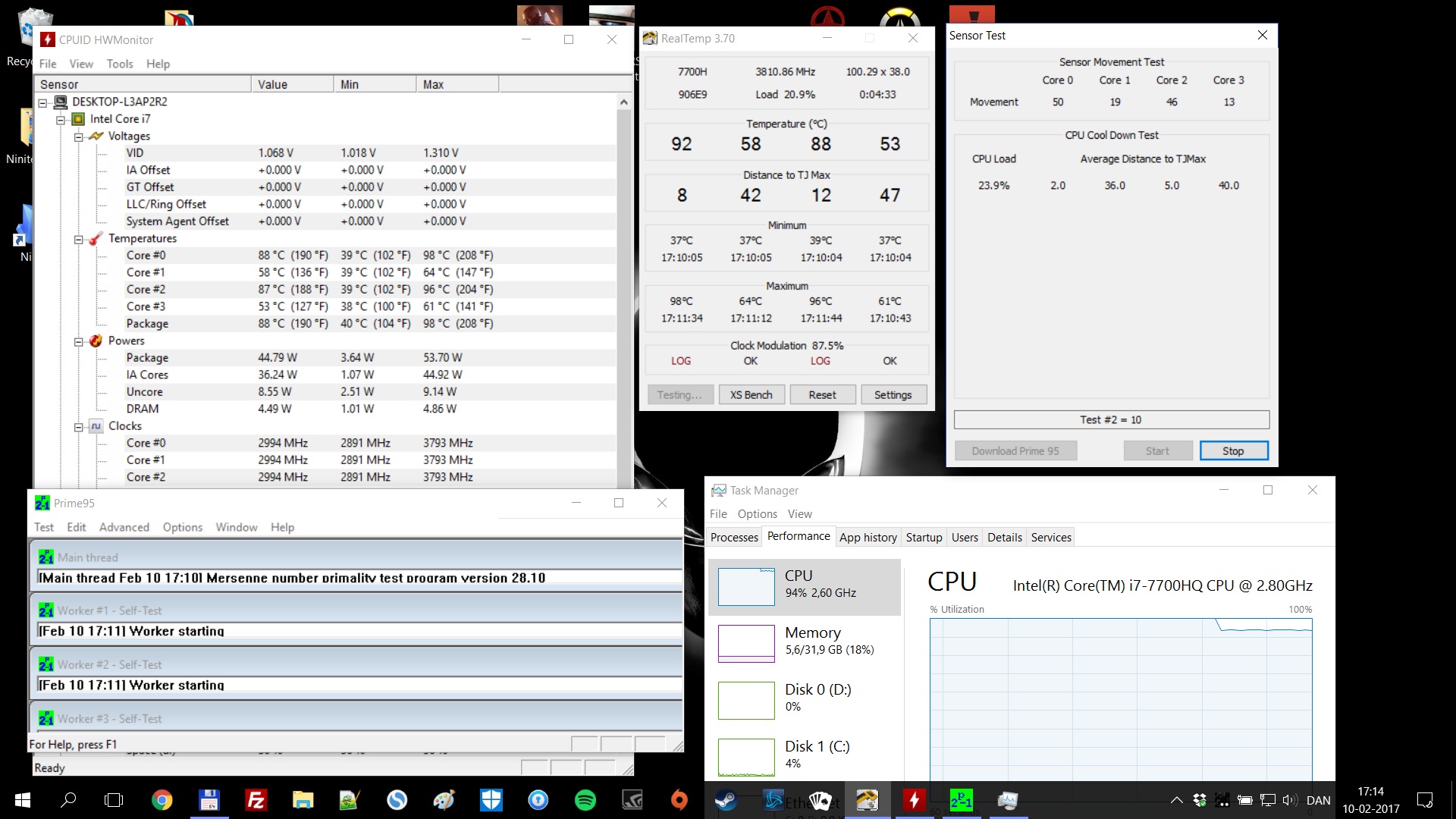

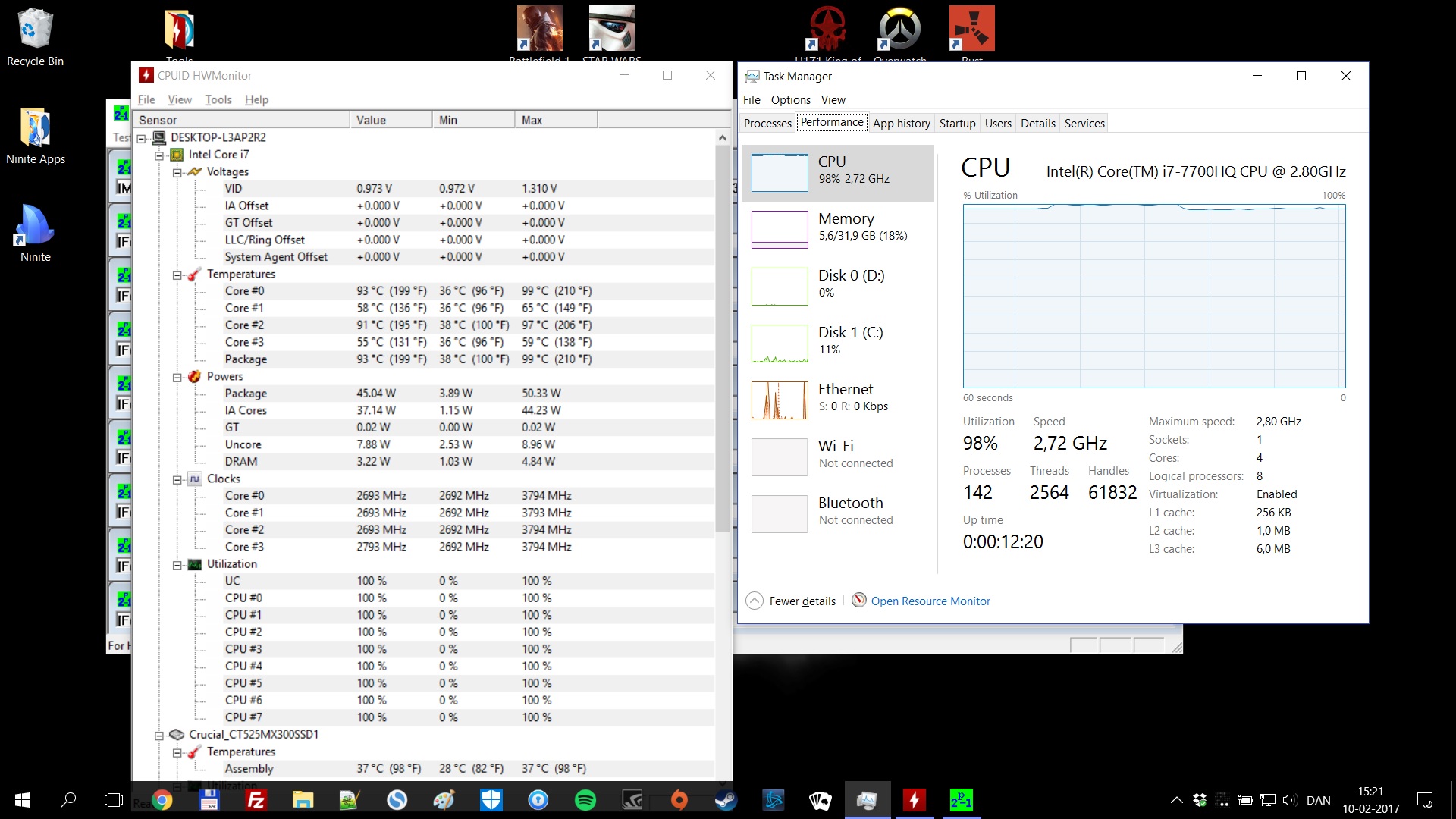

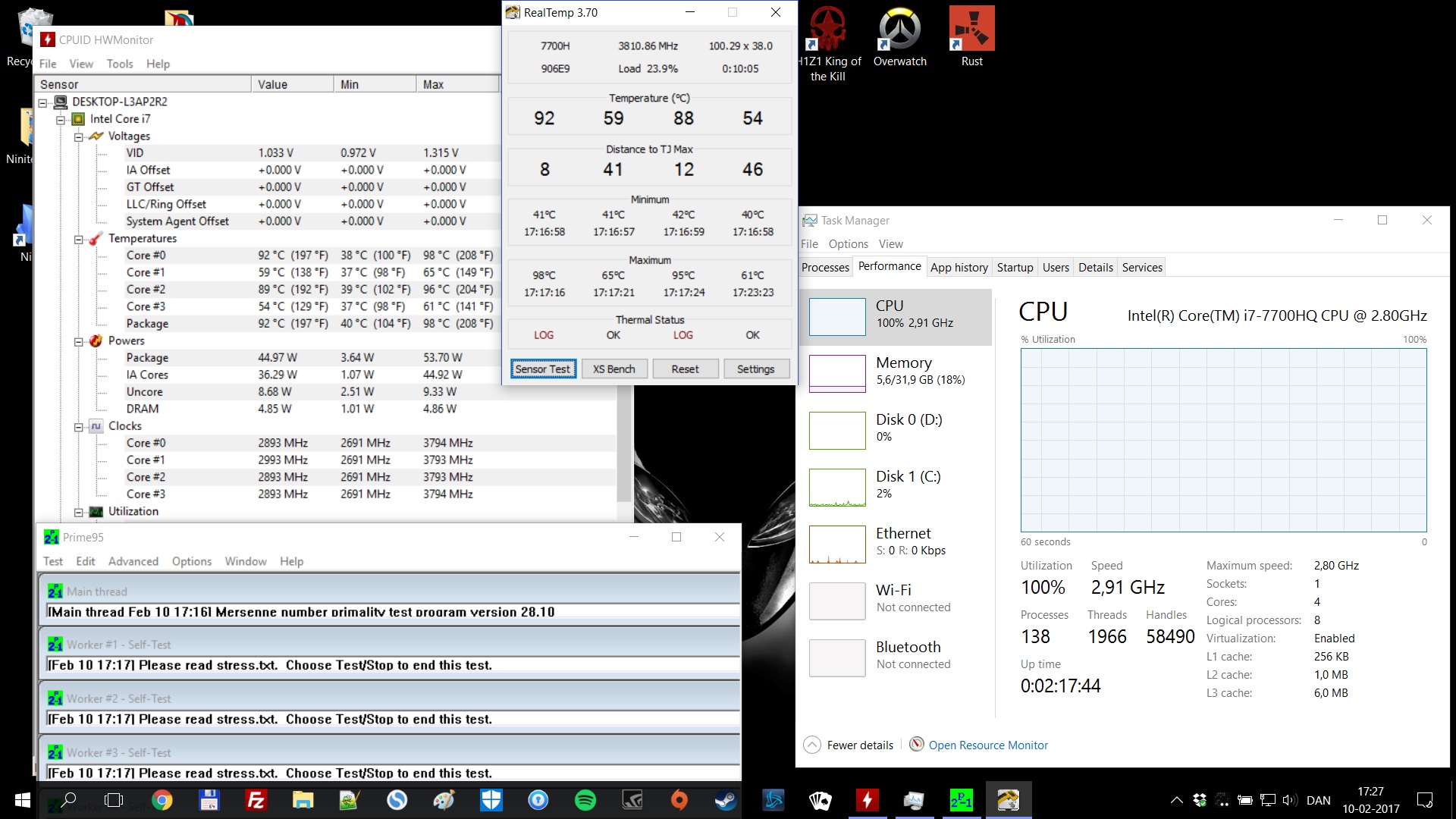

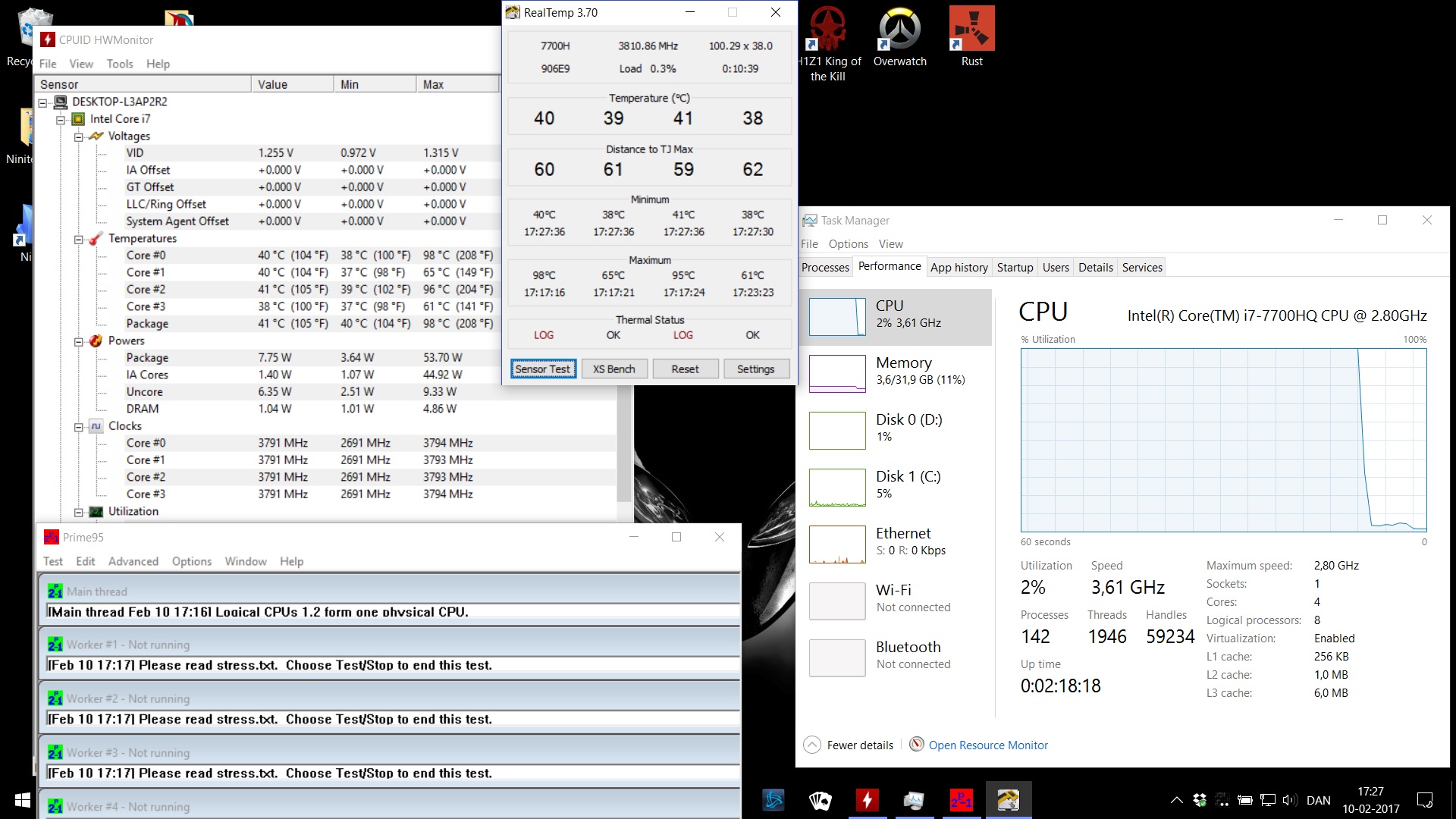

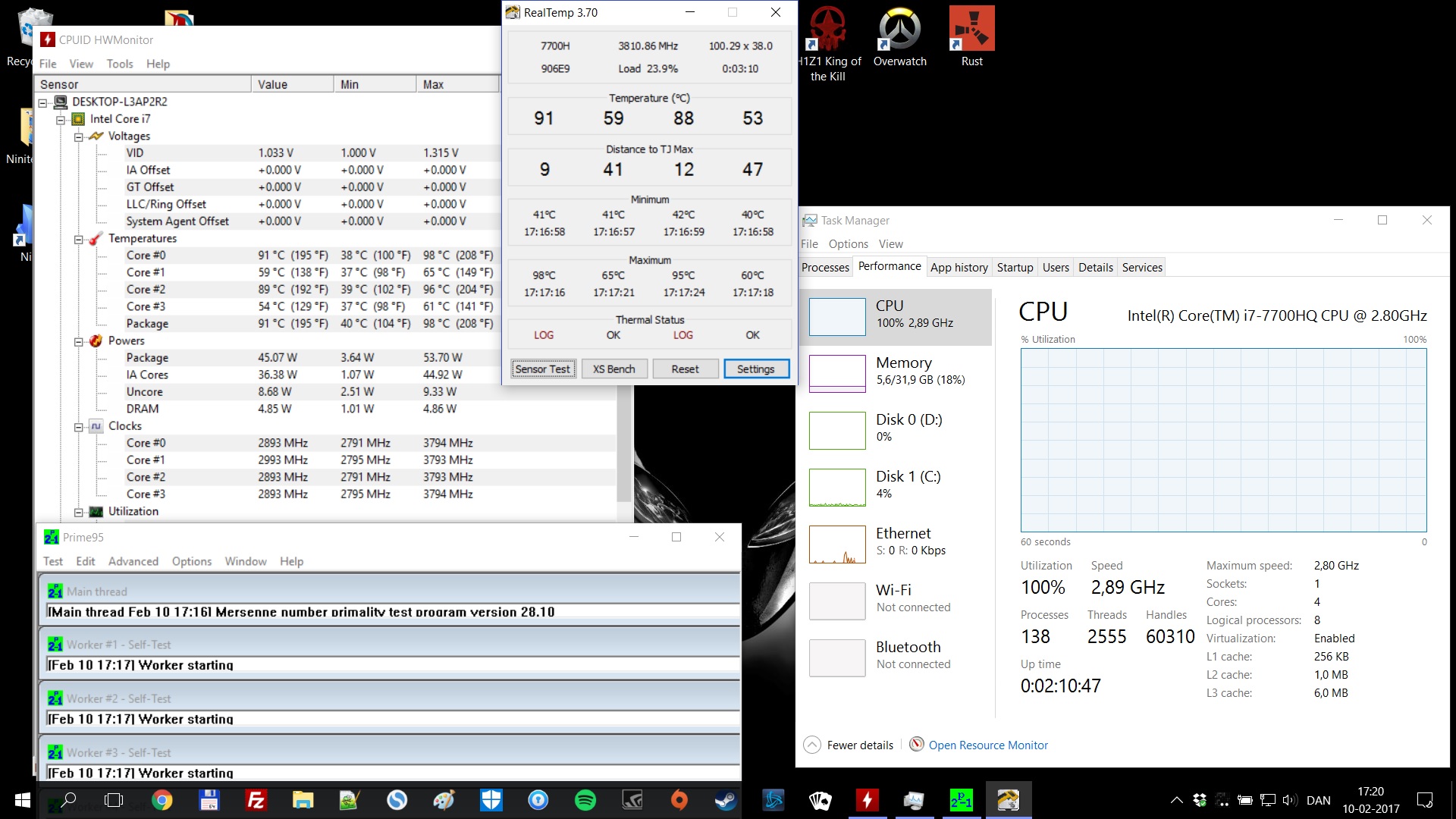

    I've done a lot of testing today in Prime95, HeavyLoad, AIDA64 and HWMonitor. I've attached the screenshots. To me it looks weird that 2 of the cores are running HOT while the other 2 is at descent temperature. Should I be concerned or is it just that the chipset is so new that the software doesn't support it yet?


    Attached Files:

    rasmusj78, Feb 10, 2017
    #9
  10. rasmusj78

    rasmusj78 Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    1
    Trophy Points:
    6

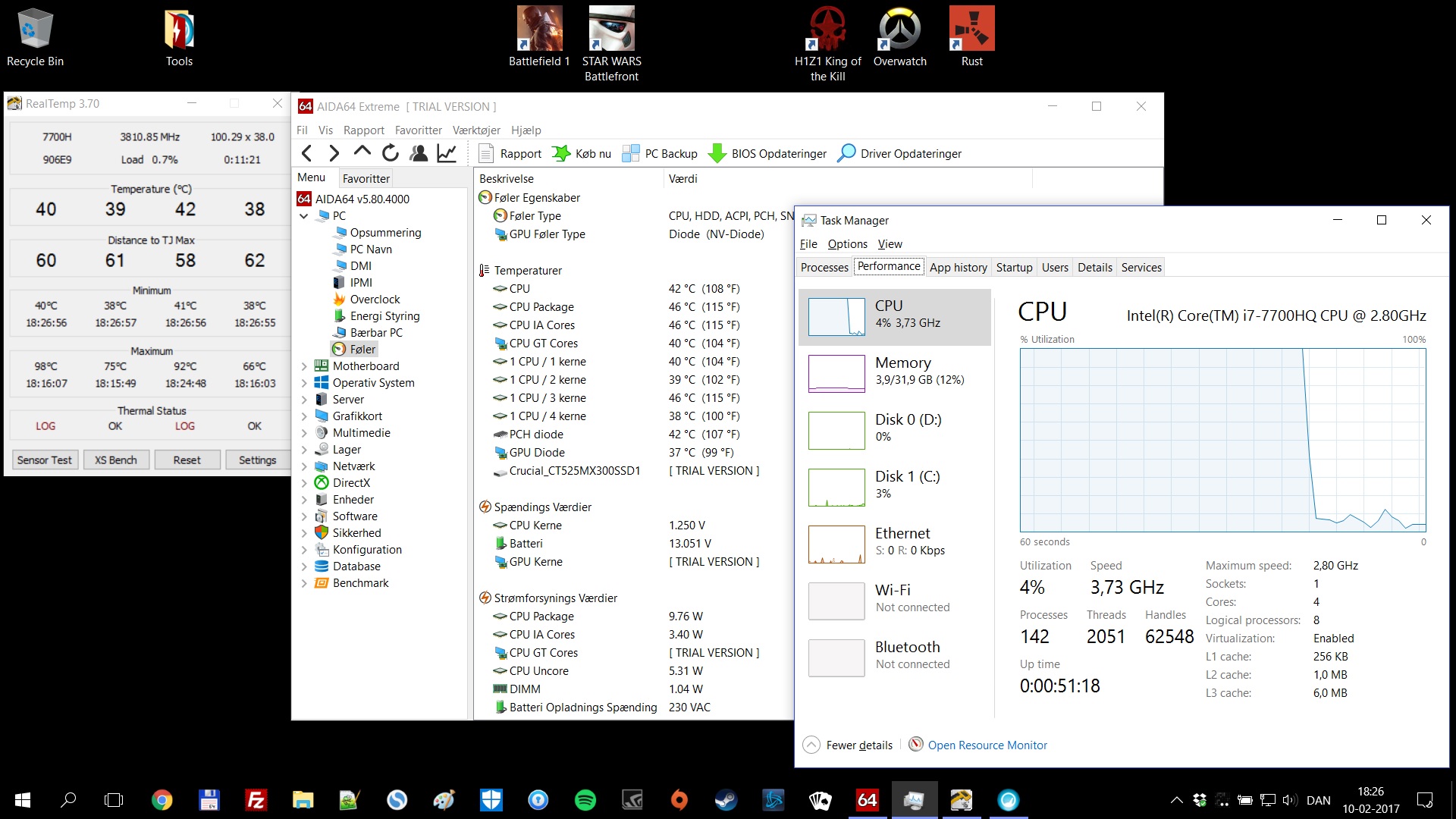

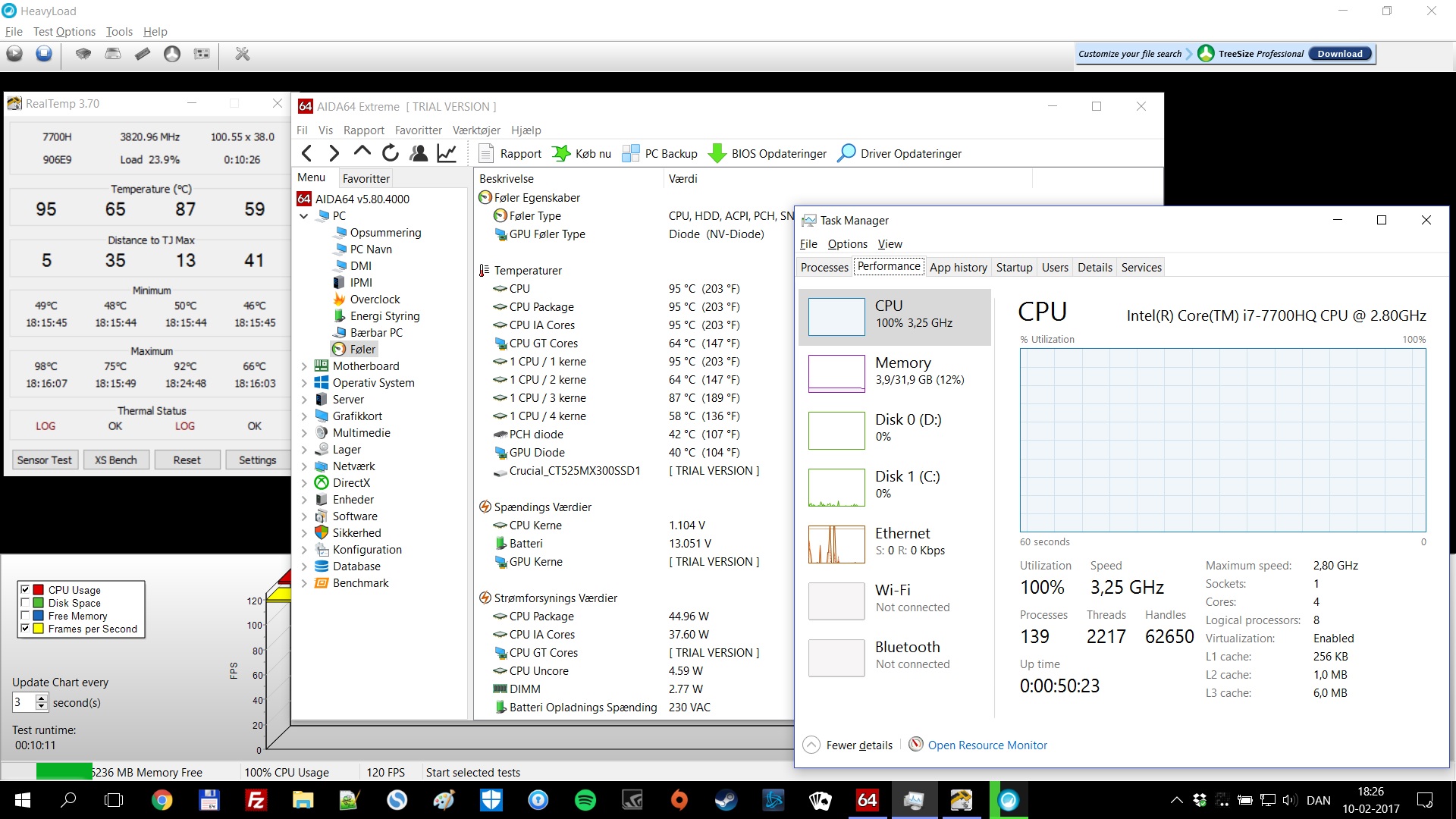

    These are the last two images of the test. The last one "stresstest-6" shows the temperature 2 seconds after the test finished. Goes from 90 degrees to 50 something. Is this normal?

    If I re-paste it, will that have a significant effect?


    Attached Files:

    rasmusj78, Feb 10, 2017
    #10
  11. cn555ic

    cn555ic Notebook Deity

    Reputations:
    149
    Messages:
    917
    Likes Received:
    470
    Trophy Points:
    76
    You have significant differences in core temps. I would definitely follow Iunlock repasting or send it to one of the Lhz guys to fix it

    cn555ic, Feb 10, 2017
    #11
    SimplyJ3sse likes this.
  12. rasmusj78

    rasmusj78 Notebook Enthusiast

    Reputations:
    0
    Messages:
    17
    Likes Received:
    1
    Trophy Points:
    6
    If I chose to repaste it, what about my warranty won't it be voided? Or should I just call Dell and tell them about my finding?

    rasmusj78, Feb 10, 2017
    #12
  13. cn555ic

    cn555ic Notebook Deity

    Reputations:
    149
    Messages:
    917
    Likes Received:
    470
    Trophy Points:
    76
    Many have repasted themselves or sent it to the guys in the forum. If you break something while repasting then yeah you would def void warranty

    cn555ic, Feb 11, 2017
    #13
  14. Carefree Engineer

    Carefree Engineer Notebook Enthusiast

    Reputations:
    0
    Messages:
    39
    Likes Received:
    1
    Trophy Points:
    16
    Just returned my pc as it was reaching 96 under heavy load. Got a replacement and it also had same issue. For now refunded my money and thinking that which one I should get now

    Carefree Engineer, Aug 7, 2017
    #14
